Twin Micro sign LED module

For mini signs 2-6cm depth

0.48w / 24V / 7000K white

waterproof IP67

HL-MSL-02-PW
1 Artikel Auf Lager
Nur noch wenige Teile verfügbar
32,00 £
38.40
with VAT)

(0,93 £ module)

zzgl. MwSt.

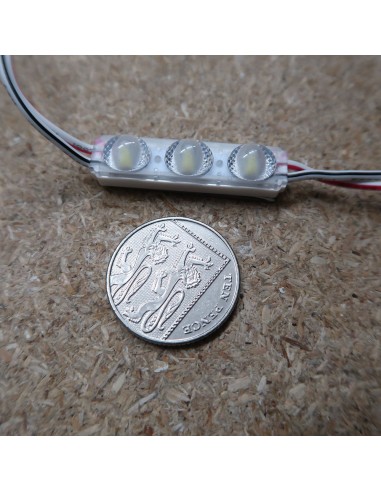

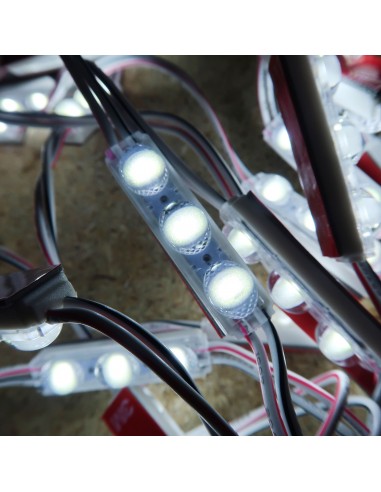

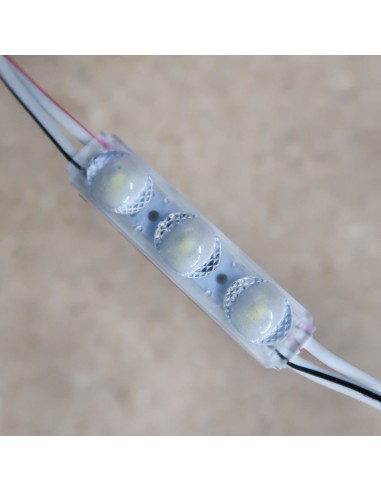

Twin Micro sign LED single LED module pure white 7000K 24V - 0.48W - IP67 (1 x string of 40)

Perfect for mini signs 2 to 6cm depth or any other lighting application that waterproof micro LEDs are needed.

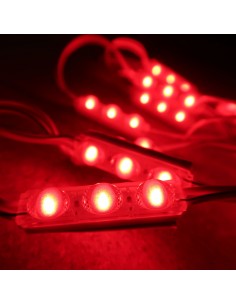

Micro Sign LEDs can be employed in the creation of illuminated signage and lettering, available in white, red, and amber, one two or 3 LEDs per module (check separate listings for other versions).

Fully sealed mini LEDs are weather resistant with IP67 rating, making them suitable for interior and exterior applications. LED chain for highlighting lines and edges and for backlighting complex contours, letters and symbols in signage applications.

Each module is powered by one high output 2835 LED

24V - 0.48W - 100 lumens per watt

Ultrasonic soldering technology

Elliptical 180*140°optic lens for uniform illumination

Dimension W/L/H 26x9x9mm

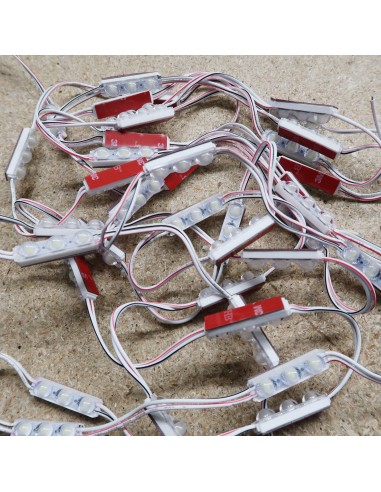

40 pcs per string

Maximum series connection is 40 modules, for the LED driver it is suggested using 20% additional wattage than the power consumption of connected modules; it is not recommended to have the power supply run at 100% of its capacity for any LED application. The power wire cross sectional area (between power supply and first module) should be calculated accordingly to avoid voltage drop.

Please download datasheet at the bottom of this page for more details

Price includes 40 modules (1 x string of 40)

Nominal life-time up to 50,000 h (L70 at ta 60 °C)

5 Years Warranty

Best for Sign Depth
2-6 cm
Hersteller
Hi-Line
LED Colour Space
3 SDCM
Leuchtfarbe
Pure White
Weißfarbtemperatur (CCT)
7000K
LED-Chip
SMD2835
LED Module Beam Angle
Elliptical 180*140° optic lens
LED Module Controllability
Constant Voltage driver
Max. No. of Modules per Chain
40 modules
Module Power Consumption
0.48 Watt
Schutzklasse (IP)
IP67 (Wasserdicht)
Betriebsspannung
24V DC
Spannungsart
Konstantspannung
Warranty
5 Years
