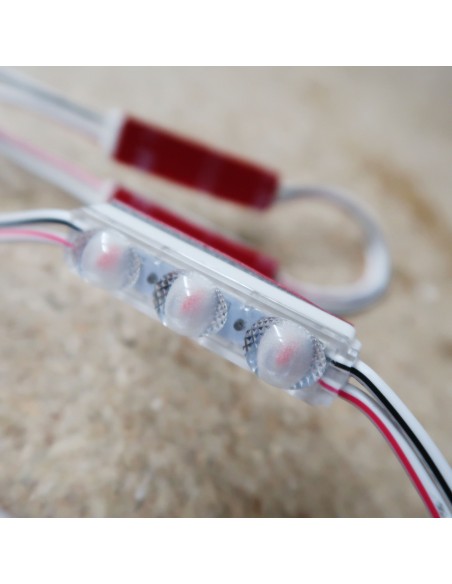

Red Micro sign triple LED module
For mini signs 2-6cm depth
0.72w / 24V / Red colour
12 Artikel Artikel
Achtung: Letzte verfügbare Teile!
|LED Colour Space||3 SDCM|
|Leistung (W)||0.72 watt per module|
|Schutzklasse (IP)||IP67 (Wasserdicht)|
|Best for Sign Depth||2-6 cm|
|LED Module Beam Angle||Elliptical 180*140° optic lens|
|LED Module Controllability||Constant Voltage driver|
|Max. No. of Modules per Chain||40 modules|
Micro Sign LEDs can be employed in the creation of illuminated signage and lettering, available in white, red, and amber, one two or 3 LEDs per module (check separate listings for other versions).
Fully sealed mini LEDs are weather resistant with IP67 rating, making them suitable for interior and exterior applications. LED chain for highlighting lines and edges and for backlighting complex contours, letters and symbols in signage applications.

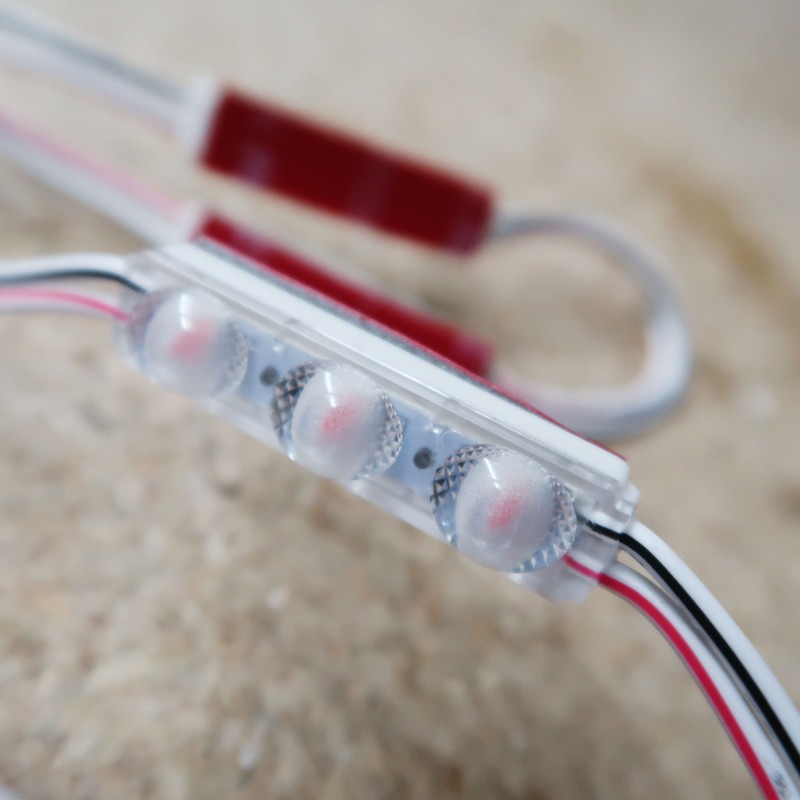

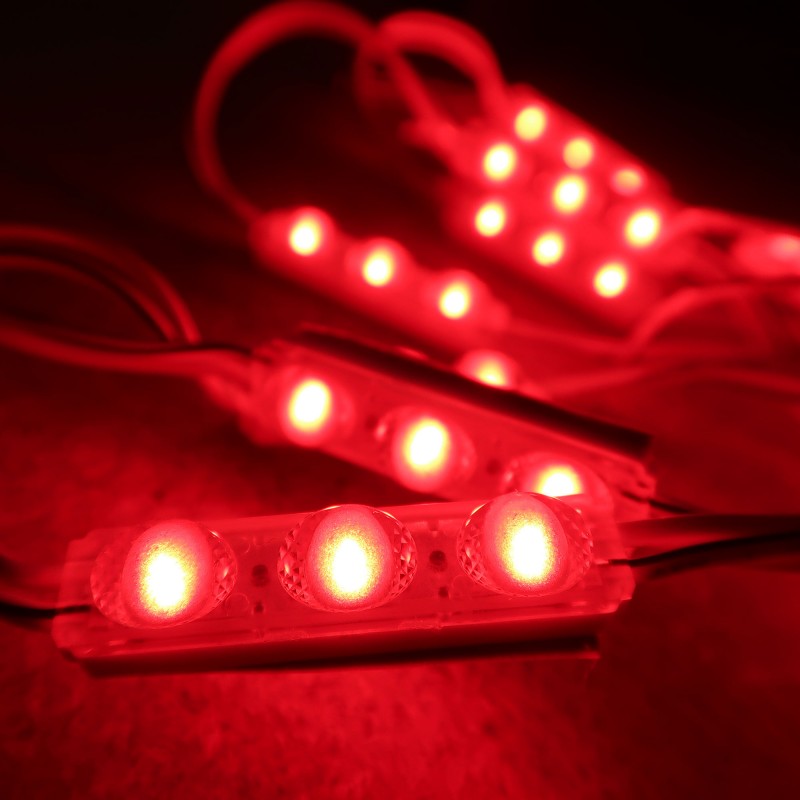

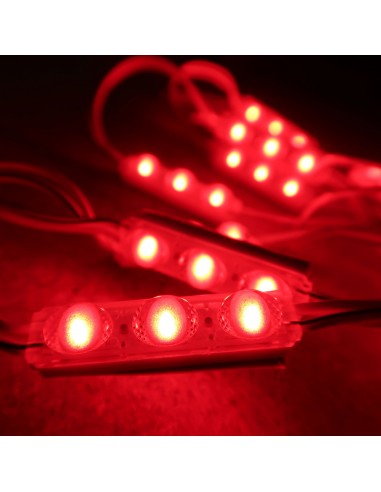

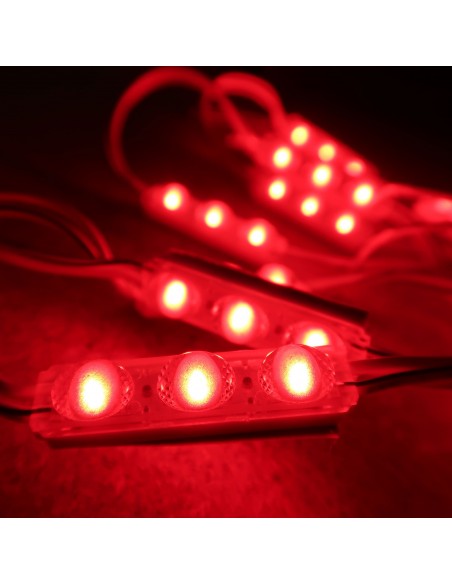

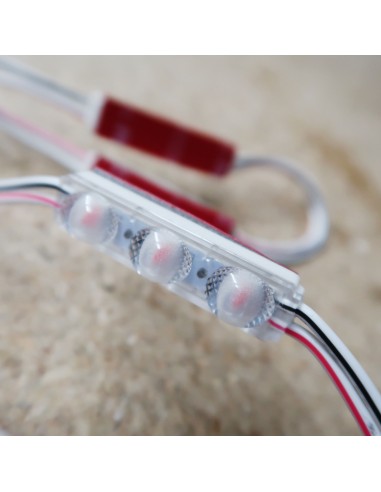

Each module is powered by 3 high output 2835 LED in Red colour
24V - 0.72W - 100 lumens per watt
Ultrasonic soldering technology
Elliptical 180*140°optic lens for uniform illumination

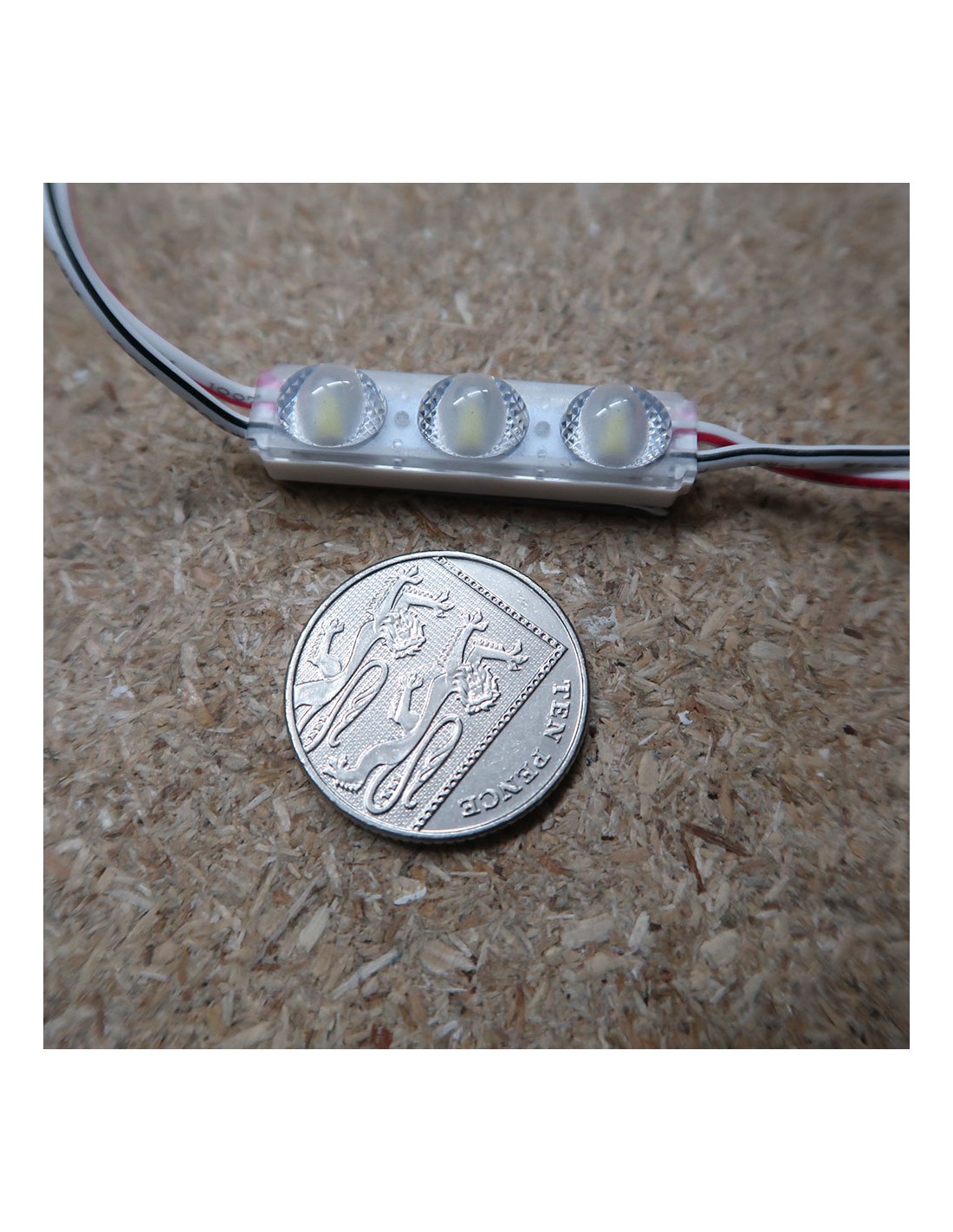

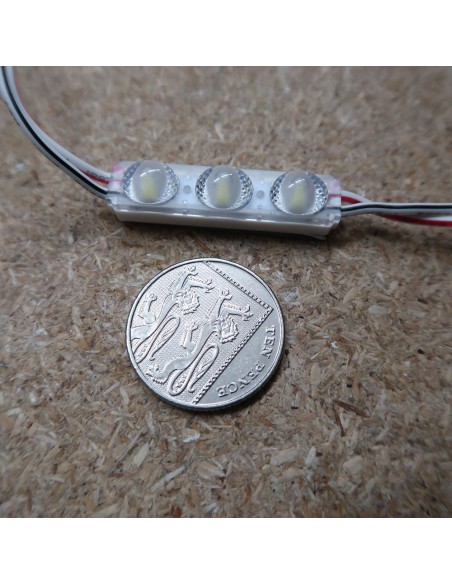

Module dimension W/L/H: 38x9x9mm

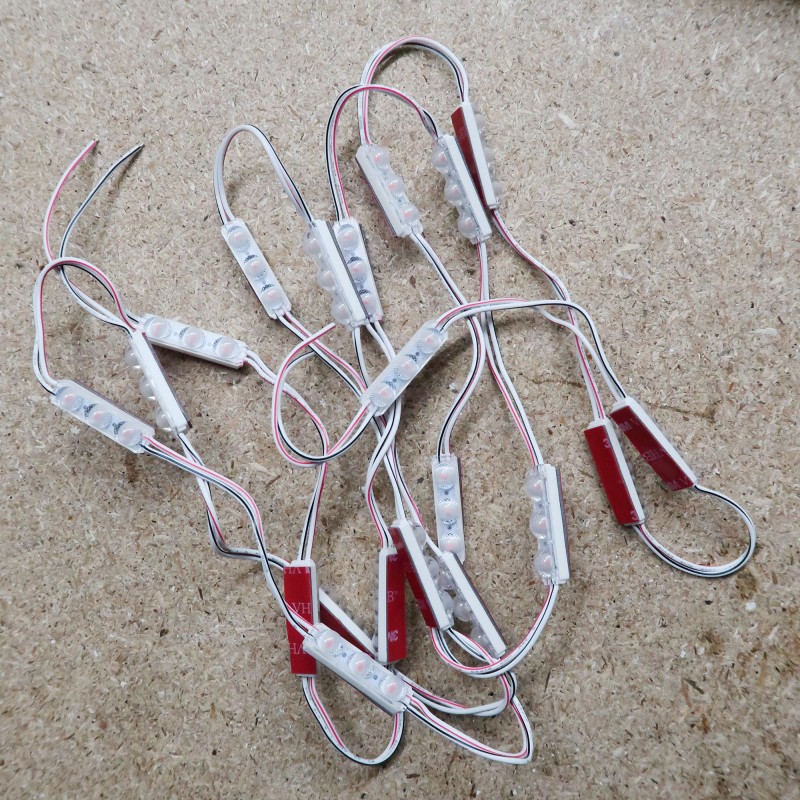

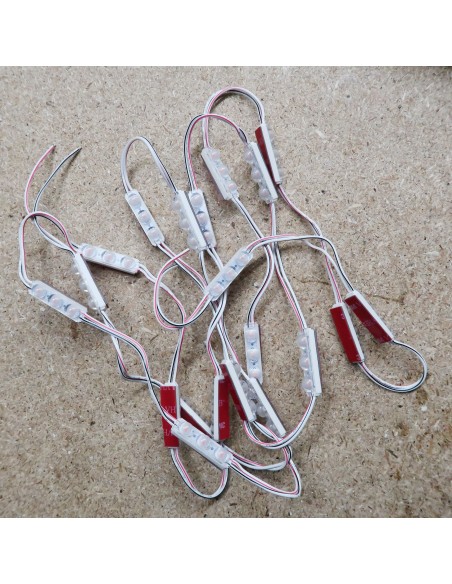

40 pcs per string
Maximum series connection is 40 modules, for the LED driver it is suggested using 20% additional wattage than the power consumption of connected modules; it is not recommended to have the power supply run at 100% of its capacity for any LED application. The power wire cross sectional area (between power supply and first module) should be calculated accordingly to avoid voltage drop.
Please download datasheet at the bottom of this page for more details
Price includes 40 modules (1 x string of 40)
Nominal life-time up to 50,000 h (L70 at ta 60 °C)
5 Years Warranty
