L Shape module 6500K CRI>90

12.5x13x71mm

To be used with Linkable under cabinet lighting

HL-UCL-L-CW
23 Artikel Auf Lager
26,42 £
31.70
with VAT)

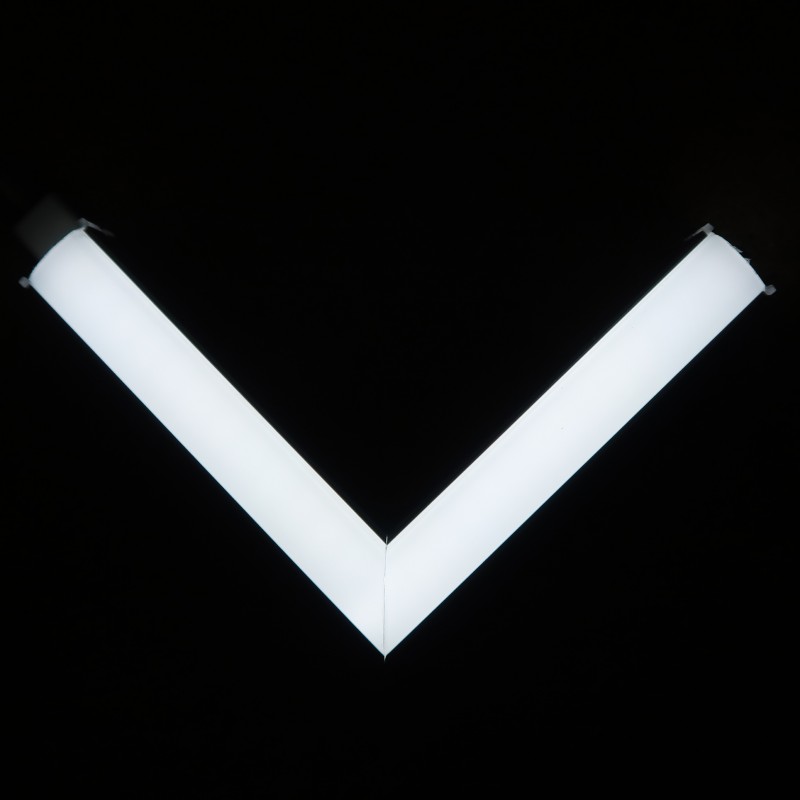

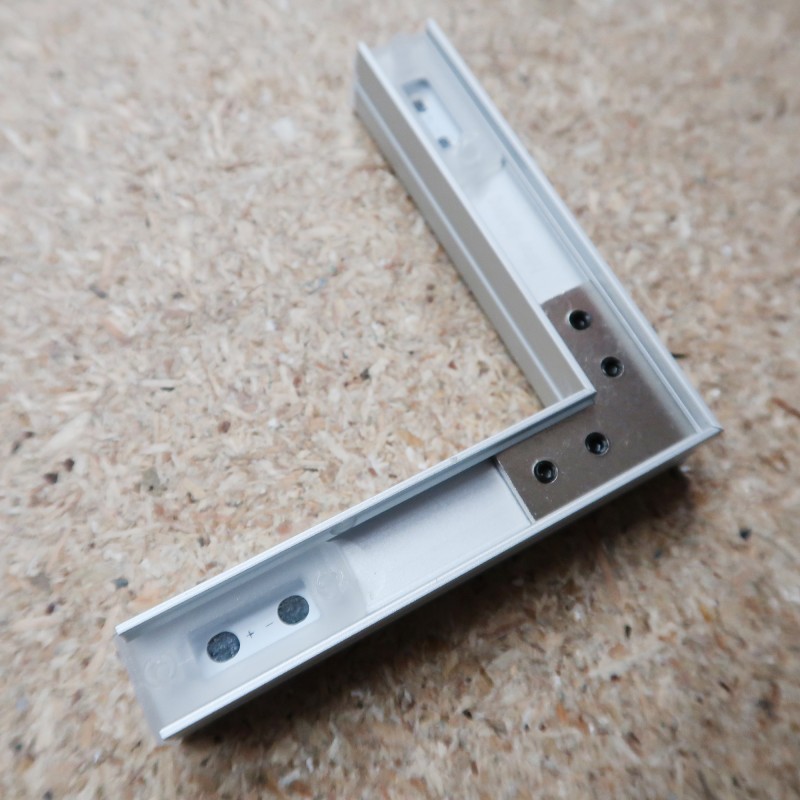

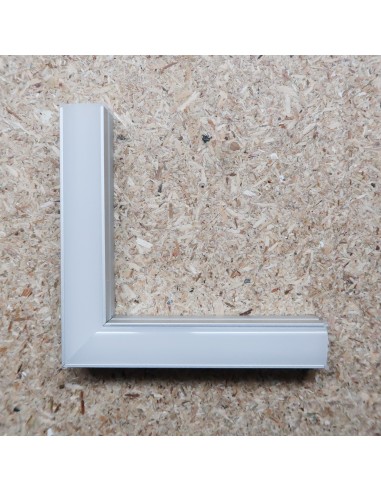

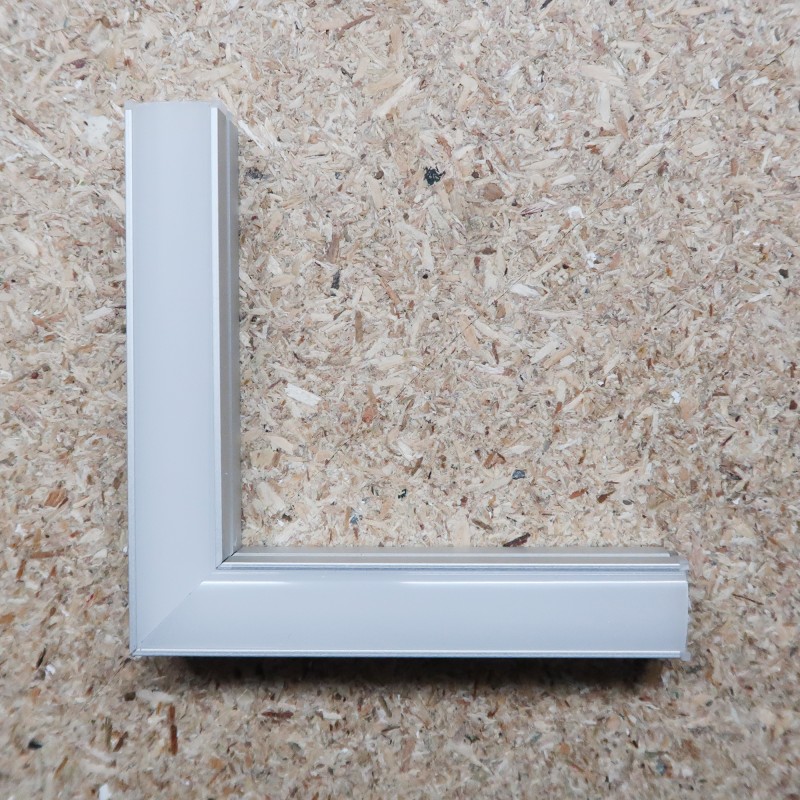

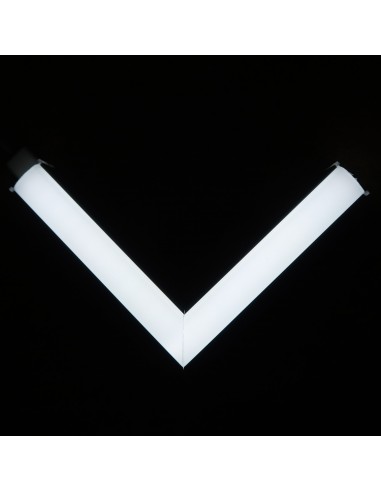

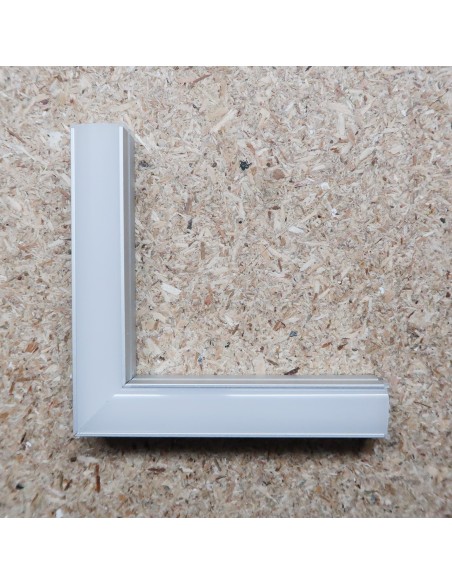

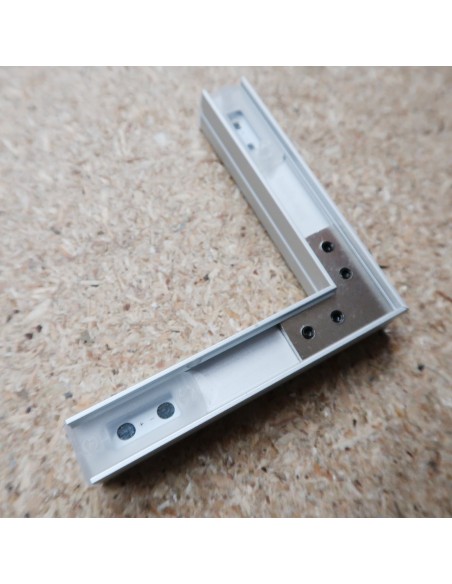

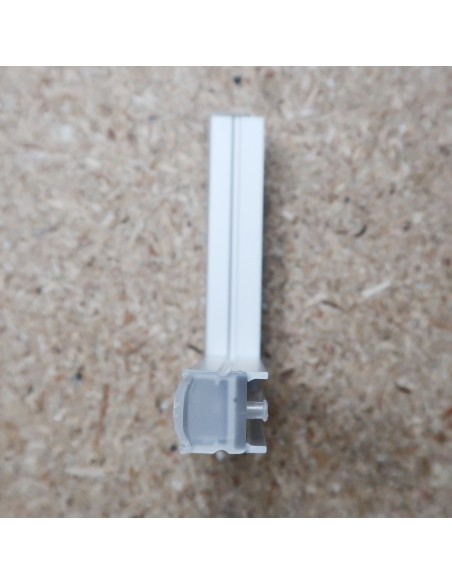

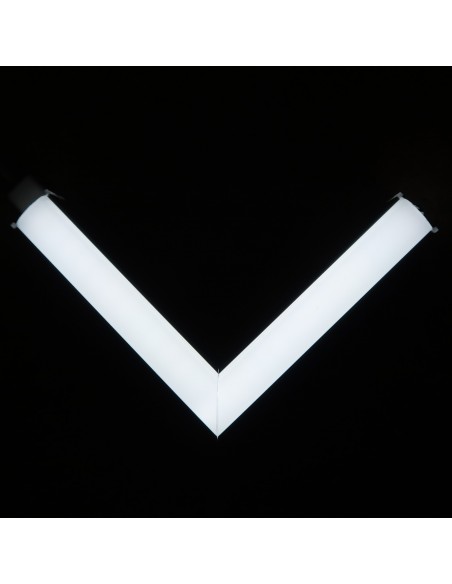

L Shape module slimline linkable under cabinet light cool white 6500K - CRI 90

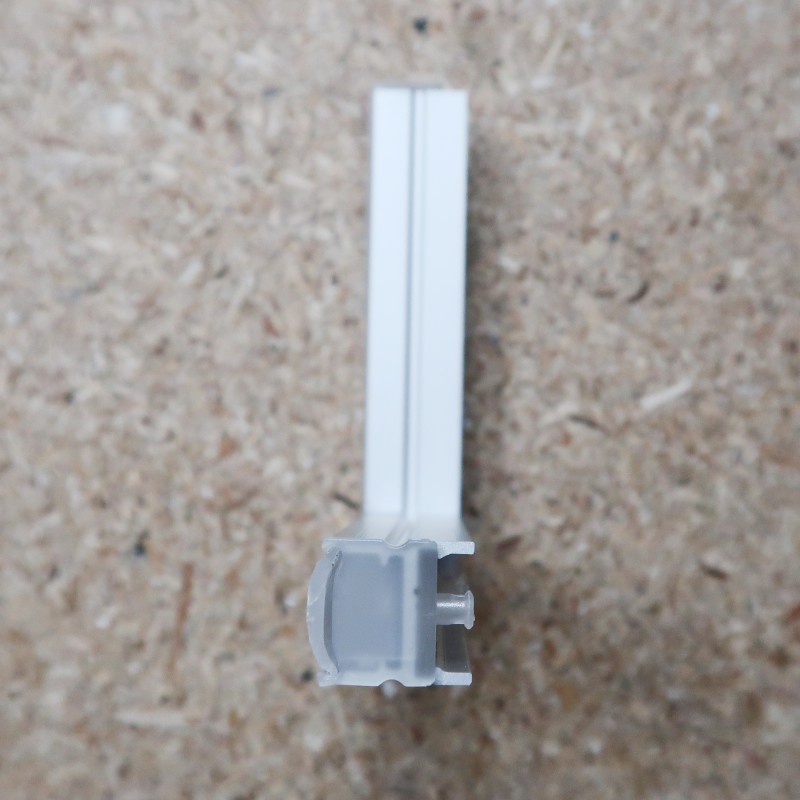

Dimensions: 12.5 x 13.5 x 71mm

Modular Design - No Soldering - No cutting - No DIY wiring - Ready to use Mini LED Aluminium profile modules without spotting

Note: This product is rated at 24V DC, additional power supply is required. You can power up to 10 linear meters in series connection (one power lead to be installed at any of the 2 ends of the circuit). Power connector lead should be purchased separately.

Optional Linear lengths 3000 or 6500K (available to buy separately):

100mm slim linear profile batten 24V/1W/65lm W12.5 x H13.5mm - 24 Epistar LEDs CRI>90 - IP20
192mm slim linear profile batten 24V/2W/130lm W12.5 x H13.5mm - 42 Epistar LEDs CRI>90 - IP20
285mm slim linear profile batten 24V/3W/195lm W12.5 x H13.5mm - 66 Epistar LEDs CRI>90 - IP20
565mm slim linear profile batten 24V/6W/390lm W12.5 x H13.5mm - 132 Epistar LEDs CRI>90 - IP20
845mm slim linear profile batten 24V/9W/580lm W12.5 x H13.5mm - 198 Epistar LEDs CRI>90 - IP20
1123mm slim linear profile batten 24V/12W/750lm W12.5 x H13.5mm - 264 Epistar LEDs CRI>90 - IP20

Optional LED modules 3000 or 6500K (available to buy separately):

X-Shape plug and play LED module 12.5 x 13 x 65mm
T-Shape plug and play LED module 12.5 x 13 x 65mm

Plug and Play connectors (available to buy separately):

Seamless 180 degrees connector joint 41 x 7.5mm
Power connector with cable 26.5 x 7.5mm
Extension cable connector 26.5 x 7.5mm

Ideal for kitchen units, pelmets furniture, open plan offices, classrooms, corridors and retail premises

3 years Warranty

Hersteller
Hi-Line
Leuchtfarbe
Kaltweiß
Farbwidergabeindex-CRI-ra
Ra - mehr als 90
Weißfarbtemperatur (CCT)
6500K
LED-Chip
SMD 2216
Module built-in driving method
Constant Current
Schutzklasse (IP)
IP20 (Nichtwasserdicht)
Betriebsspannung
24V DC
Spannungsart
Konstantspannung
Warranty
3 Years
