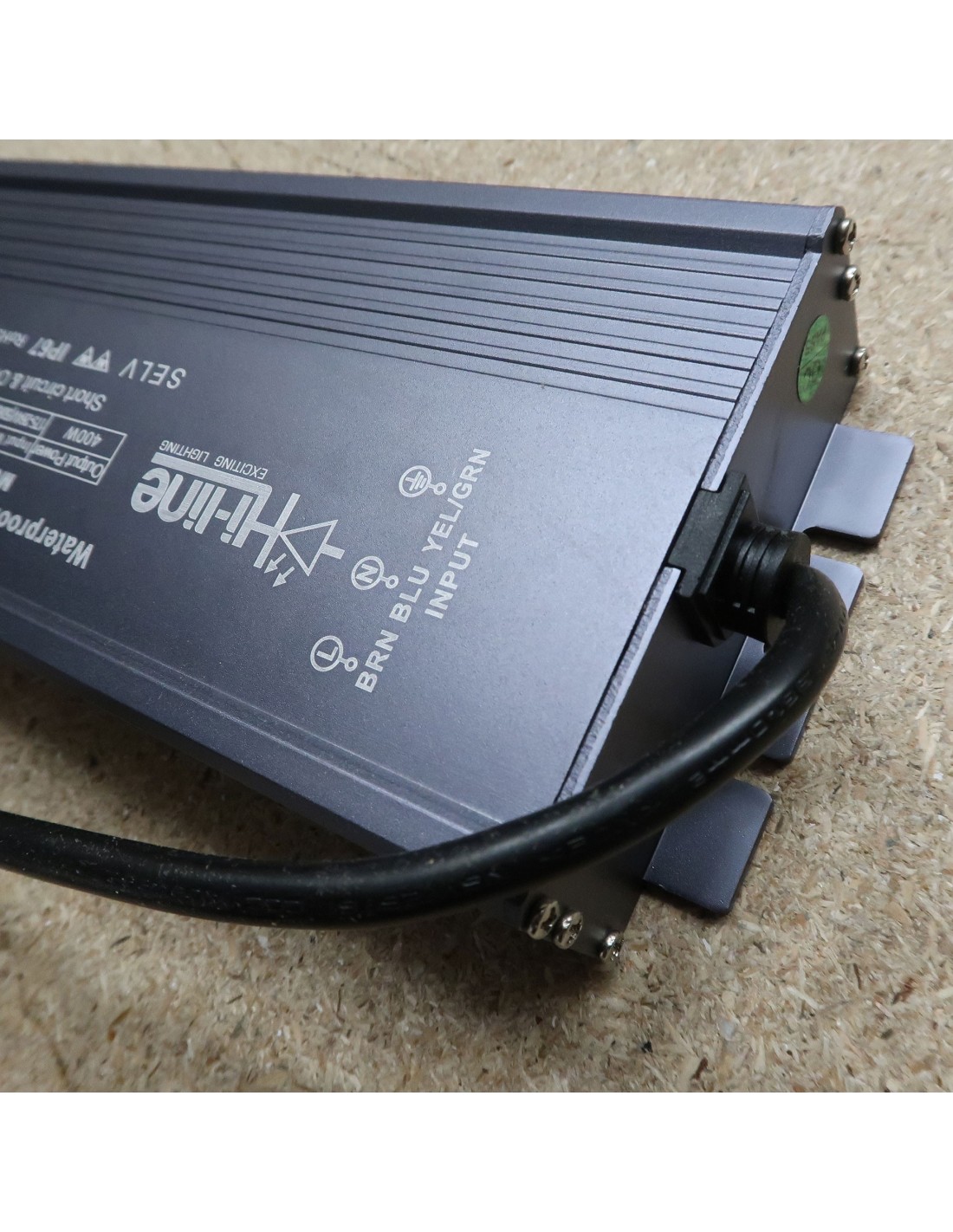

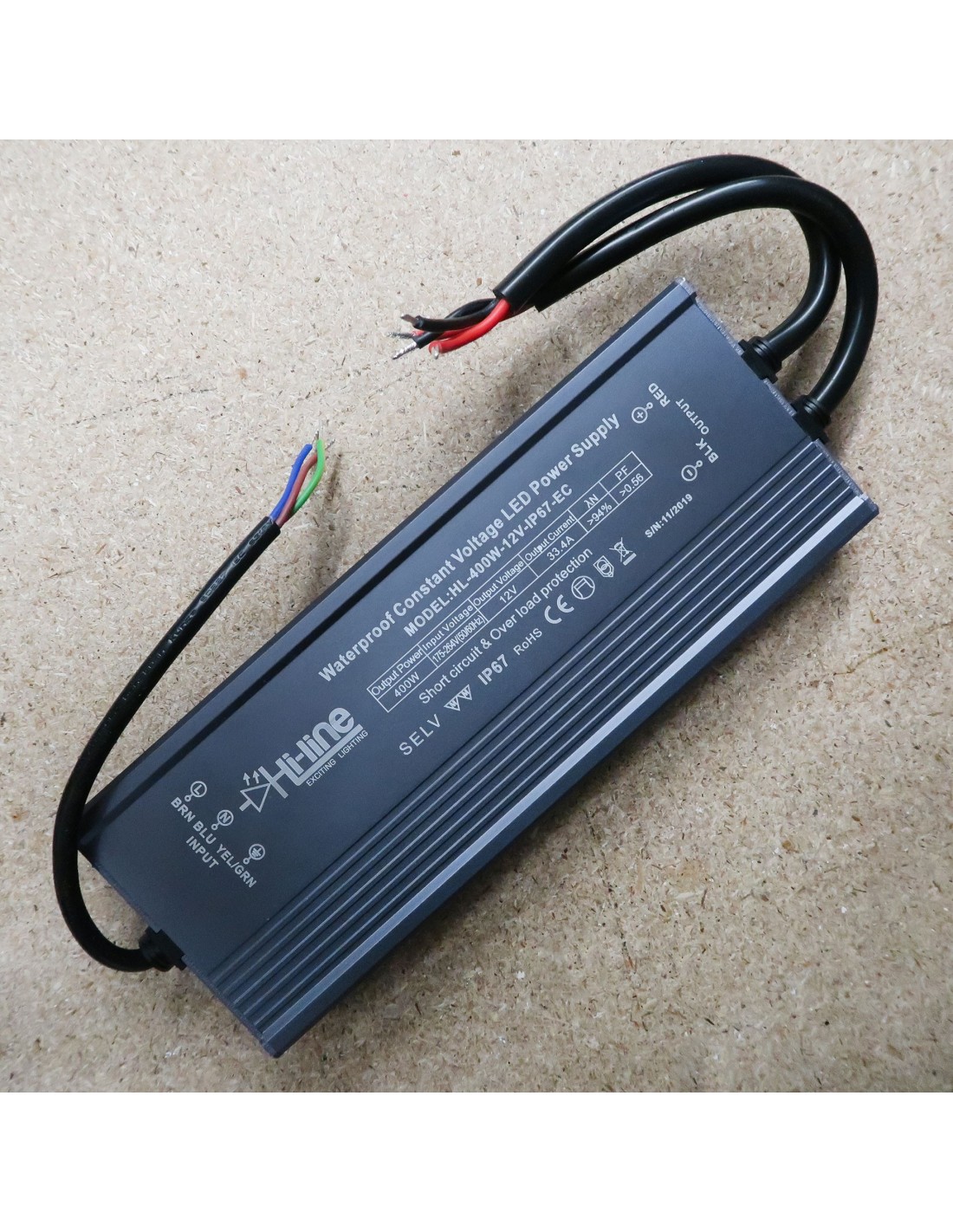

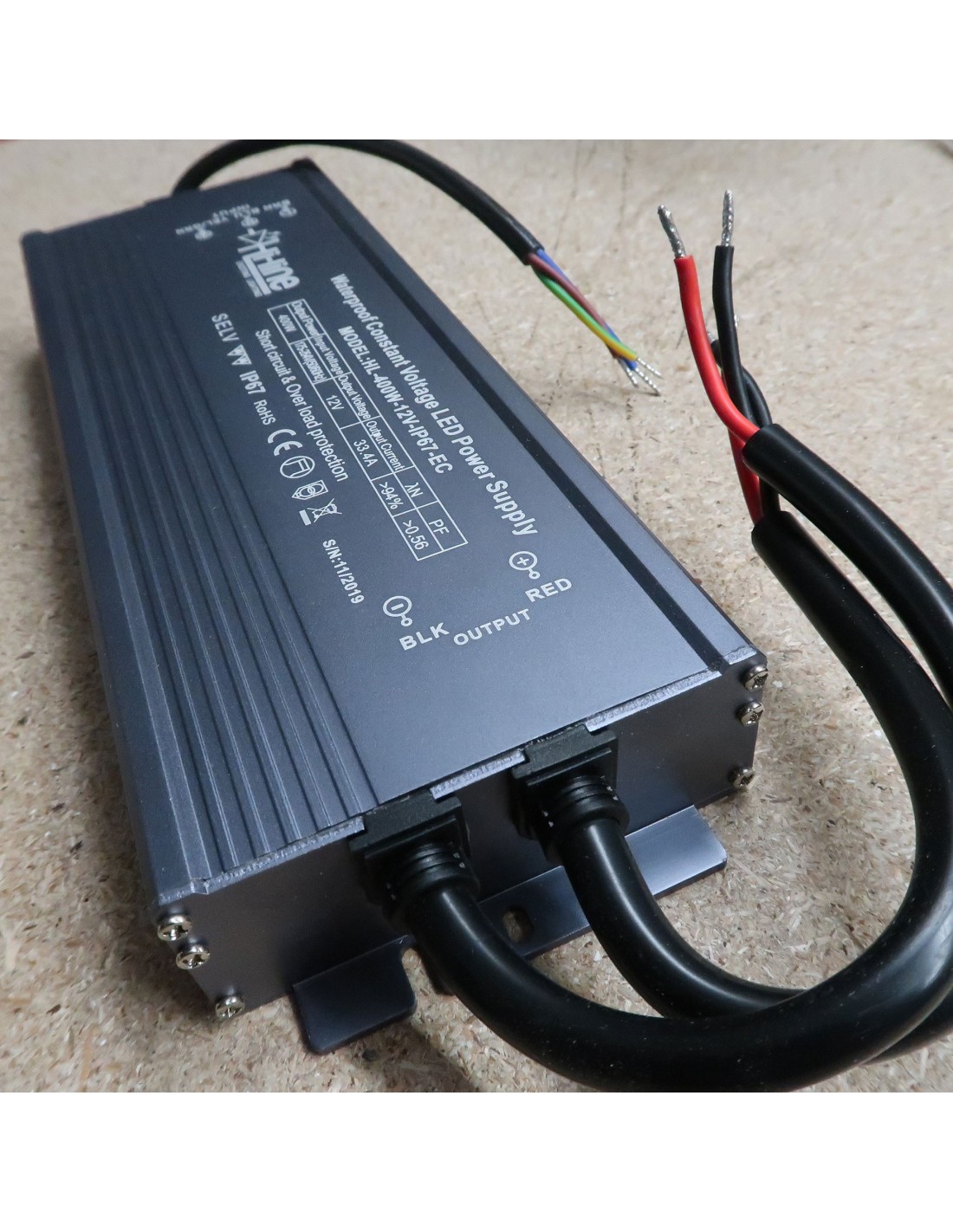

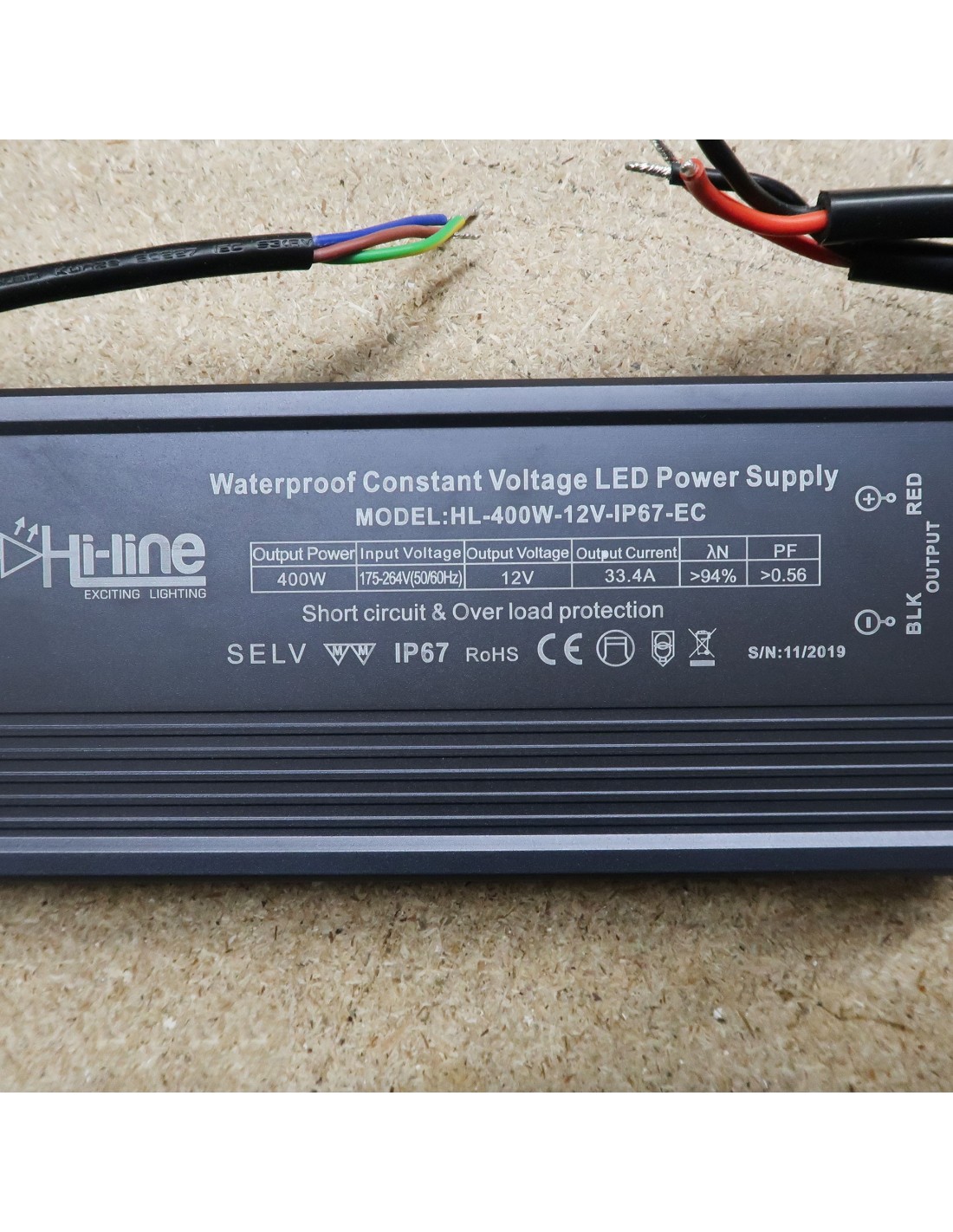

LED Driver 400W 12V IP67 high efficiency constant voltage (EC Series)

High efficiency Series LED Driver 400W

Input: 175-264V AC

Output: 12V/33.4A

Rating: IP67

Constant Voltage Type

Suitable for LED Strips

5 years Warranty

HL-400W-12V-IP67-EC-5Y
12 Artikel Auf Lager
Versand am Gleichen Tag
80,00 £



12 Volts High Efficiency Series constant voltage LED driver 400 Watt IP67 - 5 Years Warranty.

This is a highly specified switch mode power supply using the best electronic components in the market.

Non-dimmable LED Driver suitable for LED Strips of total power consumption up to 400W.

It is recommended to calculate 20% more than the tape power consumption.

LED Driver 400W/24V Suitable for LED Strips

Input: 175~264V AC (50Hz)

Output: 12V/33.4 Amps

Rating: IP67 (Waterproof)

Power factor: >0.56

Efficiency: >94%

Dimensions: L290*W100*H38 mm

Weight: 2.15 Kg

SELV, CE & RoHS certified

Warranty offered for the LED driver is 5 years



___________________________

Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller (sold separately).

For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller (sold separately).

___________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.

____________________________

For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.

Betriebsspannung
12V DC
Leistung (W)
400 W
Schutzklasse (IP)
IP67 (Wasserdicht)
Type
Nicht dimmbar
Spannungsart
Konstantspannung
Warranty
5 Years
Hersteller
