Key Features:

  • Adjustable fanless LED power supply
  • DIP switch - 4 Preset brightness levels
  • Voltage: 24V DC Output
  • 400 Watt / 24V DC
  • Warranty: 3 Year Warranty
HL-400W-24V-IP20-EC
28 Artikel Auf Lager
Versand am Gleichen Tag
45,00 £
54.00
with VAT)

Menge Stückpreis Sie sparen
25 42,75 £ 56,25 £
50 40,50 £ 225,00 £


Adjustable Fanless LED power supply 400W 24V constant voltage Driver IP20 - Programmable 24V output functions via DIP switch

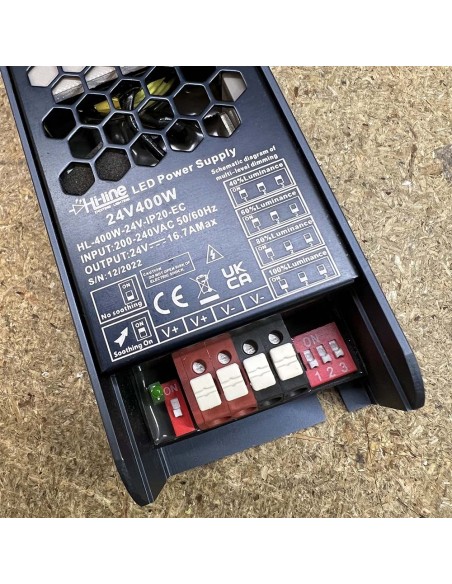

Soft start to full brightness and a DIP Switch to choose your favourite brightness adjustment from 4 preset levels (40%, 60%, 80%, 100%) and turn on or off fading/soft start/soothing. A preset brightness level can be set, to which the LED driver will always return to when lights are switched ON

Adjustable non dimmable LED Driver suitable for 24V LED Strips of total power consumption up to 400W.

It is recommended to calculate 20% more than the tape power consumption to cover losses of the circuit and efficiency of the power supply.

Note: This is high efficiency economy series LED driver. If you prefer lower in-rush current and higher power factor products, then consider our premium series drivers instead. Installers should be aware of in-rush current and the type of MCB required in such cases. (If soft Start DIP switch is ON will reduce inrush current)

LED Driver 400W/24V - Suitable for LED Strips

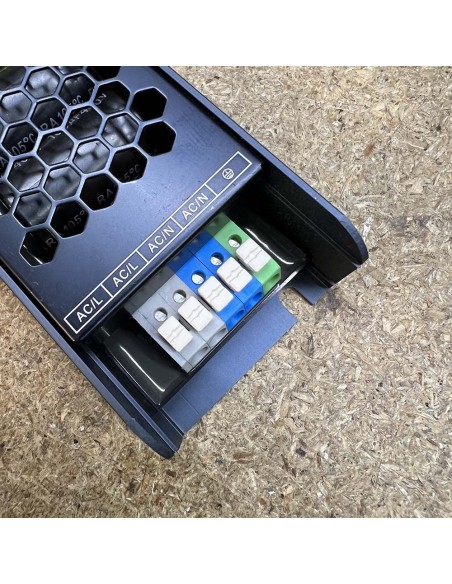

Input: 200~240V AC (50/60 Hz)

Output: 24V / 16.66 Amps

Start-up Time (Typ): 650ms/240VAC

Ripple & Noise: ≤240mV

Power factor: PF>0.6

Efficiency (typ.): 92%

Inrush current(typ.): Cold start 70A at 240Vac
(If soft Start DIP switch is ON will reduce inrush current)

Leakage current: Max. 0.5mA

Protection: short circuit/over load/over voltage/over temperature

Rating: IP20 (Non-Waterproof)

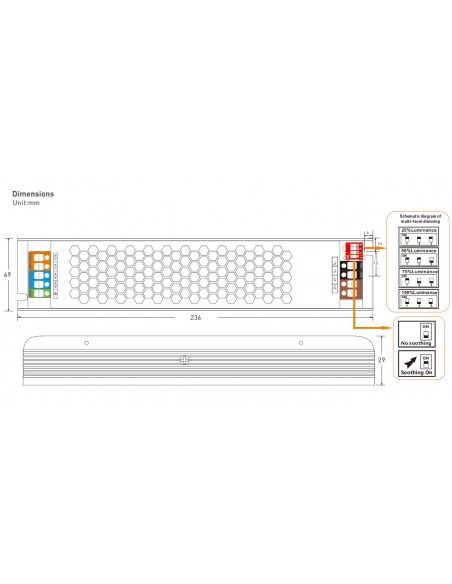

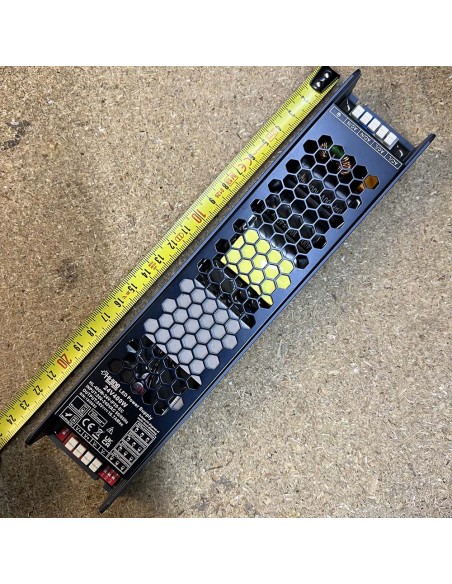

Dimensions: 236*49*29mm (LxWxH)

Weight: 468g

Warranty offered for the LED driver is 3 years

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

Looking for Related Products or Accessories?

Click the 'Related Products' tab below the product description to find compatible LED strips, drivers, and accessories. For technical data or installation guides, check out the 'Attachment' tab for available PDFs. To refine your search further, use our "REFINE BY" filter system available when browsing any product category.

Hersteller
Hi-Line
Leistung (W)
400 W
Schutzklasse (IP)
IP20 (Nichtwasserdicht)
Type
Nicht dimmbar
Betriebsspannung
24V DC
Spannungsart
Konstantspannung
Warranty
3 Years
