High efficiency Series LED Driver 400W / 24V
Input: 175-264V AC
Constant Voltage Type
Suitable for LED Strips
5 years Warranty
64 Artikel Artikel
Versand am Gleichen Tag
Achtung: Letzte verfügbare Teile!
|Leistung (W)||400 W|
|Schutzklasse (IP)||IP67 (Wasserdicht)|
This is a highly specified switch mode power supply using the best electronic components in the market.
Non-dimmable LED Driver suitable for LED Strips of total power consumption up to 400W.
It is recommended to calculate 20% more than the tape power consumption.
LED Driver 400W/24V Suitable for LED Strips
Input: 175~264V AC (50Hz)
Output: 24V/16.7 Amps
Rating: IP67 (Waterproof)
Power factor: >0.56

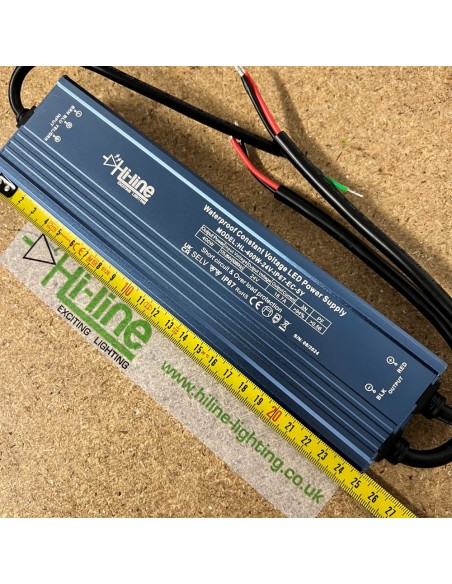

Dimensions: L290*W100*H38 mm
Weight: 2.15 Kg
SELV, CE & RoHS certified
Warranty offered for the LED driver is 5 years
Note that LED strips dimming is possible if this driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller (sold separately).
For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller (sold separately).
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
The table below shows the maximum LED strip length, which can be operated with this LED driver.
To consider the best power supply performance, 20% was deducted from the maximum strip length in the table below.
For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.
