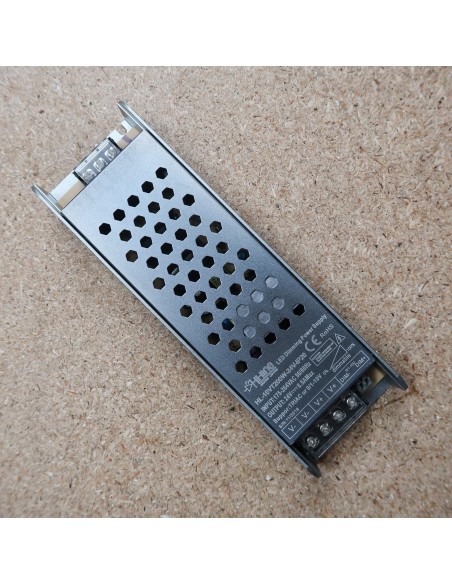

Dimmable LED Driver 200W 24V Hybrid Series (Triac or 0/1-10V) IP20

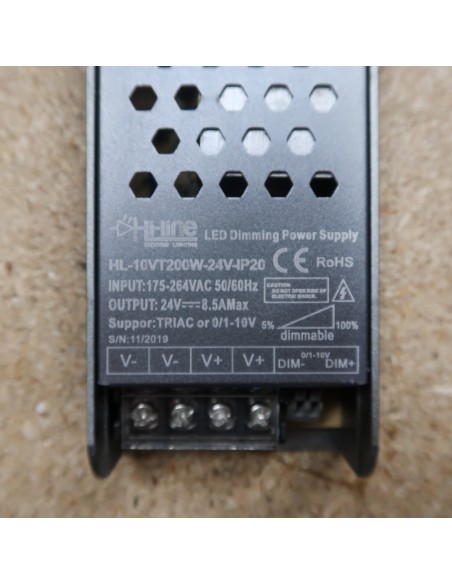

HL-10VT200W-24V-IP20

New product

Hybrid Dimmable LED Driver IP20

Works with Triac dimmer switches, 0-10V or potentiometer

24V DC Output

200 Watt / 24VA

Warranty: 3 Years

Mehr Infos

10 Artikel

Versand am Gleichen Tag

£ 55,00

Auf meine Wunschliste

Technische Daten

Betriebsspannung 24V DC
Mains Dimming Leading Edge Dimmers Only
Leistung (W) 200W
Schutzklasse (IP) IP20 (Nichtwasserdicht)
Type Hybrid (Triac or 0/1-10V)
Spannungsart Konstantspannung
Warranty 3 Years
Hersteller Hi-Line

Mehr Infos

Non waterproof IP20 Hybrid dimmable 200 Watt 24V LED driver operates perfectly with leading edge phase cut dimmers (referred also as Triac dimmers) and can be used to dimming 24 Volts LED strips, controlled by standard wall dimmer switch powered by 240V AC or 0/1-10 Volts dimming systems.

It can operate with load ranging from 5% to 100% and the dimming range will be from less then 3% to 100%.

______________________________

It is suggested to load this driver with at least 10 Watt (maximum 150W) and use standard leading edge (Triac) dimmer with wattage that can handle LED strip load requirements.

______________________________

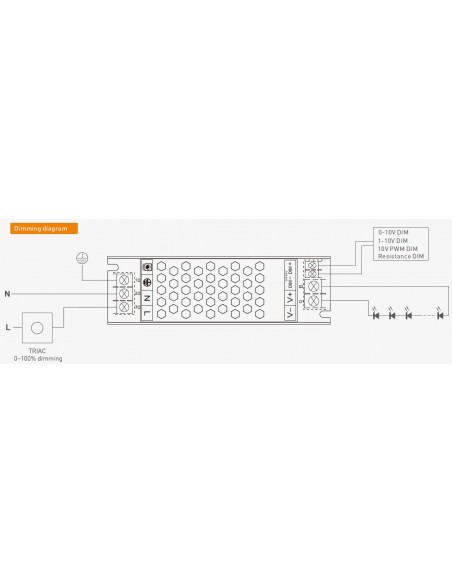

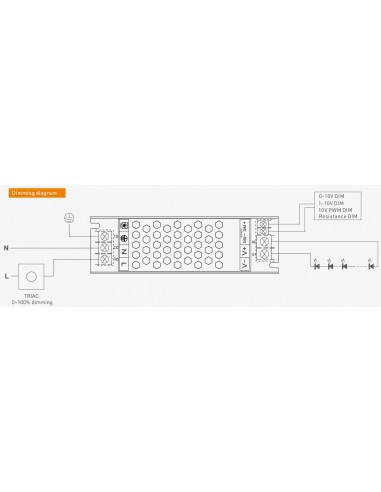

This dimmable driver can only operate with leading edge wall dimmer switches, 0/1-10V dimming systems or potentiometer.

Varilight compatible dimmers: V-Dim Series

We also tested this dimmable driver with Lutron smart home products and it is compatible.



Input Voltage: 170~264V AC – (Dimmable)

Output Voltage: 24V DC (200W)

Loading range: 5% to 100%.

Dimming range: 3% to 100%.

Efficiency: >92%

IP Rating: IP20

Dimensions: (LxWxH): 211x64x30mm

Weight: 365g

3 Years Warranty

______________________________

WICHTIGER HINWEIS!

Dieses Gerät sollte von einem qualifizierten Elektriker in Übereinstimmung mit der letzten Ausgabe der IEE-Verdrahtungsordnung und den geltenden Bauvorschriften installiert warden.
