Dimmable LED Driver 24V 200W IP67 Hybrid Series (Triac or 0/1-10V)

HL-10VT200W-24V-IP67-EC-5Y

New product

Hybrid Dimmable LED Driver

Works with Triac dimmer switches, 0-10V or potentiometer

24V DC Output

200 Watt / 8.3A

Waterproof (IP67)

Warranty: 5 Years

Mehr Infos

42 Artikel

Versand am Gleichen Tag

£ 79,80

Auf meine Wunschliste

Technische Daten

Betriebsspannung 24V DC
Leistung (W) 200W
Schutzklasse (IP) IP67 (Wasserdicht)
Type Hybrid (Triac or 0/1-10V)
Spannungsart Konstantspannung
Warranty 5 Years
Hersteller Hi-Line

Mehr Infos

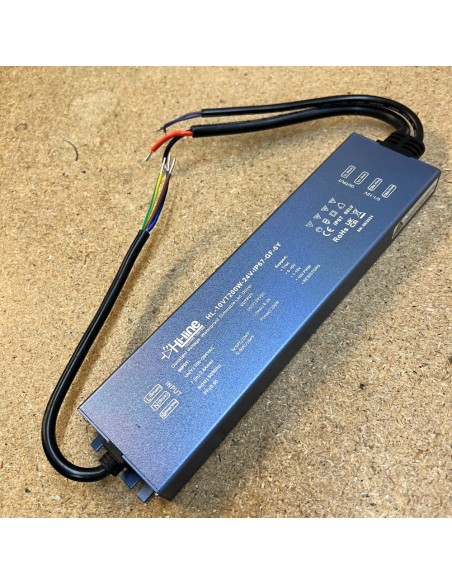

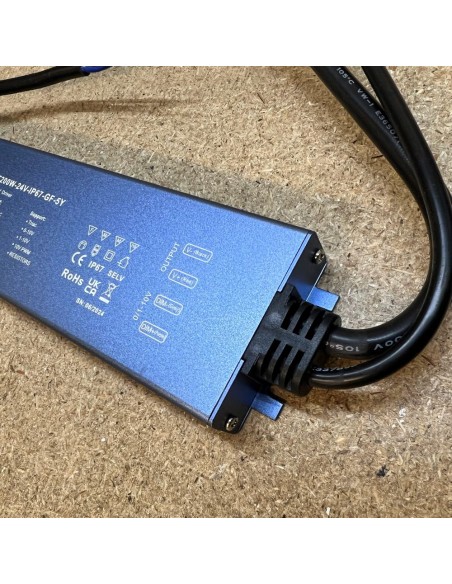

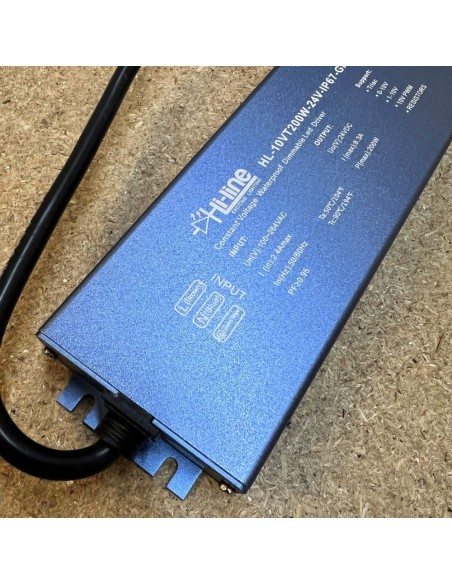

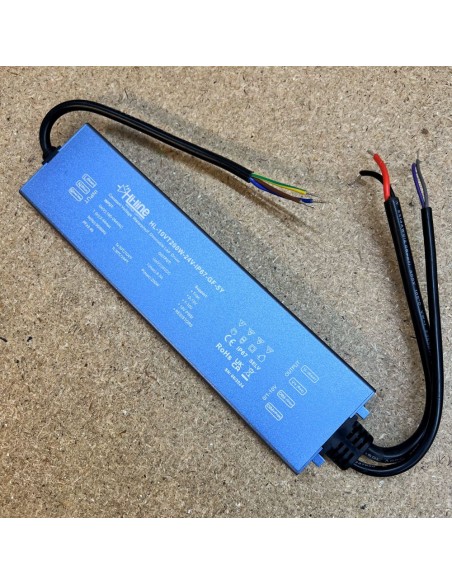

Hybrid dimmable 200 Watt 24V LED driver operates perfectly with leading edge phase cut dimmers (referred also as Triac dimmers) and can be used to dimming 24 Volts LED strips, controlled by standard wall dimmer switch powered by 240V AC or 0/1-10 Volts dimming systems.

It can operate with load ranging from 5% to 100% and the dimming range will be from less then 3% to 100%.

______________________________

It is suggested to load this driver with at least 10 Watt (maximum 200W) and use standard leading edge (Triac) dimmer with wattage that can cover load requirements.

______________________________

This dimmable driver can only operate with leading edge wall dimmer switches, 0/1-10V dimming systems or potentiometer.

Input Voltage: 170~250V AC – (Dimmable)

Output Voltage: 24V DC (200W)

Loading range: 5% to 100%.

Dimming range: 3% to 100%.

Efficiency: >92%

IP Rating: IP67

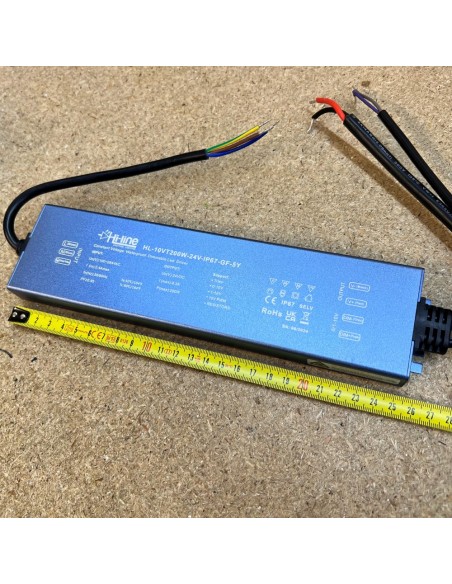

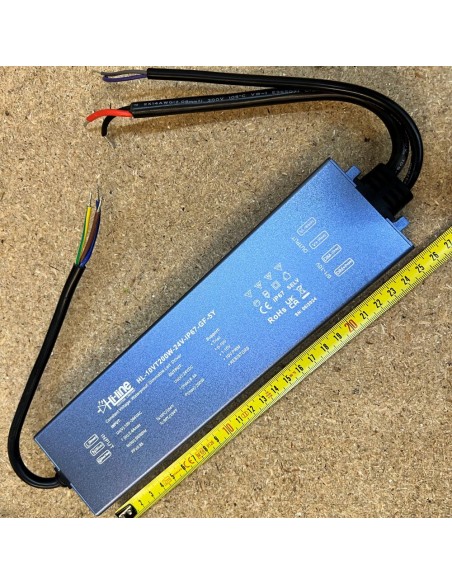

Dimensions: (LxWxH): 250x82x35mm

Weight: 1Kg

5 Years Warranty

______________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

______________________________

WICHTIGER HINWEIS!

Dieses Gerät sollte von einem qualifizierten Elektriker in Übereinstimmung mit der letzten Ausgabe der IEE-Verdrahtungsordnung und den geltenden Bauvorschriften installiert werden.
