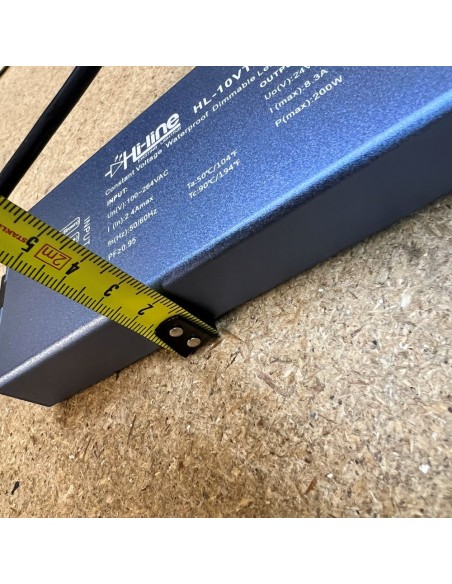

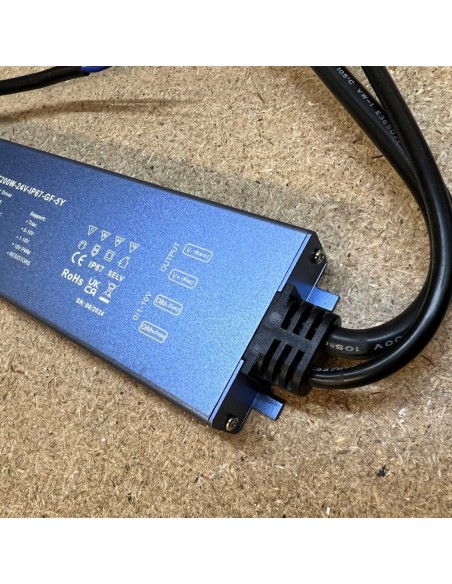

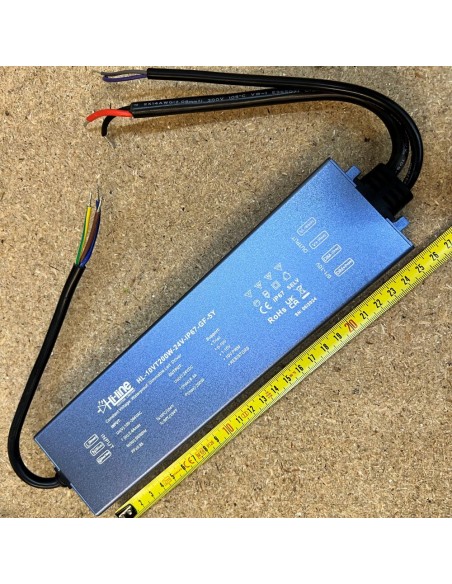

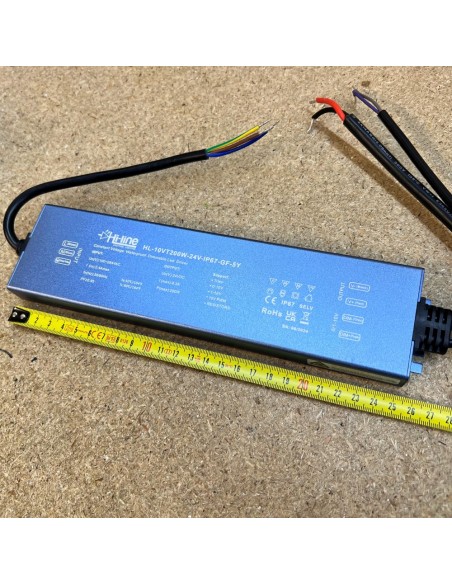

Dimmable LED Driver | 24V | 200W | IP67 | Hybrid Series (Triac or 0/1-10V)
Key Features:
Hybrid Dimmable LED Driver
Works with Triac dimmer switches 0-10V or potentiometer
Voltage: 24V DC Output
200 Watt / 8.3A
IP Rating: Waterproof (IP67)
Flicker-Free: Complies with IEEE1789 standards, high frequency exception level (PWM 3500Hz)
Important Product Details
Hybrid dimmable 200 Watt 24V LED driver operates perfectly with leading edge phase cut dimmers (referred also as Triac dimmers) and can be used to dimming 24 Volts LED strips, controlled by standard wall dimmer switch powered by 240V AC or 0/1-10 Volts dimming systems.
It can operate with load ranging from 5% to 100% and the dimming range will be from less then 3% to 100%.
Flicker-Free: Complies with IEEE1789 standards, high frequency exception level (PWM 3500Hz)
It is suggested to load this driver with at least 10 Watt (maximum 200W) and use standard leading edge (Triac) dimmer with wattage that can cover load requirements.
It is recommended to calculate for an additional 20% overhead.
The hybrid models work perfectly with any leading-edge dimmers.
If you have a dimmer switch in mind and are unsure about compatibility, please email us for assistance.
We also tested this dimmable driver with Lutron smart home products and it is compatible.
Input Voltage: 170~250V AC – (Dimmable)
Output Voltage: 24V DC (200W)
Loading range: 5% to 100%.
Dimming range: 3% to 100%.
Efficiency: >92%
Modulation frequency: 3500Hz
IP Rating: IP67
Dimensions: (LxWxH): 238x58x32mm
Weight: 0.84Kg
5 Years Warranty
IMPORTANT NOTICE!
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
