Hybrid Dimmable LED Driver | 24V | 150W | IP20 | Leading & Trailing Edge | 5-in-1
Professional 5-in-1 Hybrid Dimmable LED Driver
The redesigned HL-10VT150W-24V-IP20 is the latest generation of Hi-Line Lighting Hybrid 5-in-1 Dimmable LED Driver technology, developed after many years of successful use across residential, commercial, retail, hospitality and smart home lighting projects.
This newly upgraded version has been redesigned to provide significantly improved dimming stability and wider compatibility with modern lighting control systems. Unlike many standard dimmable LED drivers which only support either leading edge or trailing edge dimming, the new Hybrid Series now supports both Leading Edge and Trailing Edge phase-cut dimmers, making it a highly versatile solution for professional LED lighting installations.
In addition to TRIAC phase-cut dimming, the driver also supports 0-10V, 1-10V, 10V PWM and Resistance dimming, creating a true professional 5-in-1 dimming platform suitable for both traditional wall dimmers and advanced lighting automation systems.
Designed specifically for professional LED strip lighting installations, this slim constant voltage LED driver delivers smooth flicker-free dimming from 0-100% with ultra-deep dimming capability down to approximately 0.1% possible under suitable control conditions.
Main Features
Supports Leading Edge & Trailing Edge Dimmers
5-in-1 Hybrid Dimming Technology
Supports:
TRIAC Dimming
0-10V Dimming
1-10V Dimming
10V PWM Dimming
Resistance Dimming (0-100K)
Universal Phase-Cut Compatible Design
Smooth Flicker-Free Dimming
IEEE 1789 High Frequency Exemption Level flicker performance for professional lighting applications.
Ultra-Deep Dimming Performance
0-100% dimming range with dimming depth down to approximately 0.1% possible depending on LED load and control system.
Excellent Smart Home Compatibility
Successfully tested with many major lighting control and automation systems including:
Lutron
Clipsal
Control4
Rako
KNX Systems
Crestron
Philips Dynalite
Vantage
Legrand
Schneider Electric
Hamilton
Varilight
Lightwave
Aurora
Zano
Mode Lighting
Compatible with many Leading Edge and Trailing Edge phase-cut dimming systems commonly used in residential, commercial and smart home lighting installations.
High Efficiency Professional Design
Up to 93% efficiency with stable constant voltage output and professional-grade thermal management.
Professional Protection Systems
Overload Protection
Short Circuit Protection
Over-Temperature Protection
Over-Voltage Protection
Automatic Recovery Protection
Long Operational Lifetime
Designed for professional long-term use with operational life expectancy up to 50,000 hours under suitable operating conditions.

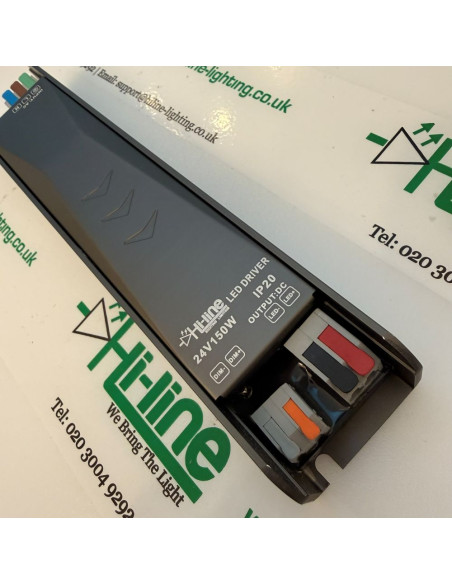

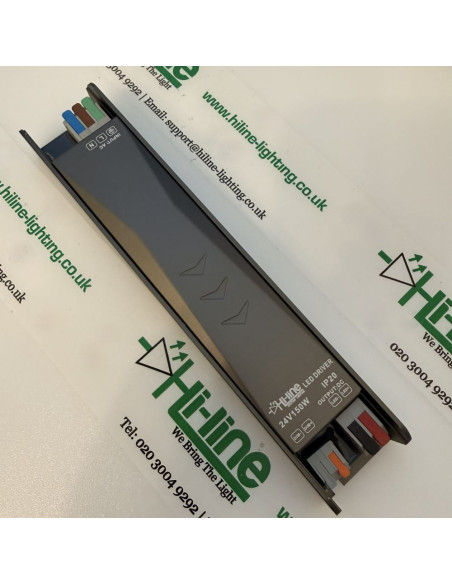

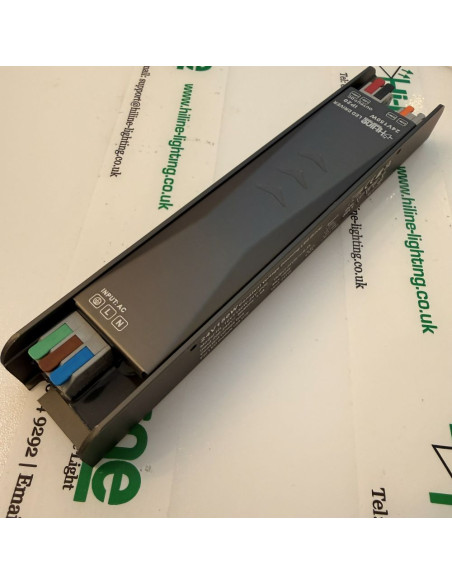

Slim Compact Housing
Low-profile metal enclosure suitable for ceiling voids, furniture lighting, kitchen lighting, retail displays and other space-restricted professional installations.

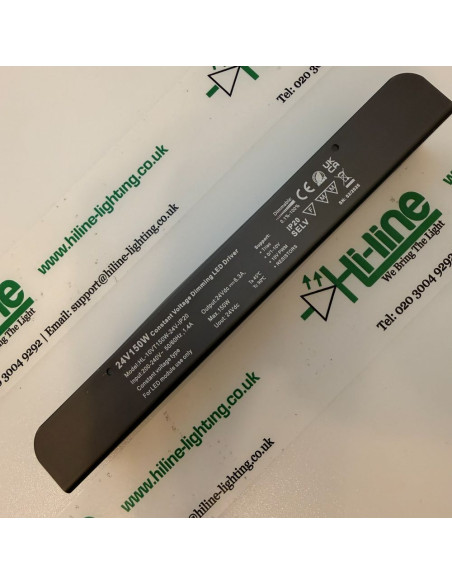

Technical Specifications
Model: HL-10VT150W-24V-IP20
Series: Hybrid 5-in-1 Dimmable Series

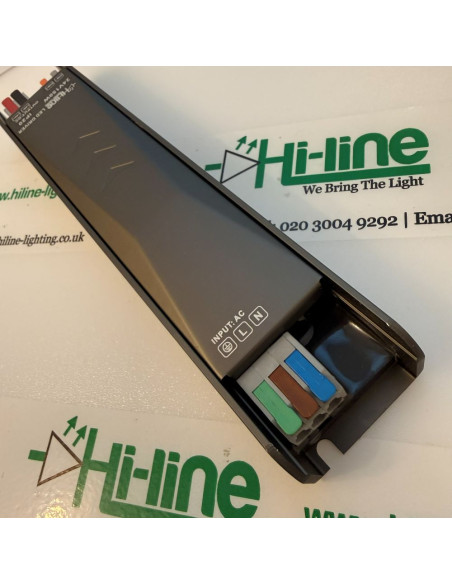

Input Voltage: 176-264V AC

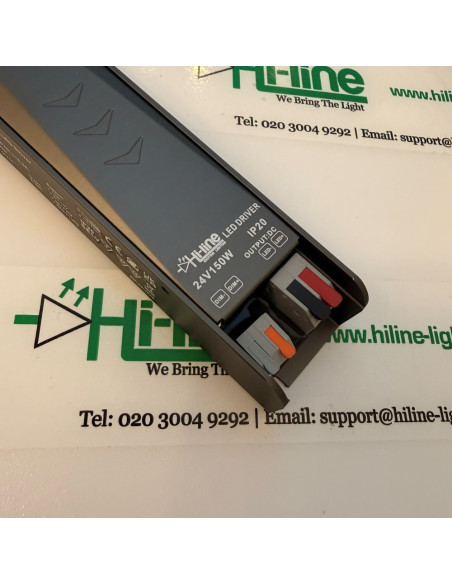

Output Voltage: 24V DC Constant Voltage
Maximum Output Power: 150W
Maximum Output Current: 6.25A
Dimming Interfaces: TRIAC / 0-10V / 1-10V / 10V PWM / Resistance DIM
Leading Edge Compatible: Yes
Trailing Edge Compatible: Yes
PWM Frequency: 700Hz-16Khz
Dimming Range: 0-100%
Deep Dimming Capability: Up to 0.1% possible
Efficiency: Up to 93%
Power Factor: PF >0.55 @ 230VAC Full Load
IP Rating: IP20 (Indoor Use)
Operating Temperature: -30°C to +45°C
Housing Material: Metal Enclosure
Dimensions: 195 x 37.5 x 26.8mm
Cooling: Natural Air Convection
Protection Class: SELV
Safety Standards: IEC/EN61347-1, IEC/EN61347-2-13
EMC Standards: EN55015, EN61000, EN61547
Flicker Standard: IEEE 1789
Warranty: 5 Years
Available Wattages
The redesigned Hi-Line Hybrid 5-in-1 Dimmable LED Driver Series is also available in:
30W
60W
100W
150W
200W
300W
All models support Leading Edge, Trailing Edge, TRIAC, 0-10V, 1-10V, 10V PWM and Resistance dimming systems.
For compatible models, alternative wattages and matching accessories, please click the "Related Products" tab located at the top of this page on desktop devices or below this description on mobile devices.
Important Notes
It is recommended to allow approximately 20% overhead when calculating LED driver loading.
Installers should also consider in-rush current characteristics and appropriate MCB selection during system design.
This driver is designed for professional LED lighting applications and should be installed by qualified professionals only.
Looking for Related Products or Accessories?
Discover compatible products and accessories by clicking the "Related Products" tab located at the top of this product description on desktop devices or below this section on mobile devices.
For detailed technical specifications and wiring information, please refer to the "Product Specification" and "Attachments" tabs.
IMPORTANT NOTICE
This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.
The above guidance is based strictly on our understanding of the intended application. Final system suitability, dimmer compatibility, load verification and installation method must be confirmed by a qualified electrician or lighting professional. Hi-Line Lighting supplies equipment only and does not provide installation design or accept responsibility for system configuration or site works.
