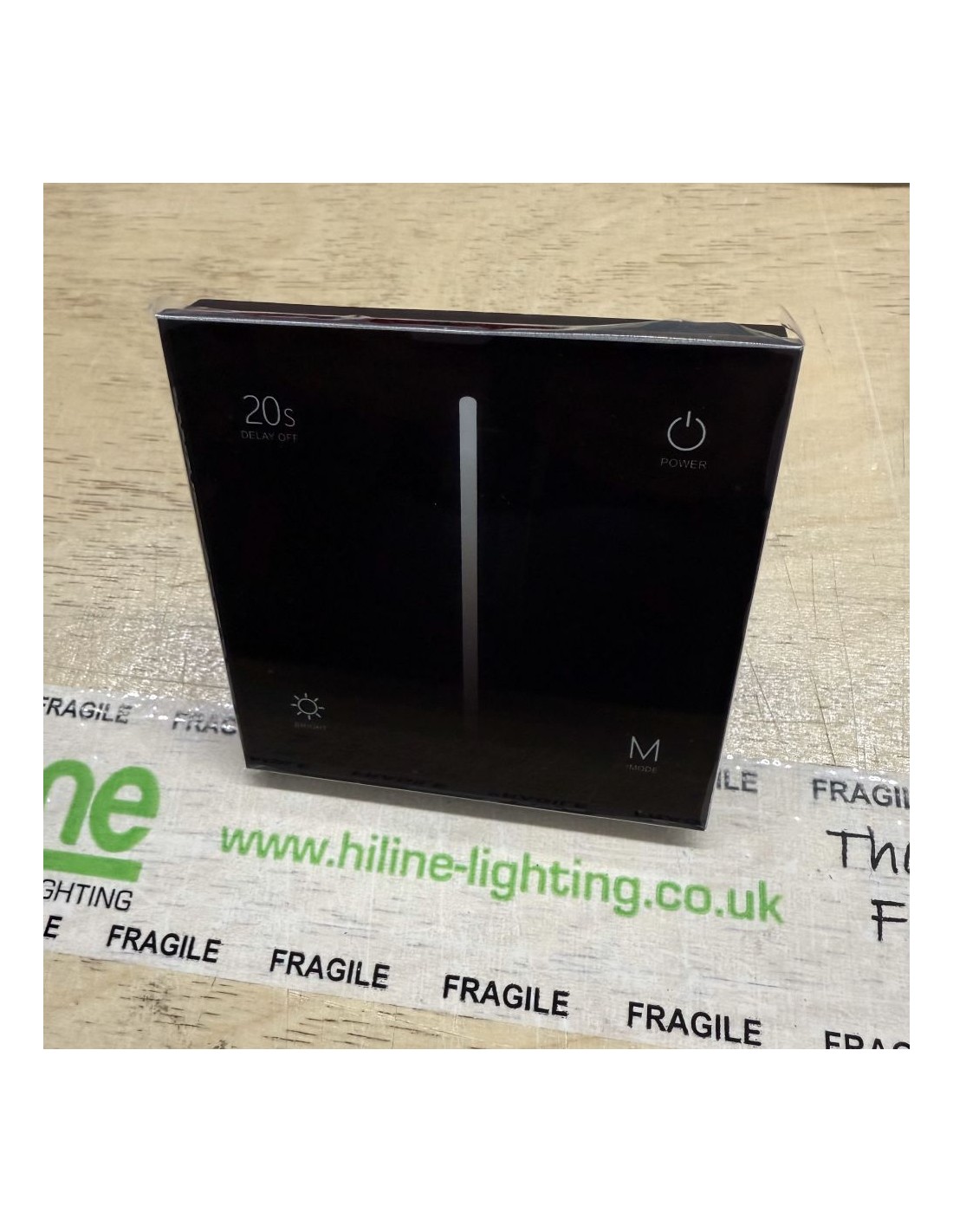

The T18 Touch Panel Dimmer in black glass is a 0-10V or 1-10V controller that requires a mains 240V AC input. It generates the low-voltage signal needed to control multiple dimmable LED drivers and does not function without this power input.
This dimmer includes an optional AC output that can be used to switch the 240V supply to your drivers. However, this is not required. If used, ensure the total inrush current does not exceed 200A to avoid damage.
For example, connecting 10 LED drivers of 100W each through the AC output may exceed this inrush limit. Instead, power the drivers separately and use the T18 strictly for dimming via its 0/1-10V output. This allows safe control of multiple drivers with one wall panel.
An optional RF 2.4GHz remote is supported, available in both single-zone and multi-zone versions. This remote is listed under the Related Products tab.
To view compatible LED drivers, remotes, and accessories, visit the Related Products tab. For connection diagrams and technical data, refer to the Attachments tab.
Key Features
Smooth dimming control using 0/1-10V output

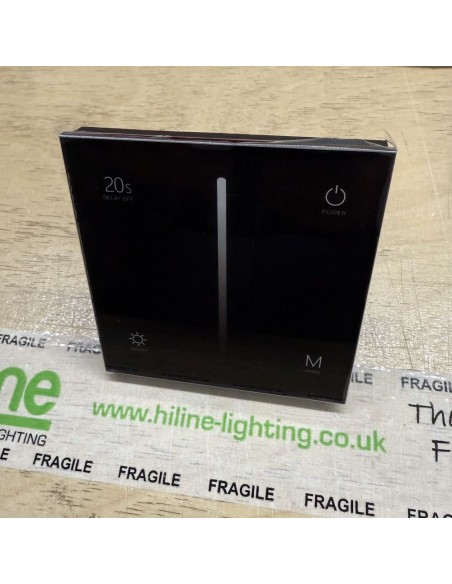

Tempered glass panel with LED-indicated touch keys and centre slider
Compatible with optional RF 2.4GHz single or multi-zone remote
Operates with 240V AC input only
Optional AC output with 200A inrush current limit
Black glass finish for a modern look
Standard 86mm wall box fit
Internal 200A surge protection

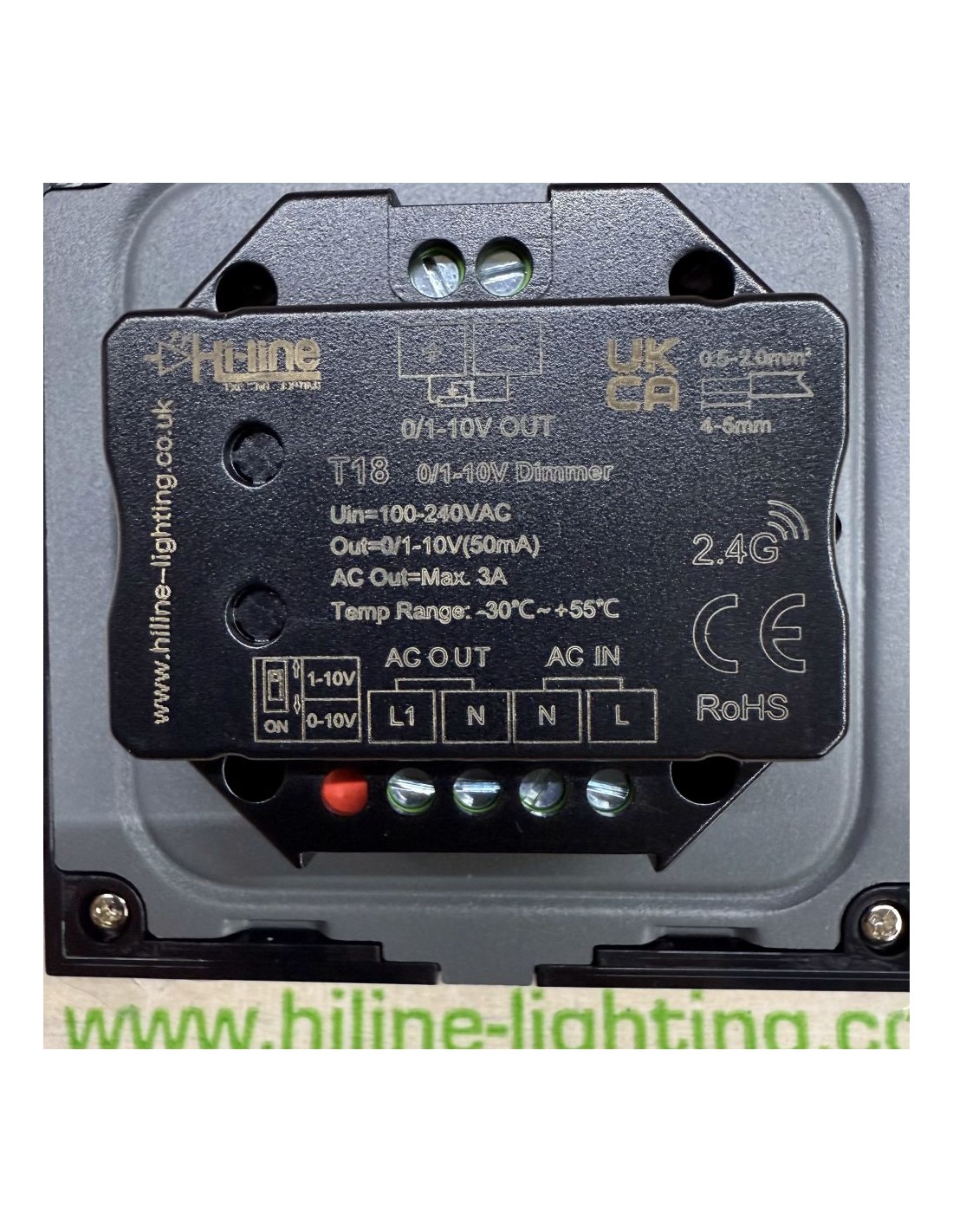

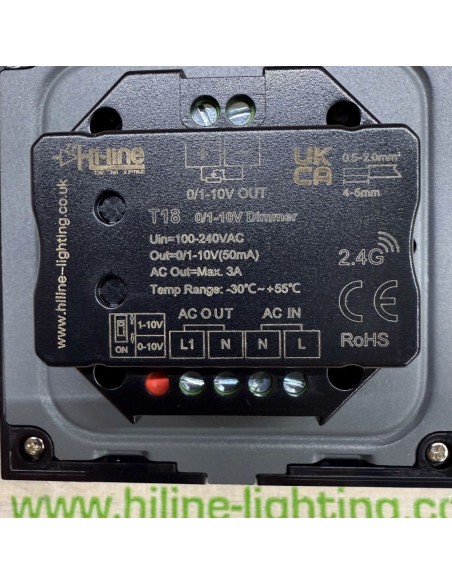

Technical Specifications
Input Voltage: AC100-240V
Output Signal: 0-10V (50mA)
Maximum Output Current: 3A (AC)
Relay Surge Current: 200A
Dimming Range: 0-100% with 256-level precision
Control Options: Touch panel & RF 2.4GHz remote (optional)
Operating Temperature: -30°C to +55°C
Panel Size: 86mm x 86mm x 52mm
IP Rating: IP20 (indoor use only)
Certifications: UKCA, CE, and other relevant safety and EMC standards
Warranty: 3 years standard, extendable up to 5 years
Installation Notes
Install only in a standard European-style 86mm wall box. Never exceed 200A inrush current if using the AC output. Drivers should ideally be powered separately and controlled via 0/1-10V signal. Installation must be carried out by qualified professionals.
Applications
Suited for both commercial and residential spaces, this black glass dimmer allows clean control of 0/1-10V LED drivers, including strip lighting, panels, and architectural lighting systems.
