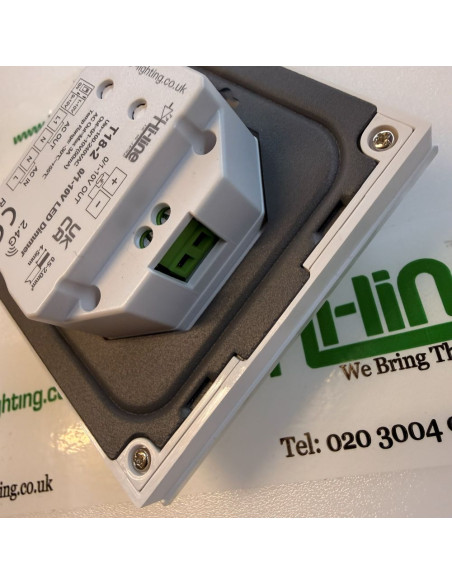

Rotary 0/1–10V Dimmer | RF 2.4GHz | AC 100–240V | White Glass
This rotary glass wall-mounted dimmer is designed to control 0–10V or 1–10V dimmable LED drivers, providing smooth and reliable analogue dimming for residential and commercial lighting applications. It combines local rotary control with optional RF wireless functionality and includes an integrated mains relay for flexible installation options.
General Description
The dimmer generates a dedicated 0/1–10V control signal suitable for use with compatible LED drivers. Brightness is adjusted using the rotary knob, with additional push and long-press functions for on/off switching and fine dimming control. The dimming mode can be selected internally to suit either 0–10V or 1–10V driver requirements.
Dimming Performance
Smooth 0–100% dimming is achieved using 256 internal dimming levels, ensuring stable light output with no visible flicker across the full dimming range.
Control Options
Local control is provided via the rotary knob with push and long-press operation. The dimmer also supports RF 2.4GHz wireless control and can be paired with compatible single-zone or multi-zone RF remotes where required.

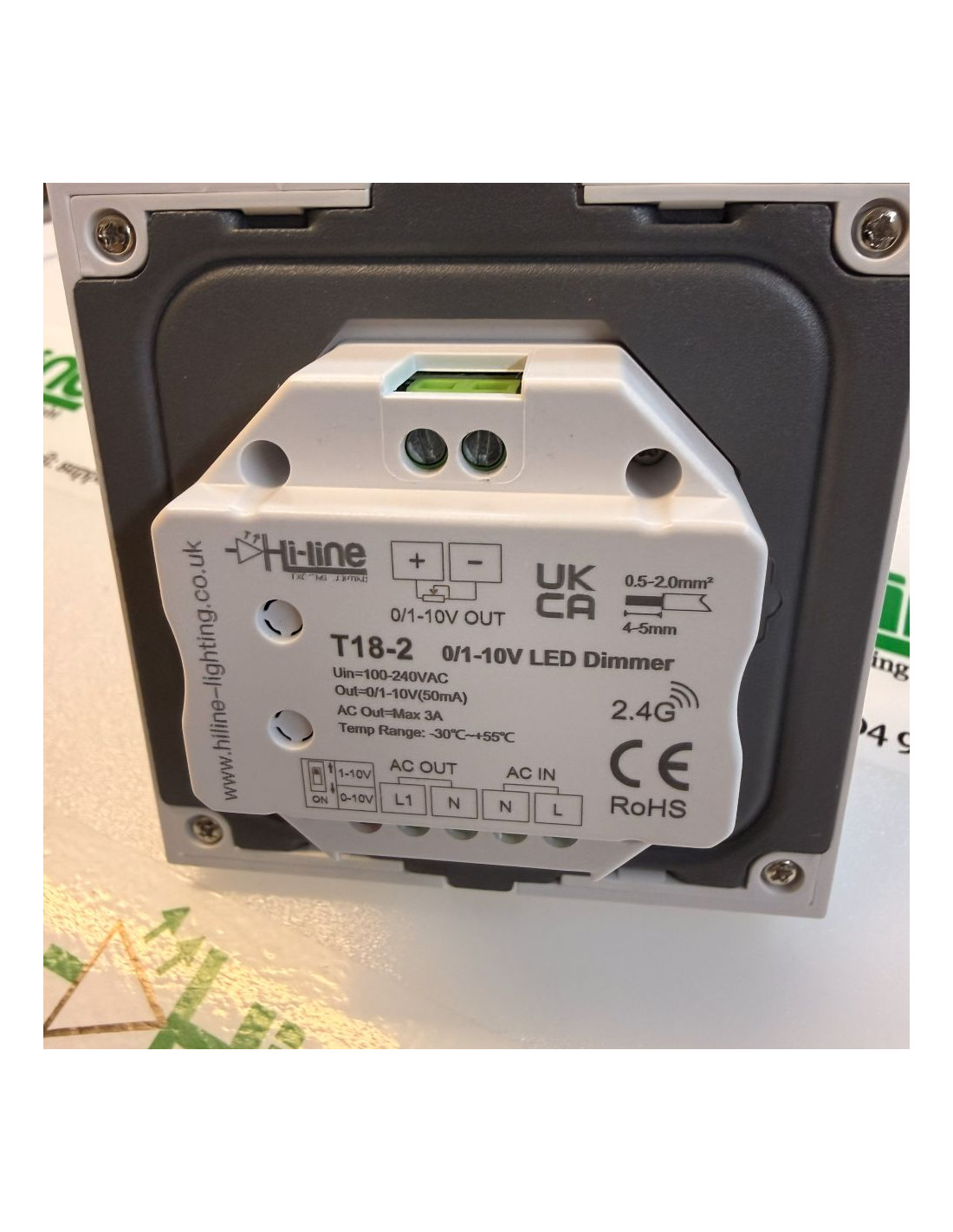

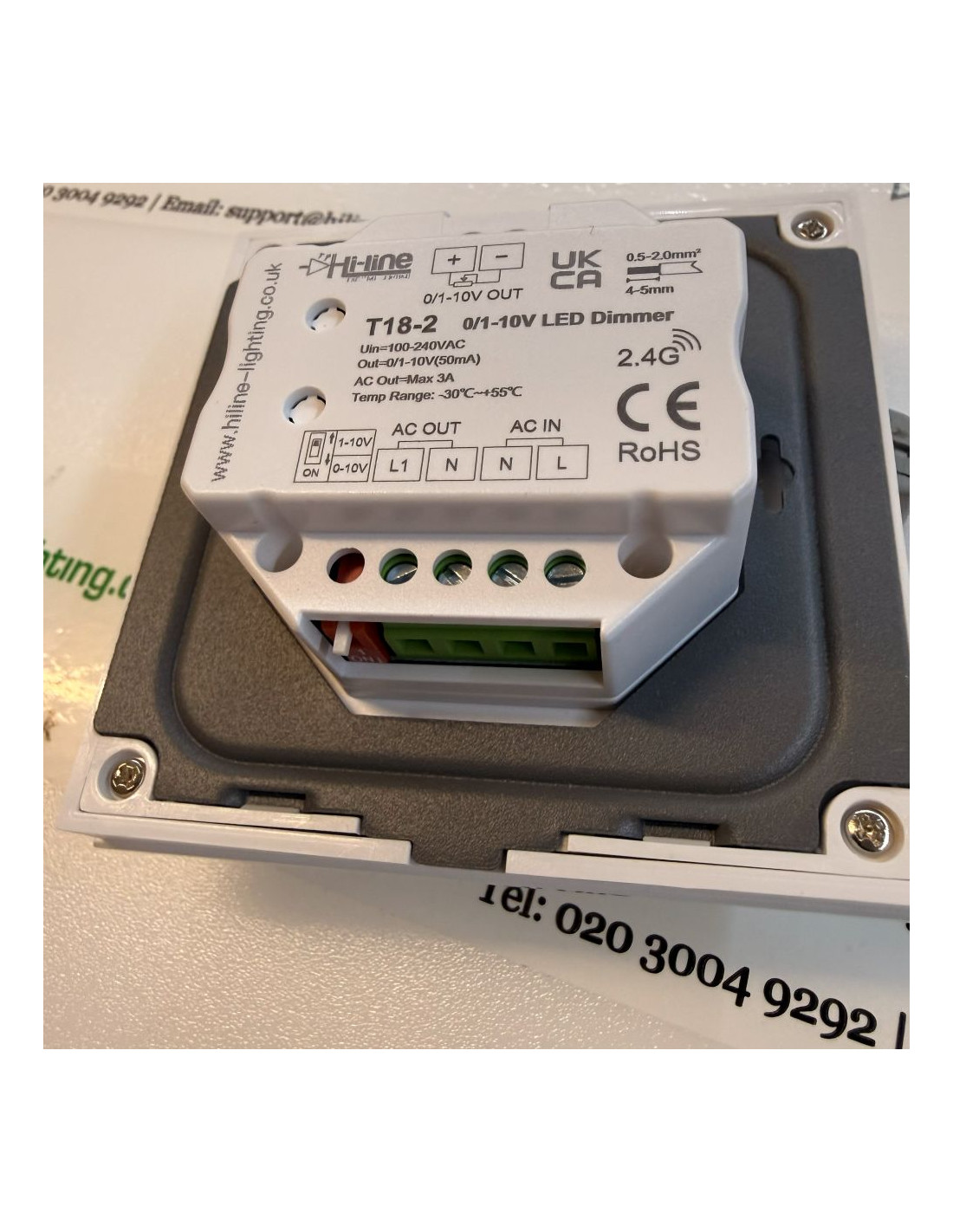

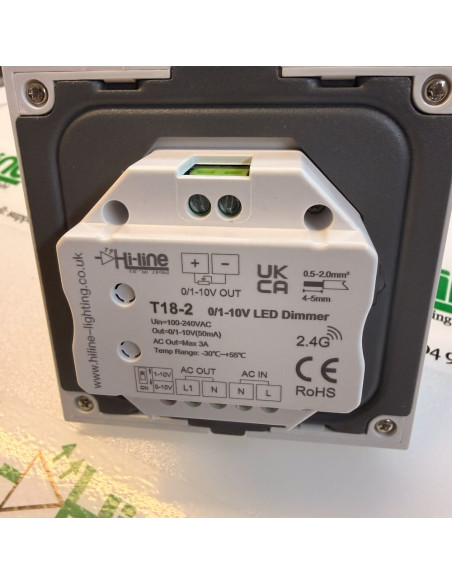

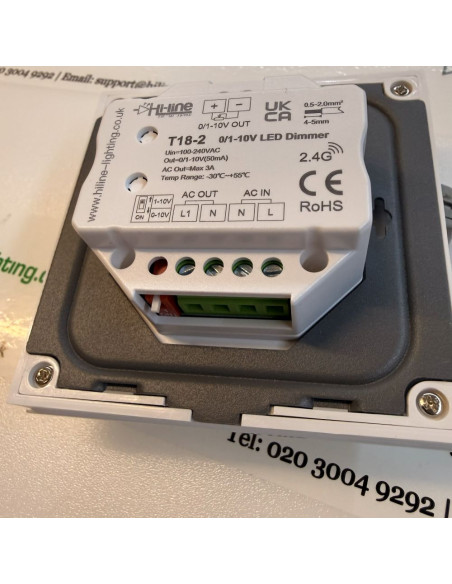

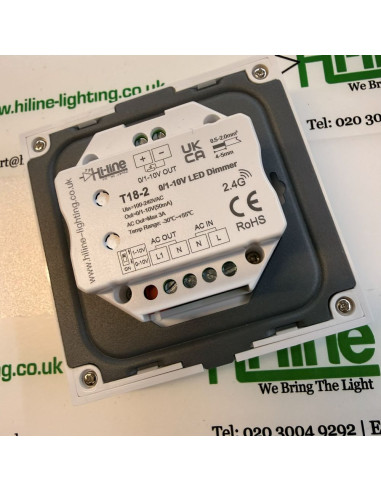

Electrical Specifications
Input voltage: AC 100–240V
Control output: 0–10V or 1–10V selectable
0/1–10V signal output current: up to 50mA
Integrated AC relay output: up to 3A
Relay surge current rating: up to 200A
Installation & Compatibility

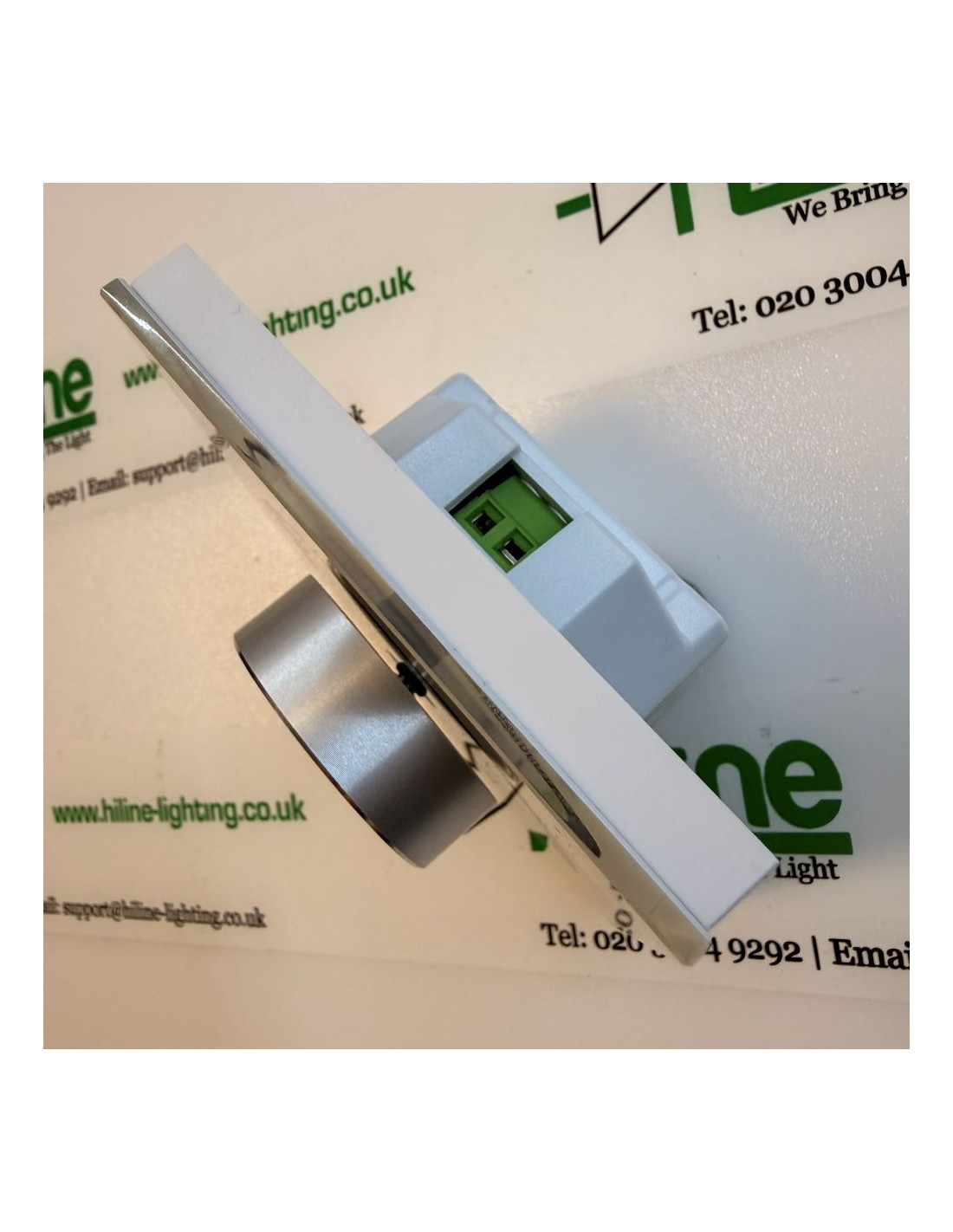

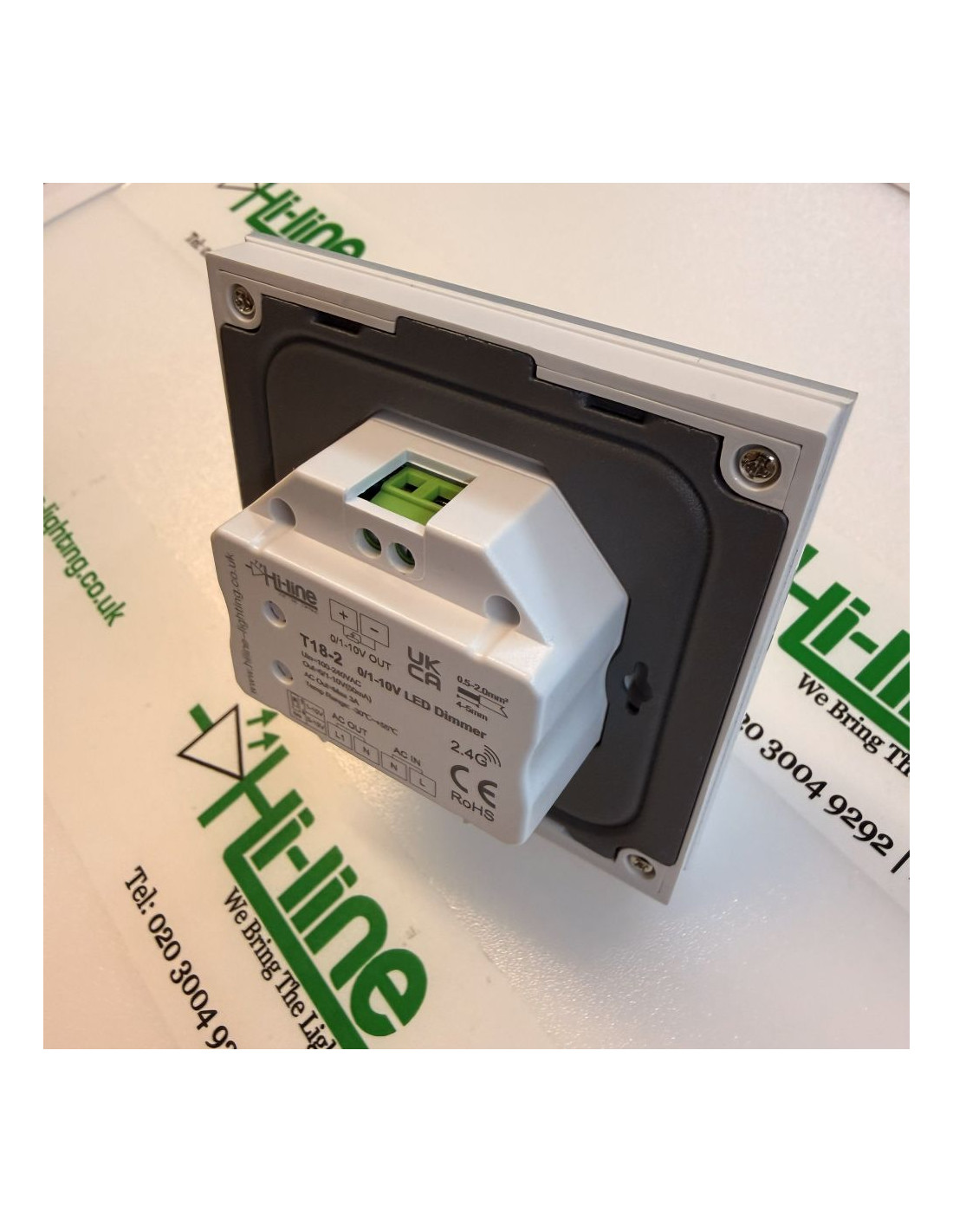

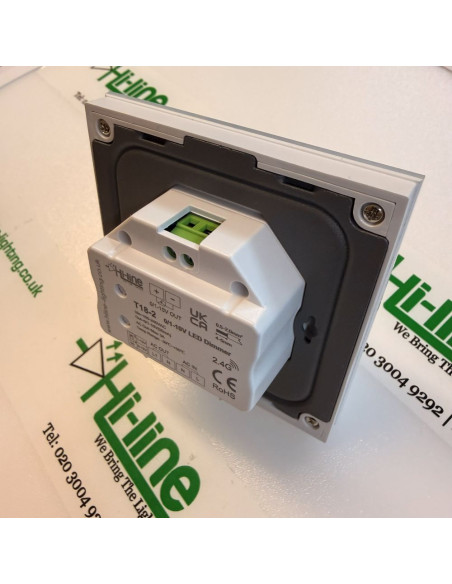

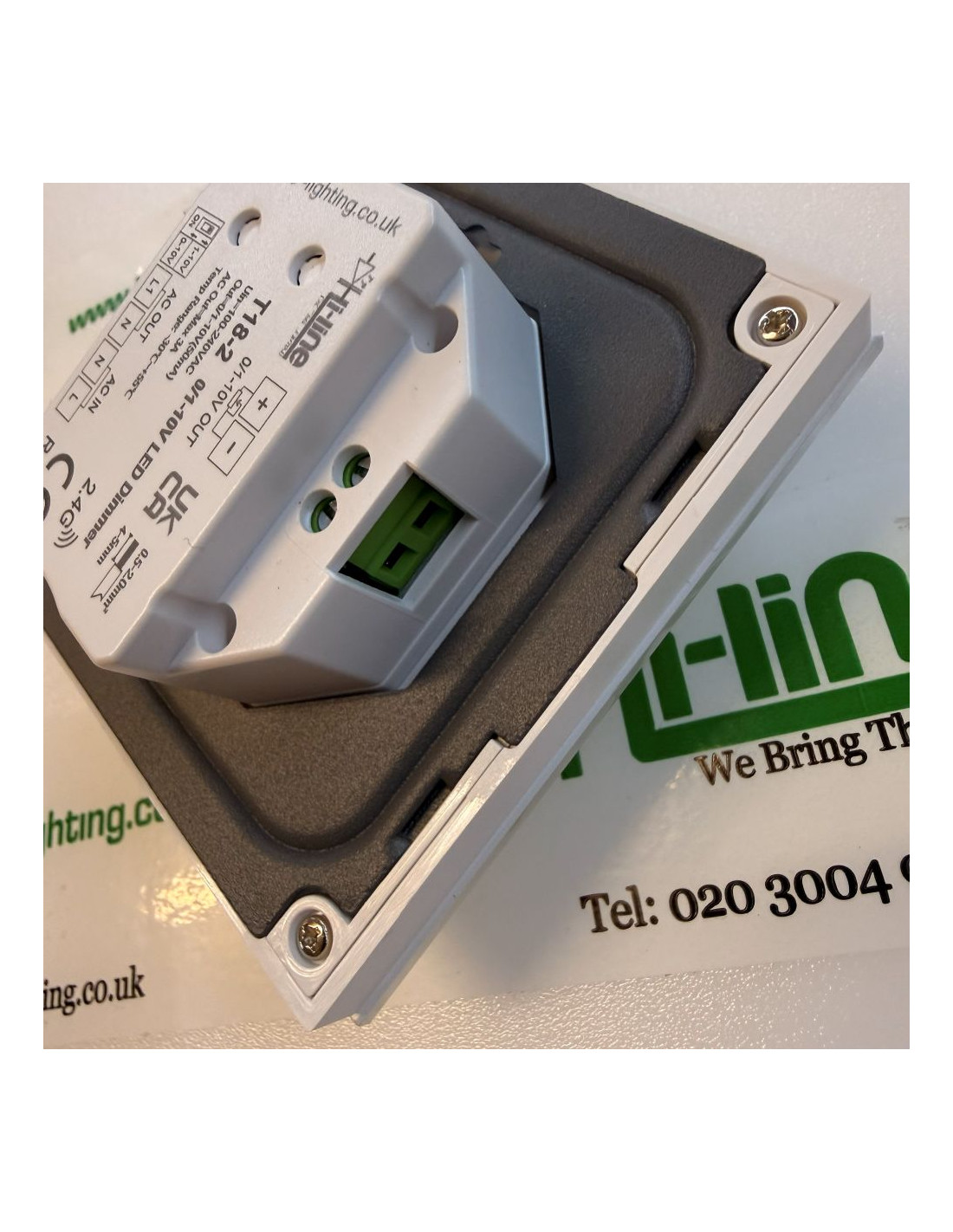

Designed to fit a standard European 86 × 86 mm wall box. The dimmer can be wired to provide only the 0/1–10V control signal, or used to switch the mains supply to the LED driver via the built-in relay. Up to 100 LED drivers can be connected to a single dimmer, with a recommended maximum control cable length of 50 metres.
Higher Load & Larger Installations
For standard installations, the dimmer can control multiple 0/1–10V dimmable LED drivers directly. For higher loading requirements or larger installations, 0/1–10V signal amplifiers, boosters, or repeaters can be used to extend the control signal and support a greater number of drivers.
Compatible signal amplifiers and repeaters can be found under the Related Products tab on this page. For larger or more complex installations, customers are welcome to email us and our team can help identify suitable products for the application.
Construction & Finish

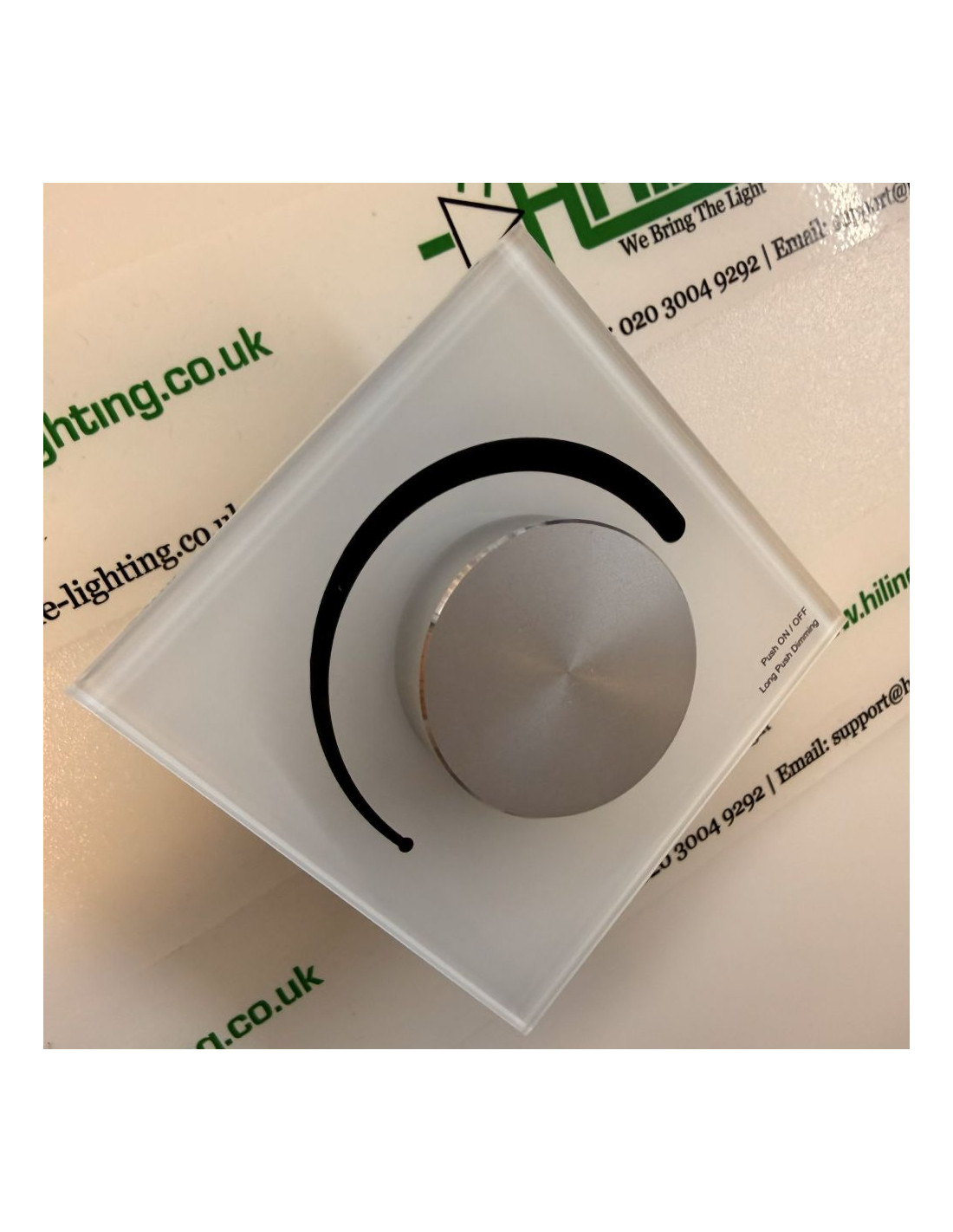

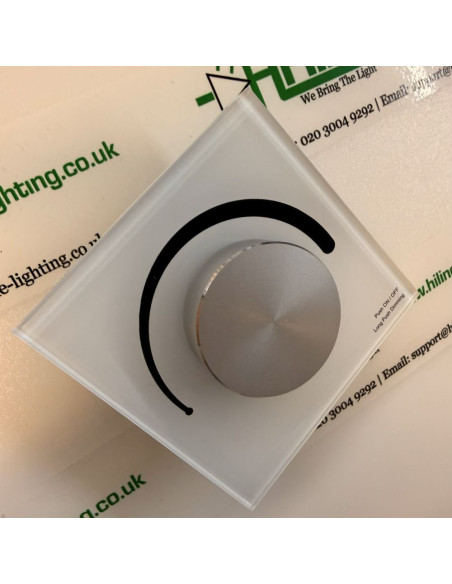

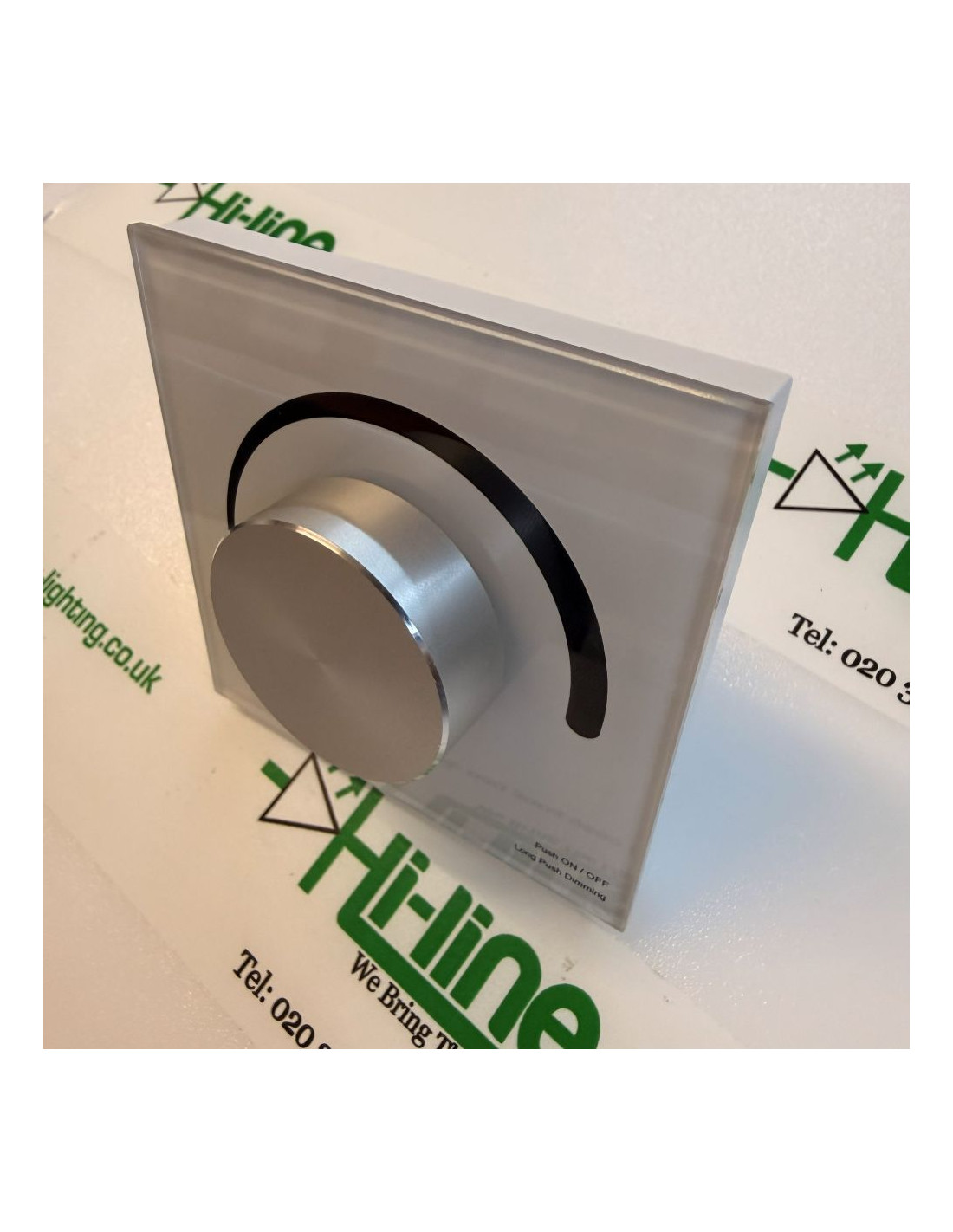

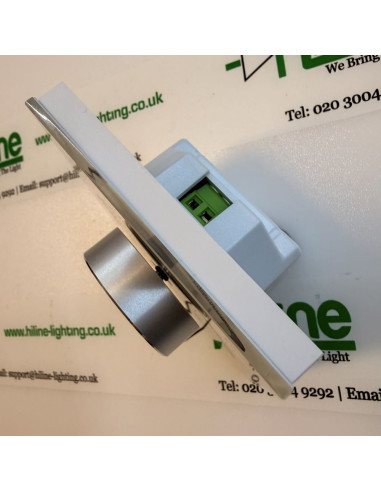

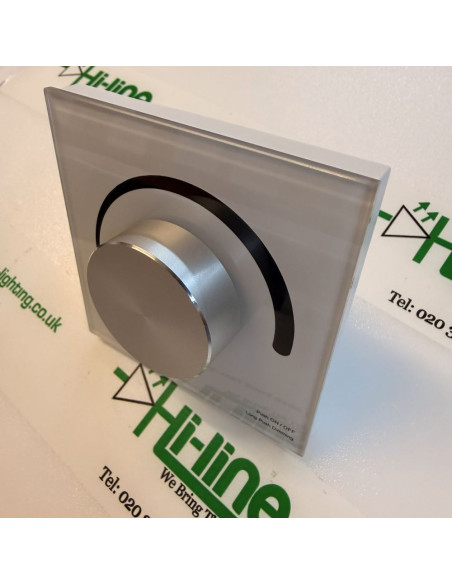

Tempered glass front panel with rotary control knob. White glass finish. IP20 rated for indoor use.
Environmental Ratings
Operating temperature: –30°C to +55°C
Maximum case temperature: +65°C
Warranty
Standard warranty: 3 years
Extended warranty: Any cover beyond 3 years is classed as Extended Warranty and is only valid with an official Hi-Line certificate. Extended cover is a paid upgrade and is granted only after Hi-Line engineers have reviewed the project, installation details, environment, and technical suitability. In approved cases, warranty cover may be extended up to 7 years.
