Versatile 3-in-1 Dimming Control
The V1-T controller combines RF remote, 0/1–10V and push-dim control methods in a single compact unit. Designed for single colour LED strips, it accepts constant voltage input from 12V to 48V DC, making it suitable for both residential and commercial lighting systems.
High Current Output for Demanding Applications
With a maximum current output of 20A at 12/24V or 15A at 36/48V, the controller is capable of powering long LED strip runs or high-demand lighting zones. It delivers up to 720W at 48V DC, making it one of the most powerful dimming controllers in its class.
Smooth and Flicker-Free Dimming
The controller features 4096-level (12-bit) PWM dimming for exceptionally smooth 0–100% light adjustment. A 3-second soft on/off fade option can be enabled for visual comfort in architectural or retail settings.
RF Multi-Zone Control with Auto-Sync
Operating on 2.4GHz RF frequency, the V1-T can pair with up to 10 remotes and supports both single-zone and multi-zone models. Built-in signal transmission allows controllers to auto-synchronise across extended areas with up to 15 metres of barrier-free range between units.

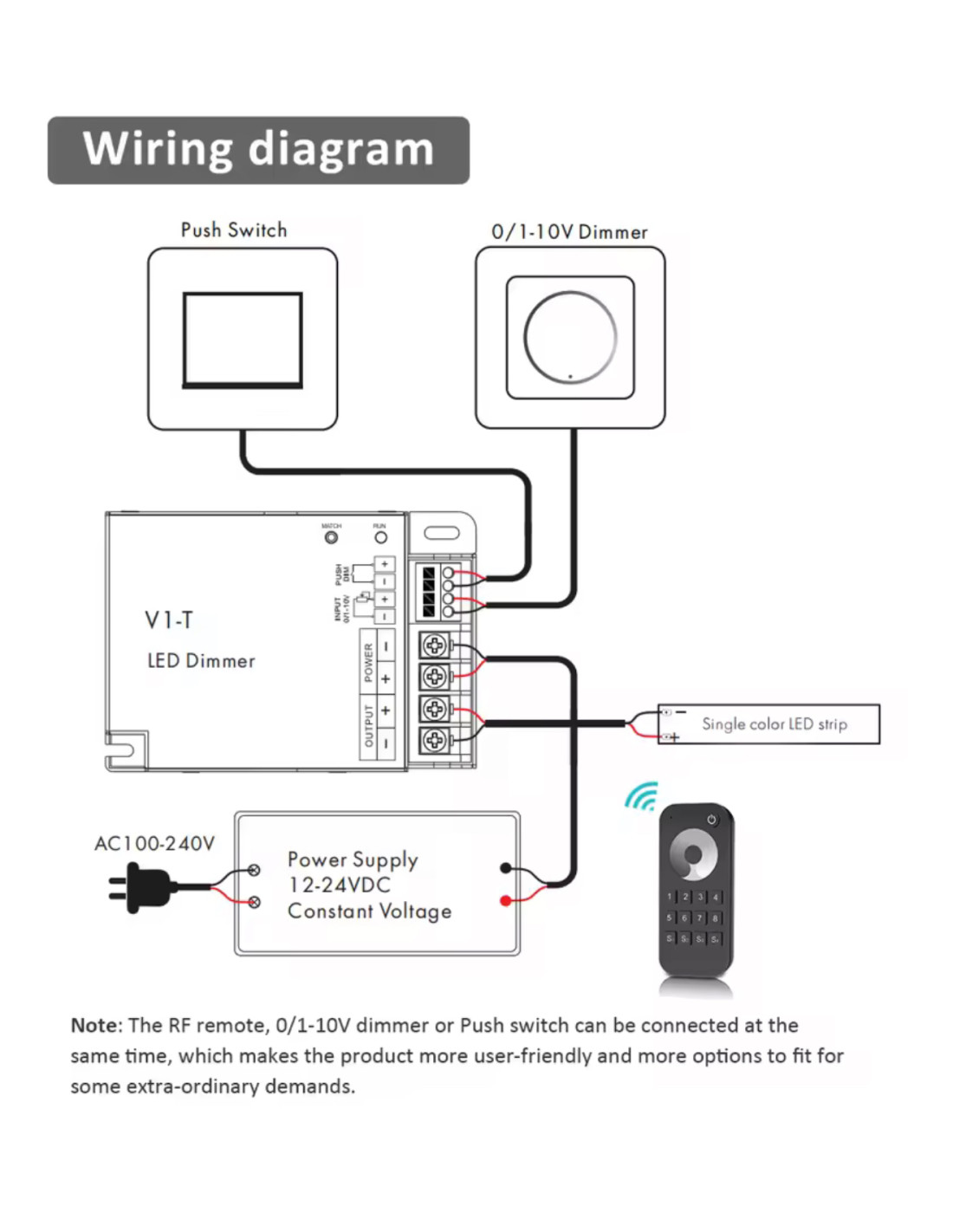

Push-Dim and 0/1–10V Options for Flexibility
A momentary push switch can be connected for direct wall control. In addition, the 0/1–10V input enables integration with building automation systems or rotary dimmers. All control methods can be used at the same time, providing flexibility across different installation needs.
Reliable, Safe and Protected
The unit is protected against overheating, overload, short circuit and reverse polarity. All protection modes automatically reset once the issue is resolved, ensuring continuous operation and long-term reliability.
Installation Guidance
Install in a well-ventilated area with at least 20cm clearance from power supplies, metal objects and corners. Avoid stacking units to maintain full signal strength and prevent heat build-up. Keep installation height at least 1 metre above the floor for optimal RF reception.
Technical Specifications
Input Voltage: 12–48V DC
Output Voltage: 12–48V DC
Output Current: 20A @ 12/24V, 15A @ 36/48V
Max Output Power: 240W @ 12V, 480W @ 24V, 540W @ 36V, 720W @ 48V
Control Methods: RF 2.4GHz, 0/1–10V, Push-Dim
Dimming Range: 0–100%
Dimming Resolution: 4096 levels (12-bit)
PWM Frequency: 2000Hz
Max RF Range: 15 metres (open space)
Protection Features: Overload, Overheat, Short Circuit, Reverse Polarity
Certifications: UKCA, CE, EMC, RED
Operating Temperature: -30°C to +55°C
Max Case Temperature: +85°C
IP Rating: IP20 (indoor use only)
Dimensions: 120 x 80 x 34mm
Weight: 0.254kg
Warranty: 3 years standard, extendable to 5 years upon request
Typical Applications
Residential lighting with push-dim functionality
Commercial LED strip installations
Integration with 0/1–10V building control systems
Large single colour zones requiring high current handling
