EV1-S Constant Voltage Power Repeater / Amplifier (12–24 V DC 15 A)

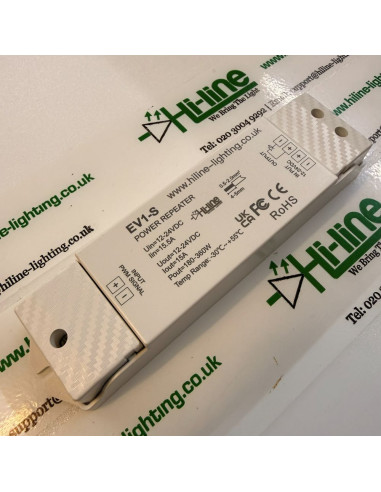

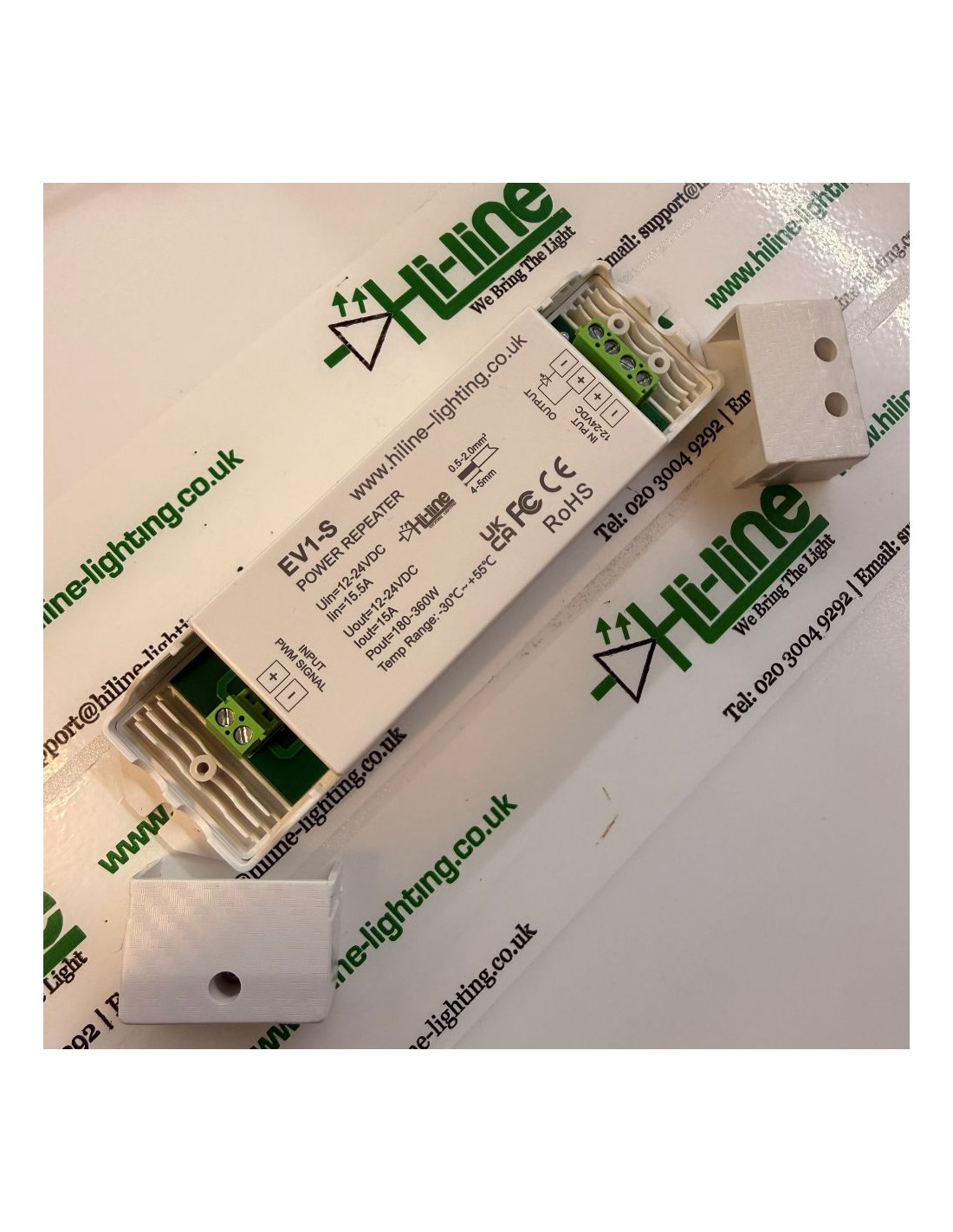

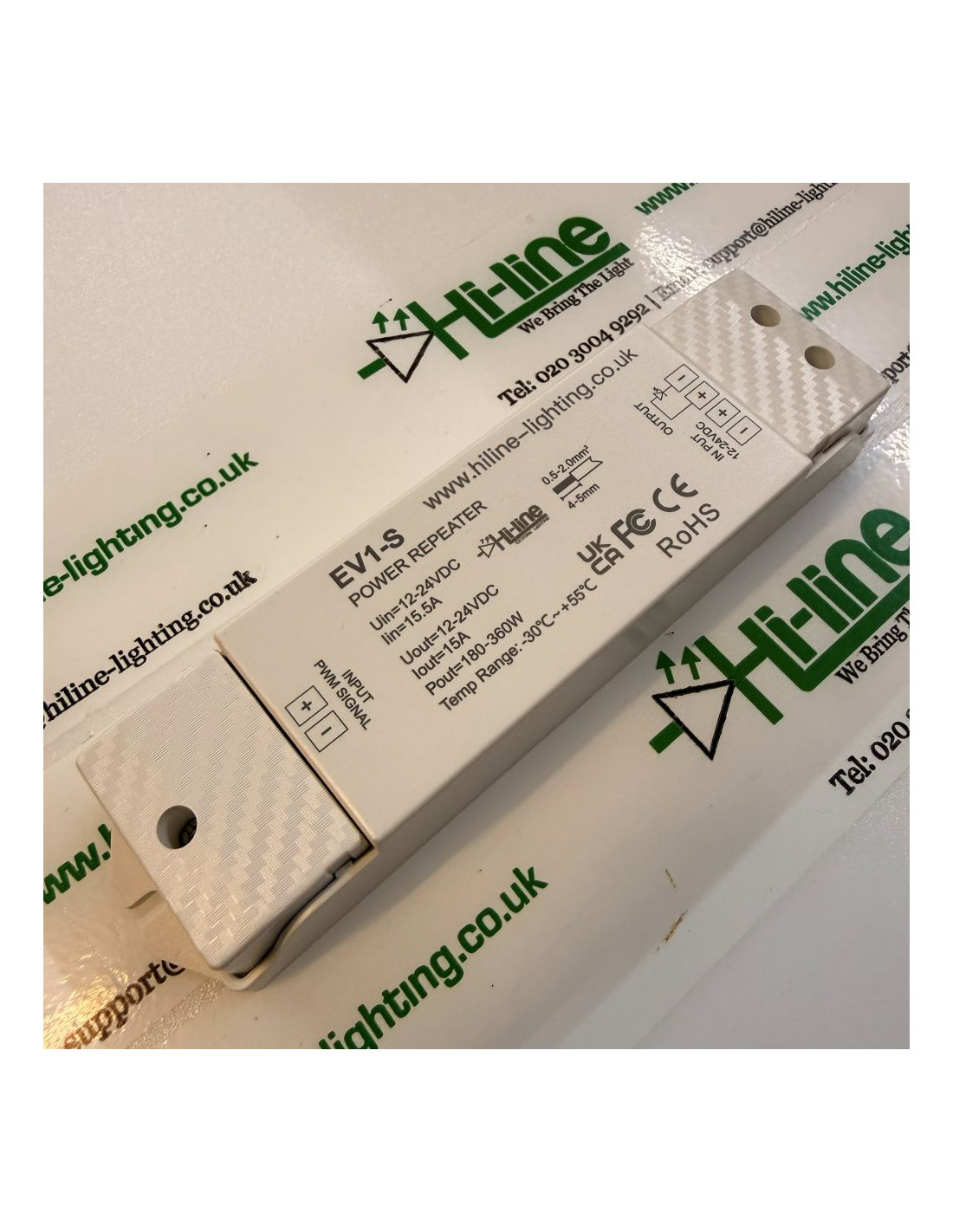

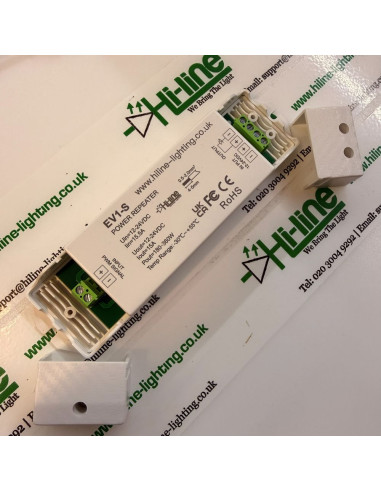

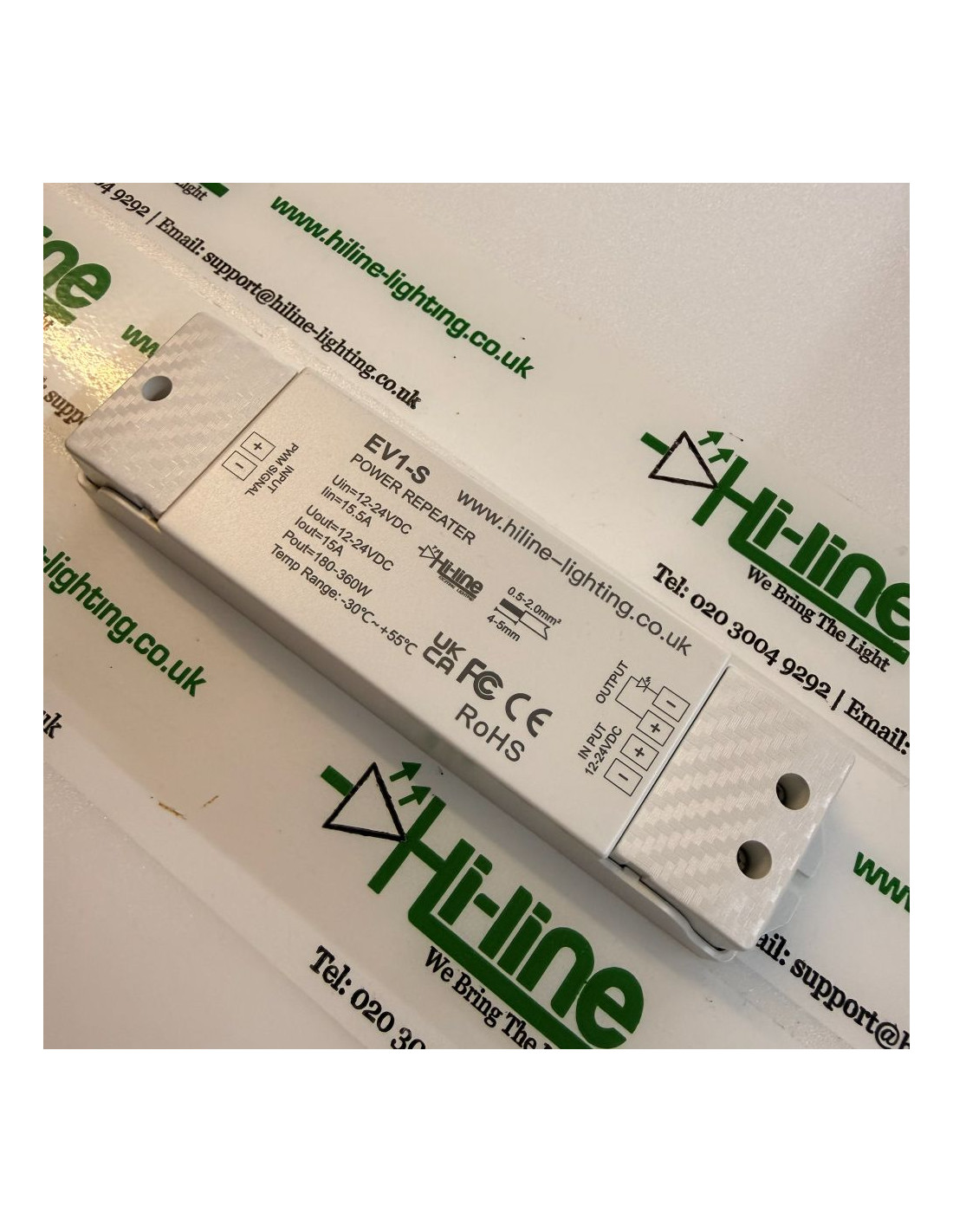

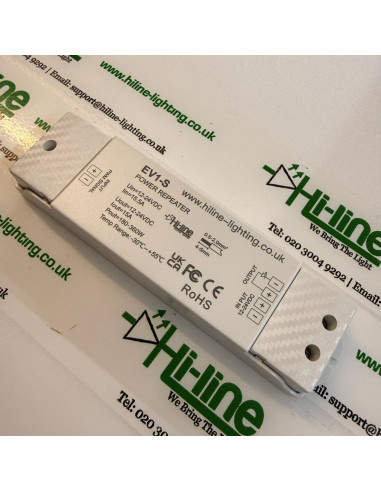

The EV1-S Constant Voltage Power Repeater extends the output capacity of LED controllers used with single-colour constant-voltage installations. It receives the PWM dimming signal from a controller and replicates it, providing an additional 15 A output channel to power longer LED strip runs or additional lighting zones.

This ensures identical dimming behaviour across all connected LED strips, ideal for architectural, retail, hospitality, and entertainment lighting projects requiring consistent brightness and synchronisation.

The HL-EV1-S delivers stable performance, high current capacity, and long-term reliability in professional LED installations.

When to Use This Product:
Installers should use this power repeater when the total LED load exceeds the controller’s rated output, when long LED runs show brightness drop at the far end, when multiple zones need to dim together under one controller, or when expanding an installation without adding additional controllers. Each repeater adds one more output channel while maintaining identical dimming levels across all sections.

How It Works:
The EV1-S requires a compatible LED controller to operate and cannot function independently. The controller outputs a PWM dimming signal, which the EV1-S receives and repeats. It powers an additional LED strip section using its own constant-voltage power supply, keeping all connected zones dimming together in perfect synchrony.

For example, if a controller drives 10 m of 24 V LED strip and 30 m are required, simply add two EV1-S repeaters, each powered by its own 24 V driver. All three sections dim evenly without any visible difference in brightness.

Technical Specifications:
Input Voltage: 12–24 V DC
Input Current: 15.5 A max
Output Voltage: 12–24 V DC
Output Current: 15 A max
Output Power: 180 W @ 12 V / 360 W @ 24 V

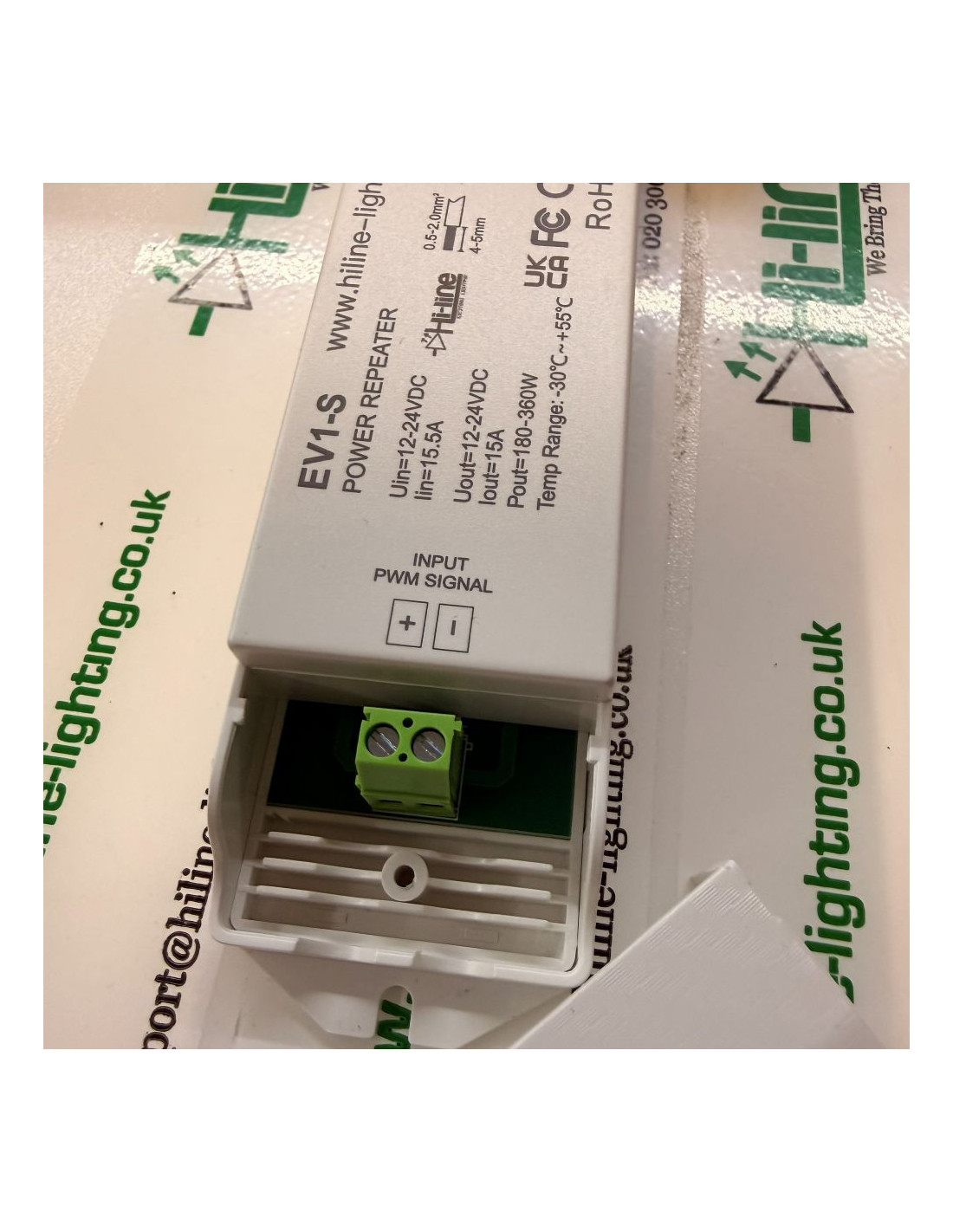

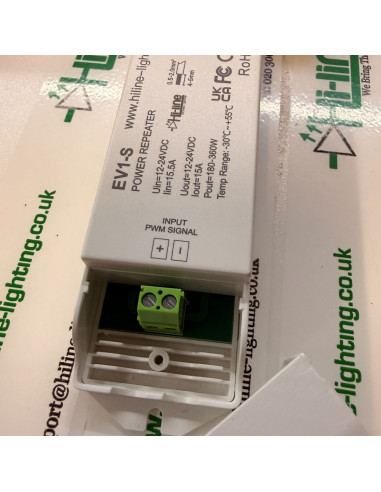

Input Signal: PWM (dimming signal from controller)
Output Type: Constant voltage (1 channel)
Operating Temperature: –30 °C to +55 °C
Case Temperature (max): +85 °C
Protection: Reverse polarity
IP Rating: IP20 (indoor use)
Dimensions: 178 × 50 × 38 mm
Weight: 0.119 kg
Certifications: CE / UKCA / RoHS / FCC
Warranty: 3 Years (Standard)
Extended Warranty: Up to 7 Years (With Project Approval)

Installation Guidance:
Each repeater must have its own constant-voltage driver (12 V or 24 V matching the LED strip). The driver’s rated power should be at least 1.25 × the total connected LED load.

Keep PWM signal cables under 100 m and separate from mains cables to prevent interference. Maintain 6–7 mm wire stripping length and tighten terminals securely. Do not stack repeaters — allow at least 20 cm spacing for ventilation. If PWM frequency ≥ 8 kHz, limit output current to ≤ 70 % to reduce heat.

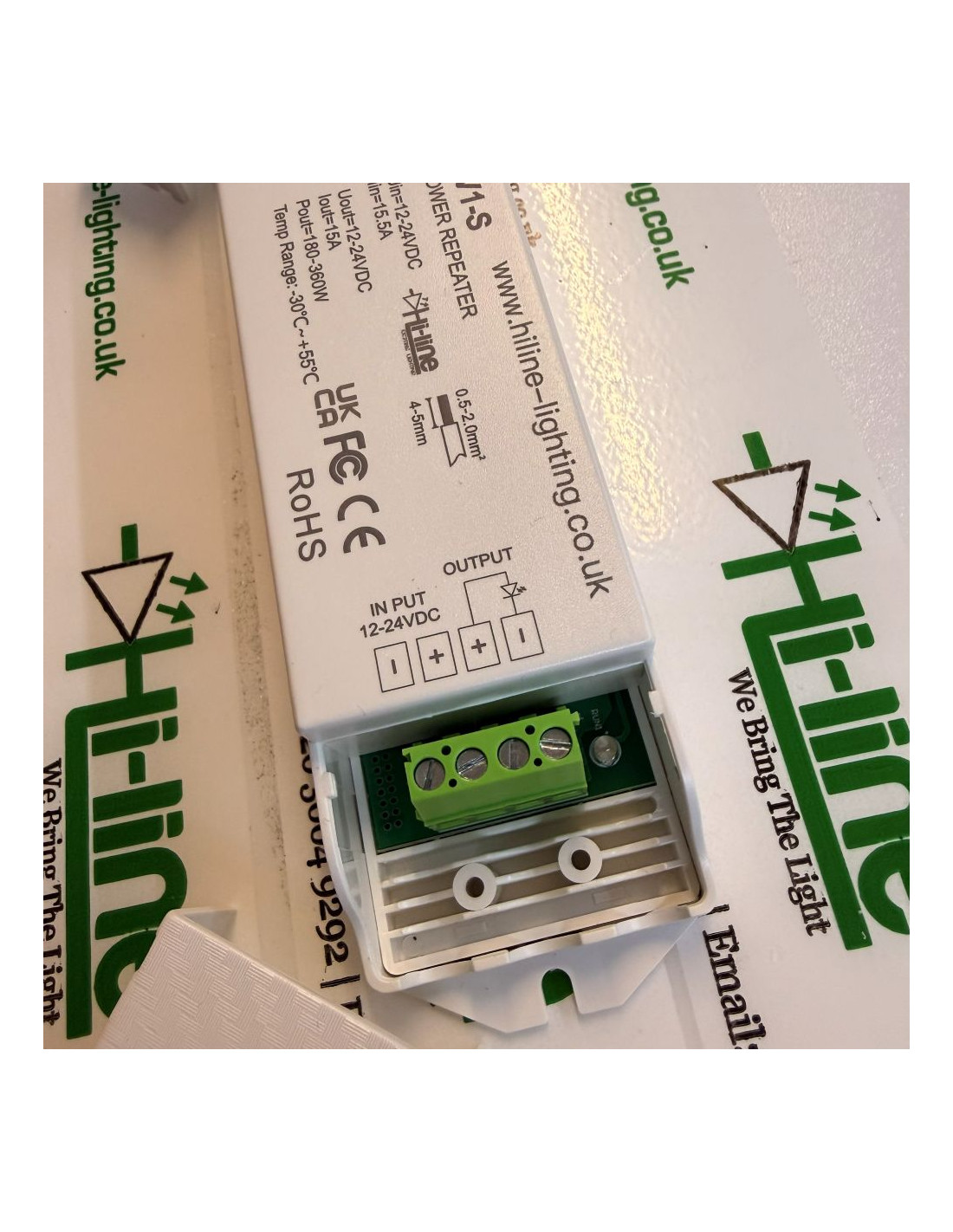

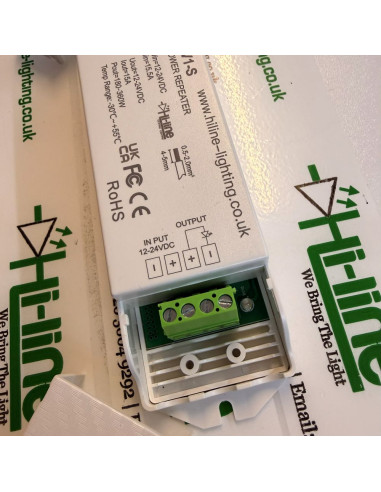

Wire Size Guide: 0.5 mm² ≤ 5 A  0.75 mm² ≤ 8 A  1.0 mm² ≤ 10 A  1.5 mm² ≤ 12 A  2.0 mm² ≤ 16 A

Use only with constant-voltage LED products (strips, bars, wall washers). Not suitable for constant-current fixtures (such as spotlights or panel lights).

Applications:
Architectural and cove lighting
Retail and display illumination
Bars, restaurants, and clubs with synchronised dimming
Hotels and offices with uniform light control across long runs

Part of the Hi-Line Constant Voltage Power Repeater Series, engineered for professional LED control systems.

Warranty Information:
Standard Warranty: 3 Years
Extended Warranty: Any coverage beyond 3 years is considered Extended Warranty and is only valid with an official Hi-Line certificate. Extended cover is a paid upgrade and is granted only after Hi-Line engineers have reviewed the project’s technical design, installation details, environment, and installer credentials. Once approved, coverage may be extended up to 7 Years.

All installations must comply with IEE regulations and be performed by qualified professionals. Incorrect cabling or insufficient driver capacity can lead to voltage drop or overheating. Hi-Line Lighting supplies components only and does not accept liability for installations.
