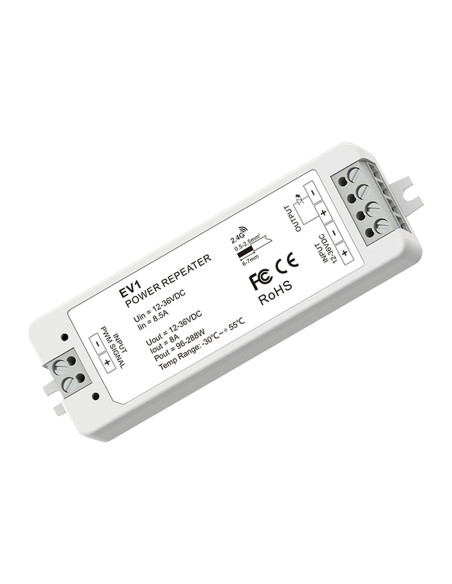

HL-EV1 Constant Voltage Power Repeater 12-36V 8A Front

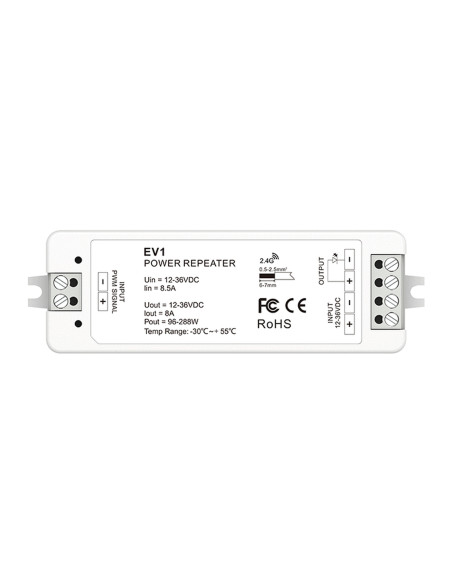

HL-EV1 PWM Input Power and LED Output Terminals
HL-EV1 Constant Voltage Power Repeater 12-36V 8A Front
HL-EV1 PWM Input Power and LED Output Terminals

EV1 Constant Voltage Power Repeater 12-36V 8A

HL-EV1 is a 12–36 V constant-voltage power repeater for single-colour LED tape. One channel, 8 A (96–288 W). It copies the PWM dimming signal so you can add another run without overloading the dimmer. Not the 15 A 12–24 V HL-EV1-S.

HL-EV1

Need more than we have in stock?

We have 2 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
2 Items In stock
Last items in stock
£19.80
(£
23.76
with VAT)
VAT excluded

Tags:


HL-EV1 — 12–36 V 8 A constant-voltage power repeater

Use this when a single-colour dimmer is already at its amp limit and you still have more tape to run. EV1 takes the PWM signal from the dimmer and drives a second 8 A output from its own 12–36 V supply. Series or parallel: you can chain more repeaters. It is not a dimmer and it has no RF of its own.

It is the 8 A, 12–36 V sister of HL-EV1-S (that one is 15 A, 12–24 V, larger housing). Same job, different current and voltage window.

Why installers buy it

  • One channel, 8 A, 96–288 W depending on voltage. IP20, about 114 × 38 × 26 mm, 53 g.
  • PWM in, LED out, power in — each from its own terminals. Reverse-polarity and short-circuit protection.
  • Works with Hi-Line single-colour CV dimmers (V1-L, V1-F, V1-T, V1-K and similar).

What you are wiring

  • PWM signal + / − from the dimmer LED output (or the previous repeater)
  • Power in + / −, 12–36 V DC, same voltage as the tape, from a separate PSU sized for this run
  • LED out + / − to the extra tape

If PWM is 8 kHz or faster, keep output current below about 70 % so the repeater does not run hot. The user manual PDF is on the Attachments tab. Related products: EV1-S and typical single-colour dimmers.

Technical summary

  • SKU: HL-EV1
  • 12–36 V DC, 1 channel 8 A, 96–288 W, PWM in
  • IP20, about 114 × 38 × 26 mm, 53 g
  • Warranty: 5 years

Must be installed by a qualified electrician. Confirm strip voltage before first power-up. Indoor, dry location only.

Brand
Hi-Line
IP Rating
IP20 (Non-waterproof)
Type
Amplifier (Single Channel)
Single colour controller
Voltage
12-36V DC
Voltage Type
Constant Voltage (PWM)
Warranty
5 Years
