HL-R1-B — 10-key 1-zone RF dimming remote, black

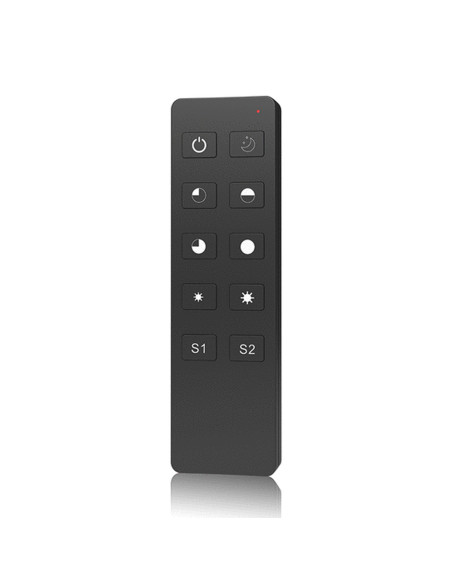

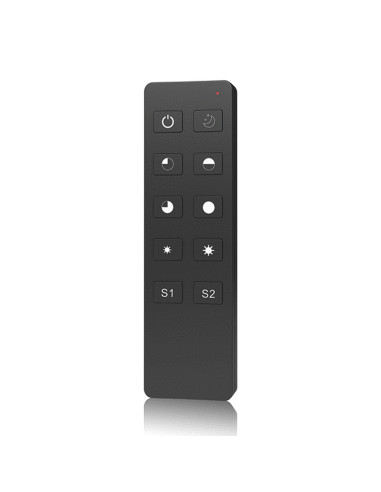

This is a battery handheld remote, not a dimmer and not a mains switch. Ten keys on a slim 135 mm handset: on/off, night light, four brightness shortcuts, brightness +/− and two scenes. The RF 2.4 GHz signal goes to a matching Hi-Line single-colour receiver on the LED strip (for example HL-V1-L, HL-V1-L/P, HL-V1-KS or HL-V1-F). Without that receiver, the remote does nothing.
Why installers buy it

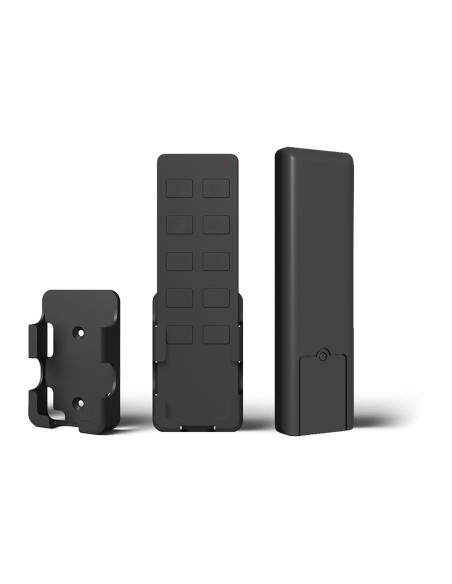

- Slim 135 × 40 × 11 mm handset. A wall holder is in the box — screw it up or stick it on. Occupants can take the remote off the wall and put it back.
- Shortcut keys for 25 %, 50 %, 75 % and 100 % plus a night-light key. Two scene keys (S1 / S2) for the levels you use most.
- One remote can run one or more matched single-colour dimmers. About 30 m in open space; treat 10–15 m through walls as realistic.
- CR2032, typical standby about two years. Peel the battery film before first use. This listing is the black handset.
How people use it
- On / off at the top.
- Night light for a low preset.
- Circle keys: 25 / 50 / 75 / 100 % brightness.
- Sun keys: brightness +/−. Short press steps; hold 1–6 s for a smooth ramp.
- S1 / S2: recall a stored scene. Hold to save the current level.
Match: short-press Match on the receiver, then immediately press on/off on the remote. The receiver LED flashes if it took. A power-cycle match is in the PDF if the receiver has no Match button to hand. Hold Match 5 s on the receiver to clear remotes.
What you are fitting
- Output: RF 2.4 GHz only — no switched live, no 0–10 V, no DALI
- Battery: 3 V CR2032, working current under 5 mA, standby under 2 µA
- Range: up to 30 m barrier-free
- Handset about 135 × 40 × 11 mm, about 41 g
- IP20, indoor dry location, Ta −30 °C to +55 °C
What to put with it
Open Related products for the Hi-Line single-colour RF dimmers we keep with this remote. Do not pair it with an RGB or RGB+CCT remote or receiver and expect colour control — this face only dims one channel.
The user manual PDF is on the Attachments tab (factory pages, Hi-Line website on each page). The same file also shows the CCT and multi-zone sister faces so you can see you have the 1-zone dimming version.
Technical summary
- SKU: HL-R1-B | black 10-key handheld remote for single-colour LED dimmers
- RF 2.4 GHz, CR2032, wall holder included
- Marks: CE, RoHS, FCC
- Warranty: 5 years
Indoor, dry location only. Fit the battery the right way round. If the receiver does not respond, re-match as in the PDF rather than replacing the remote first.
