HL-T1-K-B — black glass T1-K rotary wall dimmer for single-colour LED strips
This is the black glass-front version of the T1-K. The electronics match the white panel (HL-T1-K-W). Choose this listing when the wall plate should sit on a dark switch grid or a darker interior. It is not a mains wall dimmer — it sits on the low-voltage side of a constant-voltage LED driver.
How you use it
Push the knob for on/off. Rotate, or long-push, to dim. Pair a Hi-Line 2.4 GHz RF remote if you also want handheld control. Three LED outputs (W1, W2, W3) dim together, so one plate can feed up to three single-colour runs.
Electrical

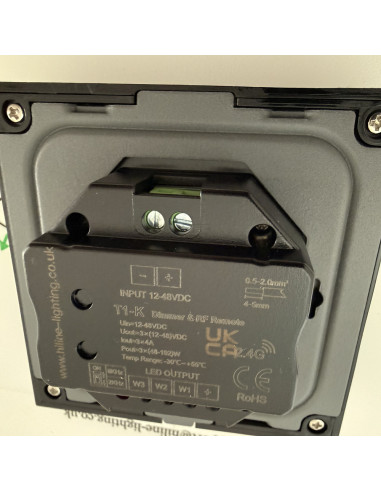

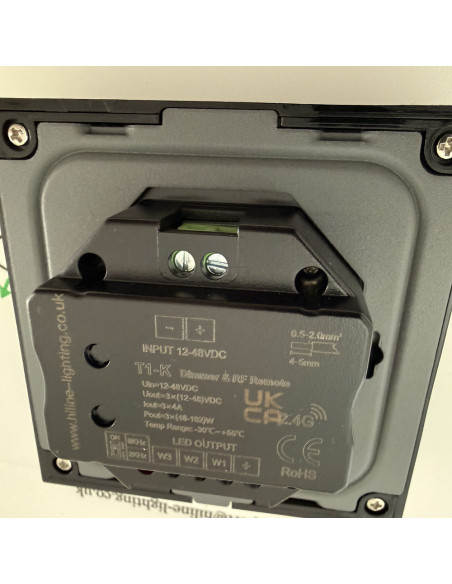

- Input: 12–48 V DC (from a non-dimmable constant-voltage driver)

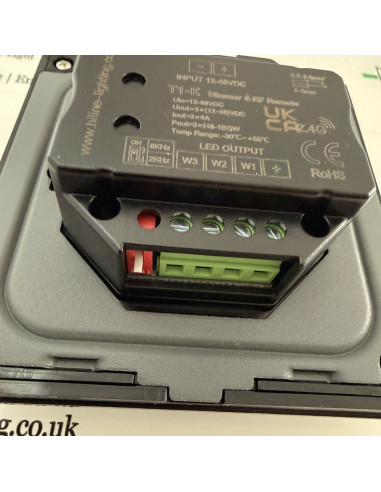

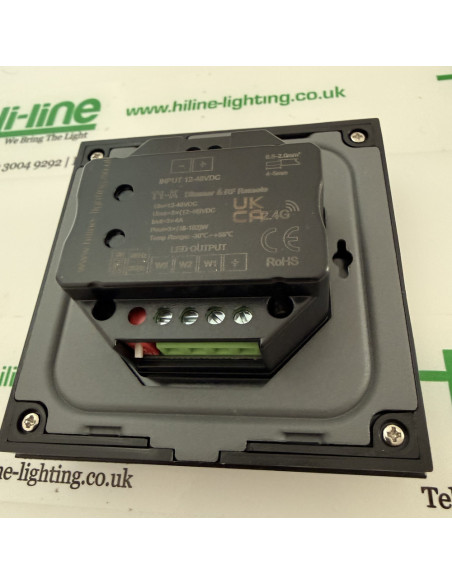

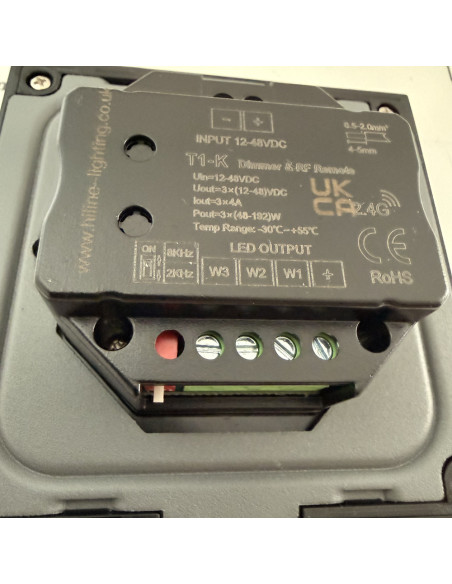

- Outputs: 3 × 4 A (W1 / W2 / W3 + common +)
- Power: 3 × (48–192) W depending on voltage
- Example at 24 V and about 15 W/m: roughly 5 m per channel, about 15 m total
- Stay about 20% under the peak load, especially in a warm or poorly ventilated back-box
- Longer runs: add a Hi-Line EV1 (or similar) power repeater
Dimming
- 256-level, flicker-free 0–100%

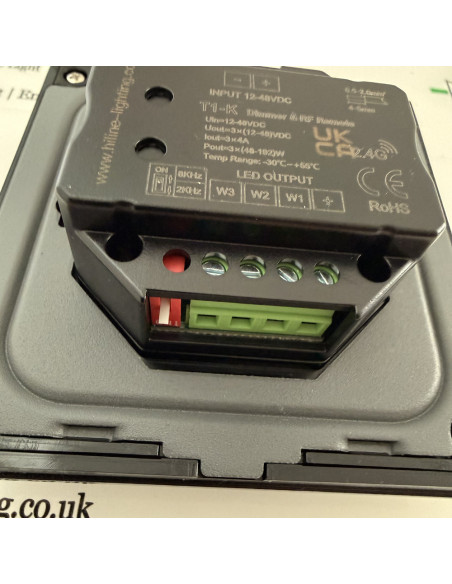

- PWM selectable 2 kHz or 8 kHz on the rear switch — use 8 kHz where cameras are used
- 2.4 GHz RF, UKCA / CE
- Over-heat, over-load and short-circuit protection
- Operating range −30°C to +55°C
Finish

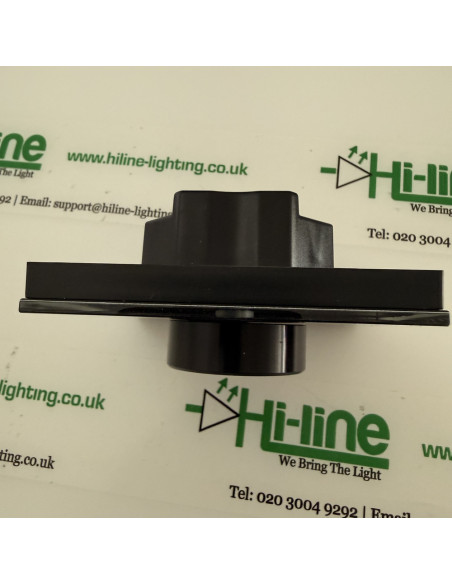

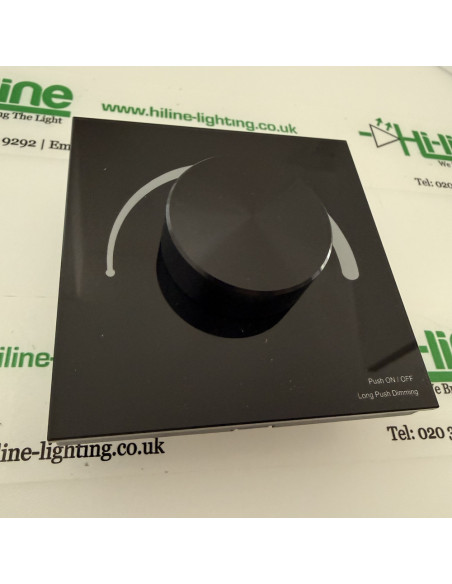

Black glass faceplate with a matching rotary knob. Marked “Push ON / OFF — Long Push Dimming”. Standard UK wall-box depth. Same T1-K / T2-K / T3-K family as the white glass panel and the CCT / RGB rotary plates.
Warranty: 3 years standard, extendable to 5 years.
User manual (T1-K, T2-K, T3-K) is on the Attachments tab — same PDF as the white T1-K. Related remotes, repeaters and the white glass T1-K are under Related products.
