20m roll–8mm width, IP00 (non-waterproof)
4 Item Items
Same Day Dispatch
Warning: Last items in stock!
|LED Chip||SMD 2835|
|CIE Colour Space||3 SDCM|
|Number of LEDs per meter||60|
|LED Strip Efficiency||115 lm/w|
|Colour Temperature (CCT)||2700K|
|Colour rendering (CRI in ra)||more than 90|
|Width of strip||8mm|
|FCP copper content||3 ounce double layer|
|Cutting length||Every 6 LEDs (100mm)|
|LED Strip Packing||20-meter roll|
|Voltage Type||Constant Voltage|
|Module built-in driving method||Constant Current|
4.8 w/m – 24V DC – 20m roll – 60 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This is a high efficiency single colour LED strip, it can produce high brightness at low drive currents. Therefore, it is possibly the brightest product available today with a consumption of only 4.8 Watt per meter.
This high brightness LED strip is powered by high-quality Epistar SMD2835 LED chips, efficiency is 115 lm/w
Note: This LED strip can operate with 22V DC to 25V DC (due to ICs that keep the chip current constant). That way the voltage drop will not affect the brightness or operating life of the LED chips. This strip can be connected with a constant voltage 24 Volts DC LED Driver, no special drivers are required.
This LED strip can also be connected to any 24V PWM controller (DMX Dimming or analogue), the same as any normal LED strip.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.

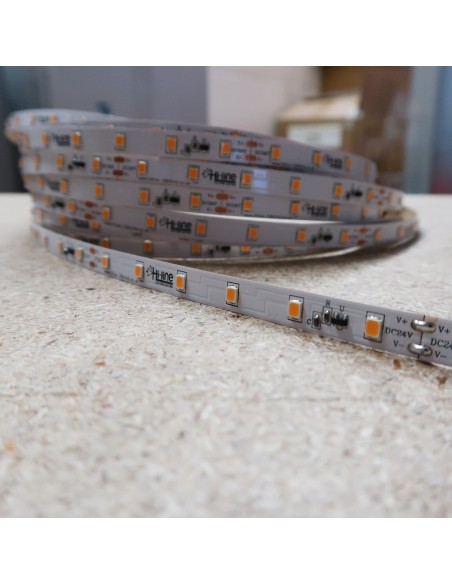

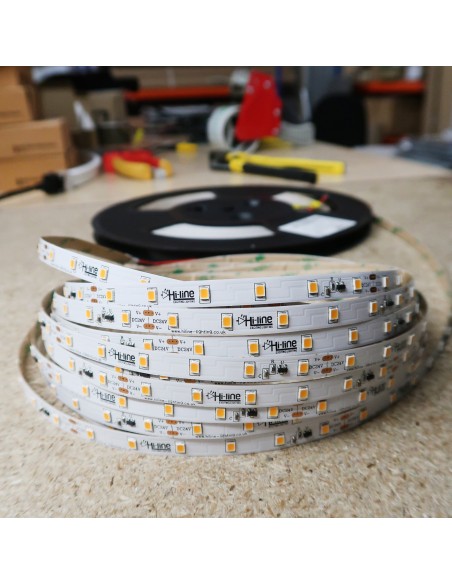

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M 300 LSE adhesive tape with excellent adhesion.
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Up to 30m of this specific LED tape can be installed in series only if power is fed at both ends of the installed length (2 x 2 core wires (+/-) coming from both ends of the 30m length and terminated in parallel into 24V output of the power supply.
Please do NOT connect more than 20 meters of a LED strip in series without terminating both ends in parallel with LED driver. A LED strip of more than 20 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Please note that 20m of this product can be installed in a single run with power only fed from one side. Thus, when 20 meters of the LED strip is exceeded (for up to 40m), it is suggested to connect the strip to a 24V DC power supply in the middle of the run (leaving 20 meters of the LED strip to the left and 20 meters to the right).
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

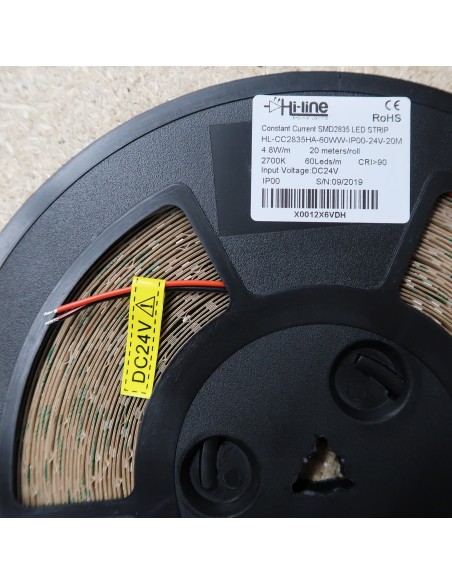

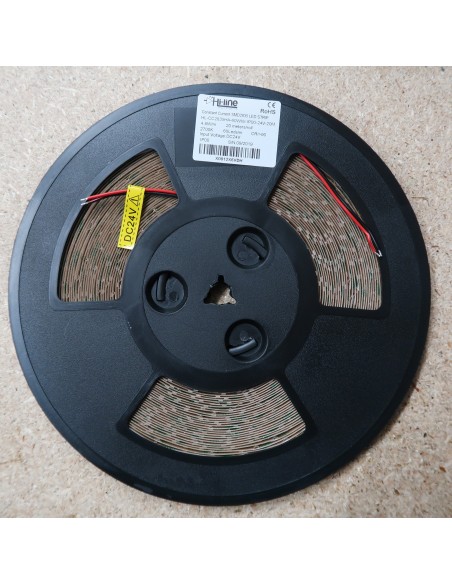

The stated price is for 1 x 20-meter roll LED strip (Warm White 2700K) with 1200 SMD2835 LEDs – IP00 (Non-Waterproof), 24V DC with a power consumption of 4.8 w/m and efficiency 115 lm/w.
