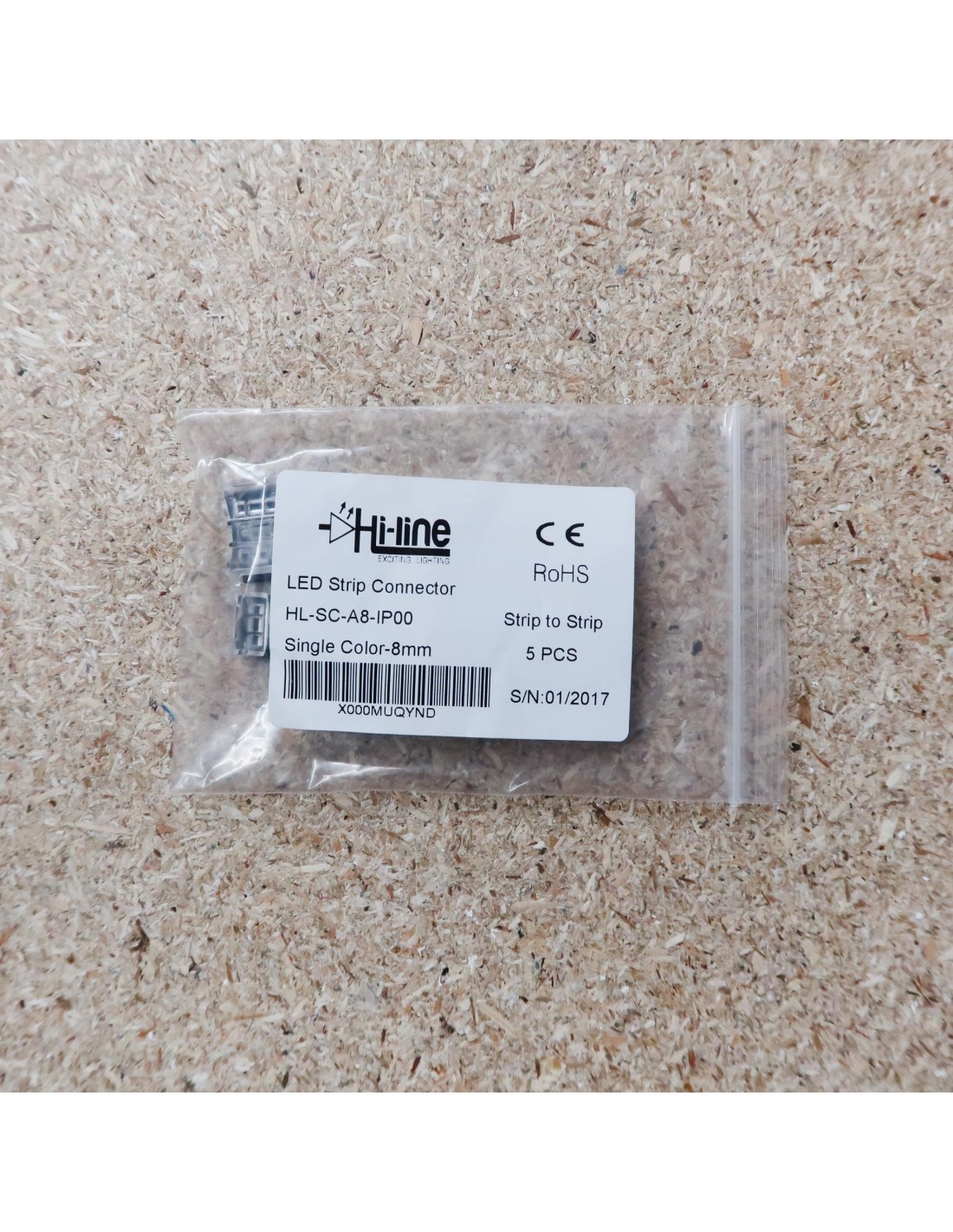

Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)
Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)

Strip to strip connector for 8mm IP00 LED tape single colour (pack of 5)

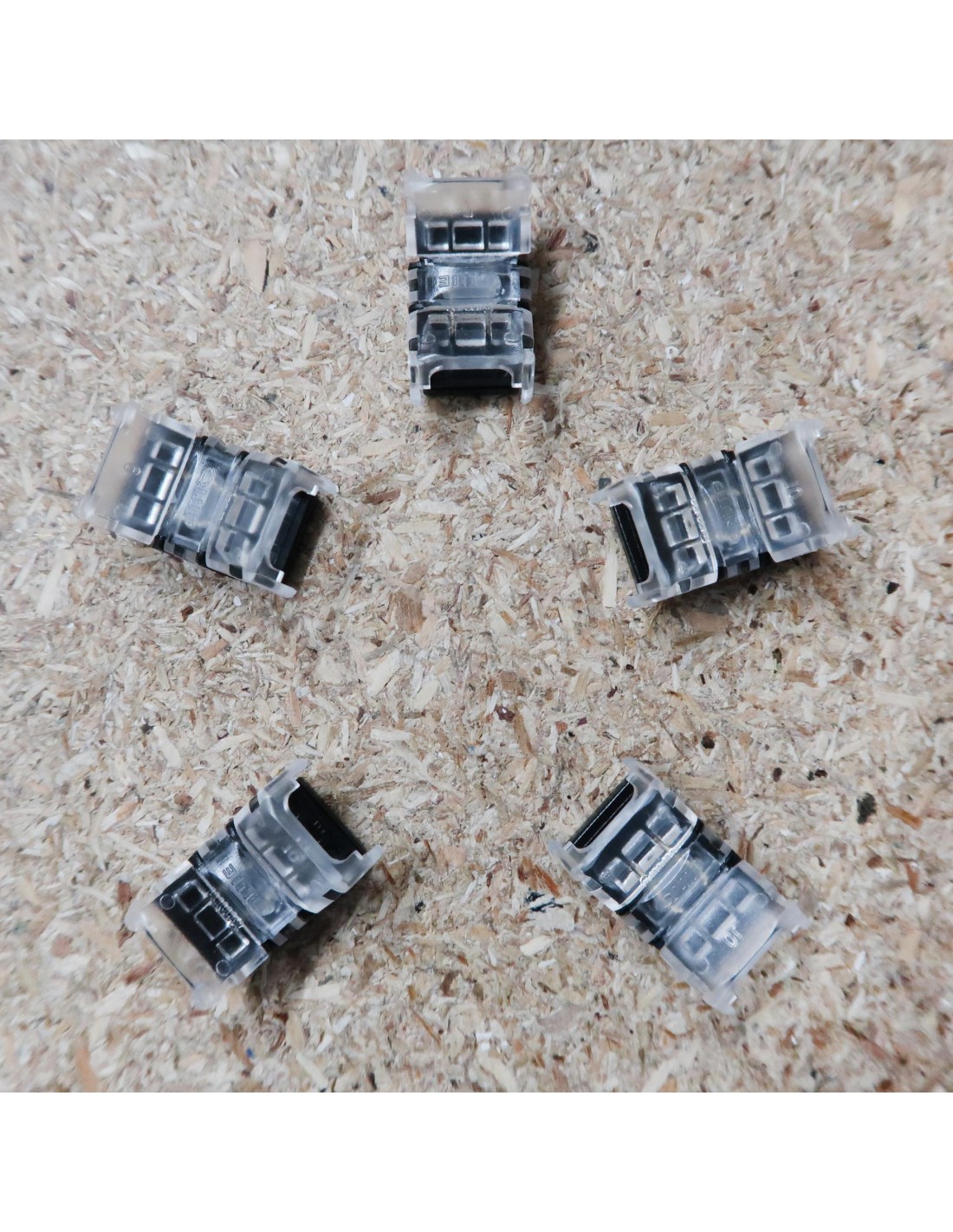

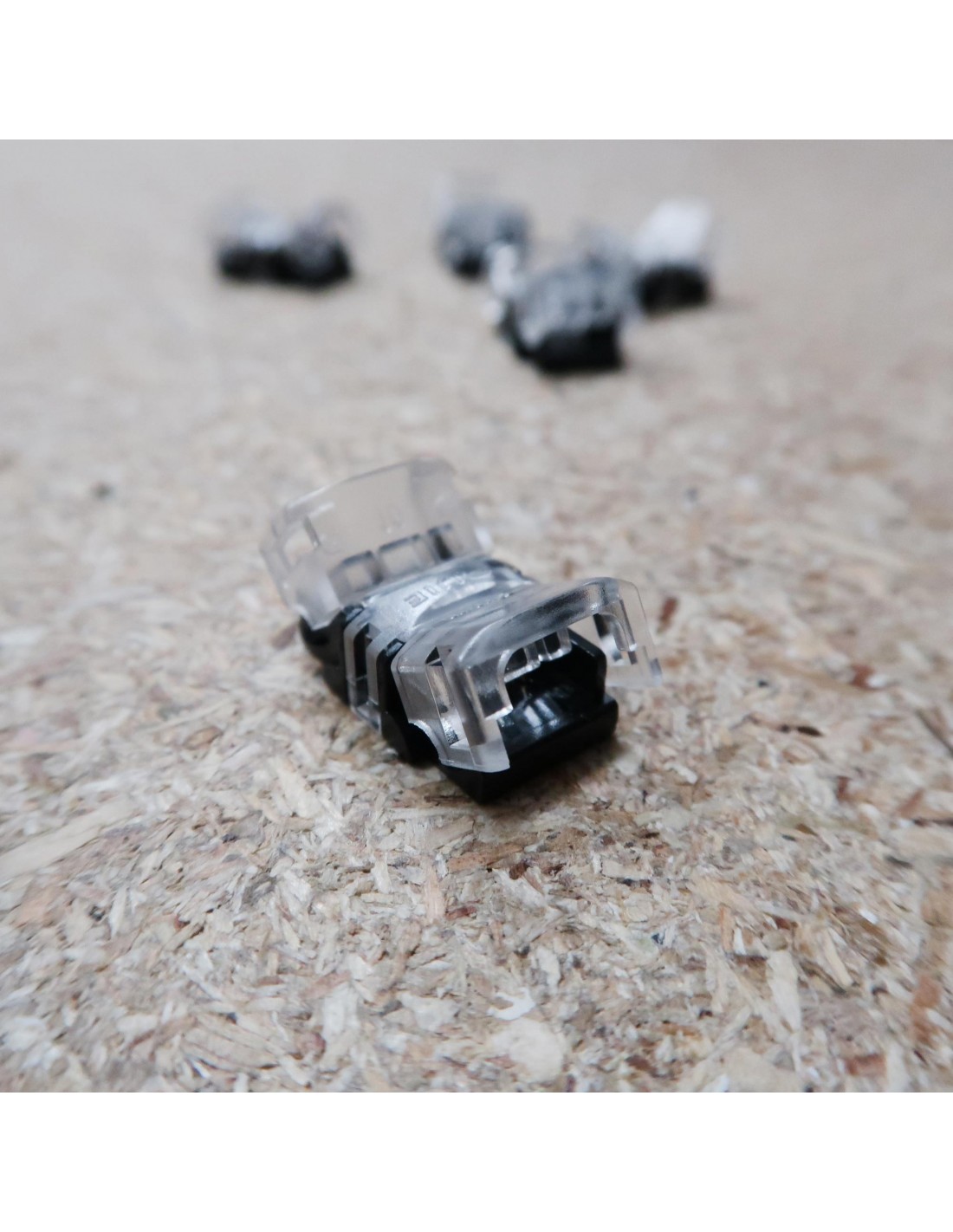

2 pin LED strip to strip connector

Supports high current LED strips

For 8mm IP00/IP20 single colour LED strips

Workable Wire Gauge: 22 ~18 AWG

HL-SC-A8-IP00
104 Items In stock
Same Day Dispatch
£7.50

(£1.50 each)

VAT excluded

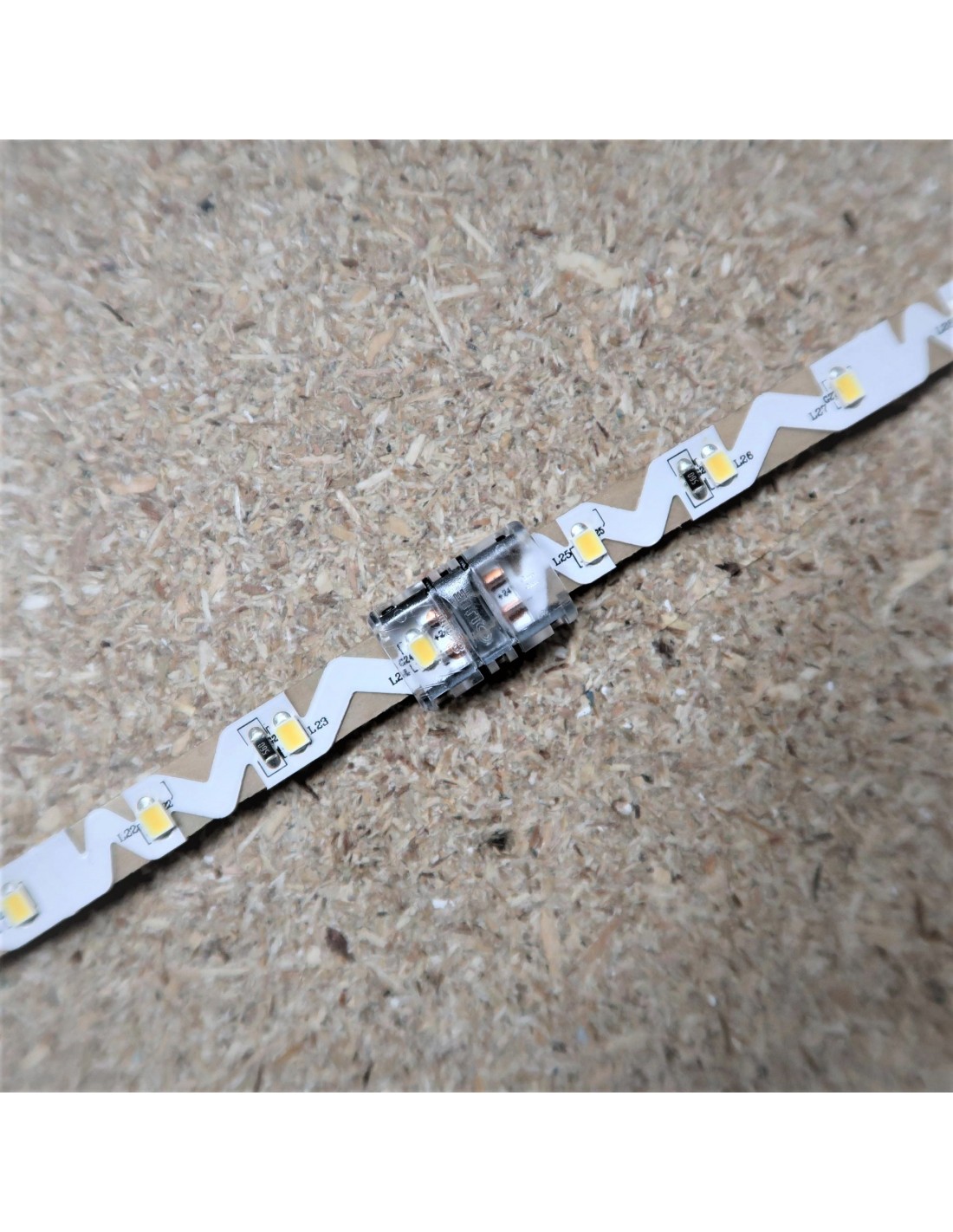

A LED strip connector designed for 8mm wide non-waterproof single colour LED strip

This is a very high quality strip to strip connector suitable only for IP00/IP20 single colour 8mm LED strips.

Compatible with 30-120 LEDs/m LED strips (8mm single colour). This connector is made of flame retardant material.

Supports high current LED strips!

Please note that this connector is not compatible with the gel coated (PU) IP65 LED strips.

­­­______________________________

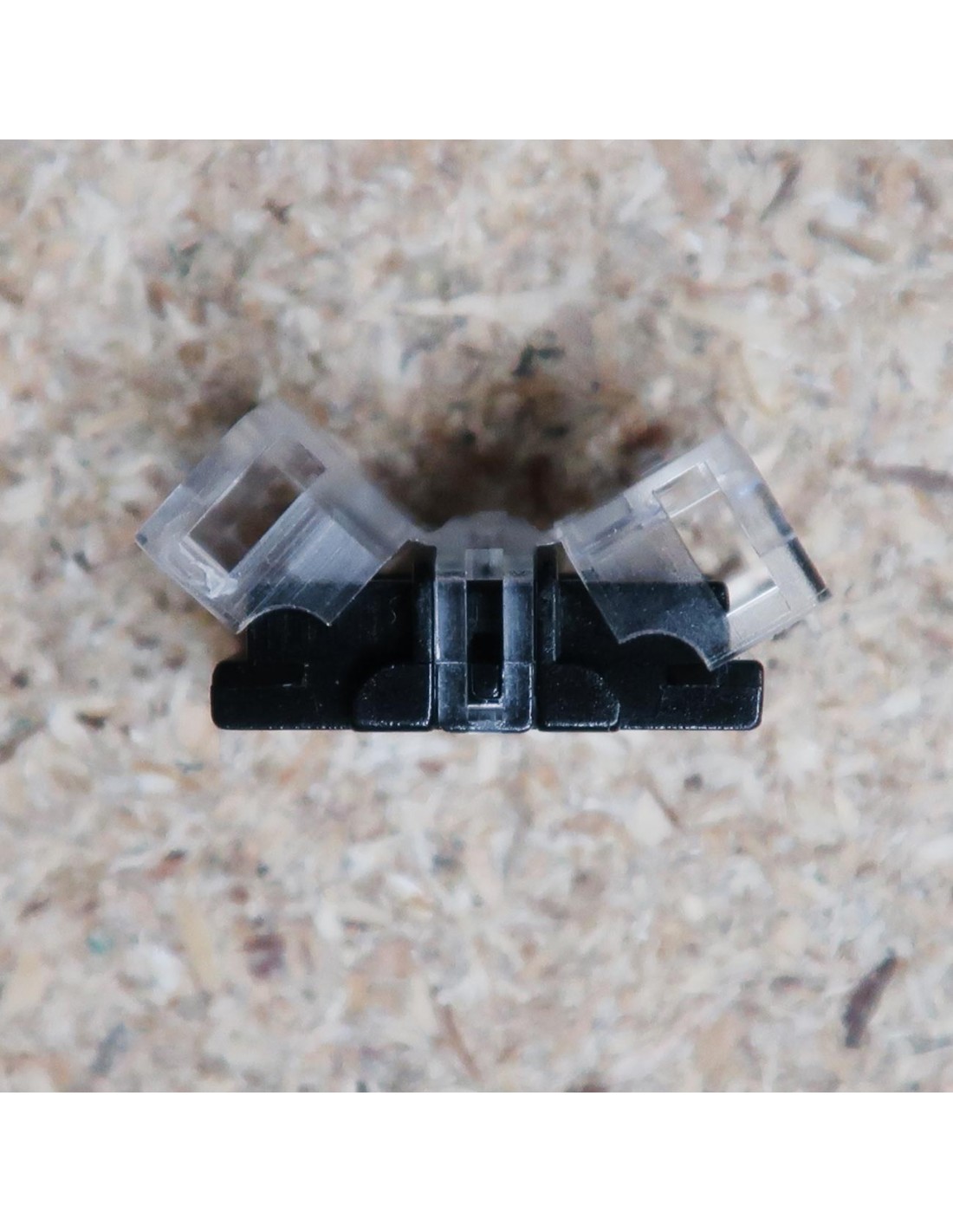

Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!

______________________________



Technical Data

Size: L25mm X W12.6mm X H7.7mm

Colour: Transparent with black base

Number of Pin: 2

Workable Wire Gauge22 ~18 AWG

Pin distance between them: 3.6mm

Connection hardware: High precision brass(Cu)

Voltage range: 12-24V

Maximum current: 5A

Normal working temperature: 60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Standard Package: 5pcs/bag

Voltage
12-24V DC
Rating
IP00 (Non-waterproof)
Connector type
strip to strip connector
Connector width
For 8mm LED strips
Number of terminals
2 pin (for single colour strips)
