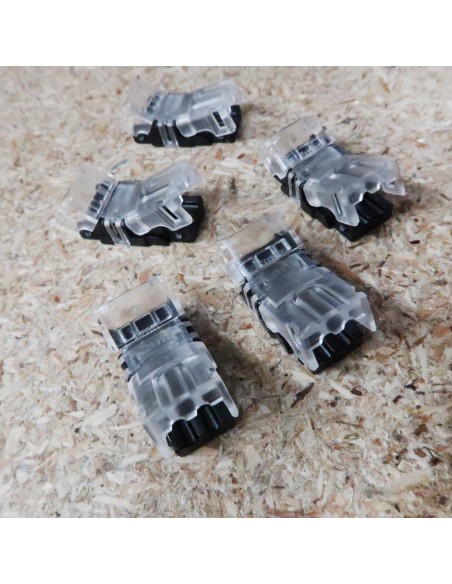

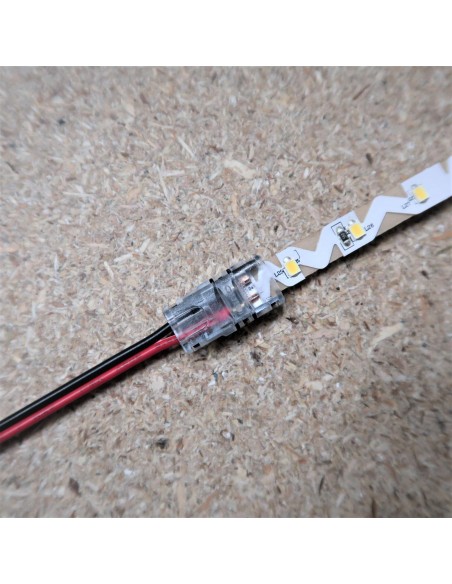

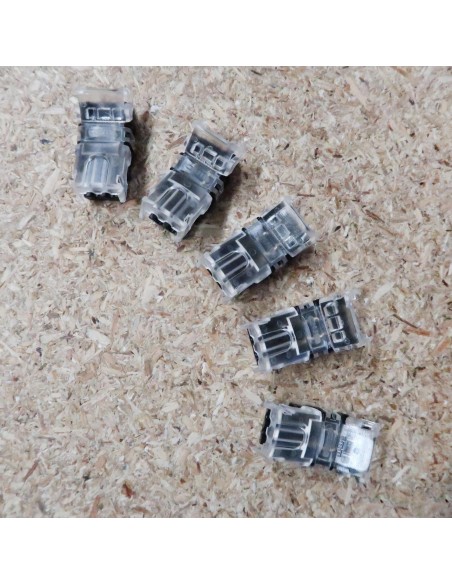

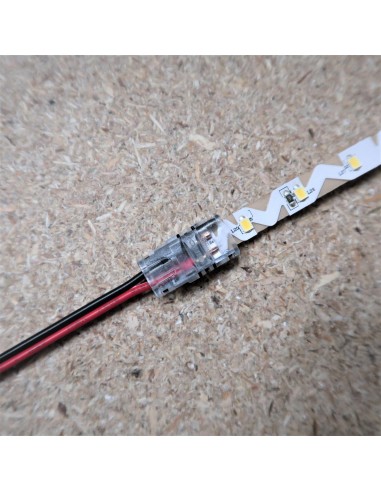

A LED strip to wire (power) connector designed for 8mm wide IP00/IP20 non-waterproof single colour LED strip
Assemble wires by yourself as needed, flexible to different project, DIY customised length of wiring!
With this revolutionary LED strip to power connector you can customize required length of the cable, gauge, insulation colour and wire core type (stranded or solid) and use wires of your preference per project requirements.
This is a very high quality strip to wire connector suitable only for IP00/IP20 single colour 8mm wide LED strips.
Compatible with 30-120 LEDs/m LED strips (8mm single colour). This connector is made of flame retardant material.
Supports high current LED strips!
Please note that this connector is not compatible with the gel coated (PU) IP65 LED strips.
Note: Please DO NOT close caps of the connector before strip to be in place as it is hard to open!
Technical Data
Size: L27mm X W12.6mm X H7.7mm
Colour: Transparent with black base
Number of Pin: 2
Workable Wire Gauge: 22 ~18 AWG
Workable Wire Cross Sectional Area: 0.34~0.75 mm²
Pin distance between them: 3.6mm
Connection hardware: High precision brass(Cu)
Voltage range: 12-24V
Maximum current: 5A
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin Surface Treatment: Tin-plating

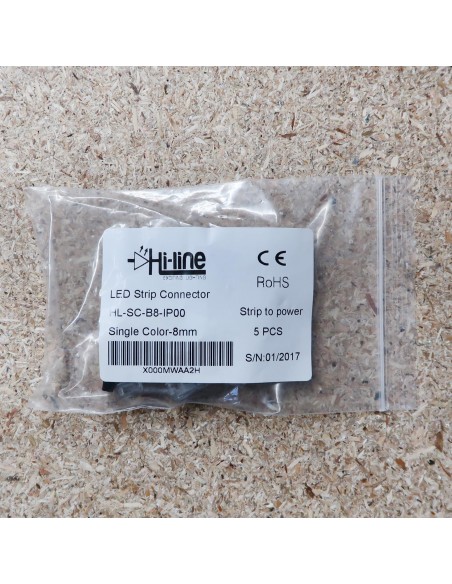

Standard Package: 5pcs/bag
