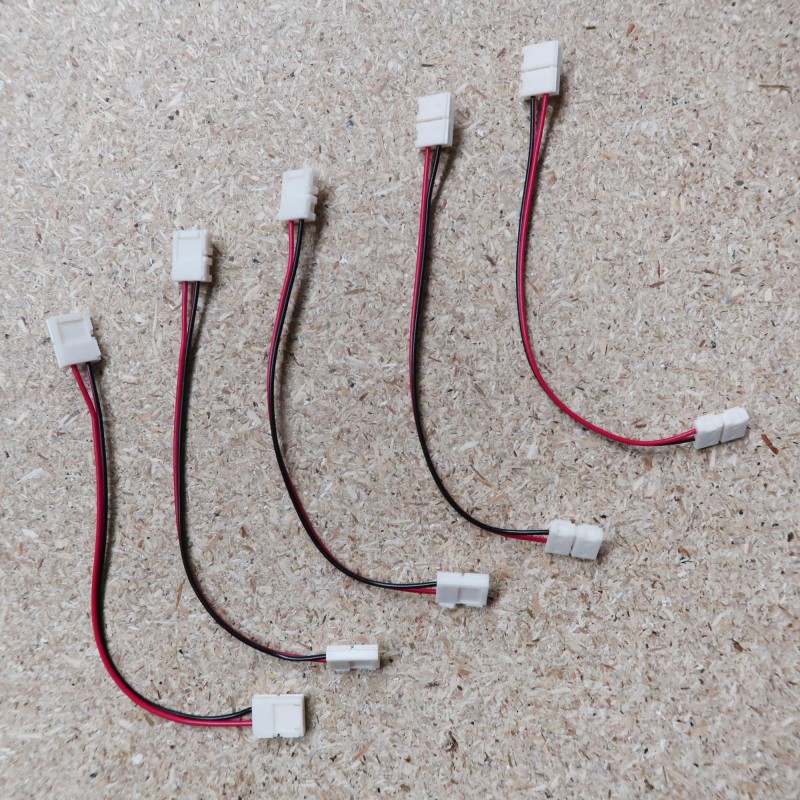

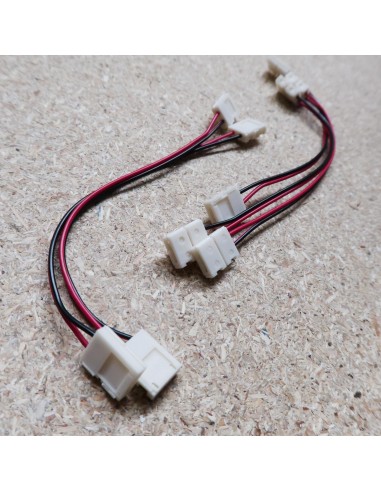

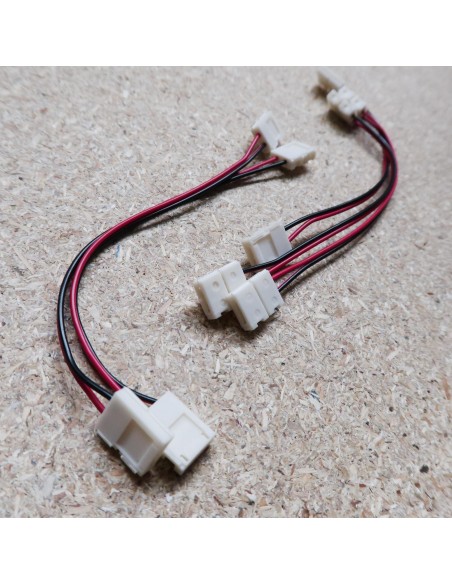

8mm single colour strip to strip extension with 15cm cable (pack of 5)

Key Features:

  • Strip to strip extension with 15cm cable
  • 8mm / 2 pin
  • Pack of 5

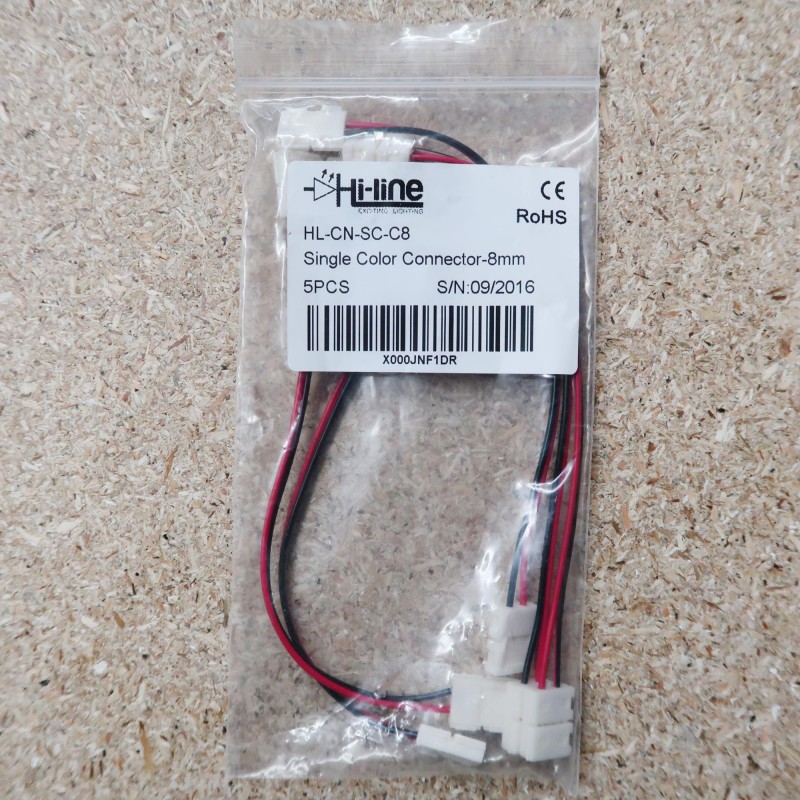

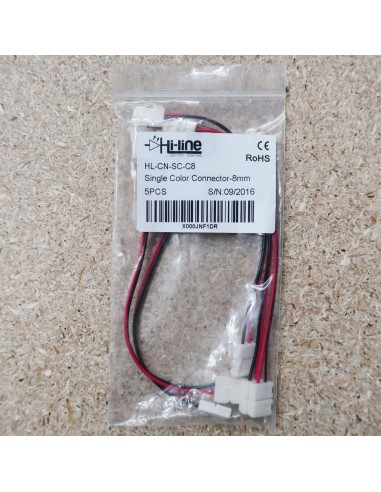

HL-CN-SC-C8
59 Items In stock
Next working day delivery
£4.40
5.28
with VAT)

(£0.88 piece)



Single colour strip to strip extension (with 15cm cable) for 8mm strips (pack of 5)

This connector is used to connect two lengths of single colour LED strip together without any soldering to be required.
The LED strip light must be 8mm wide in order to use this connector. Suitable for single colour strips up to 60 LEDs/m

In order to use that with IP rated LED strips, waterproof coating (resin) must be removed from the end of both LED strips. You can use on the top of the connection heat shrinkable tubing to maintain IP rating.

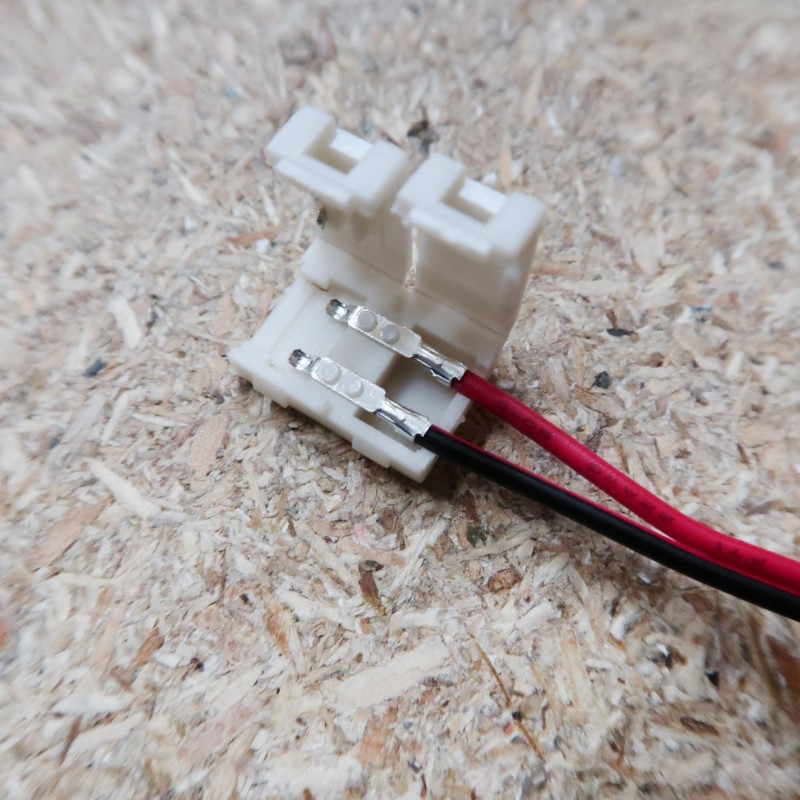

Please ensure connector clips are aligned with the copper contacts of the LED Strip and notice the polarity. If connecting IP rated strips remove any gel coating from copper contacts completely. In some cases might be required to move the LED forward or backwards in order for connector contacts to be aligned properly. Then insert strip in the slot and before closing the connector cover ensure the teeth clamps will hold the circuit board of LED strip in place. If an LED chip is located near by the copper connection contacts of the strip the cover might not be able to close and you may try in such a case to use the other end of your LED strip and install the connector upside down in order to match the polarity.

We do suggest using this connector for powering up to 5m of LED strip. To power longer runs a soldered connection is suggested.


We still suggest soldering but those connectors are best available in the market today. After lots of testing they are the only ones that are approved to be used but still not the perfect solution.

Brand
Hi-Line
Cable length
15cm
Connector type
strip to strip extension
Connector width
For 8mm SMD strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP00 (Non-waterproof)
