Cool White LED Strip 24V | 14.4W/m | IP00 | CRI80 | SMD2835
Cool White LED strip, 6000K, 24V, IP00 (non-Waterproof)
60 LEDs/m | 14.4W/m | 1440Lm/m (Typical)

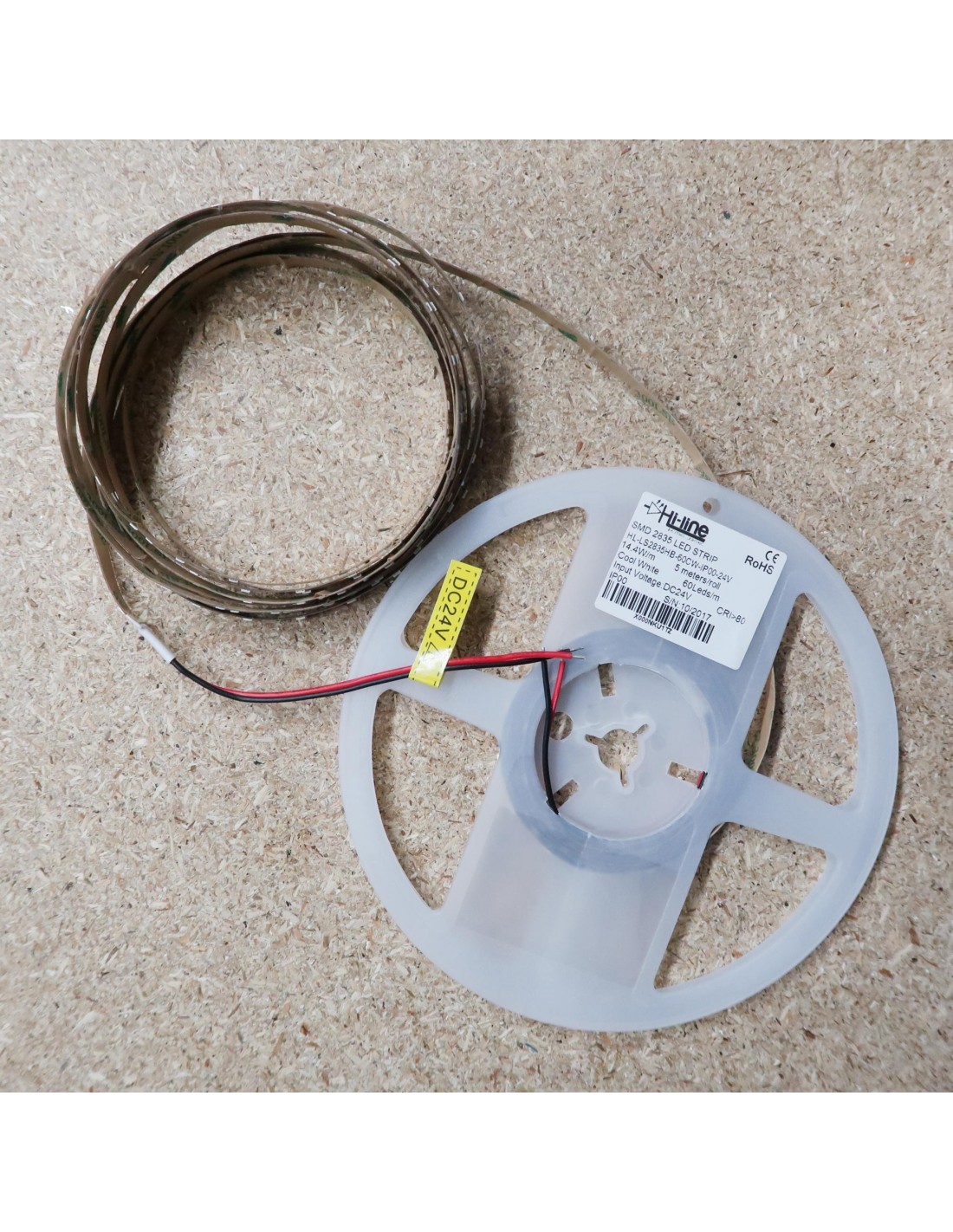

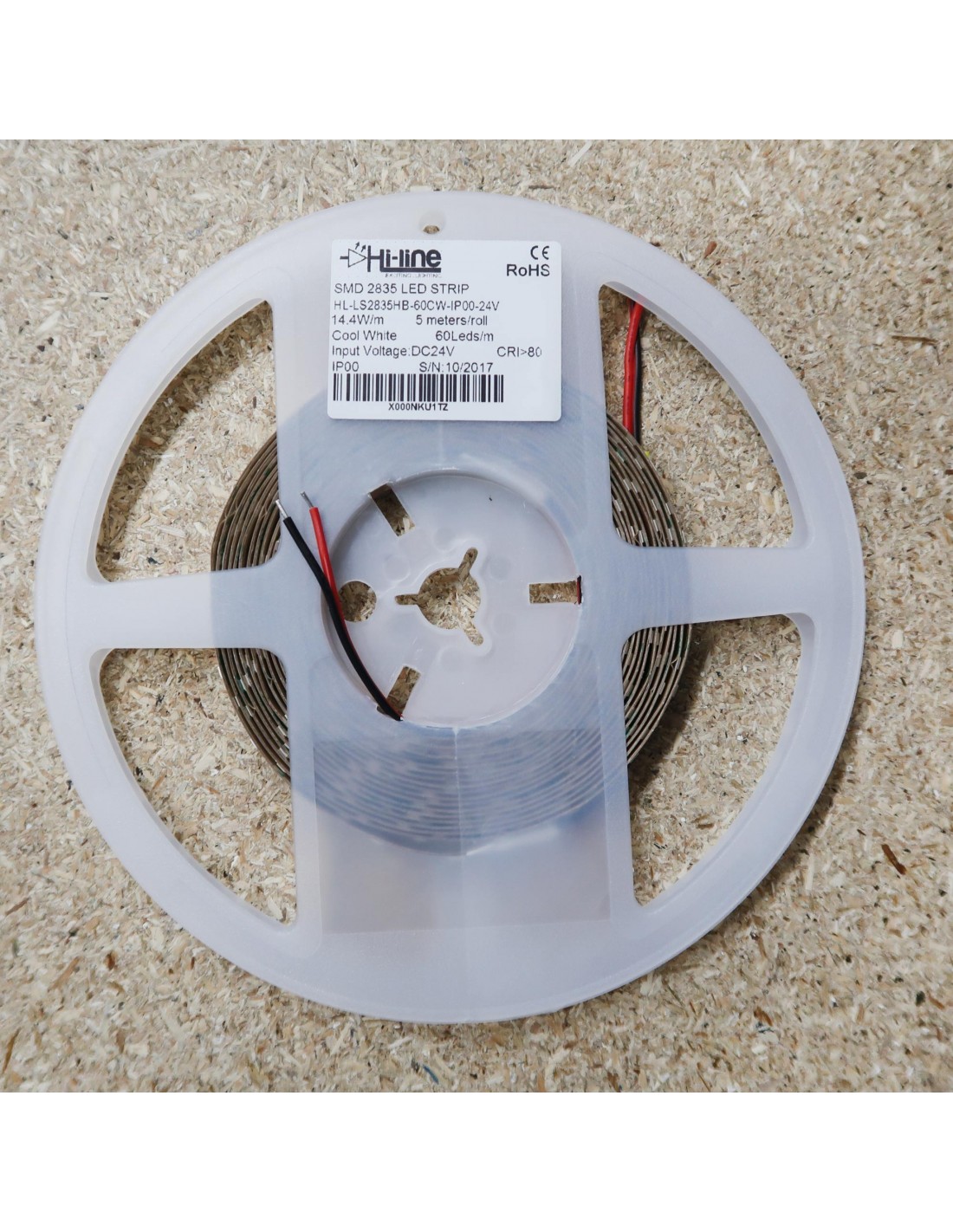

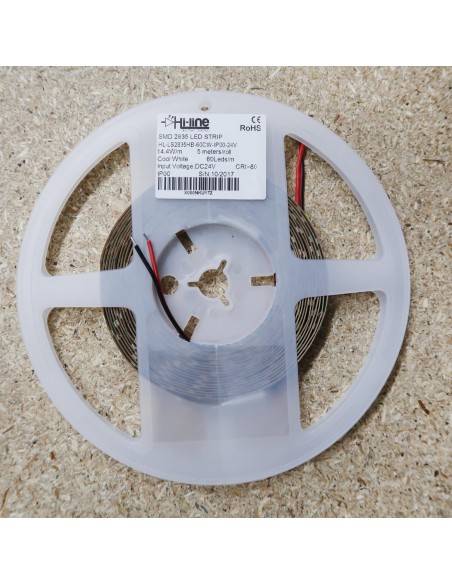

5m roll | 8mm width
Commercial high-grade Cool White LED Strip 6000K
14.4W/m – 24V DC – 5m roll – 60 LEDs/m – IP00 (non-waterproof) – 2-wire cable (15cm on each side of the strip roll)

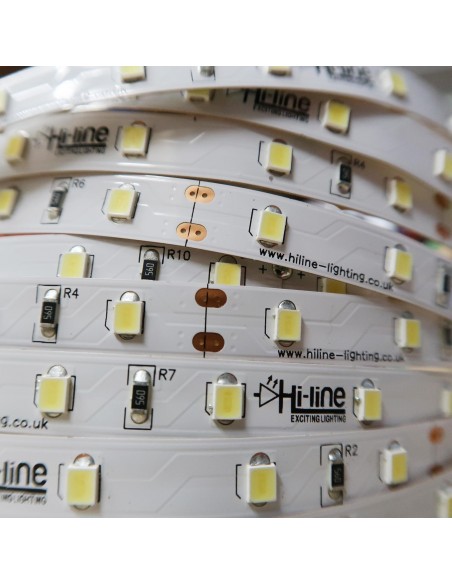

This LED strip is powered by high-quality Epistar SMD2835 LED chips which generate a brightness of not less than 1440Lm/m (Typical values, for actual Energy efficiency test report please refer to attachments)
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >80.

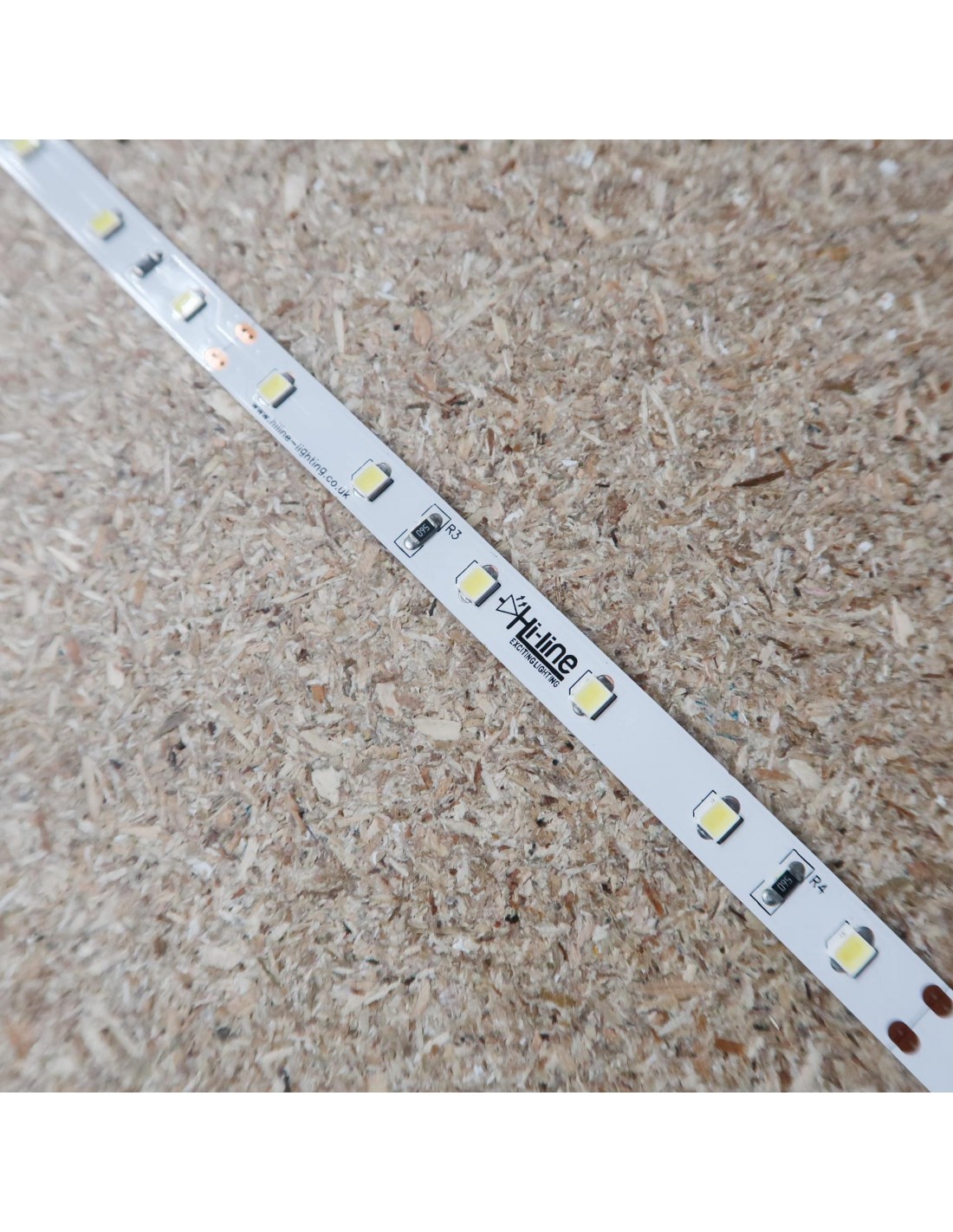

The strip can be cut every 6 LEDs (10cm). The width of the LED strip is 8mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion also under water.
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller using a 5-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
The LED strip comes with a 15cm wire ending on each side of the strip roll. Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note that soldering is recommended for the connection of LED strips. However, if a solder-free connection is preferred, Hi-Line’s solder-free connectors offer the best solution currently available on the market.
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
The stated price is for 1 x 5-meter roll LED strip (Cool White) with 300 SMD2835 LEDs – IP00 (non-waterproof), 24V DC
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
- 1440 lm/m
- Cable length
- CIE Colour Space
- 3 SDCM
- Cool White
- Colour rendering (CRI in ra)
- Colour Temperature (CCT)
- Cutting length
- Every 6 LEDs (100mm)
- Energy Rating
- LEDs per meter
- LED Chip
- SMD 2835
- LED Strip Length
- 5 meter roll
- 14.4 Watts per Metre
- IP00 (Non-waterproof)
- 24V DC
- Voltage Type
- Constant Voltage
- 5 Years
- Width of strip
