6000K Cool White LED Strip 24V 14.4W/m IP00 SMD 2110 CRI90 180/m 5m roll

HL-LS2110-180CW-IP00-24V

New product

6000K Cool White 24V IP00

180 LEDs/m 14.4W/m 1500 lm/m

5m roll–10mm width

High CRI - Ra>90

5 year warranty

More details

49 Items

Same Day Dispatch

£ 48,00

£ 9,60 per meter

Add to wishlist

Data sheet

LED Chip SMD 2110
CIE Colour Space 3 SDCM
Voltage 24V DC
Colour Cool White
Power 14.4 W/m
Brightness 1500 lm/m
Number of LEDs per meter 180
LED Strip Efficiency 100 Lm/w
Rating IP00 (Non-waterproof)
Colour Temperature (CCT) 5000K
Colour rendering (CRI in ra) more than 90
Width of strip 10mm
FCP copper content 3 ounce double layer
Cutting length Every 6 LEDs (3.33cm)

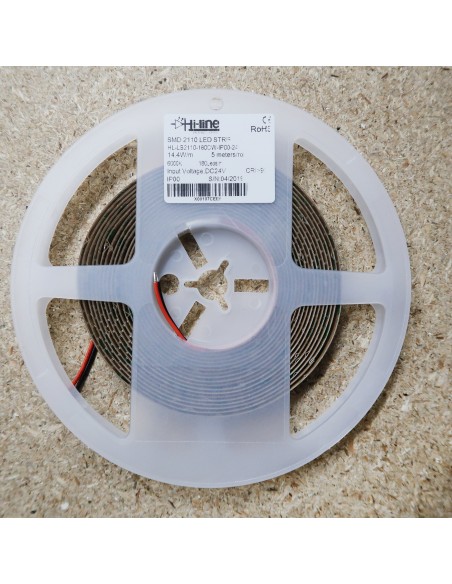

LED Strip Packing 5-meter roll
Voltage Type Constant Voltage
Warranty 5 Years
Brand Hi-Line

More info

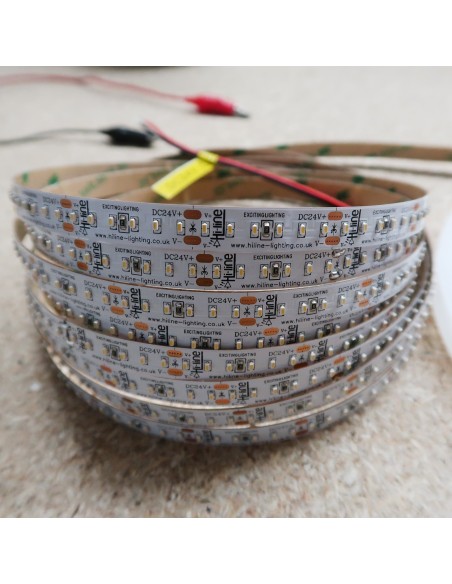

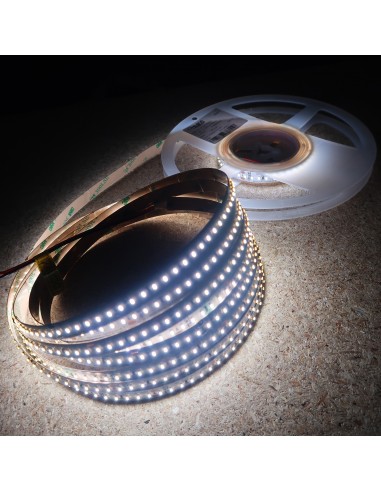

6000K White LED Strip 24V 14.4W/m IP00 CRI90 powered by 180 SMD2110 LED chips per meter

14.4W/m – 24V DC – 5m roll – 180 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)

This high density, high bright LED strip powered by high-quality SMD2110 LED chips which generate a brightness of 1500 lumens per meter.

Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.

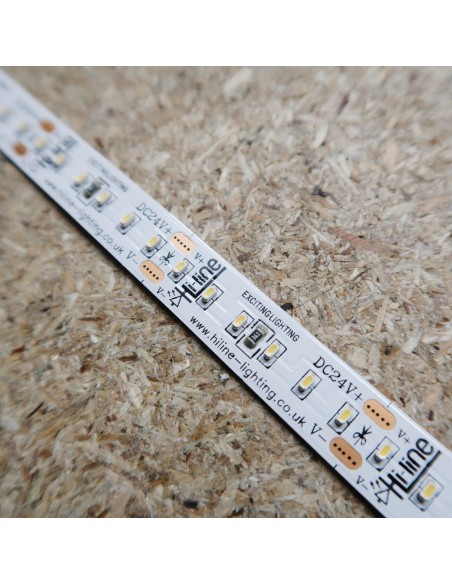

The strip can be cut every 6 LEDs (3.33 cm). The width of the LED strip is 10mm and uses 3 ounces double layer fcp (copper content).

Note: Whenever possible it is suggested to install this LED strip on an flat aluminium bar or LED profile to ensure proper cooling and thus increasing the lifespan.

This LED tape can be mounted to our standard slimline and bendable series profiles, ensuring no spotting, in addition to the necessary cooling.

Fitted with an easy to install original 3M adhesive tape with excellent adhesion.

*5-year warranty:

*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:

LED Strip Warranty Guide

For handling this strip, please see the following support page.

______________________________

The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.

Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.

Installation hints and tips for LED strips can be downloaded at the bottom of this web page.

_____________________________

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).

Please note: Due to the amount of LEDs per metre, soldering is recommended for the connection of this LED strip.

______________________________

All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.

______________________________

The stated price is for 1 x 5-meter roll LED strip (Cool White CCT: 6000K) with 900 SMD 2110 high cri LEDs – IP00 (Non-Waterproof), 24V DC.

______________________________

Selection of the LED driver depending on the maximum LED strip length

The table below shows the maximum LED strip length, which can be operated with a given LED driver.

To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.

Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
