Strip to strip Extension connector Cable set for high density COB 10mm IP00 single colour LED strips

  • 2 pin LED strip to strip connector set with 2 core wire bridge 150mm
  • To be used with HD/SMD or COB LED strips ,
  • Supports high current LED strips
  • Also compatible with single colour 10mm strip with 180 LEDs/m, High Density 240 LEDs/m & high current LED strips

Important Product Details

  • optional 250 char. max
HL-COB10-SSW-IP00
284 Items In stock
Next working day delivery
£3.25
(£
3.90
with VAT)
VAT excluded

Quantity Unit price You Save
25 £3.09 £4.06
50 £2.93 £16.25
100 £2.76 £48.75
200 £2.60 £130.00
Tags:

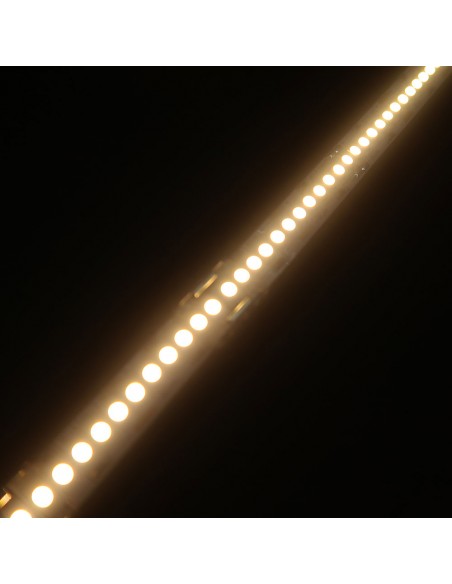

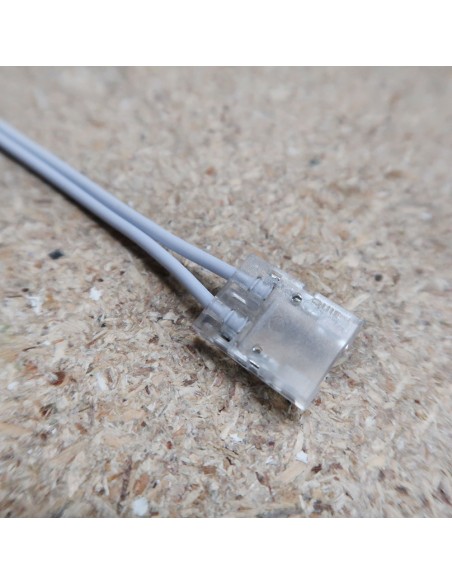

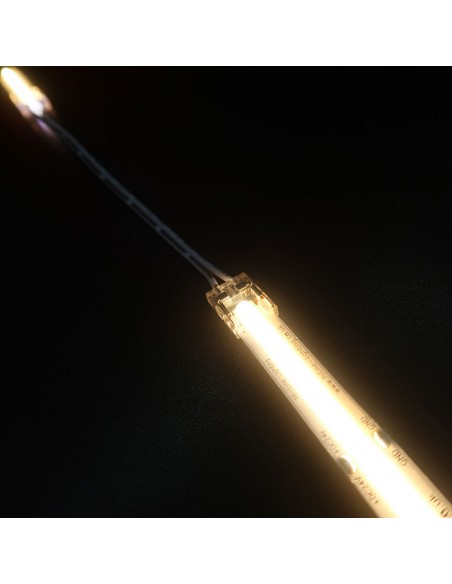

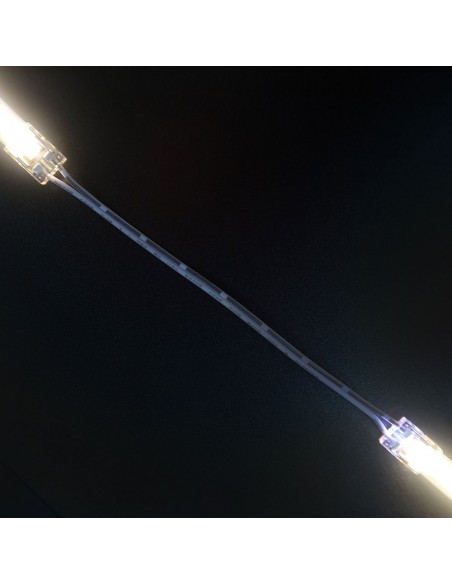

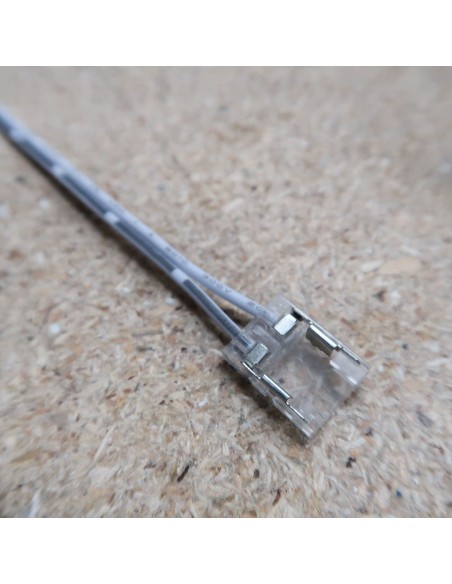

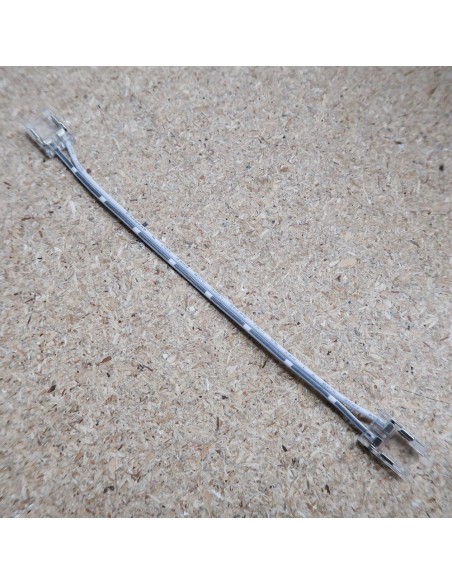

An LED strip extension cable set (strip to strip 150mm length) designed for 10mm wide IP00/IP20 non-waterproof high density COB single colour LED strips.

*Invisible (topless style) design for discreet installation.

This is a very high quality strip to strip connector suitable for IP00/IP20 single colour COB 10mm wide high density COB LED strips.

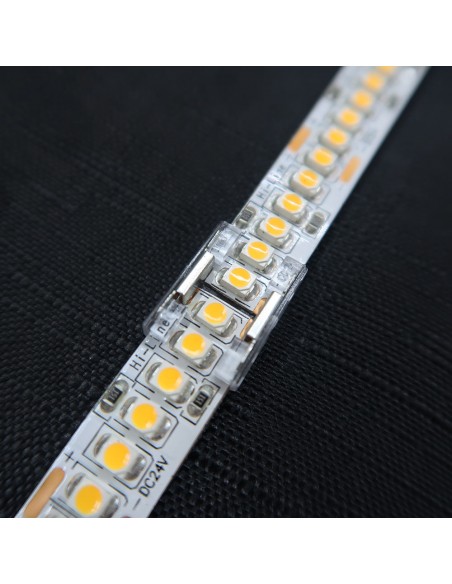

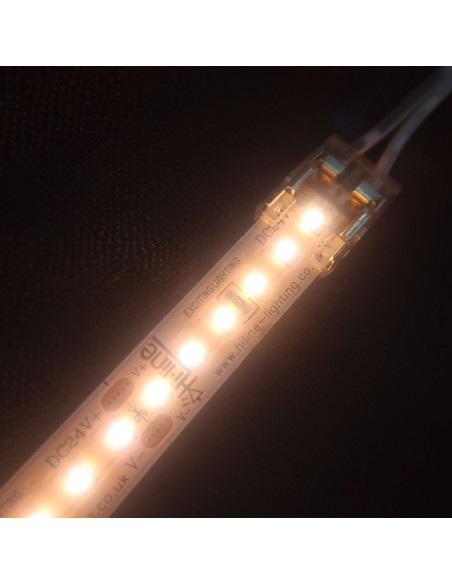

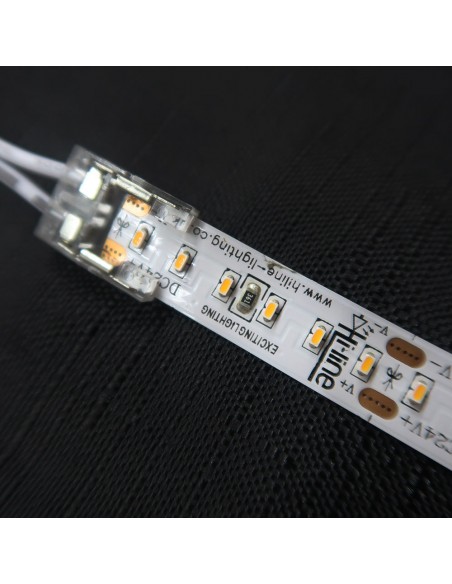

The connector is also compatible with IP00/IP20 single colour LED strips with 180 LEDs/m and 240 LEDs/m.

This connector is made of flame retardant material.

Please note that this connector is not compatible with any gel coated (PU) IP65 LED strips.

Technical Data

Size: L17mm X W14mm X H4mm

Colour: Transparent

Number of Pin: 2

Connection hardware: High precision brass(Cu)

Voltage range: DC 3-24V

Maximum current: 3.5A

Min.LED Strip Thickness: >0.2mm

Workable wire gauge: 20 AWG / 0.54 mm²

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Packaging: 1pcs

Looking for Related Products or Accessories?

Discover compatible products and accessories by clicking the 'Related Products' tab at the top of this product description on desktop, or just after this section on mobile devices. For detailed specifications, the 'Product Specification' tab is also available at the top of this description, offering immediate access to important product details. If you need technical data or installation guides, the 'Attachments' tab is located in the same area. To refine your search within any product category, the "REFINE BY" filter system is positioned on the left side of the screen on desktops and at the top of the page on mobiles, ensuring a seamless browsing experience.

Brand
Hi-Line
Connector type
strip to strip extension
Connector width
For 10mm COB Strips
Number of terminals
2 pin (single colour strips)
IP Rating
IP00 (Non-waterproof)
Voltage
3-24V DC
