HL-LS3528HA-240VWW-IP00-24V
New product
Very Warm White LED strip, 2100K, 24V, IP00 (Non-Waterproof)
59 Item Items
Same Day Dispatch
Warning: Last items in stock!
Availability date:

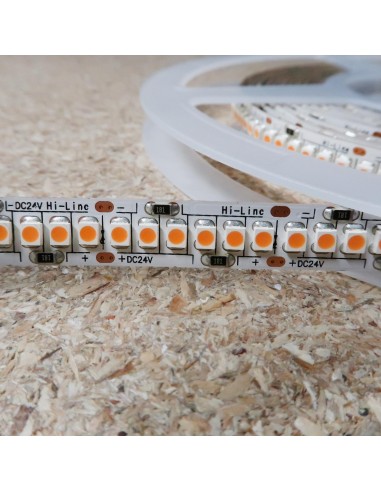

Very Warm White LED Strip 240 LEDs / meter CRI 90+
Very Warm White LED strip, 2100K, 24V, IP00 (Non-Waterproof)
Recipient :
* Required fields
or Cancel
LED Chip | SMD 3528 |
CIE Colour Space | 3 SDCM |
Voltage | 24V DC |
Colour | Very Warm White |
Power | 19.2 W/m |
Brightness | 1500 Lm/m |
Number of LEDs per meter | 240 |
Rating | IP00 (Non-waterproof) |
Colour Temperature (CCT) | 2100K |
Colour rendering (CRI in ra) | more than 90 |
Width of strip | 10mm |
Cutting length | Every 6 LEDs (25mm) |

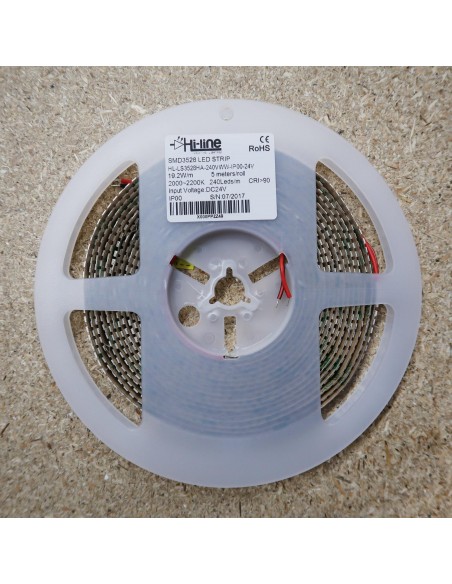

LED Strip Packing | 5-meter roll |
Voltage Type | Constant Voltage |
Warranty | 5 Years |
Brand | Hi-Line |
High Density LED strip powered by new high CRI Epistar chip - spot free LED strip series
Very Warm White LED Strip 2100K, spot free LED tape (240 LEDs per meter)
19.2W/m – 24V DC – 5m roll – 240 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This LED strip is powered by high-quality Epistar SMD3528 LED chips which generate a brightness of 1500Lm/m.

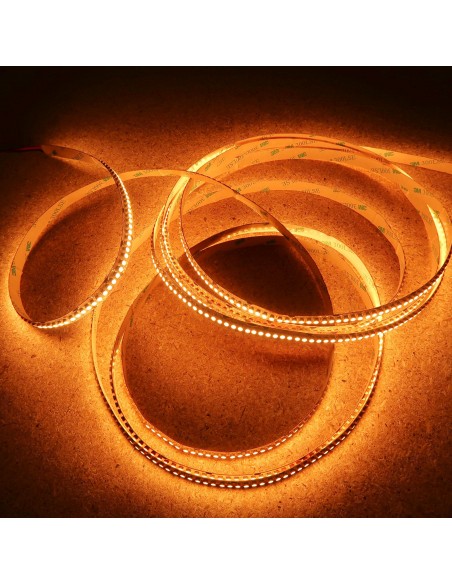

At 240 LEDs per metre, this strip is able to eliminate shadows and create a continuous beam of light, which is improved further via our linear profiles. As such, 240 LED strips are also known as Spotless strips, ideal for anyone looking for a smooth, modern aesthetic.
Note: While any type of LED strip will perform better when installed in a profile or on an aluminium flat bar, due to the nature of high-powered SMD2835 chips running warm at 19.2 watts per metre and above, we strongly suggest that you consider installing this LED strip on an aluminium bar at the very minimum, in order to ensure proper cooling and thus increasing its lifespan. Always consult with your installer, as it may come down to their discretion, depending on how cool and well-ventilated the area is. Don’t risk burning out any chips!
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.

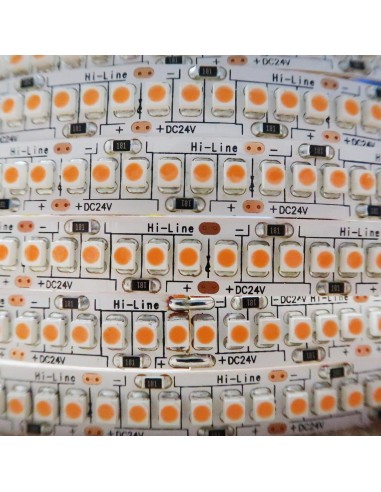

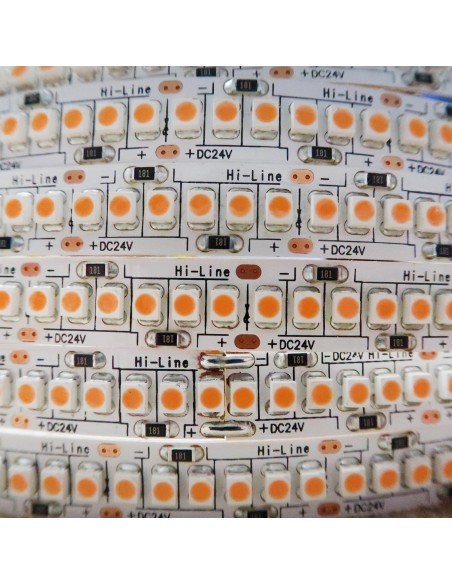

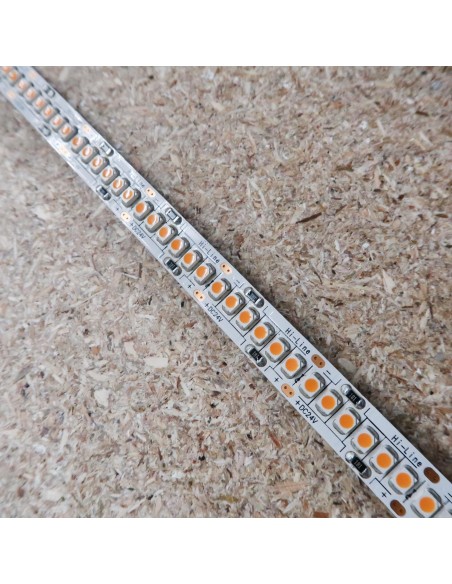

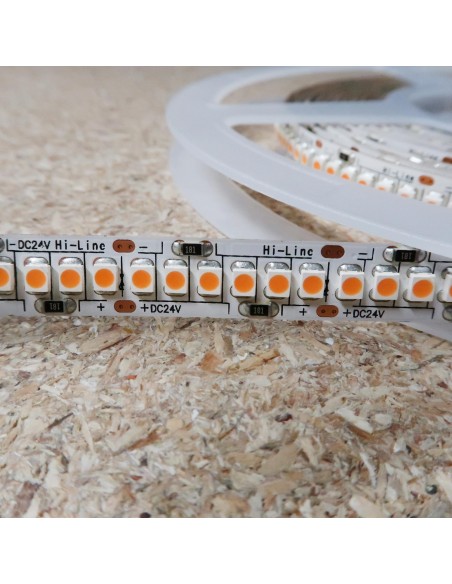

The strip can be cut every 6 LEDs (25mm). The width of the LED strip is 10mm.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*5-year warranty:
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
______________________________
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
_____________________________

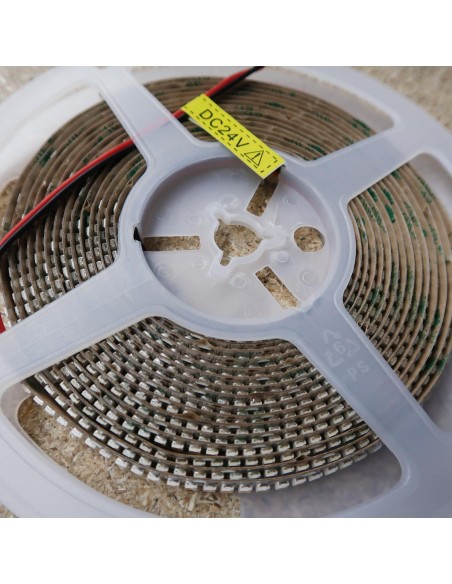

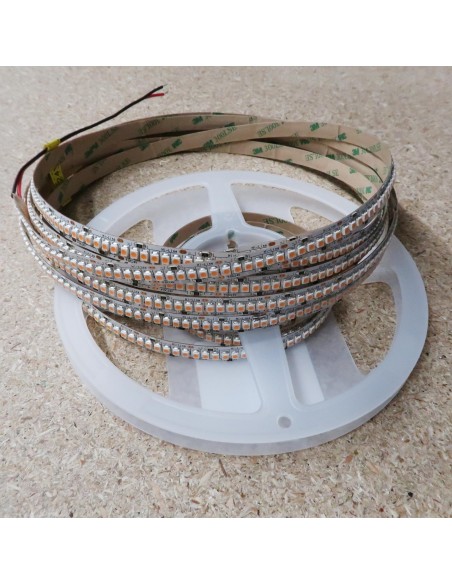

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
NOTE: If cutting the strip into smaller pieces is required, then soldering is the only recommendation for reconnecting the 240 LED series.
Please see the following guide on how to efficiently cut this strip:
https://support.hiline-lighting.co.uk/hc/en-gb/articles/360005153800
______________________________
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
______________________________
The stated price is for 1 x 5-meter roll LED strip (Warm White) with 1200 SMD3528 LEDs – IP00 (Non-Waterproof), 24V DC.
______________________________
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
