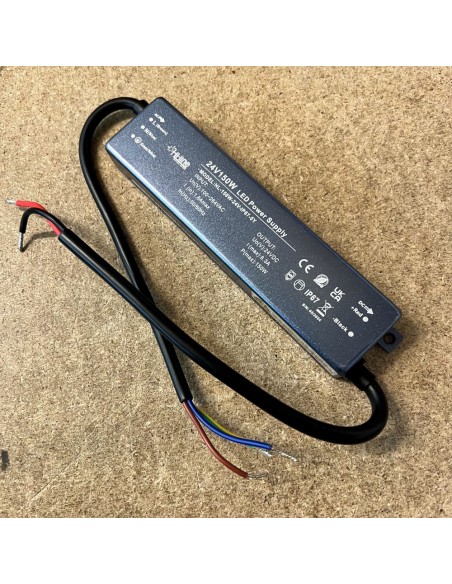

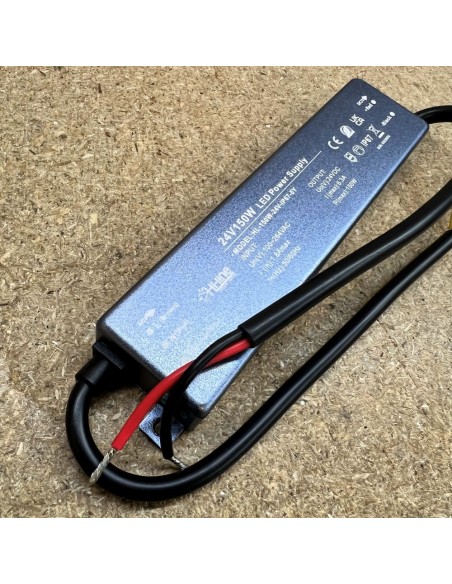

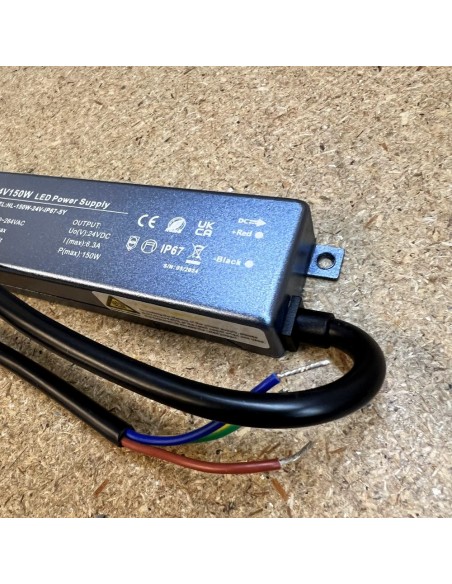

LED-Driver 150W Premium Series 24V IP67 Constant Voltage

HL-150W-24V-IP67-5Y

New product

150W/24V IP67 LED Driver

Input: 175~264V AC

Output: 24V / 6.25 Amps

Constant Voltage Type

Suitable for LED Strips

Warranty 5 Years

More details

42 Items

Same Day Dispatch

£ 42,90

Add to wishlist

Data sheet

Voltage 24V DC
Power 150 W
Rating IP67 (Waterproof)
Type non-dimmable
Voltage Type Constant Voltage
Warranty 5 Years
Brand Hi-Line

More info

Premium Series constant voltage LED drivers with high power factor & efficiency.

This is a highly specified switch mode power supply, using the best electronic components in the market.

Non-Dimmable LED Driver suitable for LED Strips with a total power consumption up to 150W.

It is recommended to calculate 20% more than the tape power consumption.

LED Driver 150W/24V

Input: 175~264V AC (50/60Hz)

Output: 24V / 6.25 Amps

Suitable for LED Strips

Rating: IP67 (Waterproof)

Power factor: >0.95

Efficiency: >90%

Ripple: <2%

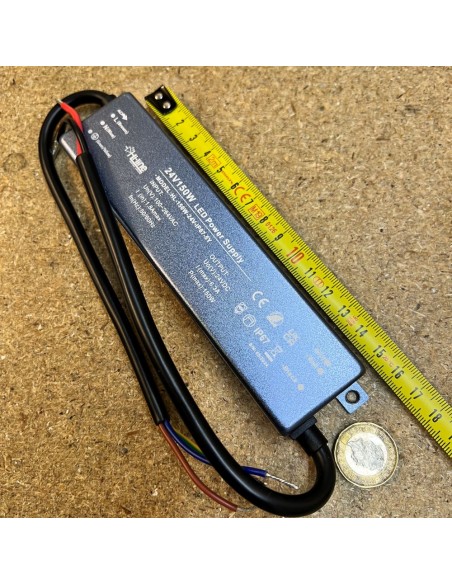

Dimensions: L180*W67*H22.8 mm

Weight: 550g

SELV, CE & RoHS certified

Warranty offered for premium series of LED drivers is 5 Years

___________________________

Note: LED strip dimming is possible if this driver is used in combination with an LED controller. In such a case the LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.

For driving RGB or RGBW LED Strips, you will have to combine the Driver with an RGB-RGBW LED Controller.

____________________________

IMPORTANT NOTICE!

This device should be installed by a qualified electrician in accordance with the latest edition of the IEE Wiring Regulations and any applicable Building Regulations.

____________________________

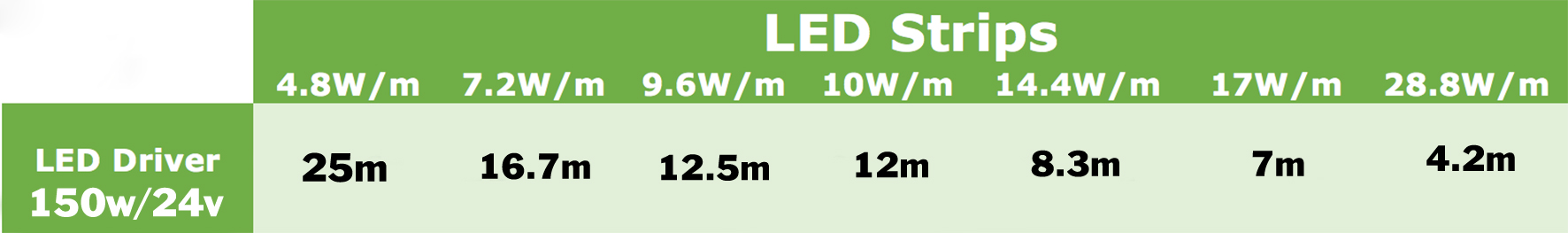

The table below shows the maximum LED strip length, which can be operated with this LED driver.

To consider the best performance for the power supply, 20% is deducted from the maximum strip length in the table below.

____________________________

For more information about the installation of LED Strips, you can download the below PDF file: “Installation of LED Strips”.
