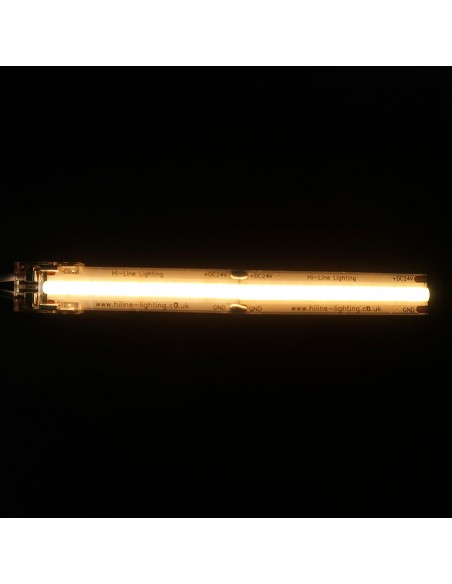

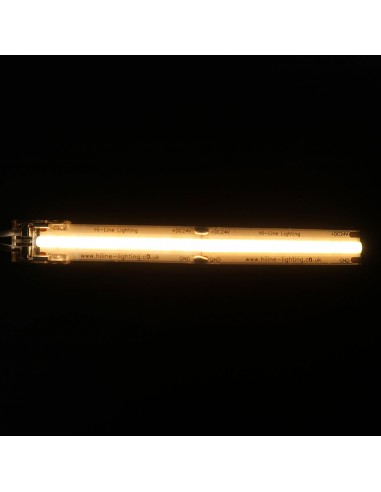

Strip to wire connector for high density COB 10mm IP00 single colour LED strips

2 pin LED strip to power (wire) connector

To be used with COB LED strips, 180 LEDs/m and 240 LED p/m High Density Strips.

Supports high current LED strips

For 10mm IP00/IP20 single colour COB LED strips at 528 LEDs/m, 180 LEDs/m and High Density 240 LEDs/m.

Connector features a 15cm pre-wired tail.

HL-COB10-SP-IP00
140 Items In stock
Same Day Dispatch
£2.50
VAT excluded

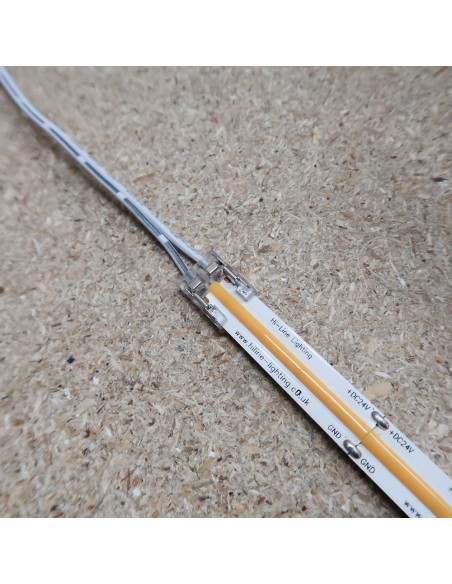

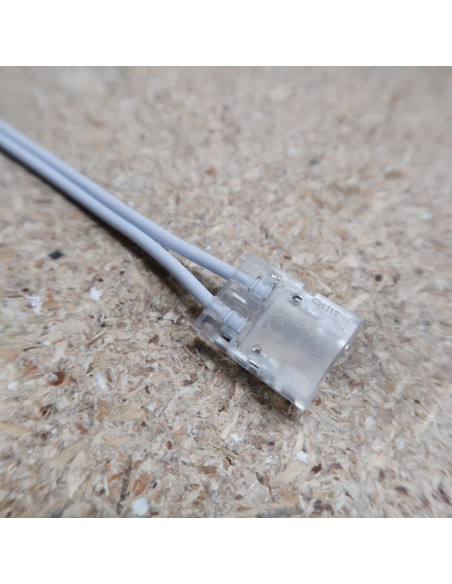

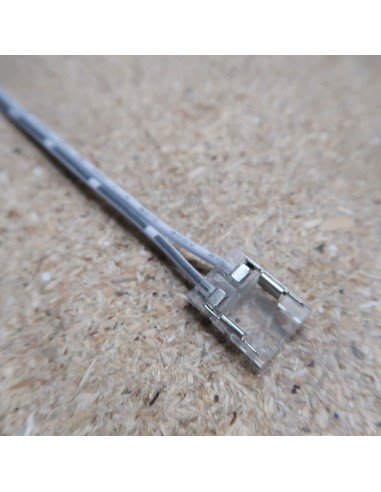

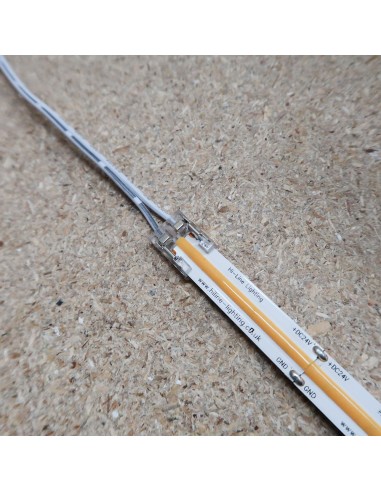

A LED strip connector (strip to power) designed for 10mm wide IP00/IP20 non-waterproof high density COB single colour LED strips 180 LEDs/m and 240 LED p/m High Density Strips.

*Invisible (topless style) design for discreet installation.

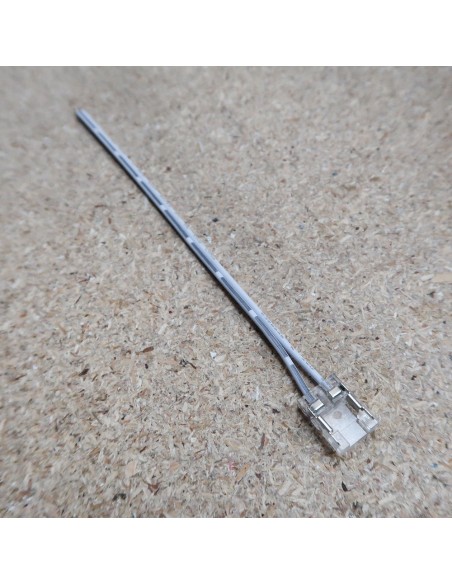

Connector features a 15cm pre-wired tail.

This is a very high quality strip to wire (power) connector suitable only for IP00/IP20 single colour 10mm wide high density COB LED strips.

Compatible with 180 LEDs/m,  240 LEDs/m and 528 LEDs/m COB LED strips (10mm single colour). This connector is made of flame retardant material.

Please note that this connector is not compatible with any gel coated (PU) IP65 LED strips.

______________________________



Technical Data

Size: L165mm X W14mm X H4mm

Colour: Transparent

Number of Pin: 2

Pin Pitch: 5mm

Connection hardware: High precision brass(Cu)

Voltage range: DC 3-24V

Maximum current: 3.5A

Min.LED Strip Thickness: >0.2mm

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Surface Treatment: Tin-plating

Packaging: 1pcs

Voltage
12-24V DC
Rating
IP00 (Non-waterproof)
Connector type
strip to power connector
Connector width
For 10mm COB LED Strips
Number of terminals
2 pin (for single colour strips)
Brand
Hi-Line
