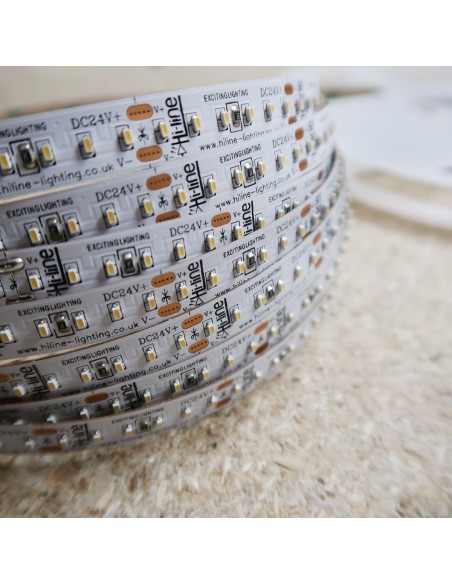

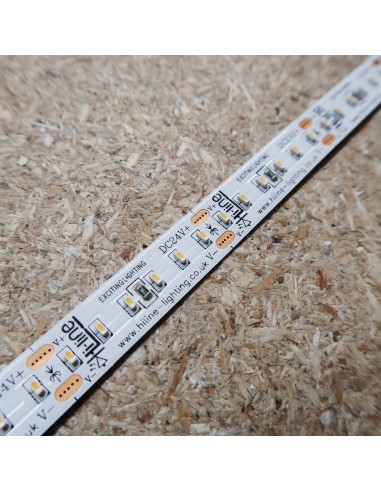

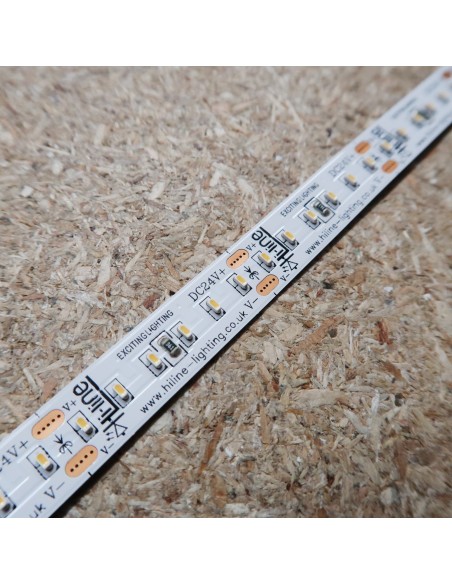

5000K White LED Strip 24V 14.4W/m IP00 SMD 2110 CRI90 180/m 5m roll
5000K white 24V IP00
180 LEDs/m 14.4W/m 1440 lm/m
5m roll–10mm width
High CRI - Ra>90
5 year warranty
5000K White LED Strip 24V 14.4W/m IP00 CRI90 powered by 180 SMD2110 LED chips per meter
14.4W/m – 24V DC – 5m roll – 180 LEDs/m – IP00 (Non-Waterproof) – 2-wire cable (15cm on each side of the strip roll)
This high density, high bright LED strip powered by high-quality SMD2110 LED chips which generate a brightness of 1440 lumens per meter.
Excellent colour rendering index (CRI) – all LED chips reach a value of Ra >90.
The strip can be cut every 6 LEDs (3.33 cm). The width of the LED strip is 10mm and uses 3 ounces double layer fcp (copper content).
Note: Whenever possible it is suggested to install this LED strip on an flat aluminium bar or LED profile to ensure proper cooling and thus increasing the lifespan.
This LED tape can be mounted to our standard slimline and bendable series profiles, ensuring no spotting, in addition to the necessary cooling.
Fitted with an easy to install original 3M adhesive tape with excellent adhesion.
*5-year warranty:
*This LED tape should be installed according to our installation instructions. For more information on installing, please see the installation manual at the bottom of the page and to learn more about the 5 year warranty on offer, please refer to the following link:
For handling this strip, please see the following support page.
Care should be taken when installing this strip, due to the high amount of LEDs and the small chip size. Too much applied pressure when adhering the strip to a surface may cause chips to be damaged.
______________________________
The high quality of Hi-Line LED strip products ensures low decay, which increases the LED strip's lifespan and assures that the high level of the brightness is kept constant throughout the LED strip's life.
Please do NOT connect more than 5 meters of a LED strip in series. A LED strip of more than 5 meters in length is overloaded due to the increased amount of current passing through, resulting in the damage of the PCB and the failure of the LED strip. Thus, when 5 meters of the LED strip is exceeded, it is suggested to connect the strip directly to the LED controller or driver using a 2-core cable.
Installation hints and tips for LED strips can be downloaded at the bottom of this web page.
_____________________________

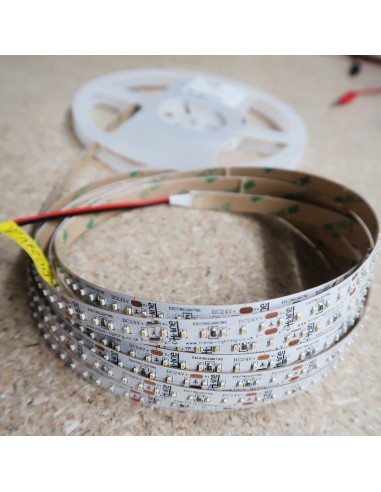

The LED strip comes with a 15cm wire ending on each side of the strip roll.Therefore, no extra soldering is required if the roll should be cut into 2 different pieces (i.e. 3 meters + 2 meters).
Please note: Due to the amount of LEDs per metre, soldering is recommended for the connection of this LED strip.
______________________________
All Hi-Line LED strips are dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the LED strip.
______________________________
The stated price is for 1 x 5-meter roll LED strip (Warm White CCT: 5000K) with 900 SMD 2110 high cri LEDs – IP00 (Non-Waterproof), 24V DC.
______________________________
Selection of the LED driver depending on the maximum LED strip length
The table below shows the maximum LED strip length, which can be operated with a given LED driver.
To consider the performance drop, which occurs in the power supply cable and the efficiency of the LED Driver, 20% was deducted from the maximum strip length in the table below.
Note that LED strips dimming is possible if the driver is used in combination with an LED controller. In such case LED driver is not required to be dimmable and brightness control (dimming) is still possible through the LED controller.
- CIE Colour Space
- 3 SDCM
- Voltage
- 24V DC
- Colour
- Cool White
- Power
- 14.4 W/m
- Brightness
- 1440 lm/m
- Number of LEDs per meter
- 180
- LED Strip Efficiency
- 100 Lm/w
- Rating
- IP00 (Non-waterproof)
- Colour Temperature (CCT)
- 5000K
- Colour rendering (CRI in ra)
- more than 90
- Width of strip
- 10mm
- FCP copper content
- 3 ounce double layer
- Cutting length
- Every 6 LEDs (3.33cm)
- LED Strip Packing
- 5-meter roll
- Voltage Type
- Constant Voltage
- Warranty
- 5 Years
- Brand
- Hi-Line
- LED Chip
- SMD 2110
