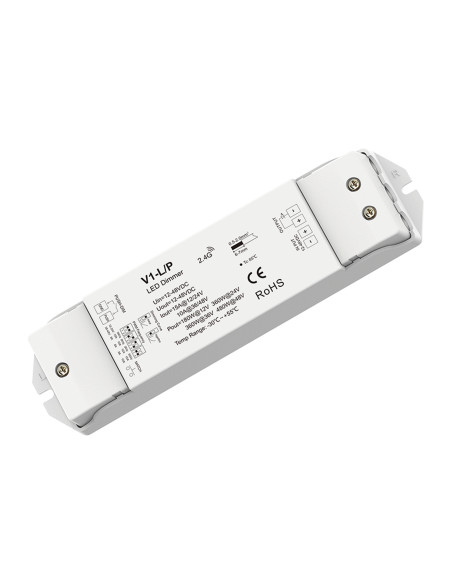

HL-V1-L/P 15A PWM RF LED Strip Dimmer 12-48V Front

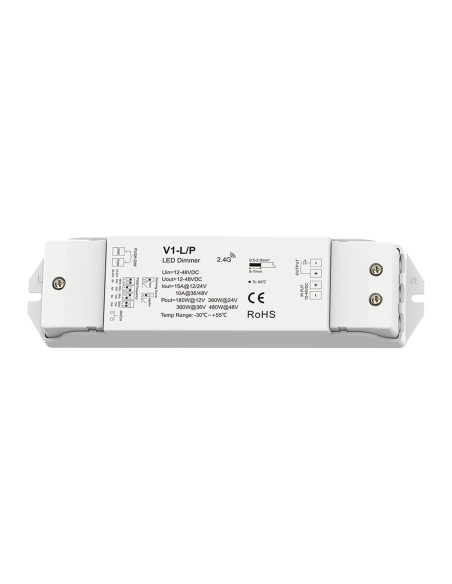

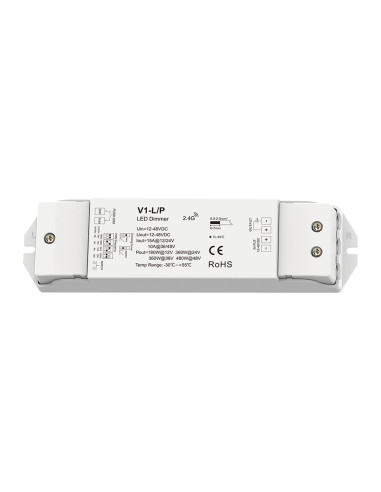

HL-V1-L/P PWM DIP Switch and Terminals Top View

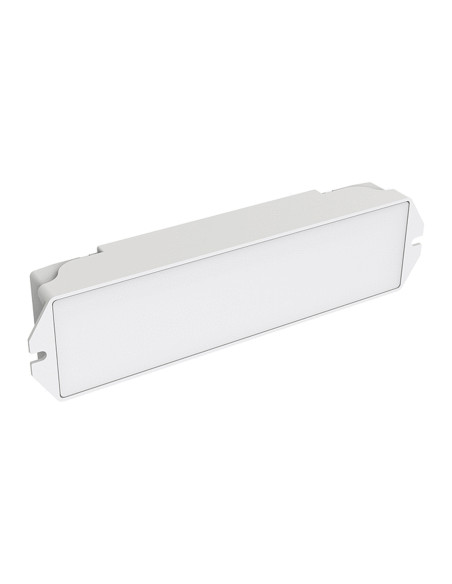

HL-V1-L/P Rear Cover 15A LED Strip Dimmer
  • New
HL-V1-L/P 15A PWM RF LED Strip Dimmer 12-48V Front
HL-V1-L/P PWM DIP Switch and Terminals Top View
HL-V1-L/P Rear Cover 15A LED Strip Dimmer

V1-L/P 15A PWM RF LED Strip Dimmer 12-48V

HL-V1-L/P is the 12–48 V single-colour strip dimmer with selectable PWM (500 Hz, 2 kHz, 8 kHz or 16 kHz) and linear or log curve. 15 A at 12/24 V. RF 2.4 GHz plus a retractive push. Not the fixed-PWM HL-V1-L, and not a mains triac.

HL-V1-L/P

Need more than we have in stock?

We have 1 in stock, ready to dispatch. If you need more, increase the quantity and add it to the basket. Extra units go on back order: we will use incoming stock if any is still free, otherwise delivery is typically 30–45 days.
1 Item In stock
Last items in stock
£30.00
(£
36.00
with VAT)
VAT excluded



HL-V1-L/P — 12–48 V RF strip dimmer with selectable PWM

Use this when the tape is constant-voltage single-colour LED strip on 12–48 V DC and you need to pick the PWM frequency on site. Four DIP settings: 500 Hz, 2 kHz, 8 kHz or 16 kHz. Linear or logarithmic curve on the same block. RF 2.4 GHz remotes and a retractive push both work.

It is the PWM-selectable sister of HL-V1-L (that one is fixed 500 Hz). It is not a mains AC triac and not a high-voltage strip dimmer.

Why installers buy it

  • 15 A at 12/24 V (180 W @ 12 V, 360 W @ 24 V). At 36/48 V the rating is 10 A (360 W @ 36 V, 480 W @ 48 V). Higher PWM steps reduce current — the table is in the PDF.
  • Camera work, high-end COB or audible-whine complaints: step PWM up. Long runs or max load: stay on 500 Hz.
  • One box can take up to 10 Hi-Line single-colour remotes. Several dimmers in one zone stay in step (auto-transmit about 30 m open).
  • Push on the wall for on/off and hold-to-dim. Match key on the end. Reverse / over-heat / over-load / short recover automatically.

What you are wiring

  • Power in + / − (12–48 V DC from a constant-voltage driver)
  • LED out + / − to the strip. Confirm polarity before first power-up
  • Push: common and switched, retractive
  • DIP: PWM frequency and dimming curve — set before hanging the lid

What to put with it

Open Related products for Hi-Line 2.4 GHz single-colour remotes, the PK1 wall knob, and the sibling HL-V1-L. Do not add an RGB remote.

The user manual PDF is on the Attachments tab (factory pages, Hi-Line website on each page). The DIP table there is the load rating at each PWM step.

Technical summary

  • 12–48 V DC constant voltage, 1 channel
  • 15 A @ 12/24 V, 10 A @ 36/48 V (see PDF for PWM derating)
  • PWM 500 Hz / 2 kHz / 8 kHz / 16 kHz; linear or log
  • RF 2.4 GHz + push, 4096 levels, 0–100 %
  • About 175 × 45 × 27 mm, 123 g, IP20
  • Warranty: 5 years

Must be installed by a qualified electrician. Confirm strip voltage and that the driver is constant-voltage before first power-up.

Brand
Hi-Line
IP Rating
IP20 (Non-waterproof)
Type
Single colour controller
Voltage
12-48V DC
Voltage Type
Constant Voltage (PWM)
Type of control
Radio Frequency (RF)
Warranty
5 Years
Operating Frequency (RF)
2.4GHz
