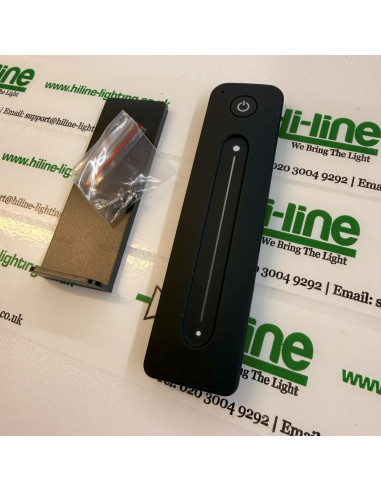

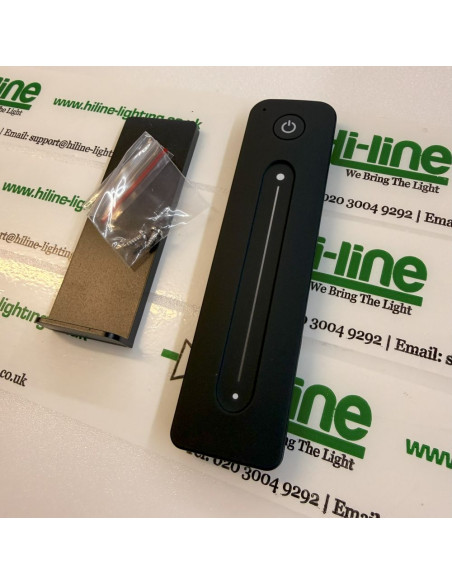

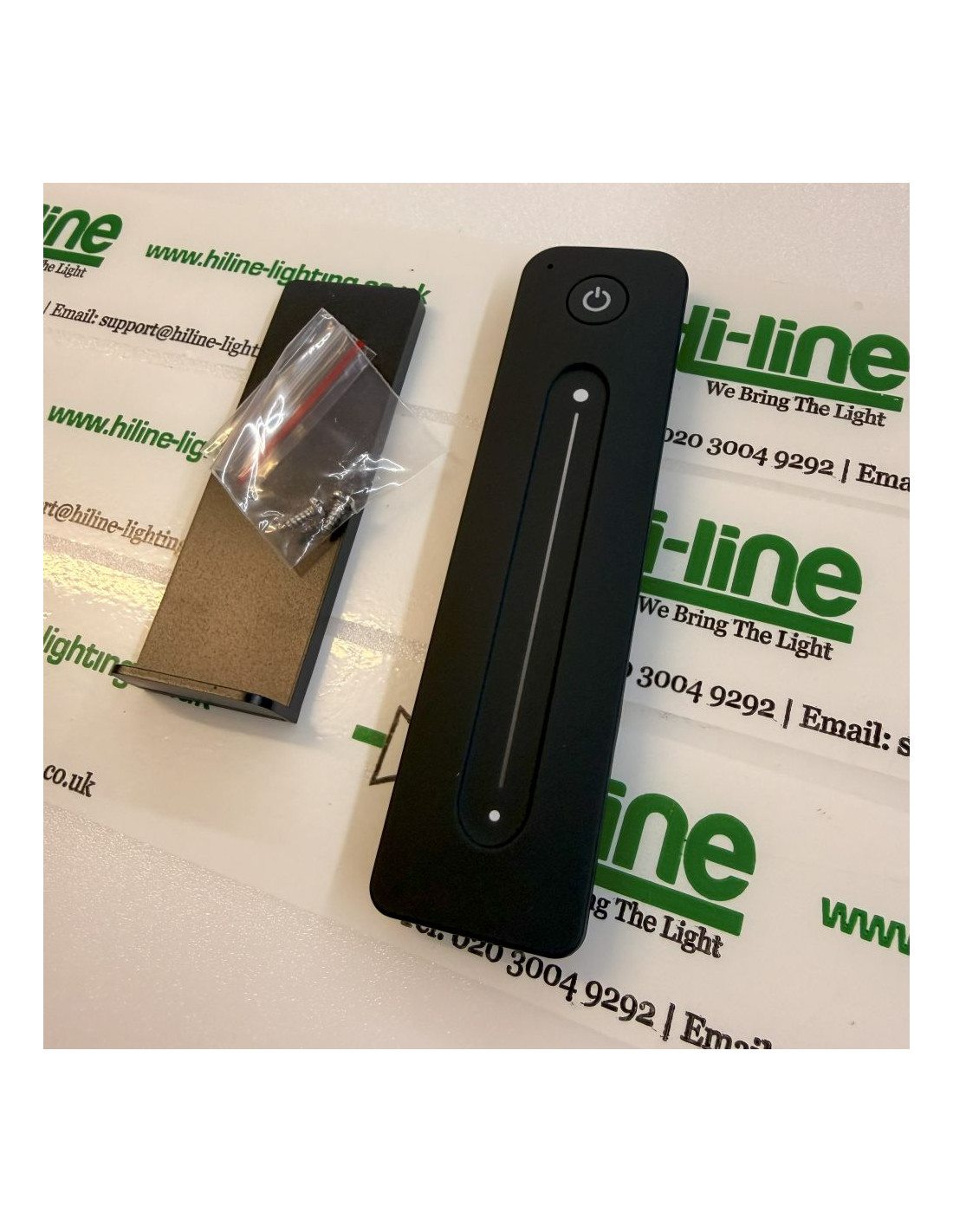

The R11 is a professional-grade single zone RF remote control designed specifically for single colour LED strip installations. It delivers precise dimming (1%–100%) through its ultra-sensitive touch slide, with an On/Off button and LED indicator for reliable operation.

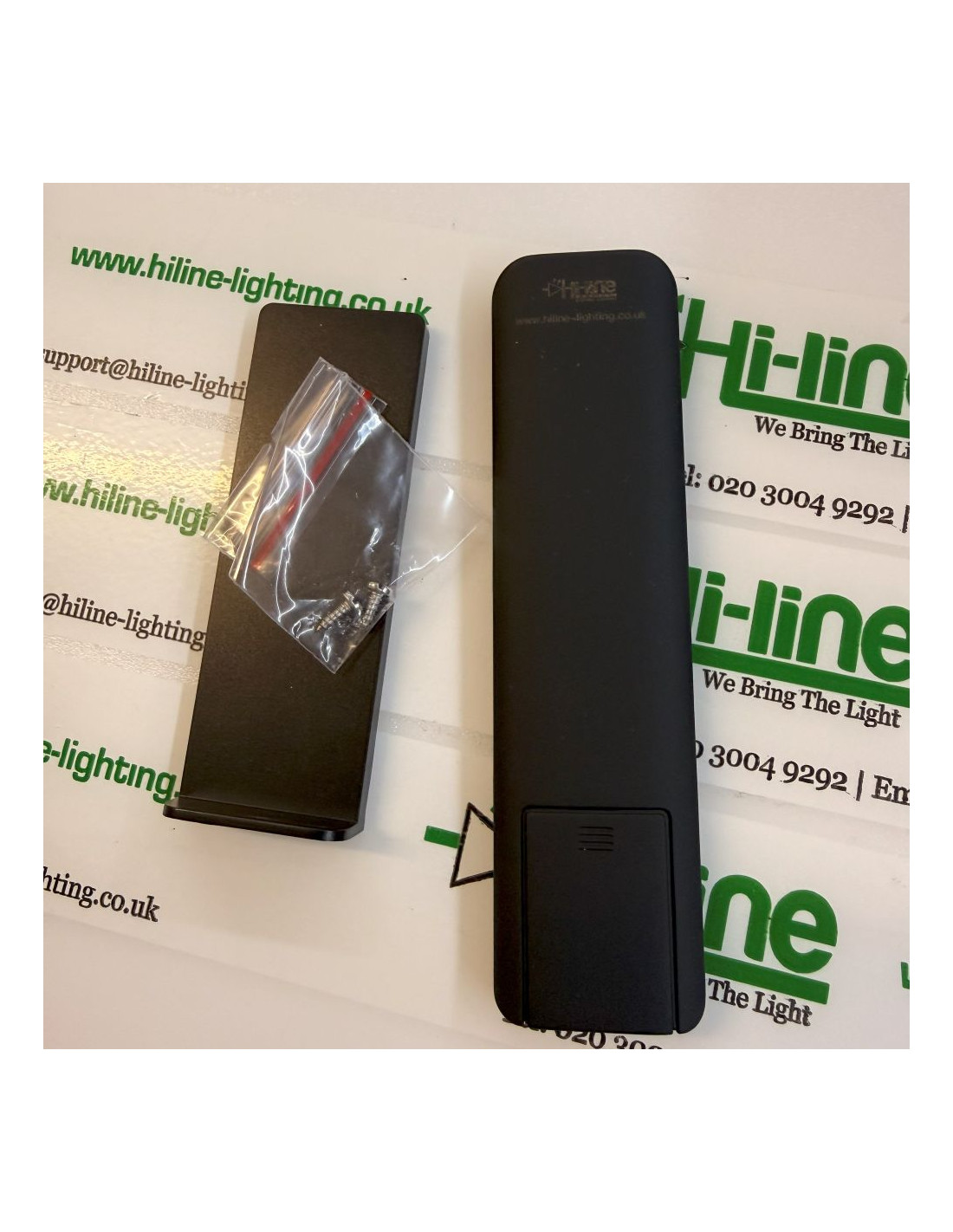

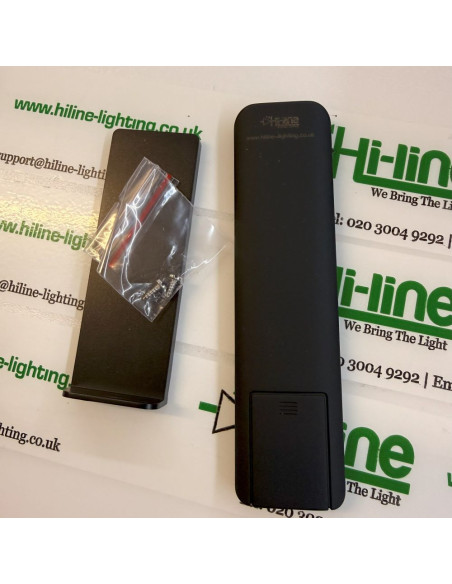

Its slimline body and magnetic back holder make it adaptable for different mounting methods. It can be fixed with screws, adhesive, or simply attached to any metal surface. This allows installers to position the remote conveniently within residential, retail, or commercial environments.
Unlike low-end remotes bundled with budget LED kits, the R11 is part of a modular professional system. It is not an out of the box plug and play remote. It requires pairing with a compatible Hi-Line RF controller, which is sold separately. This design gives installers flexibility to select the most suitable controller for the project while maintaining full remote compatibility.
Why Choose This Remote
The R11 works with Hi-Line RF controllers, ensuring performance and compatibility for professional installations. One R11 can control multiple controllers in the same zone, or multiple remotes can be paired with a single controller, which makes it easy to cover larger areas or provide multiple points of control.
It allows customisable setups. For example, the HL-V5-L universal controller supports all LED strip types. By setting it to single colour mode via DIP switch, it becomes fully compatible with the R11.

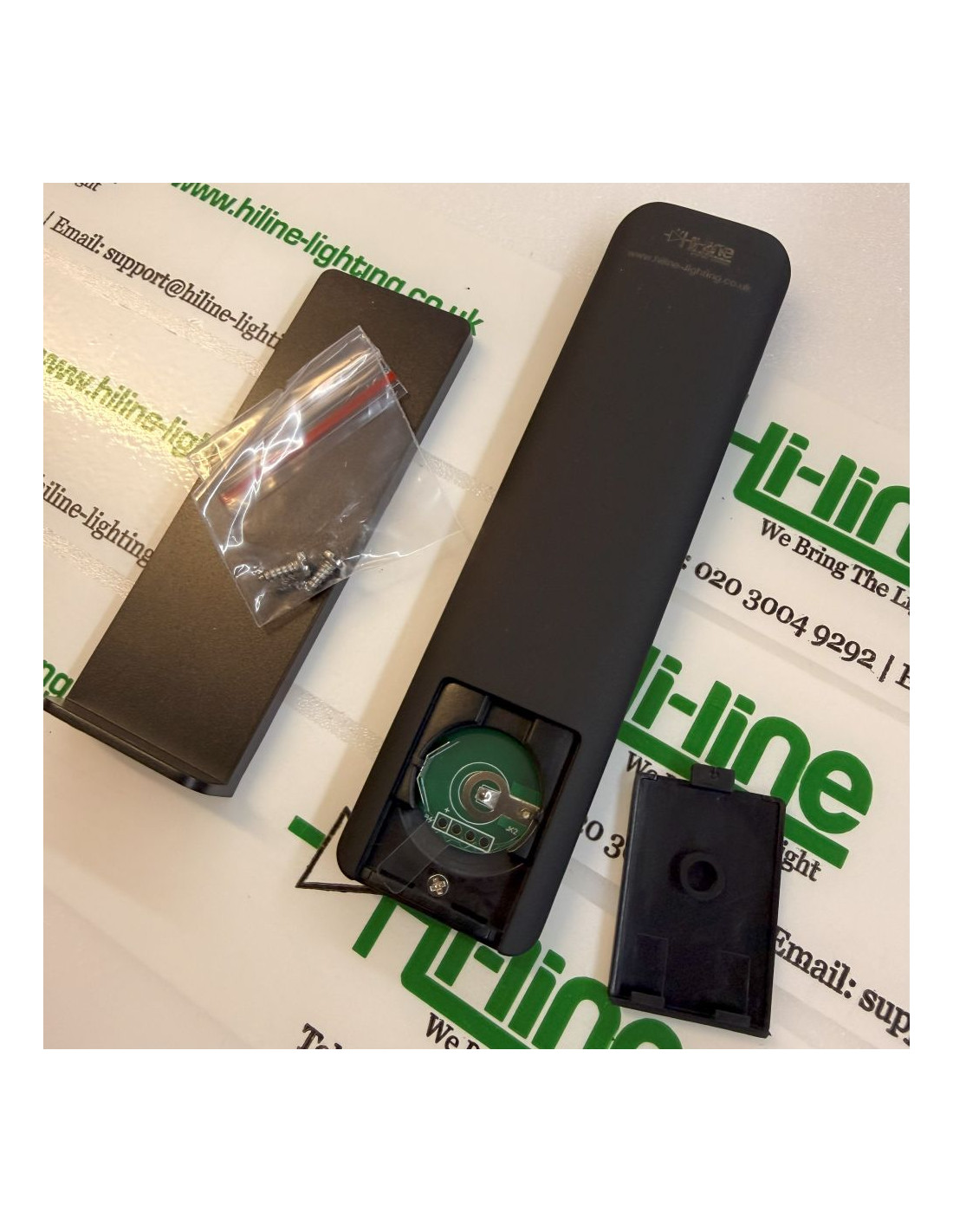

The R11 offers a wireless distance of up to 30 metres in barrier-free environments, with stable signal and long battery life using a CR2032 battery. Its slim design is lightweight and available in both black and white finishes, blending seamlessly into any interior.
Important Information
The R11 requires a CR2032 battery for operation. Batteries are not supplied by Hi-Line and must be obtained separately.
The R11 is sold separately. A matching Hi-Line RF controller is required for operation.
This product is designed for professional installers and high-quality projects. It is not a basic remote intended for low-quality plug and play kits.
For project advice, pairing guidance, or configuration support, customers should contact Hi-Line Lighting Support.
Click the Related Products tab to find matching controllers, wall panels, and accessories. Click the Attachments tab to download the PDF user manual.
Technical Information
Control Type: Single zone, single colour dimming
Dimming Range: 1%–100%
Power Supply: CR2032 battery (approx. 1 year standby)
Remote Distance: Up to 30m (barrier-free)
Dimensions: 156 × 48 × 22 mm
Weight: 0.075 kg
Finishes: White / Black
Certifications: UKCA, CE, RoHS, RED
Standard Warranty: 3 Years
Extended Warranty: Available up to 7 Years with official Hi-Line certificate, subject to project approval (paid upgrade after engineer review of design, installation, and environment)
