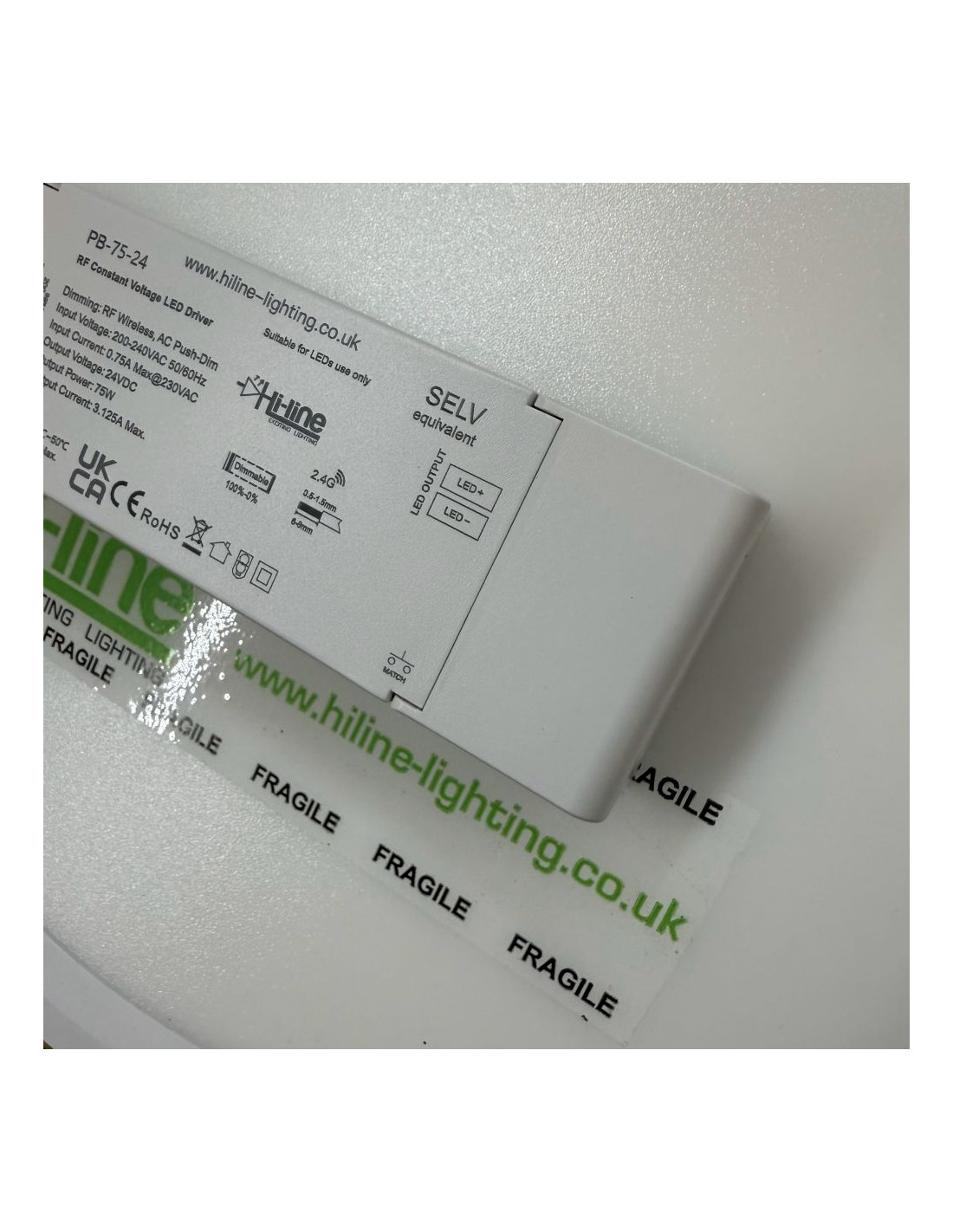

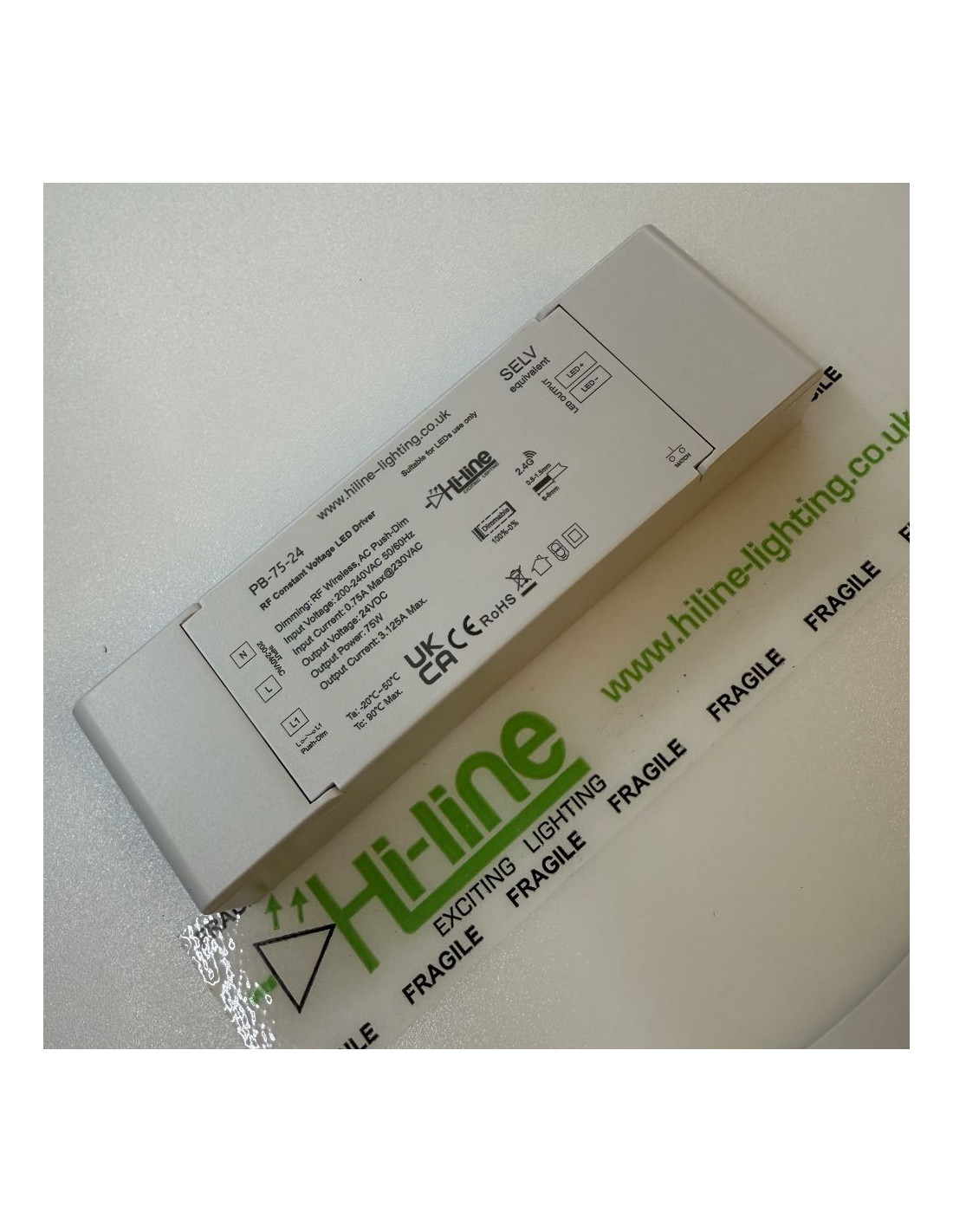

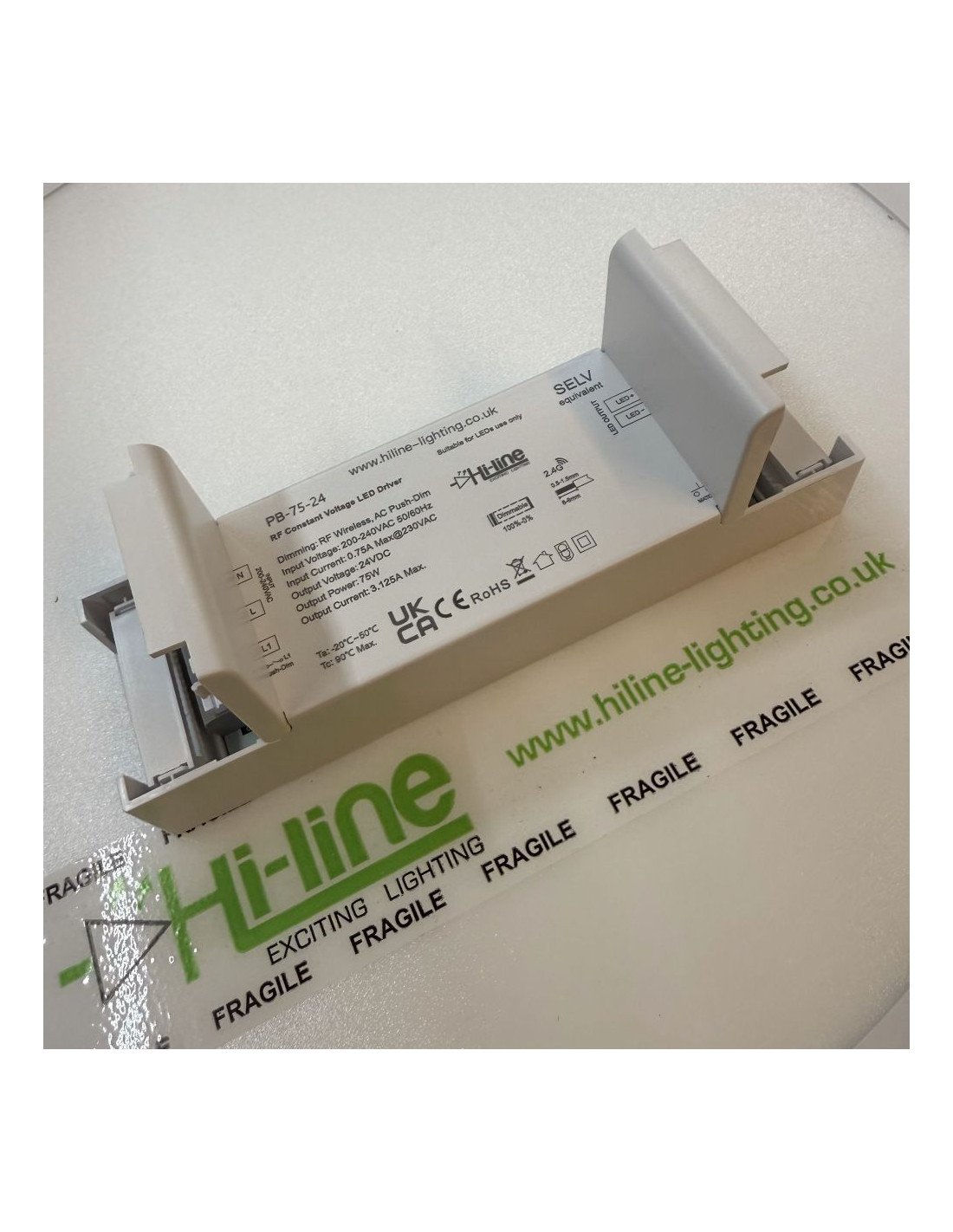

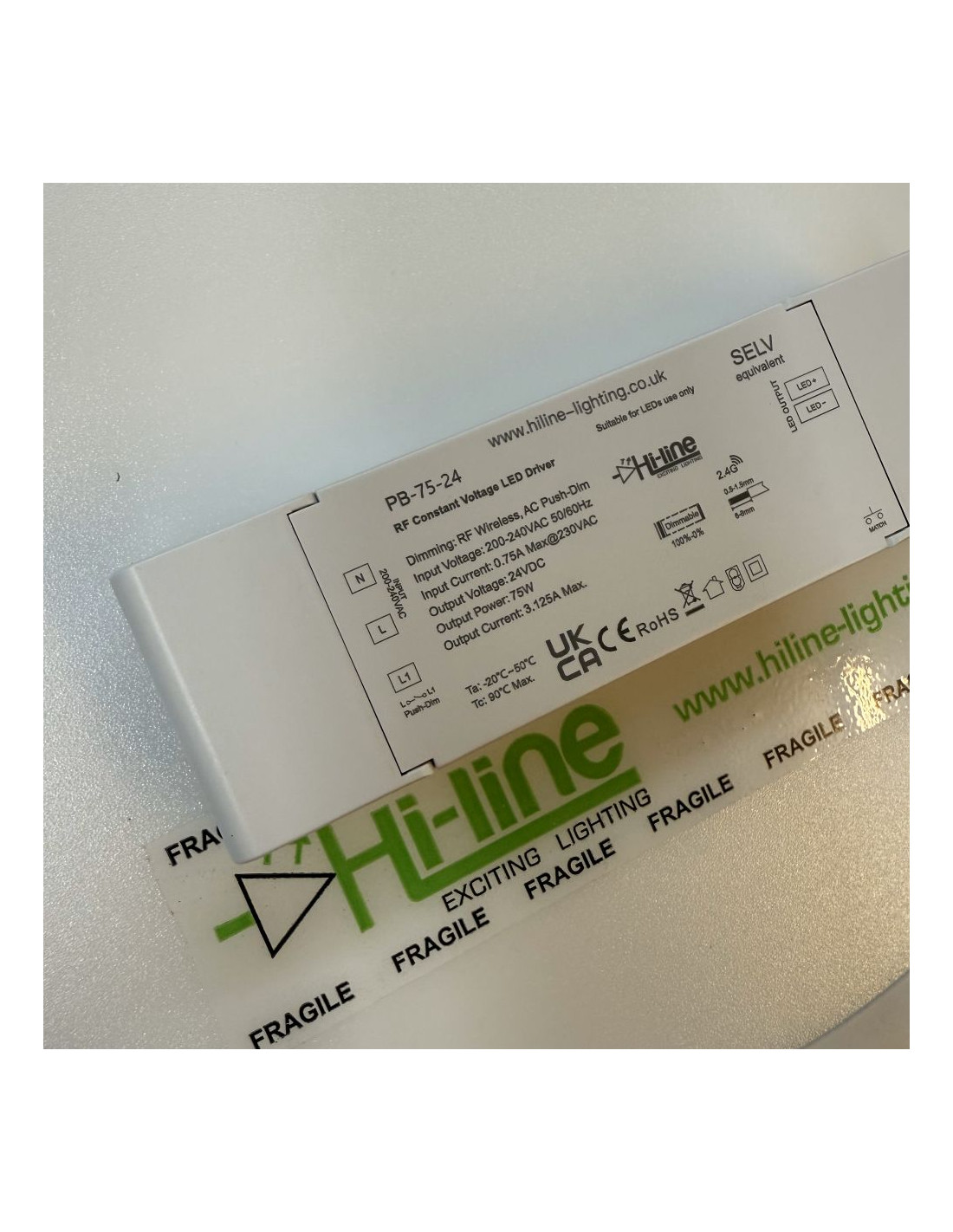

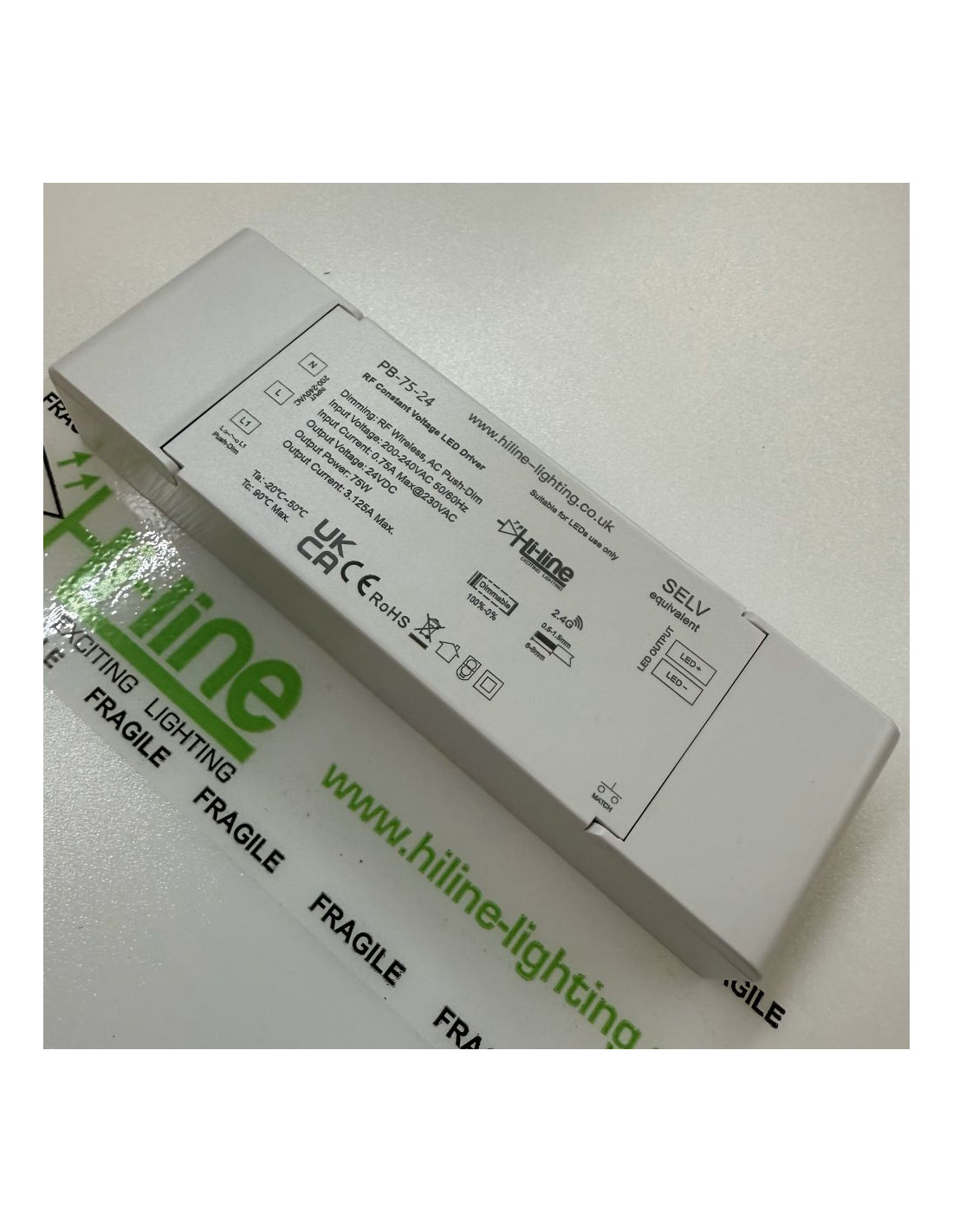

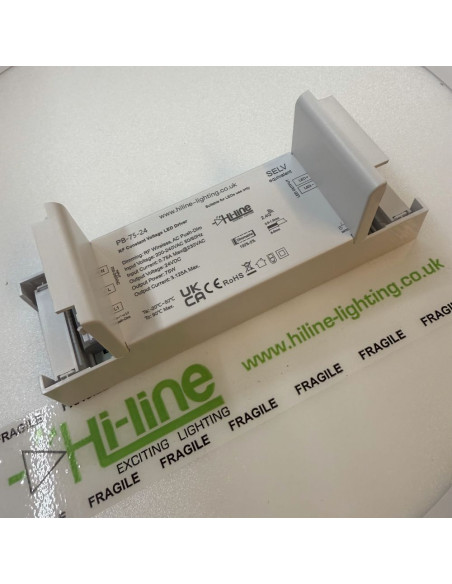

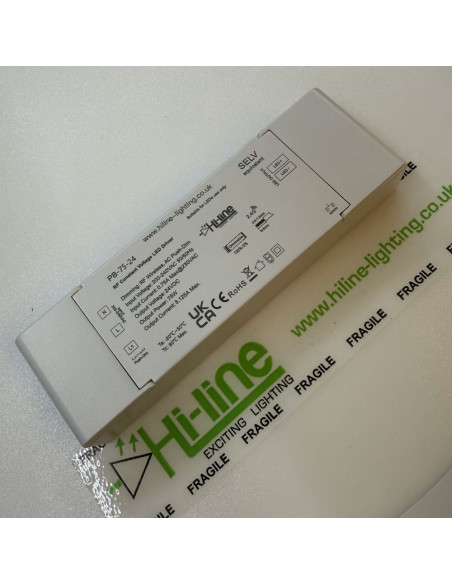

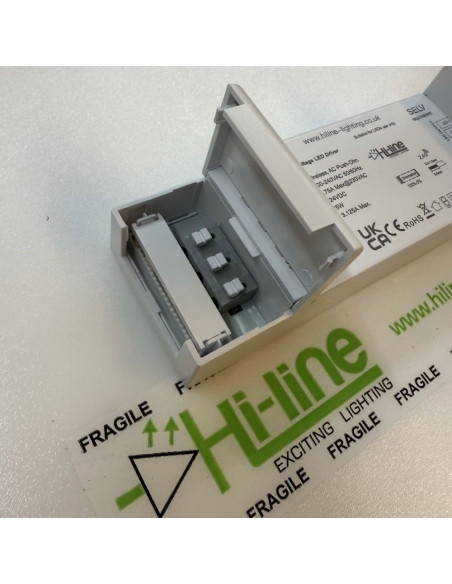

75W 24V Constant Voltage LED Driver with Built-in RF Receiver
The PB-75-24 is a powerful and professional constant voltage LED driver designed to function as both a reliable 24V power supply and a wireless RF receiver. It provides simple plug & play operation as a standard PSU, while also offering the flexibility to enable wireless dimming and zone control whenever required.
Why Choose This Driver
The PB-75-24 combines the roles of a high-performance PSU and a smart wireless controller. It operates immediately as a 75W 24V DC constant voltage driver with no setup required. Thanks to the integrated RF receiver, it can be paired with a 2.4GHz RF remote control to unlock dimming, grouping, and multi-zone management. This makes it a future-proof choice for installations where flexibility is important.
Features
The driver supplies 24V DC output up to 75W and integrates a built-in RF receiver for wireless dimming. It is compatible with both single-zone and multi-zone RF remotes, with support for up to ten remotes per driver. Its auto-transmit function allows one driver to relay control signals to others within a 30-metre range, while auto-synchronisation ensures that multiple drivers operate together. The unit also supports Push-Dim control using a standard wall switch. Fade in/out timing and a smooth digital dimming curve are included for comfortable, stepless dimming. Integrated protections safeguard against overload, short circuit, and overheating, with automatic recovery. The robust plastic housing is compact and enclosed, and the driver is backed by a three-year or 30,000-hour warranty.
Technical Specifications

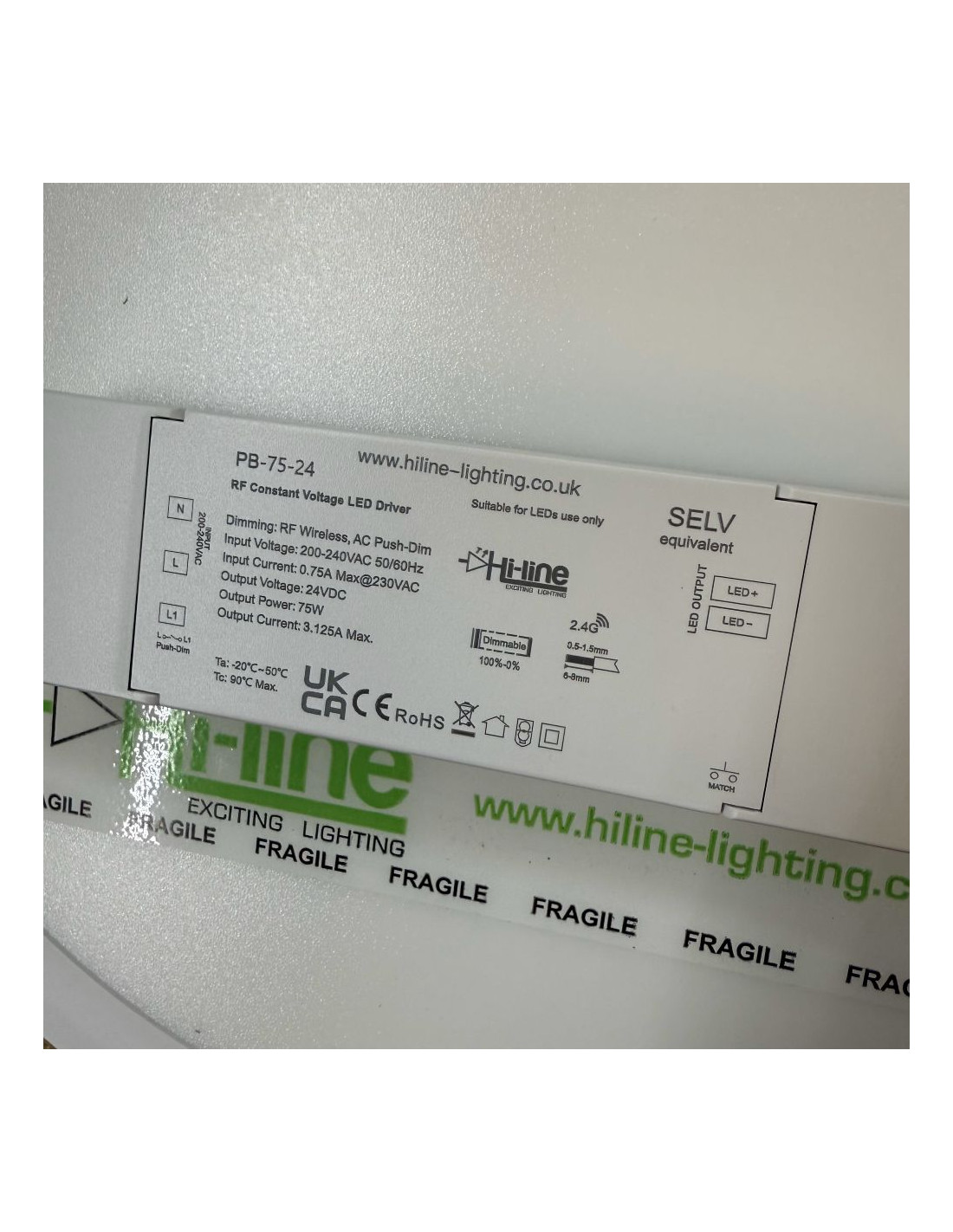

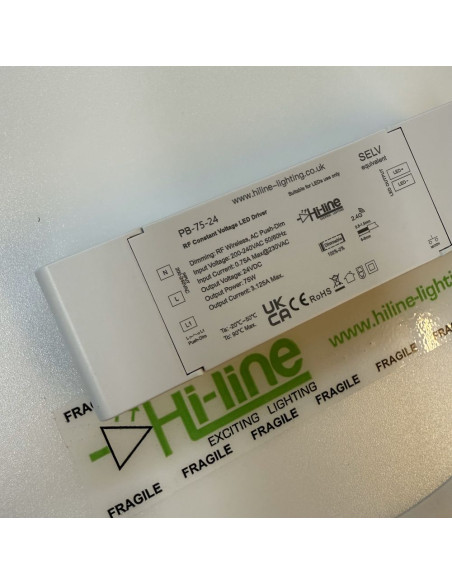

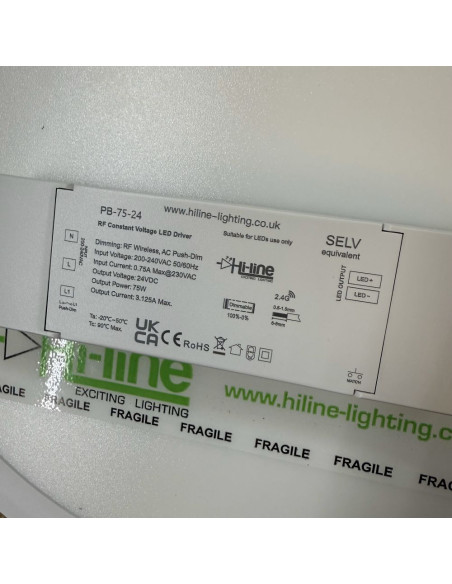

Model: HL-PB-75-24
Input Voltage: 200–240V AC, 50/60Hz
Output Voltage: 24V DC
Max. Output Power: 75W
Max. Output Current: 3.125A
Efficiency: ~88% @ 230V AC
Standby Power: <1.5W
Ripple & Noise: ≤200mV (230V AC)
Dimming Range: 0–100% (RF or Push-Dim)
PWM Frequency: 2000Hz
Inrush Current: 27.5A cold start @ 230V AC
Protection: Overload, short circuit, thermal shutdown – auto recovery
IP Rating: IP20 (indoor use only)
Certifications: UKCA, CE, RoHS
Dimensions: approx. 179 × 56 × 30 mm
Applications
Suitable for powering single colour 24V LED strips in commercial, residential, hotel, retail, and display lighting projects. Ideal for both retrofit upgrades and new luminaire designs requiring wireless control and zone flexibility.
Important Notes
As a PSU, the PB-75-24 works straight away with no setup needed. Wireless dimming and zone control require a compatible RF remote. Pairing is quick and described in the user manual. Multiple drivers can be synchronised or configured into zones. Installation should always be performed by a qualified professional.
Related Products
Compatible single-zone and multi-zone RF remotes, as well as additional matching accessories, are available under the Related Products tab.
Attachments
The user manual for PB-75-24 and PB-40-24 is available in PDF format under the Attachments tab.
