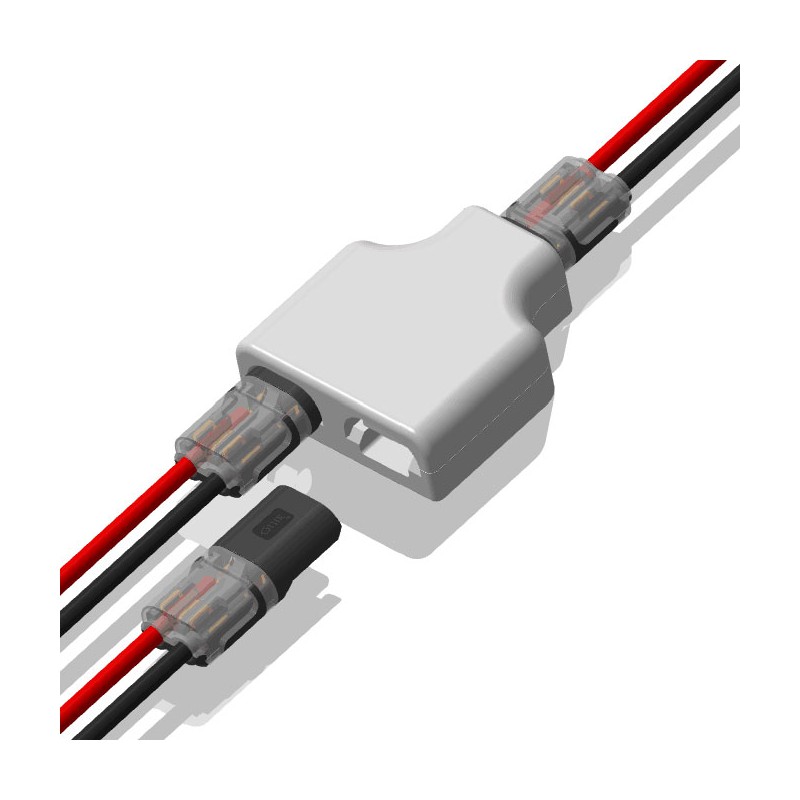

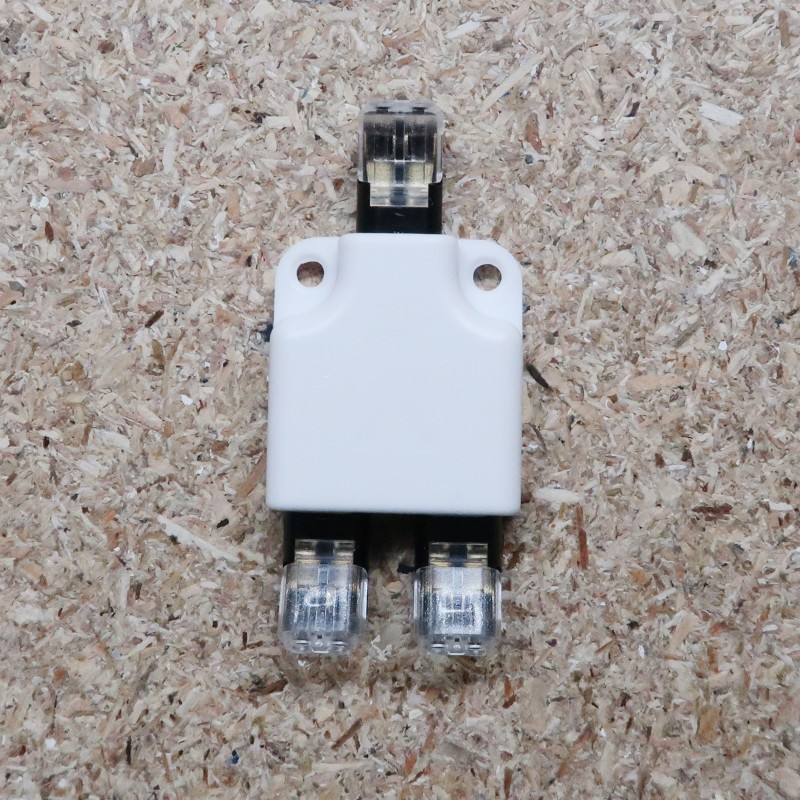

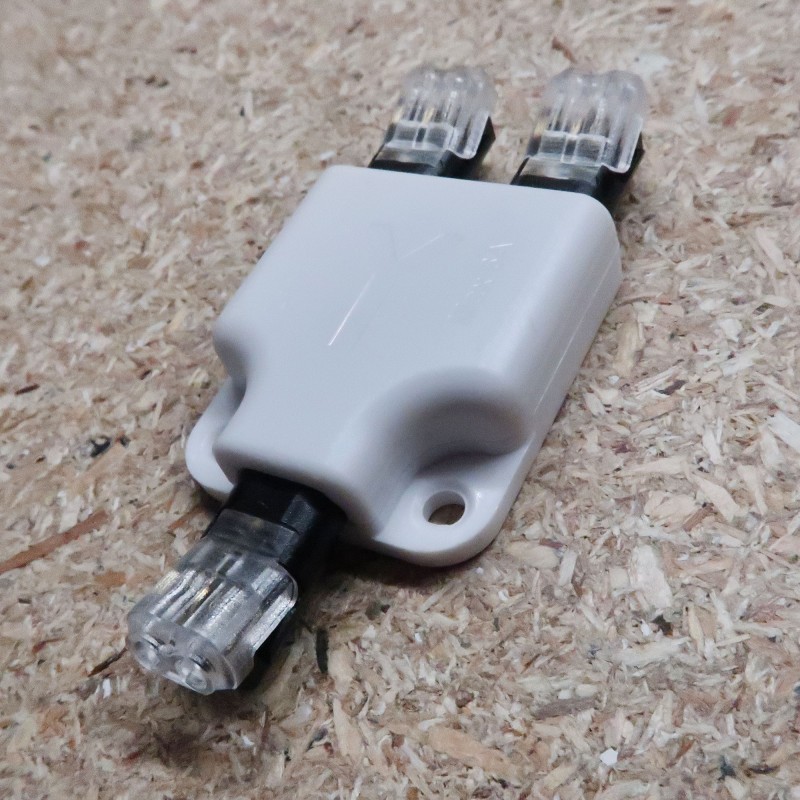

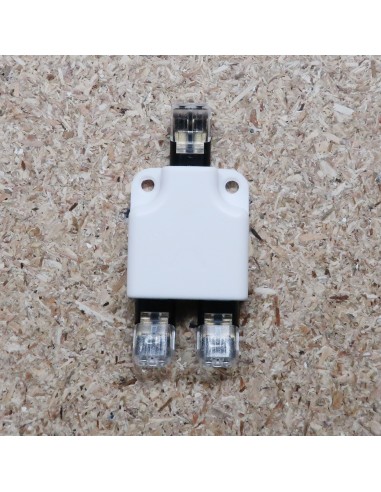

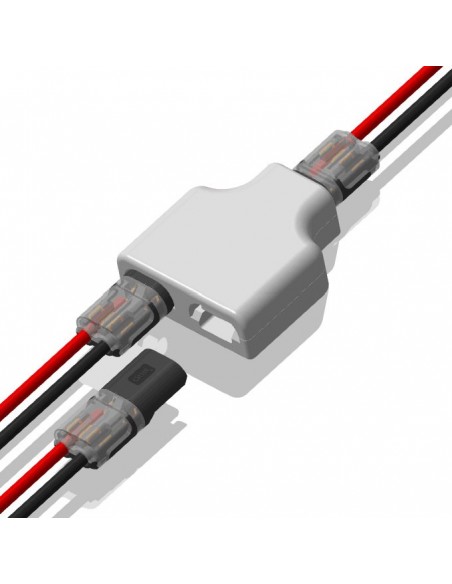

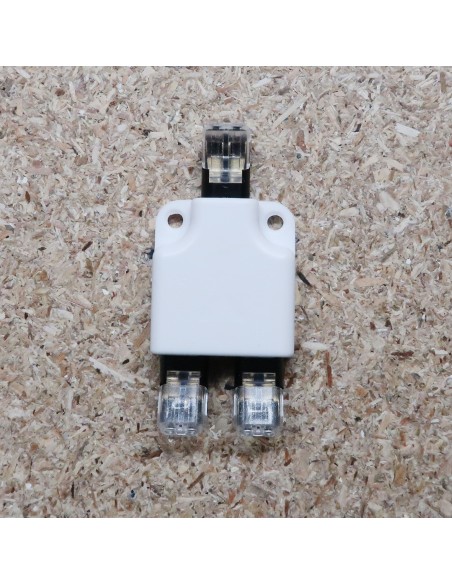

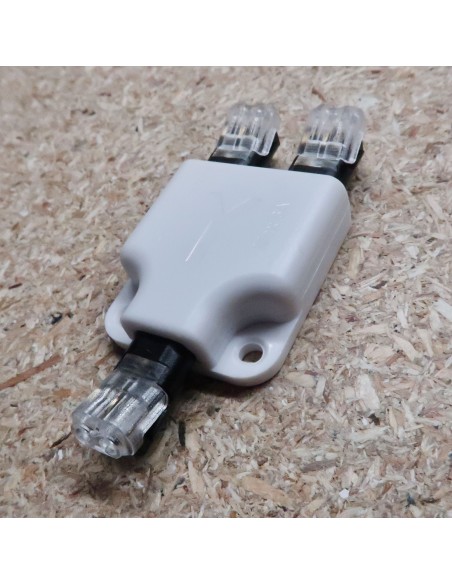

This 2-Way Power Distributor Set is supplied complete with 3x HL-WJ Non-Stripped Wire Terminal Connectors, making installation simple and efficient. It provides a practical way to split one 2-core cable into multiple runs, for example powering three separate LED strip lengths from a single input.

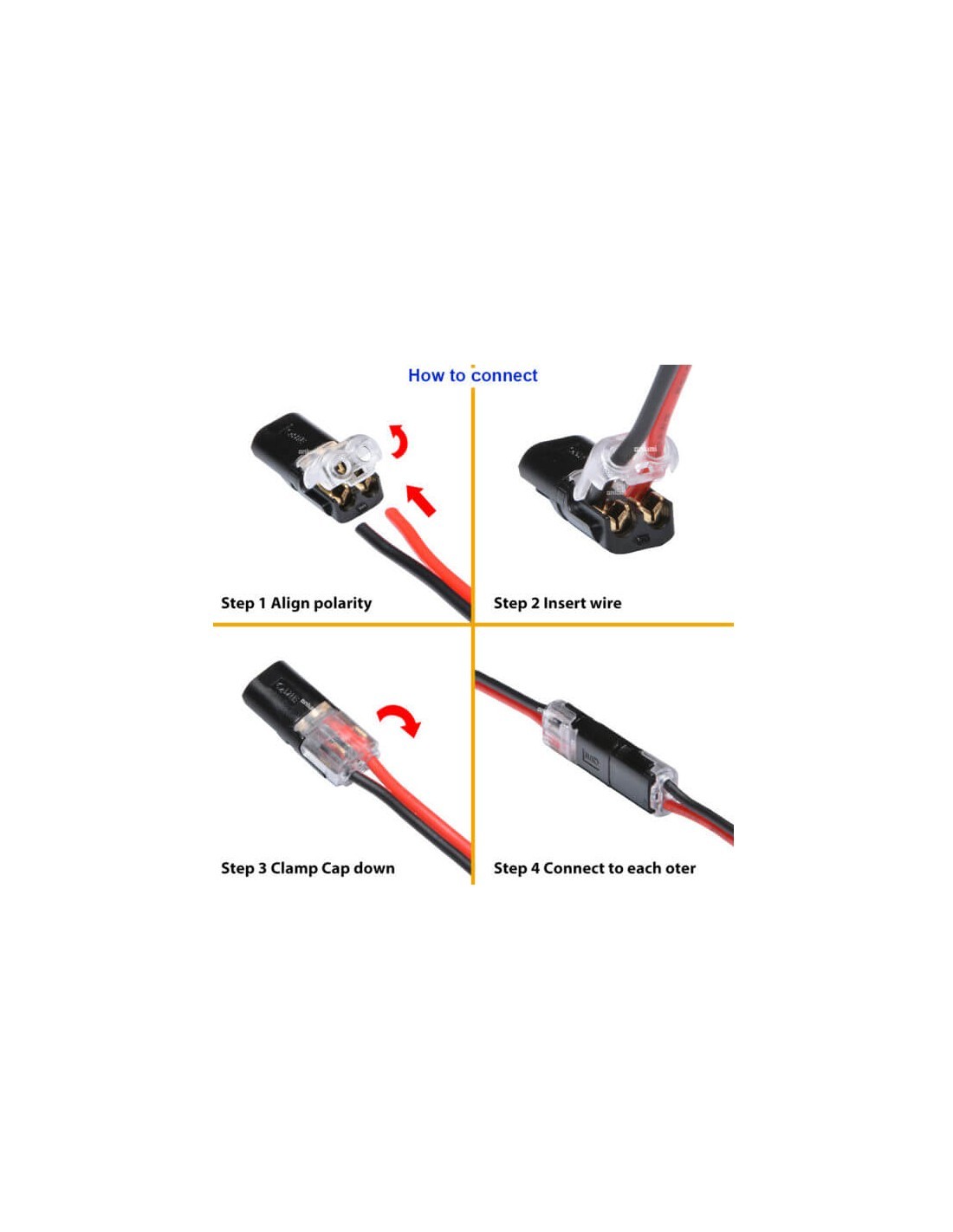

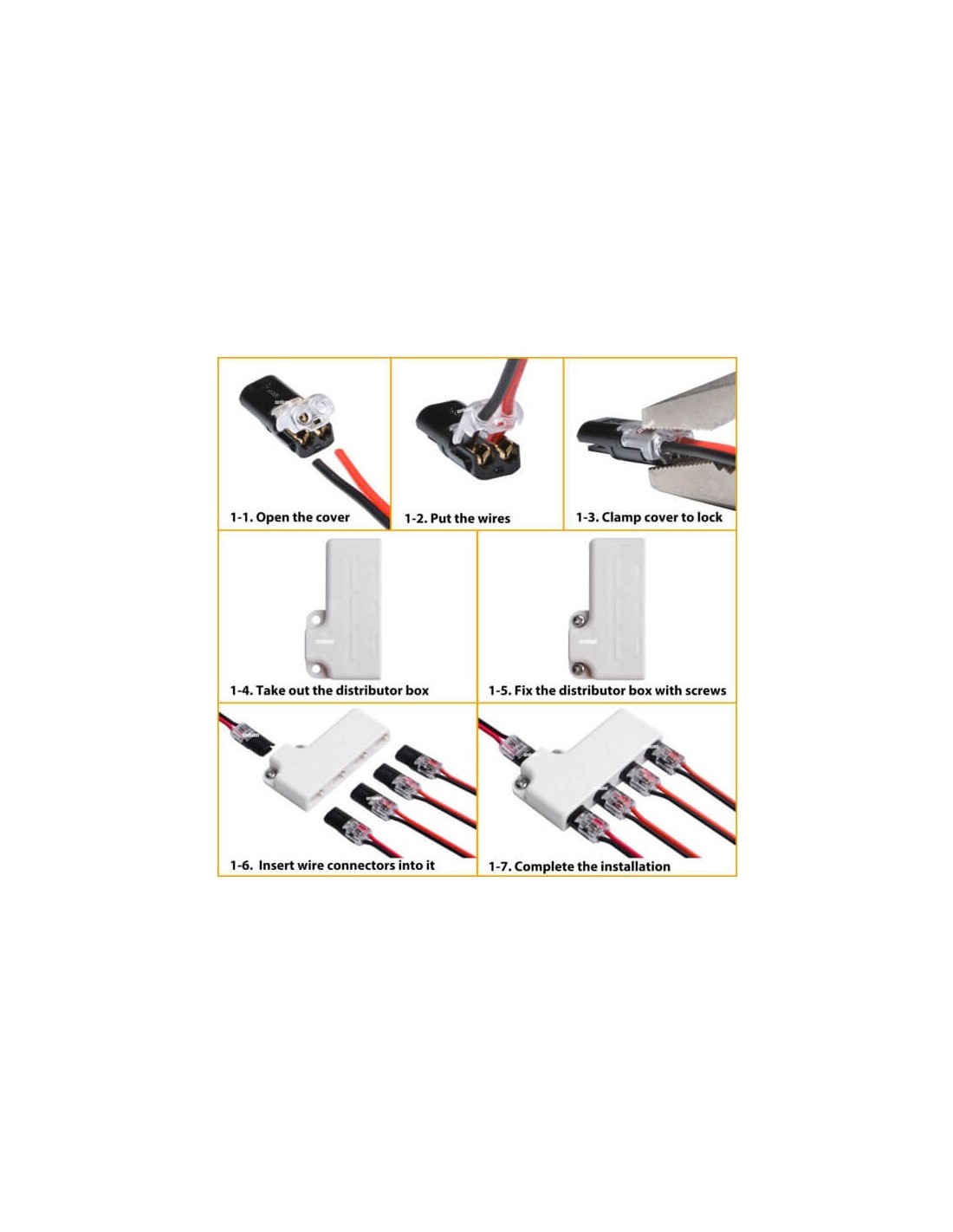

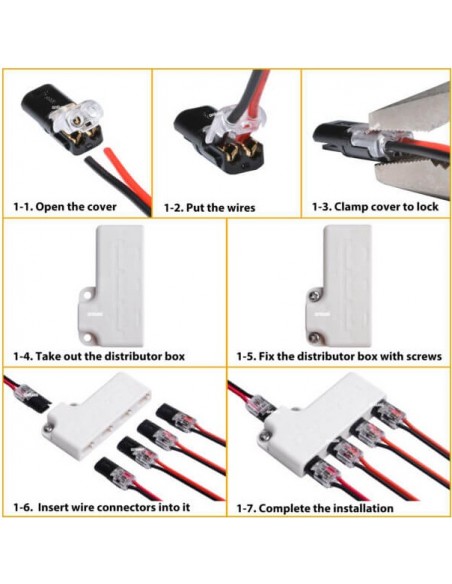

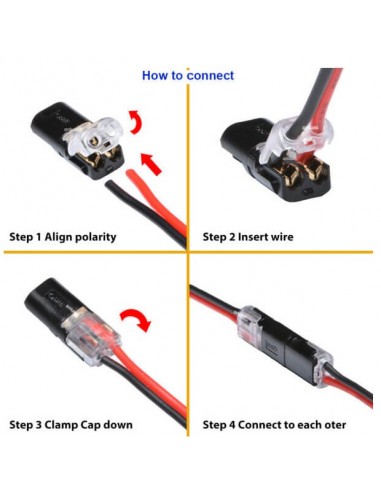

The design allows quick and tool-free connections: open the cap, insert the cable, clamp down, and plug directly into the distributor box. The connectors can also be used on their own as inline joints, making this a versatile solution for both distributing power and joining cables together.
Included in Set: 1x 2-Way Power Distributor Box, 3x Non-Stripped Wire Terminal Connectors
Typical Use: Splitting a single 2-core supply into multiple LED strip runs
Additional Function: Connectors can also be used separately to join two cables directly
Rated Voltage: Max 36V
Rated Current: 6A total (shared across inputs and outputs – always check specifications to ensure suitability for your installation)
Material: PC & Copper
IP Rating: IP40
Dimensions (Box): 32×30×9 mm
Dimensions (Connector): 26×15×7 mm
Useful for: Powering several short LED strip sections from one driver, extending a single run neatly into different zones, or making quick joins without soldering. Commonly used in kitchen units, cabinets, wardrobes, or other furniture lighting setups, often in combination with our sensors and drivers for smart, automatic control.
Note: Extra or replacement connectors can also be purchased separately. Please see the Related Products tab or search for reference HL-WJ.
