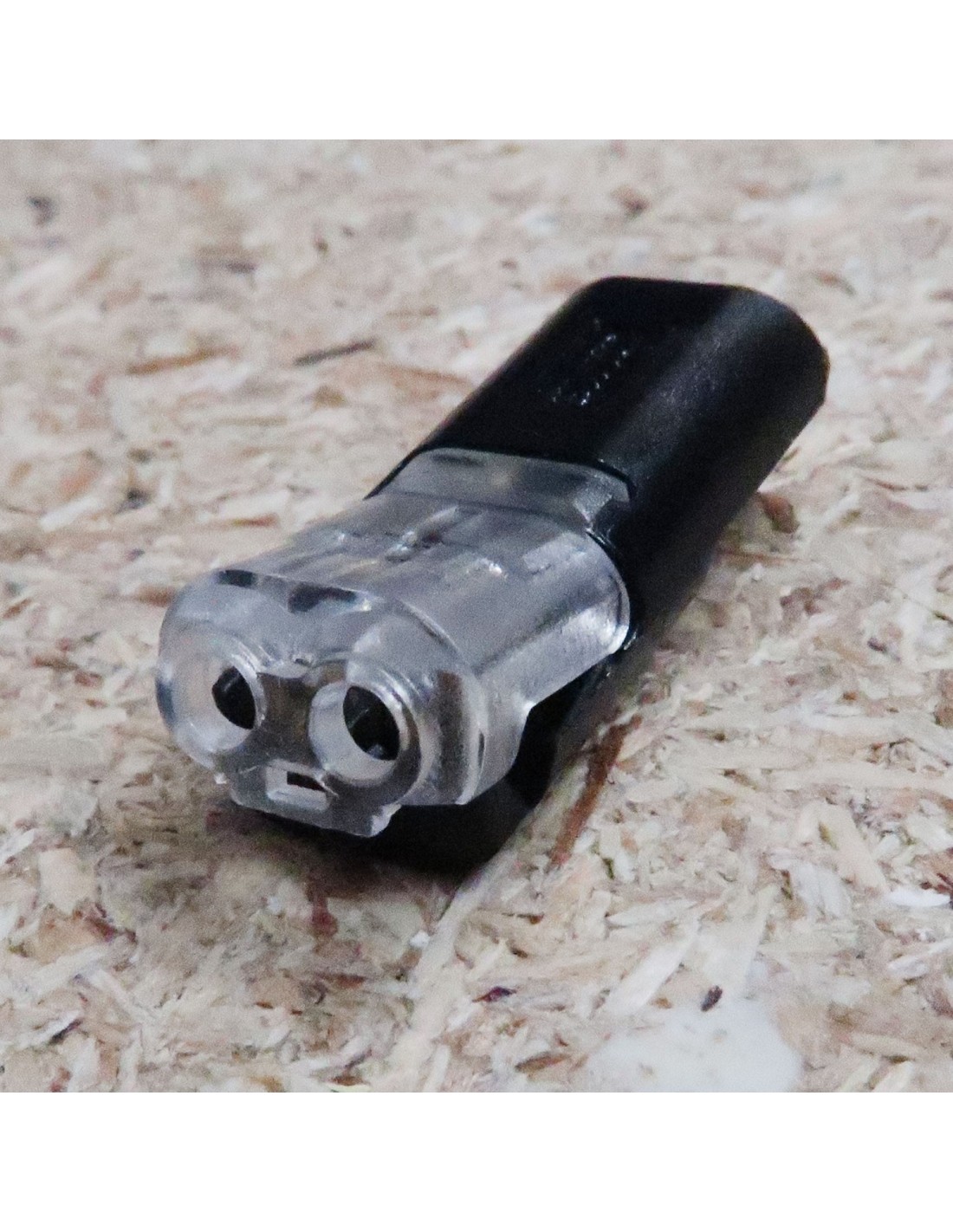

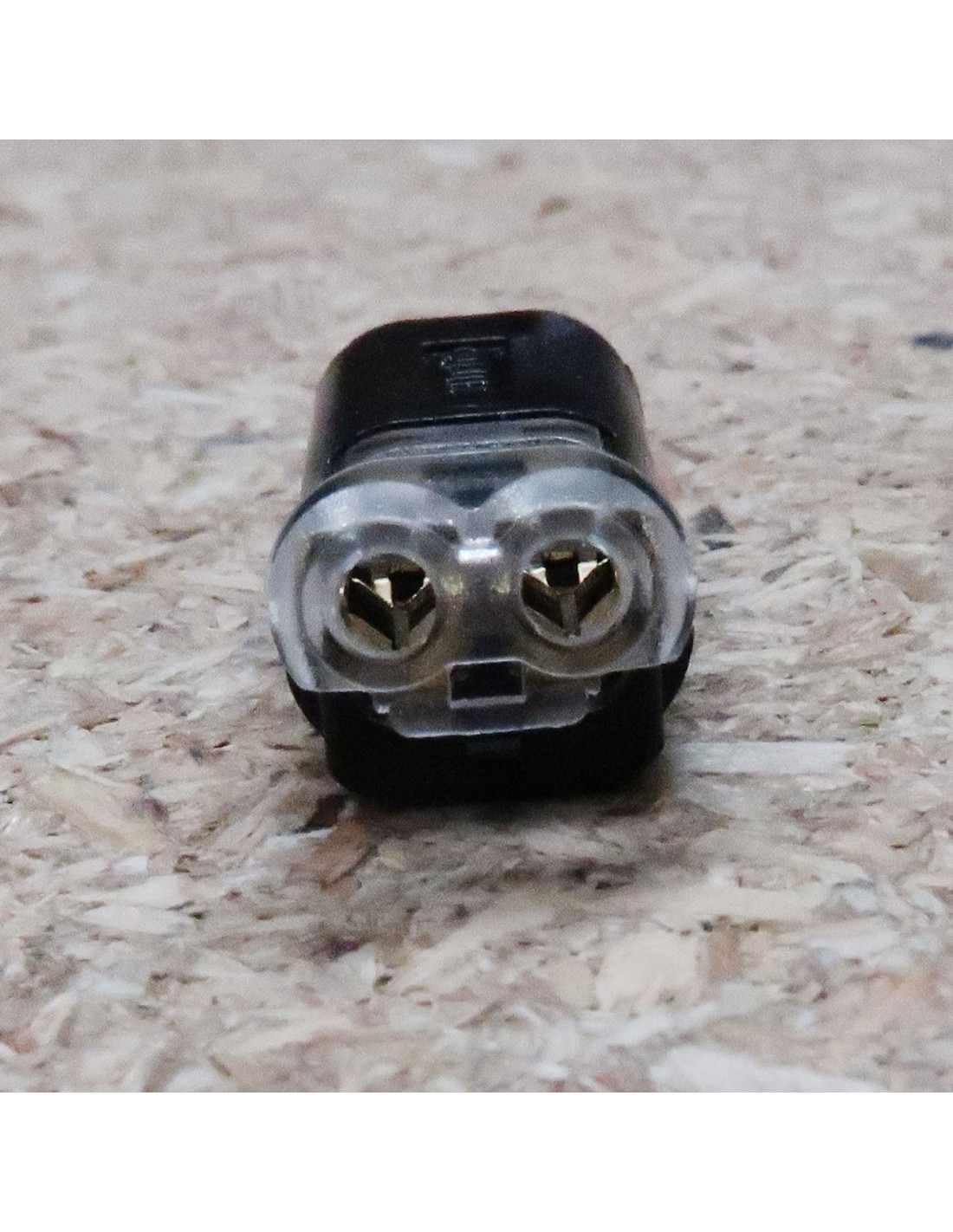

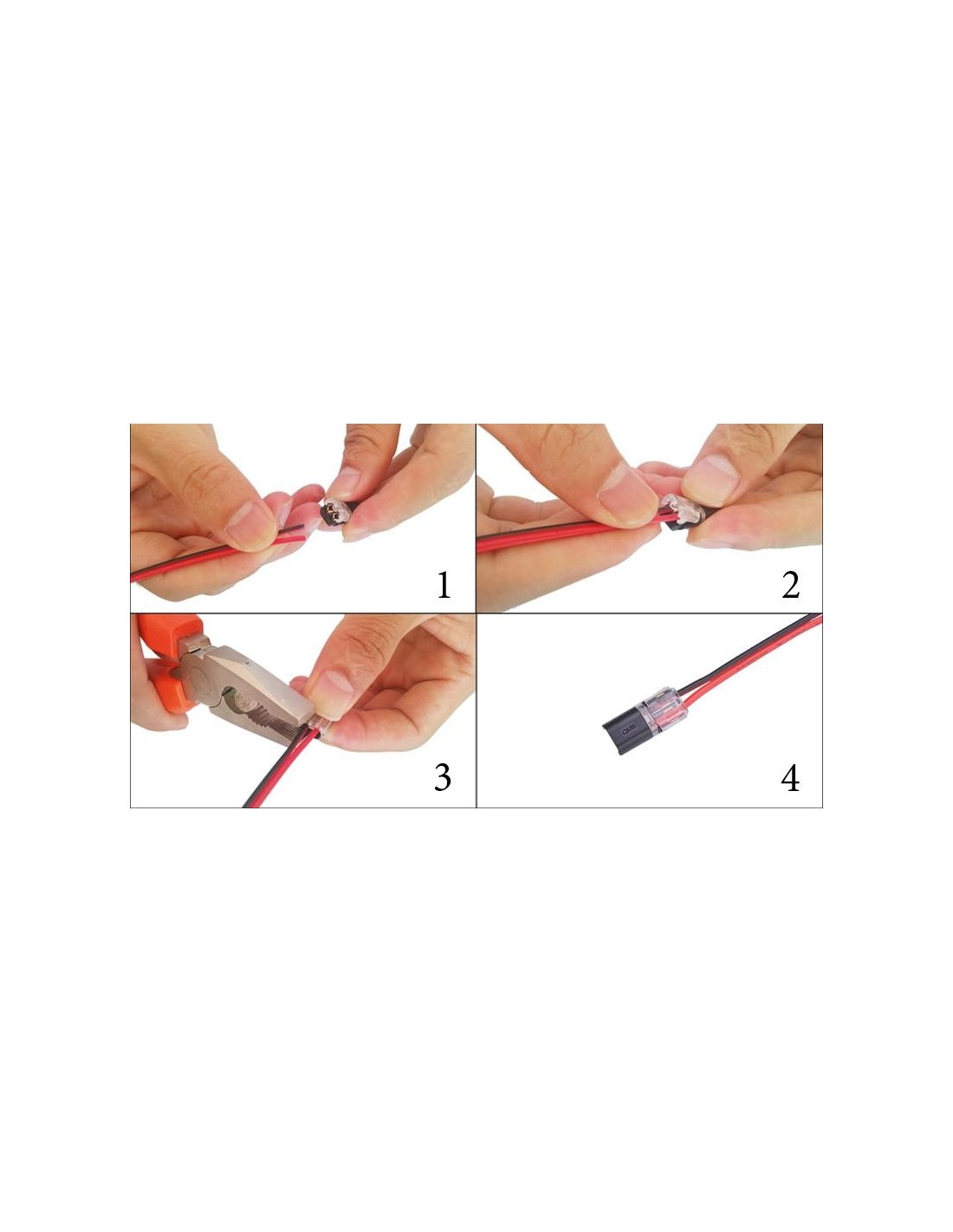

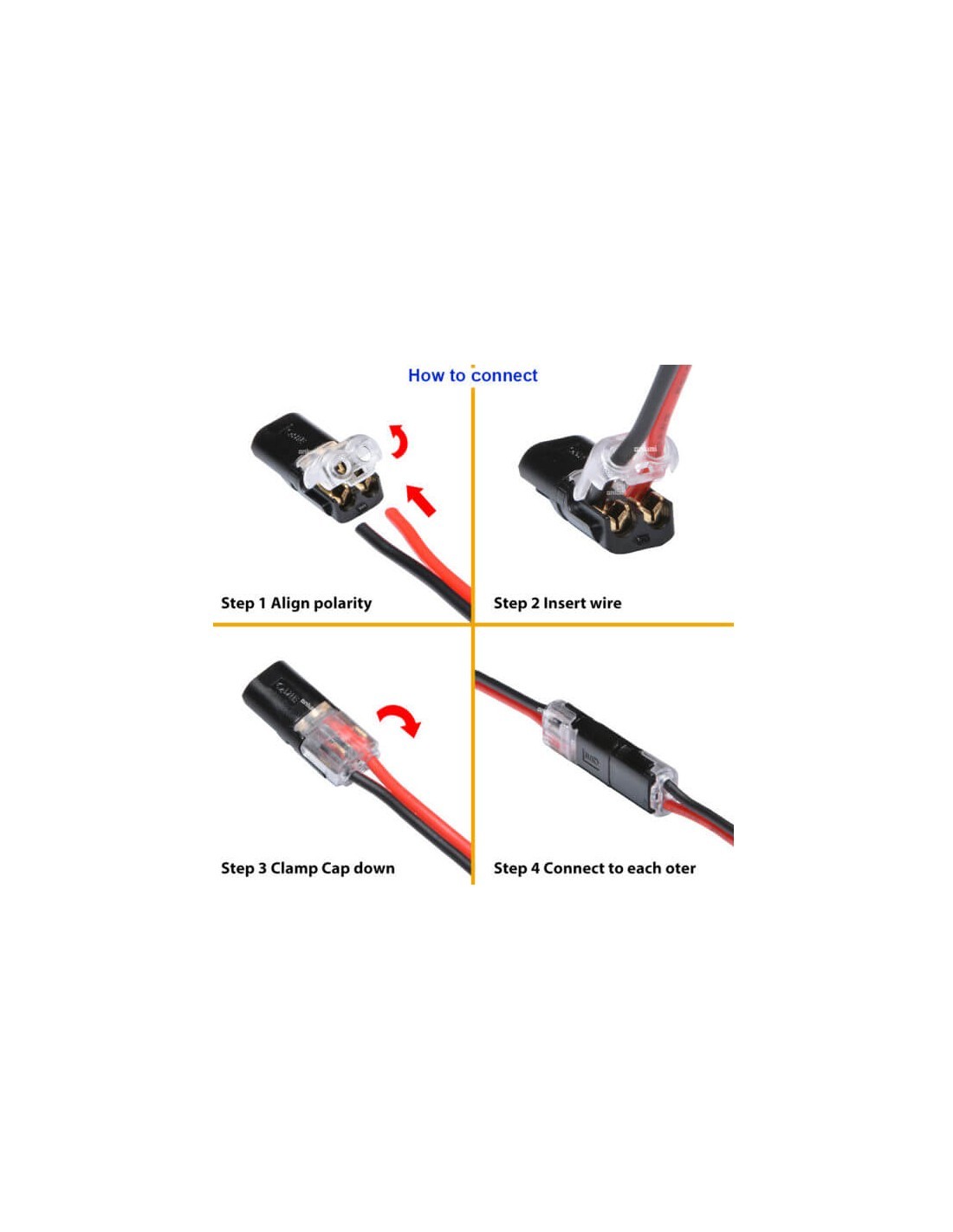

These Non-Stripped Wire Terminal Connectors provide a fast and reliable way to connect wires without the need for pre-stripping. The clamp-lock design allows for quick, tool-free installation – simply open the cap, insert the cable, and close to secure.

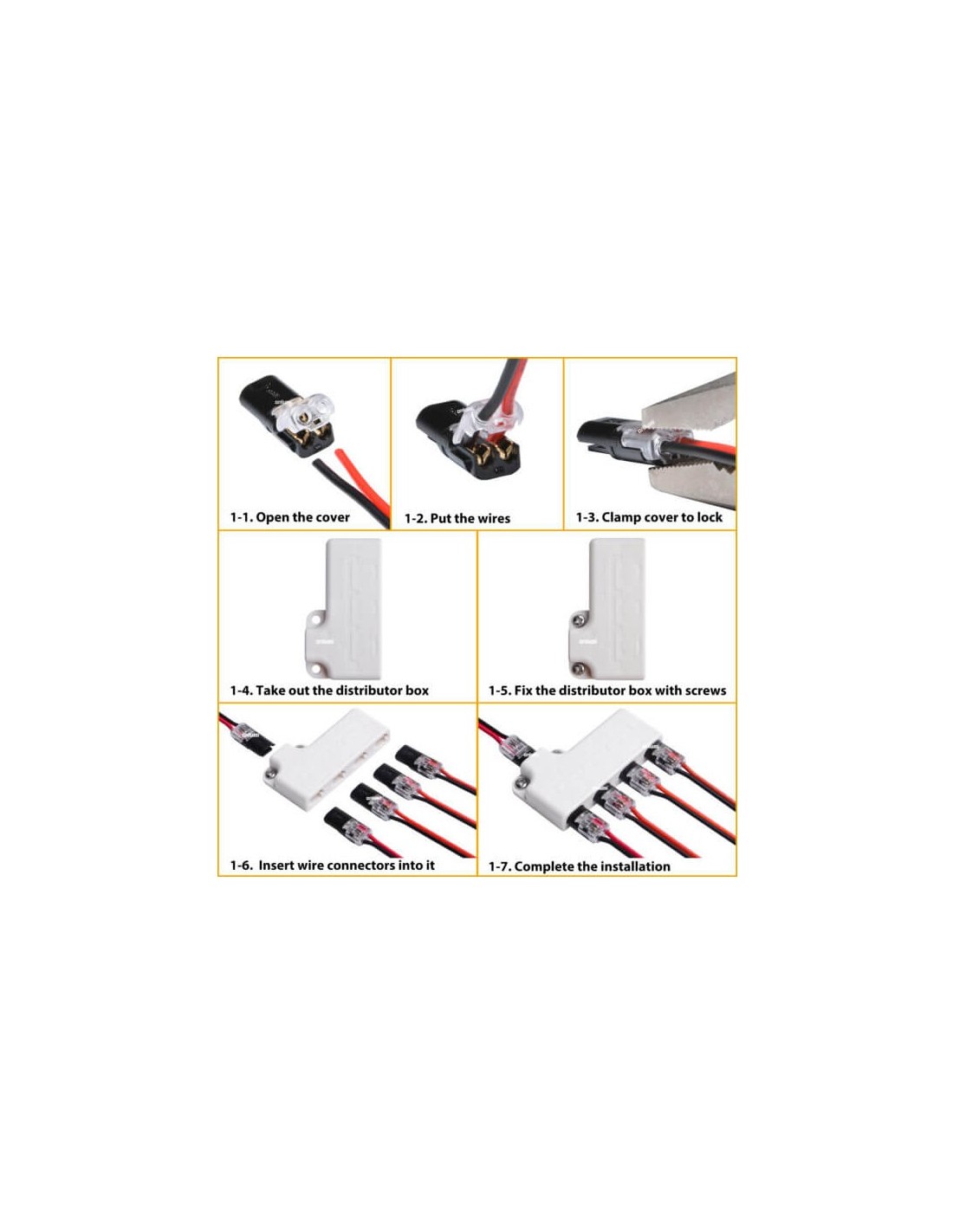

The connectors can be used on their own to join two cables together, or in combination with the 2-Way Power Distributor Box (HL-DBOX) to split a single two-core supply into multiple LED strip runs. They are flexible and reusable, saving time on installation while keeping wiring neat and safe.

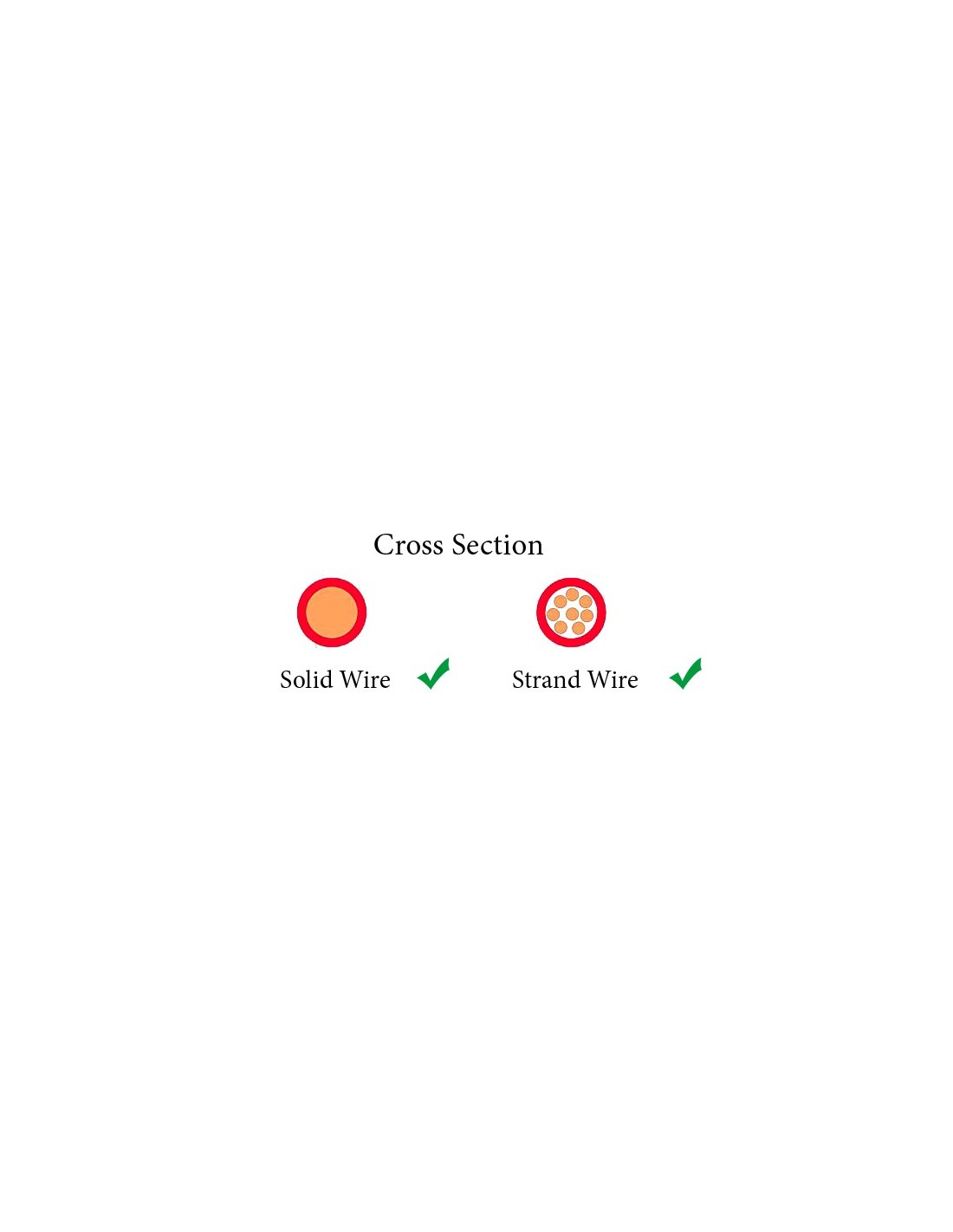

Workable Wire Size: 22–20 AWG (0.34–0.52 mm²)
Rated Voltage: Max 36V
Rated Current: 9A (maximum per pin)
Dimensions: 26×15×7 mm
Colour: Transparent cap / Black base
Material: PC & Copper
IP Rating: IP40
Useful for: Quick joins between two cables, extending LED strip runs without soldering, or as part of the HL-DBOX distributor system for tidy multi-branch wiring. Ideal for furniture lighting such as kitchens, cabinets or wardrobes where multiple short LED strips need to be powered from one driver.

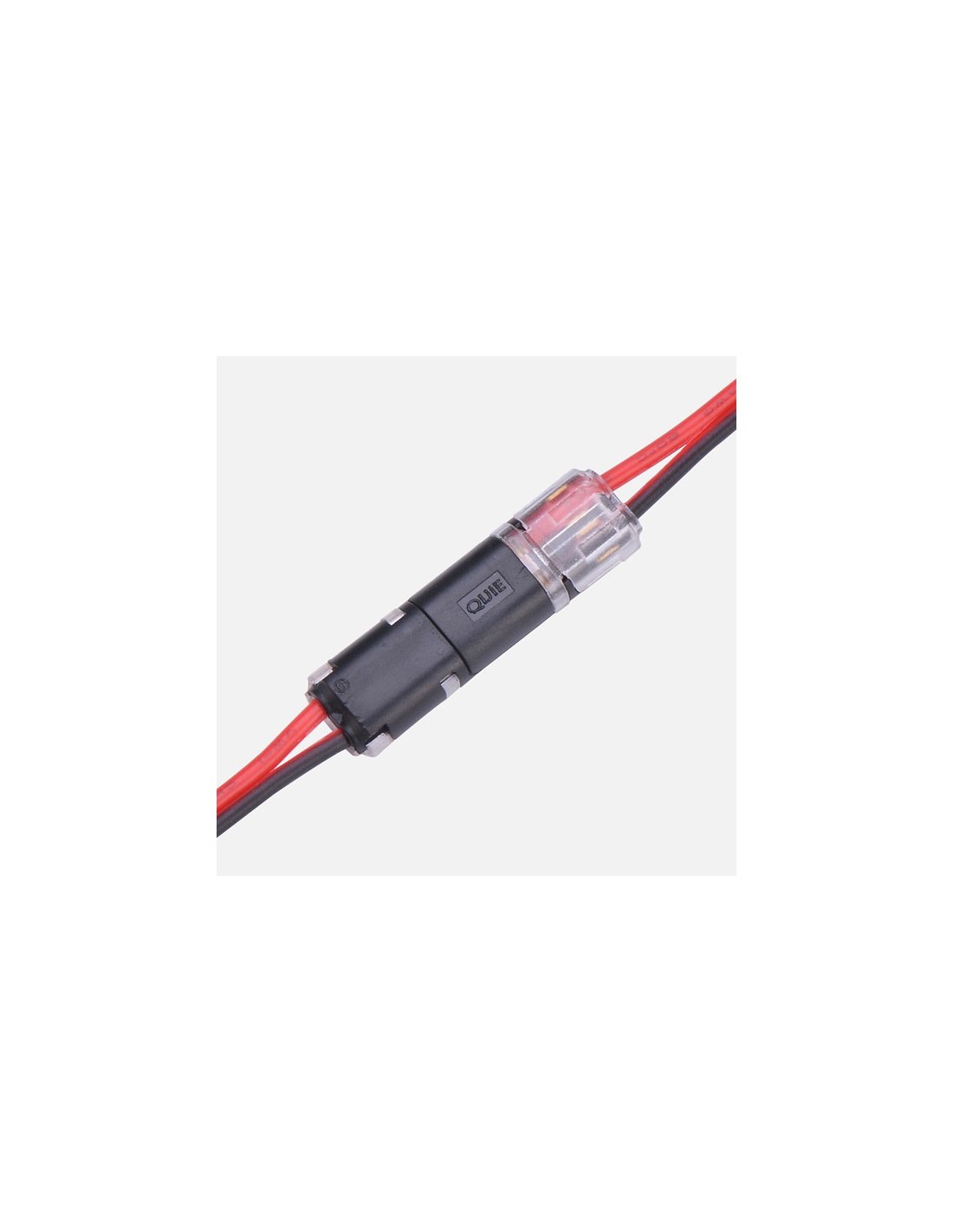

Important Note: This listing is for a pack of 10 individual connectors in total. To create a full wire-to-wire connection (as shown in some photos), you will need two connectors plugged together, one for each cable end. The distributor box is not included. Each HL-DBOX distributor set already comes with 3 connectors, but this pack is for customers who need extra or replacement connectors.
