The T11 Black Glass Touch Panel is a high-quality wall-mounted dimmer designed for single colour LED strip lighting. It combines advanced control functionality with a clean, modern glass design and is suitable for both residential and commercial environments.
This panel supports both DMX512 (wired) and RF 2.4GHz (wireless) output options, giving installers the flexibility to configure the system based on the project requirements. It allows control of up to four zones, which can be operated either independently or in synchronisation. Dimming is smooth and accurate from 0 to 100%, with 256-level resolution for precise brightness adjustment.

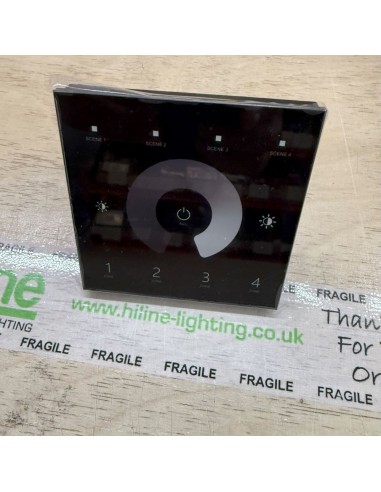

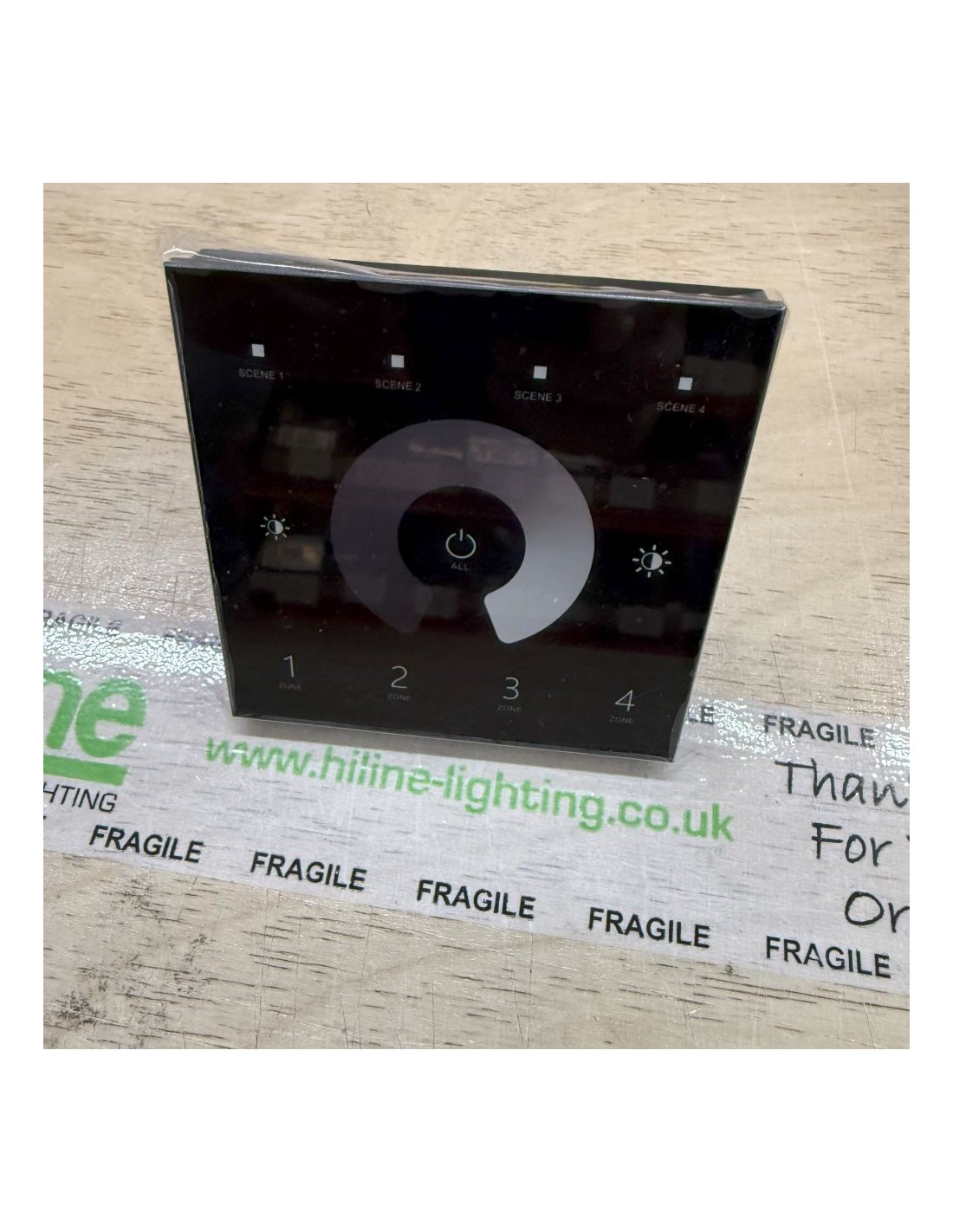

The touch interface features a sleek black glass surface with LED-backlit keys, ensuring an intuitive and responsive user experience. When used in RF mode, the panel only requires a 240V AC mains power connection. The DMX output terminals may be left disconnected in this case. Pairing is simple and can be performed directly from the panel interface. Each zone can be linked to one or more compatible RF controllers, depending on the layout. Matching models include HL-V1-L(WT), HL-V5-L, and other verified receivers shown under the Related Products tab.
The T11 panel fits standard 86mm wall boxes, making it easy to integrate into existing or new installations. No external driver is required. The elegant glass finish complements other premium interior fixtures and adds a refined touch to any lighting system.

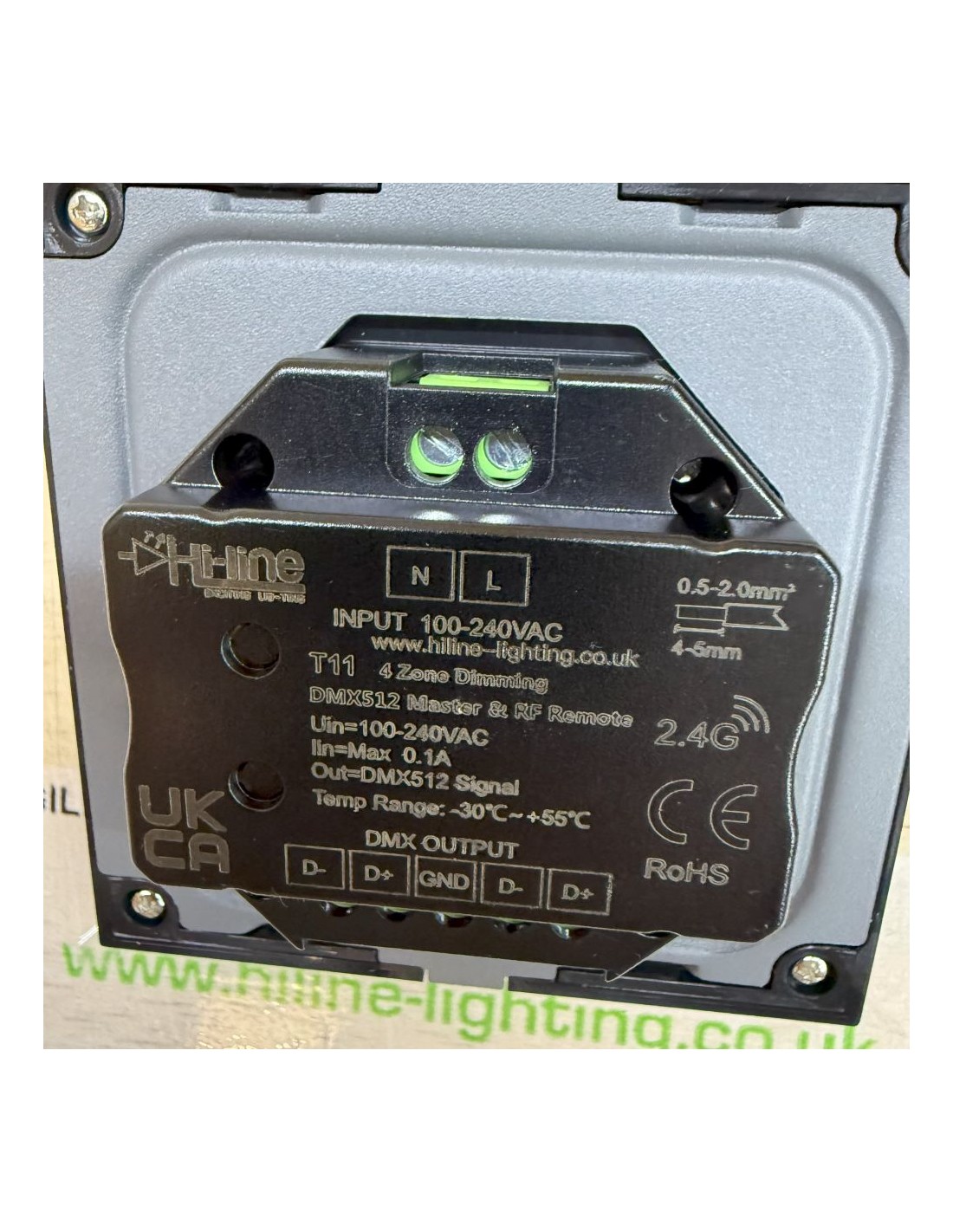

When used in DMX mode, the panel acts as a DMX512 master and outputs control signals directly to compatible DMX decoders. Each zone corresponds to a single DMX channel, allowing grouped or independent control across multiple areas.
The panel also offers memory for three user-defined scenes, allowing quick recall of preferred brightness levels or preset moods.
Three short demonstration videos are available for installers and users. The first shows independent control of four zones with separate RF receivers. The second demonstrates how to pair multiple receivers to the same zone for synchronised control. The third explains how to reset the panel and clear all pairings.
Video 1 – Four independent zones with one receiver per zone
https://youtube.com/shorts/9GF2vgUnwfk
Video 2 – Multiple receivers assigned to the same zone
https://youtube.com/shorts/spmNlB_HE0I
Video 3 – Resetting the panel and clearing all pairings
https://youtube.com/shorts/_mPFc_azoWQ
All compatible accessories and control options can be found under the Related Products tab at the top of this product description on desktop, or just after this section on mobile. Every product listed is fully compatible with this panel, including RF receivers, DMX decoders, and power supplies. For wiring guides and technical documents, refer to the Attachments tab. To refine your search, use the REFINE BY filter on the left side of the screen on desktop or at the top of the page on mobile devices.
This product is intended for indoor use only and should be installed by a qualified electrician. Proper installation is essential for safety, compliance, and performance. The T11 carries UKCA, CE, EMC, and RED certifications and comes with a 3-year standard warranty, which can be extended to 5 years upon request.
