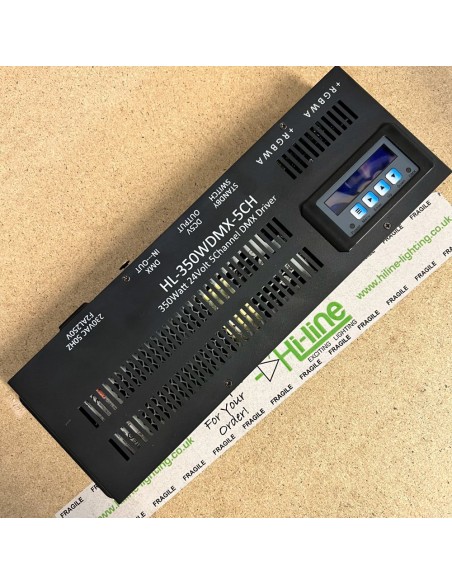

Mains-Powered DMX512 LED Strip Controller with Built-In 350W Power Supply

The HL-350WDMX-5CH is a professional-grade, mains-powered DMX512 LED strip controller designed for high-performance lighting applications. Featuring a built-in Mean Well UHP-350-24 constant voltage power supply, this compact and efficient unit eliminates the need for external LED drivers. Its 15kHz PWM modulation ensures flicker-free operation, making it ideal for HD cameras, broadcasting, and theatre environments.

This controller supports five DMX512 channels, making it suitable for RGB+CCT tunable LED strips, as well as single-colour, CCT, RGB, and RGBW configurations. With a total capacity of 350W (24V, 14.5A shared across all channels), it offers flexibility for professional installations. Each channel can handle up to 5A, but the combined total must not exceed 14.5A, ensuring safe and efficient operation.

Flexible Output Configurations:

• Single Colour (1 DMX Address): Parallel the five outputs to power a single load of up to 350W (24V, 14.5A).
• RGB+CCT Tunable LED Strips (5 DMX Addresses): When operating five channels independently, power is distributed equally, with a maximum of 2.9A (69.6W) per channel under balanced loads.

Key Features:

• Silent, fanless design: Zero noise, ideal for noise-sensitive applications like studios, broadcasting, and theatres.
• Flicker-free 15kHz PWM modulation: Ensures smooth, flicker-free lighting suitable for HD cameras and professional filming.
• Mains-powered with built-in Mean Well UHP-350-24 PSU: Operates directly from 220-240V AC, simplifying installations.
• Supports up to 5 DMX512 channels: Flexible for single-colour, RGB, RGBW, and RGB+CCT configurations.

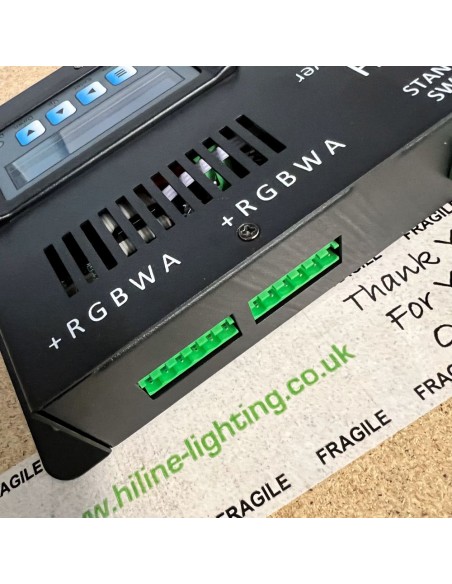

• 2 x RGBWA Phoenix outputs: Secure, professional-grade connections for multi-channel LED strips.
• 2-pin Phoenix connector for remote on/off control: Provides convenient integration for remote operations.

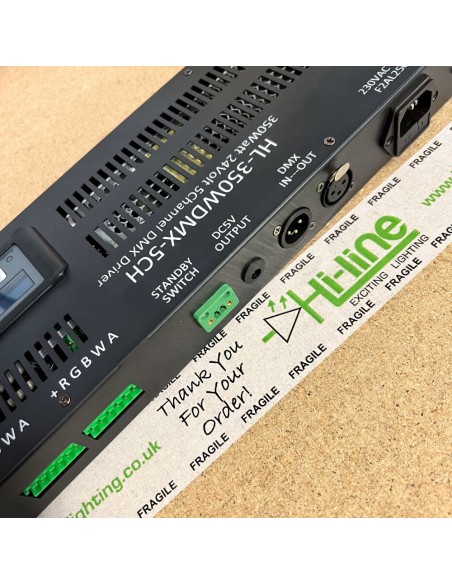

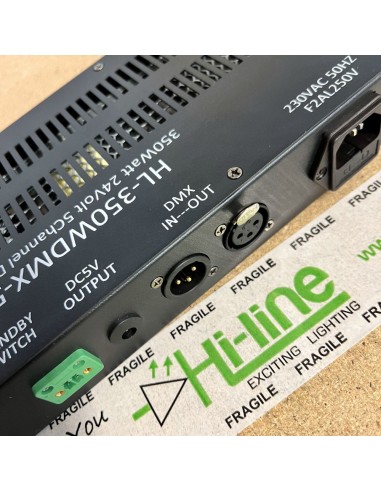

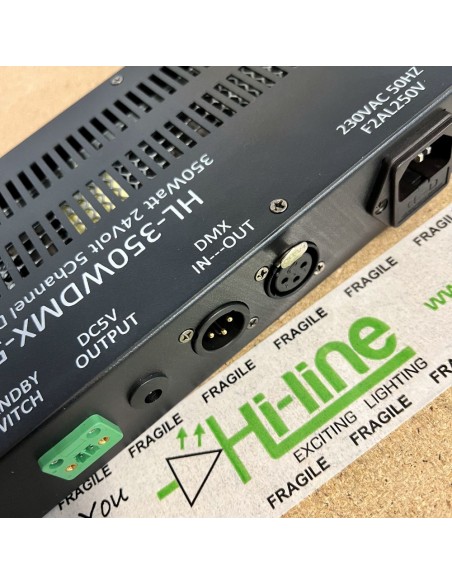

• DMX512 signal compatibility: 3-pin XLR in/out ports for seamless integration with professional lighting control systems.
• LCD display and standby switch: User-friendly interface for easy configuration and monitoring.
• DC2.1 auxiliary output (5V/1A): Ideal for powering DMX controllers or other low-power devices.

Specifications:

• Input Voltage: 220-240V AC. (Note: The 3-pin power supply cord is not included with the controller)
• Output Voltage: 24V DC.
• Maximum Output: 350W, 14.5A shared across all channels (max 5A per channel).
• PWM Frequency: 15kHz for flicker-free performance.
• Dimensions: 390mm (width) x 125mm (depth) x 45mm (height), including mounting brackets.
• Weight: 1.954 kg.

Applications:
The HL-350WDMX-5CH is perfect for TV studios, HD broadcasting, professional filming, theatres, architectural lighting, and other advanced installations. Its silent operation and flicker-free lighting ensure flawless results in professional environments.

Professional Use Only:
Designed for DMX512 experts, this unit requires a strong understanding of proper setup, load balancing, and system configuration. Incorrect use or overloading may lead to performance issues or damage.

Warranty:
3-year standard warranty, extendable to 5 years with our optional extended warranty.

Certifications:
Fully UKCA and CE certified, ensuring compliance with all safety and industry standards.
