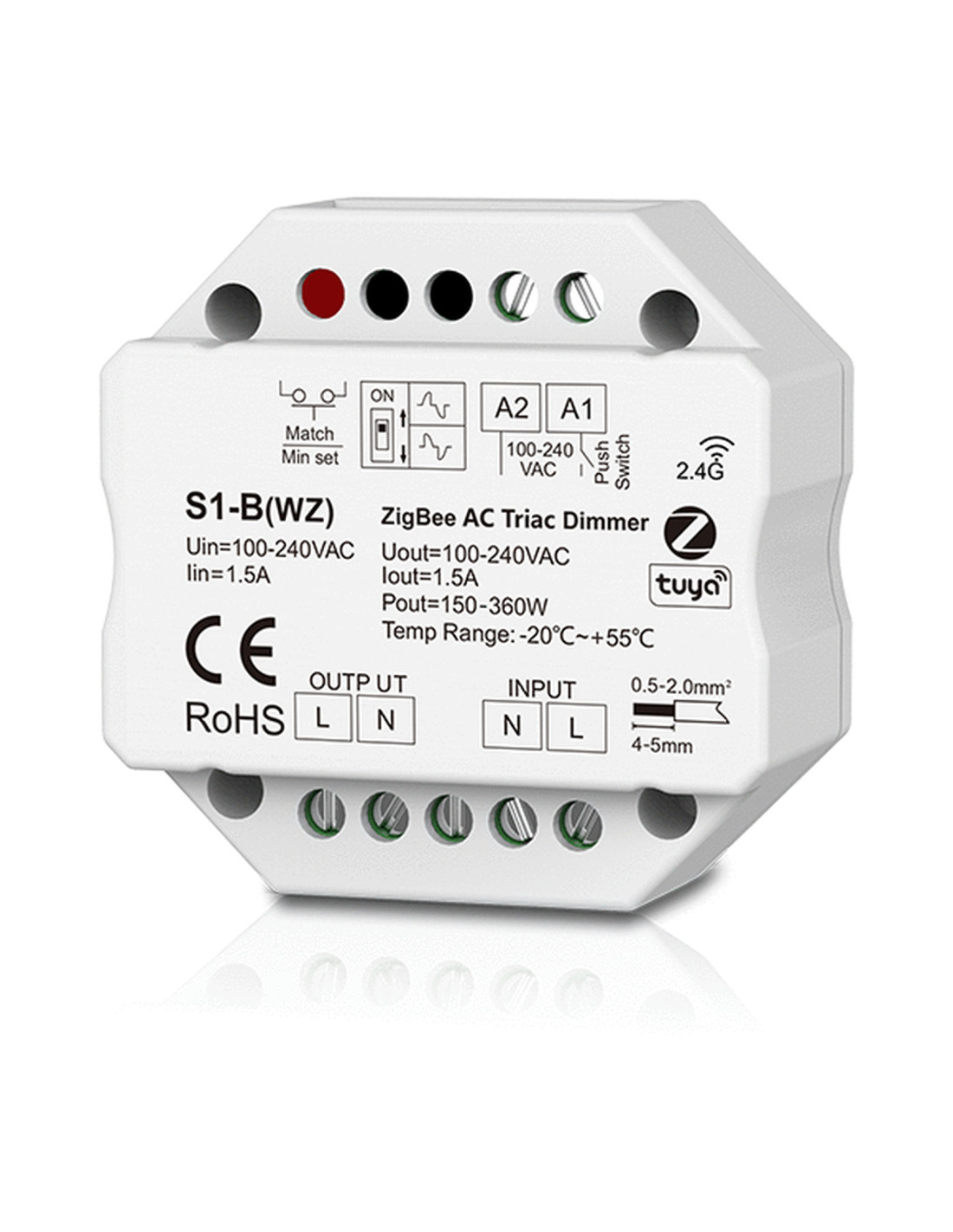

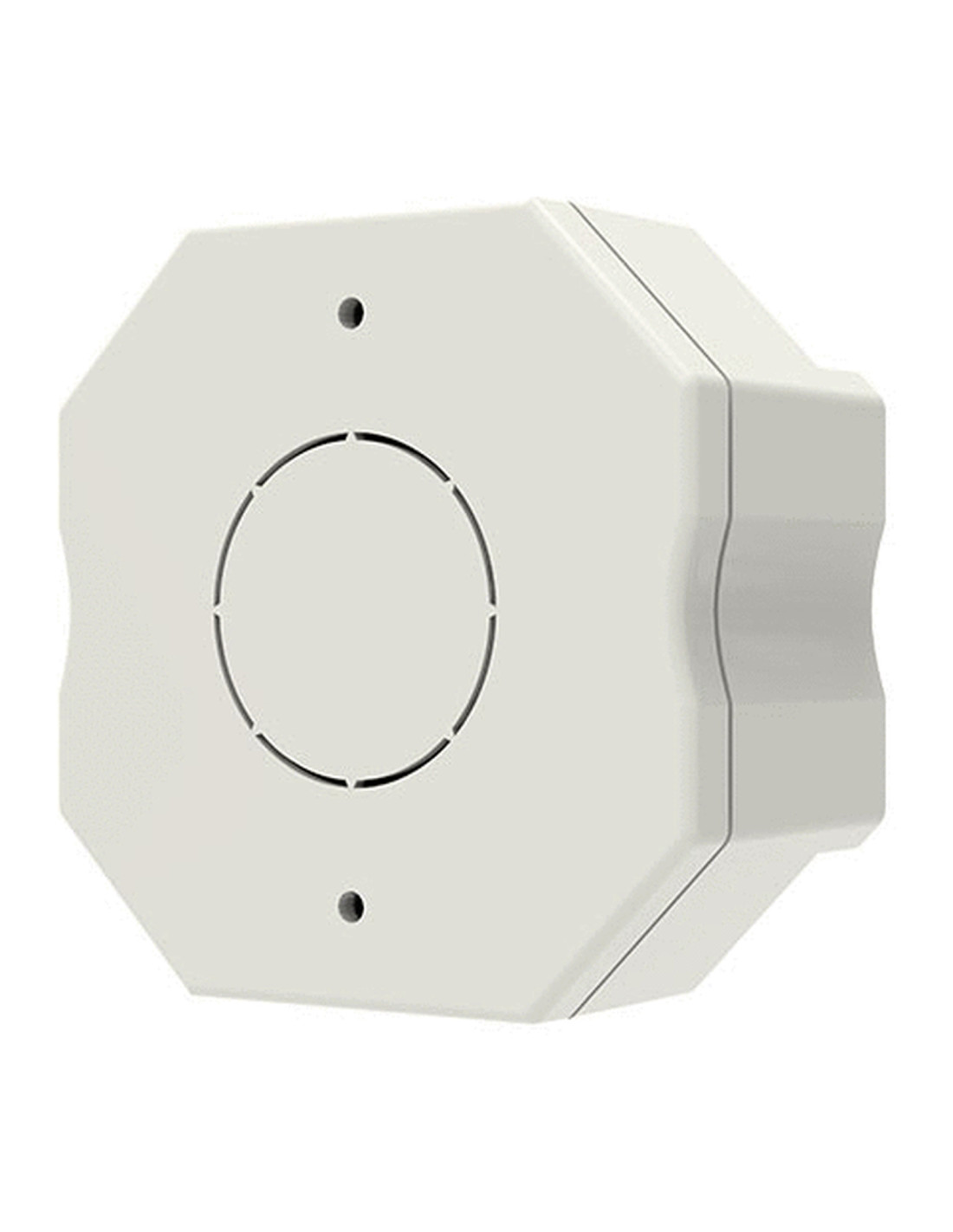

HL-S1-B(WZ) — hidden ZigBee + RF + push AC triac dimmer

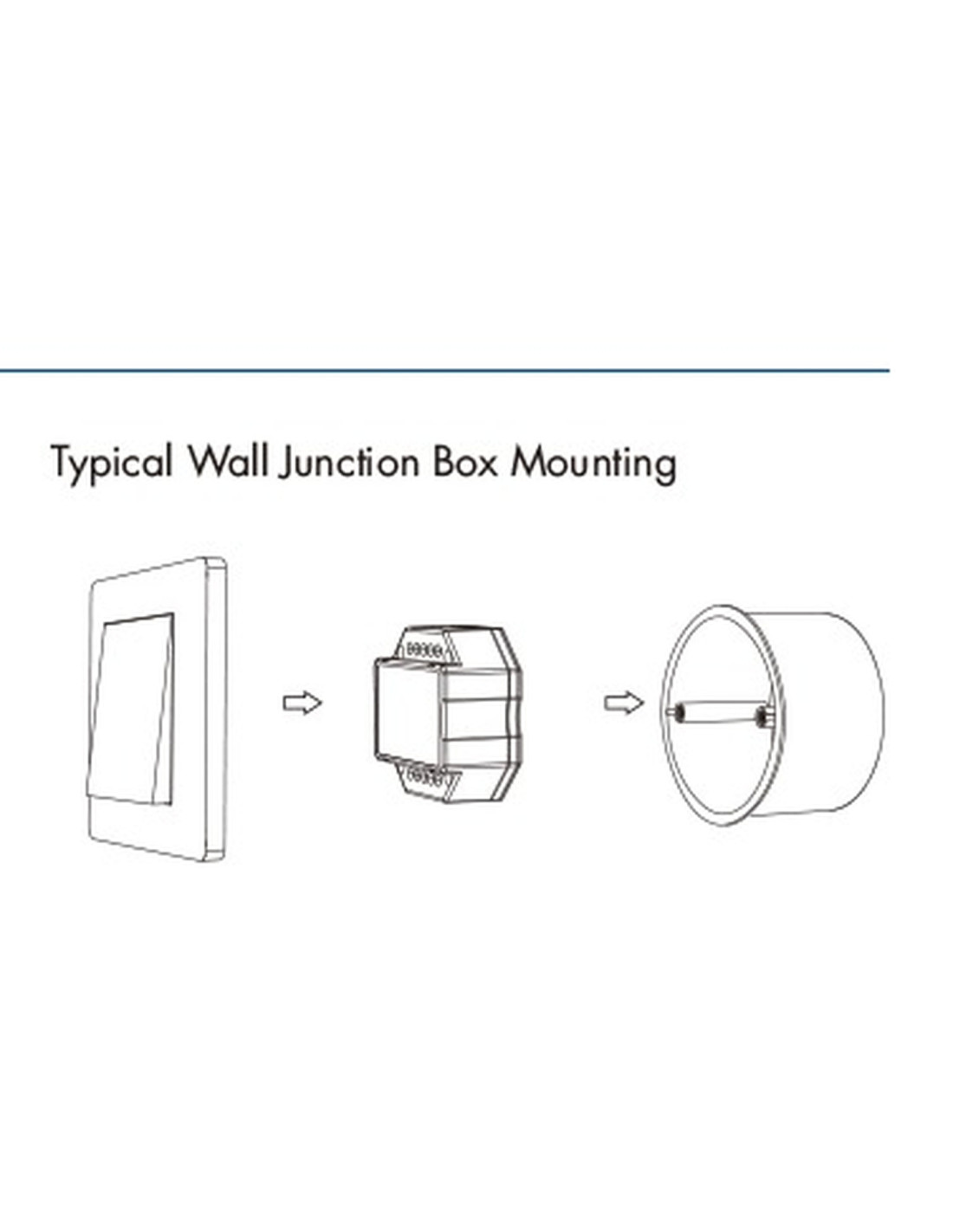

This is the ZigBee sister of HL-S1-B(WT). The mains side is the same: one-channel 100–240 V AC phase-cut dimmer for lamps that are actually mains-dimmable, or for a triac-dimmable constant-voltage driver (the driver sits on the dimmed live). The housing still fits a standard UK wall box behind a retractive push plate.
The difference is how the phone talks to it. This unit does not join your WiFi. It joins a ZigBee 3.0 mesh. For Tuya / Smart Life, Alexa and Google you must have a Tuya ZigBee gateway on the same account (Hi-Line HL-WG-Z). It can also sit on a Philips Hue bridge. Without a gateway or Hue bridge you still have the wall push and a 2.4 GHz RF remote — you just do not get the app or voice.
Buy this when
- You already run Tuya ZigBee or Hue and want a hidden mains dimmer on that mesh.
- The back box has a neutral as well as live.
- You want push + RF remotes + app, and you do not want another WiFi client on the 2.4 GHz band.
How people control it
- Retractive push on A1 / A2: short press on/off, long press (1–6 s) ramps brightness; the next long press ramps the other way. Last level is remembered, including after a power cut.
- Tuya Smart / Smart Life through a Tuya ZigBee gateway: hold Match 5 s (or two quick Match presses) until the blue LED flashes, then add ZB3.0-DIM in the app. Five fast power cycles also enter config. Hold Match 2 s to reset the ZigBee network.
- Philips Hue via a Hue bridge (on/off and brightness in the Hue app).
- Alexa / Google once the Tuya (or Hue) device is linked.
- Hi-Line 2.4 GHz single-colour RF remotes (R11, R6, R6-1): short-press Match, then the remote on/off or zone key. About 30 m open / 10–15 m through walls.
The module can also act as a ZigBee-to-RF converter: once it is on the app, you can match other Hi-Line 2.4 GHz RF dimming controllers or drivers and run those from the phone.
Electrical — same limits as the WiFi model
- Input / output: 100–240 V AC, one channel, max 1.5 A
- Headline power band: 150–360 W
- Dimmable LED lamps: 200 W @ 220 V / 100 W @ 110 V
- Triac-dimmable LED drivers: 200 W @ 220 V / 100 W @ 110 V
- Incandescent / HV halogen: 400 W @ 220 V / 200 W @ 110 V
- Combined surge ≤ 130 A (or 2 × 65 A). Driver count also ≤ 200 W ÷ each driver’s rated input. Many GU10s: add HL-S1-SX from Related products.

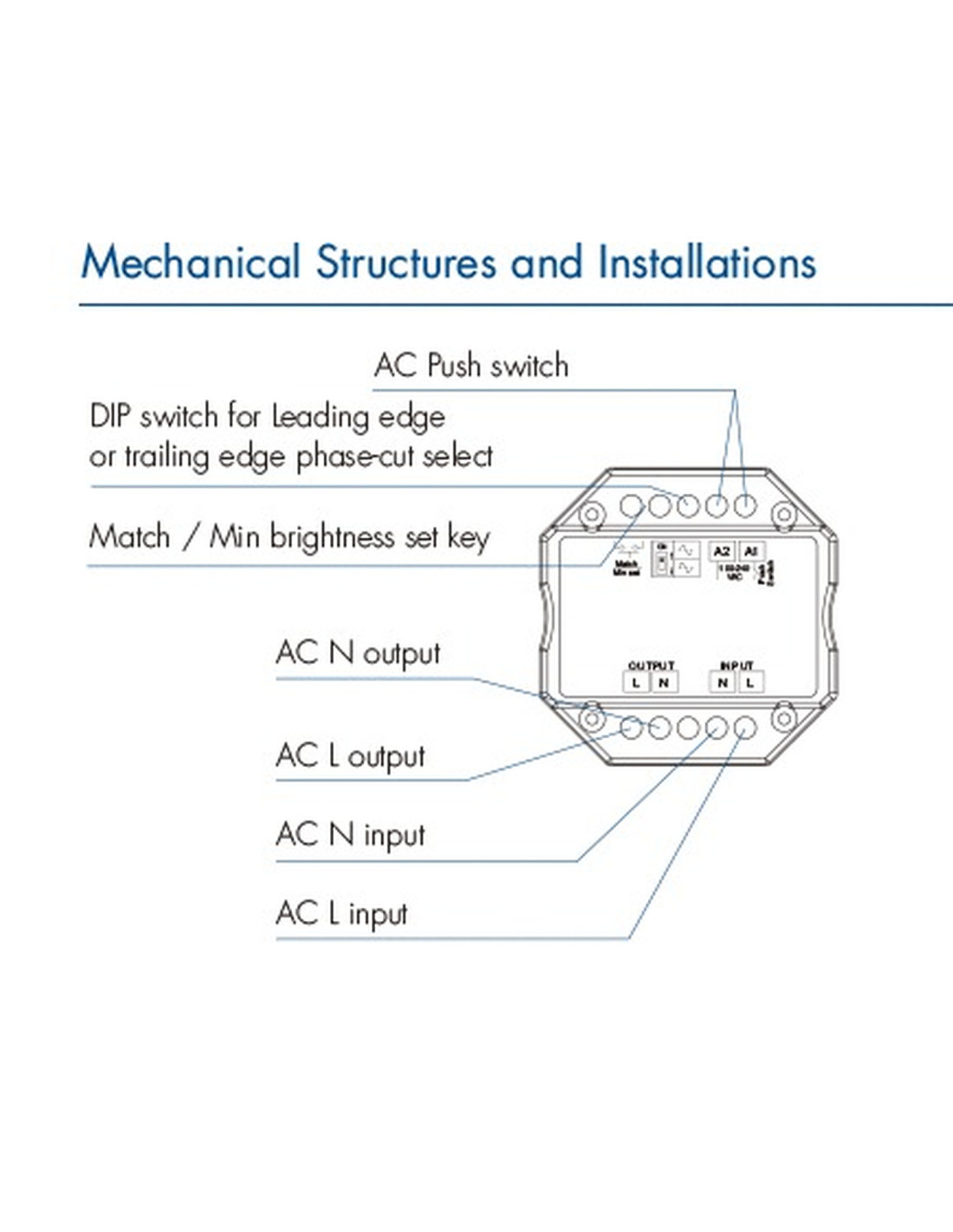

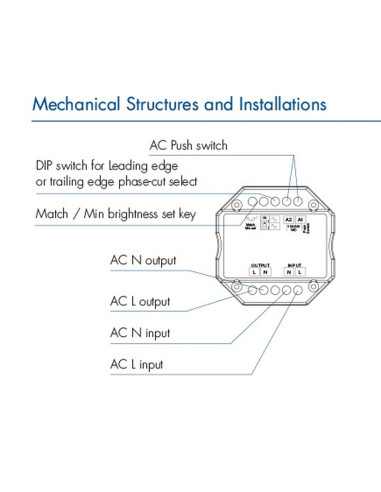

- Terminals INPUT L N, OUTPUT L N, push A1 / A2. Conductor 0.5–2.0 mm², strip 4–5 mm

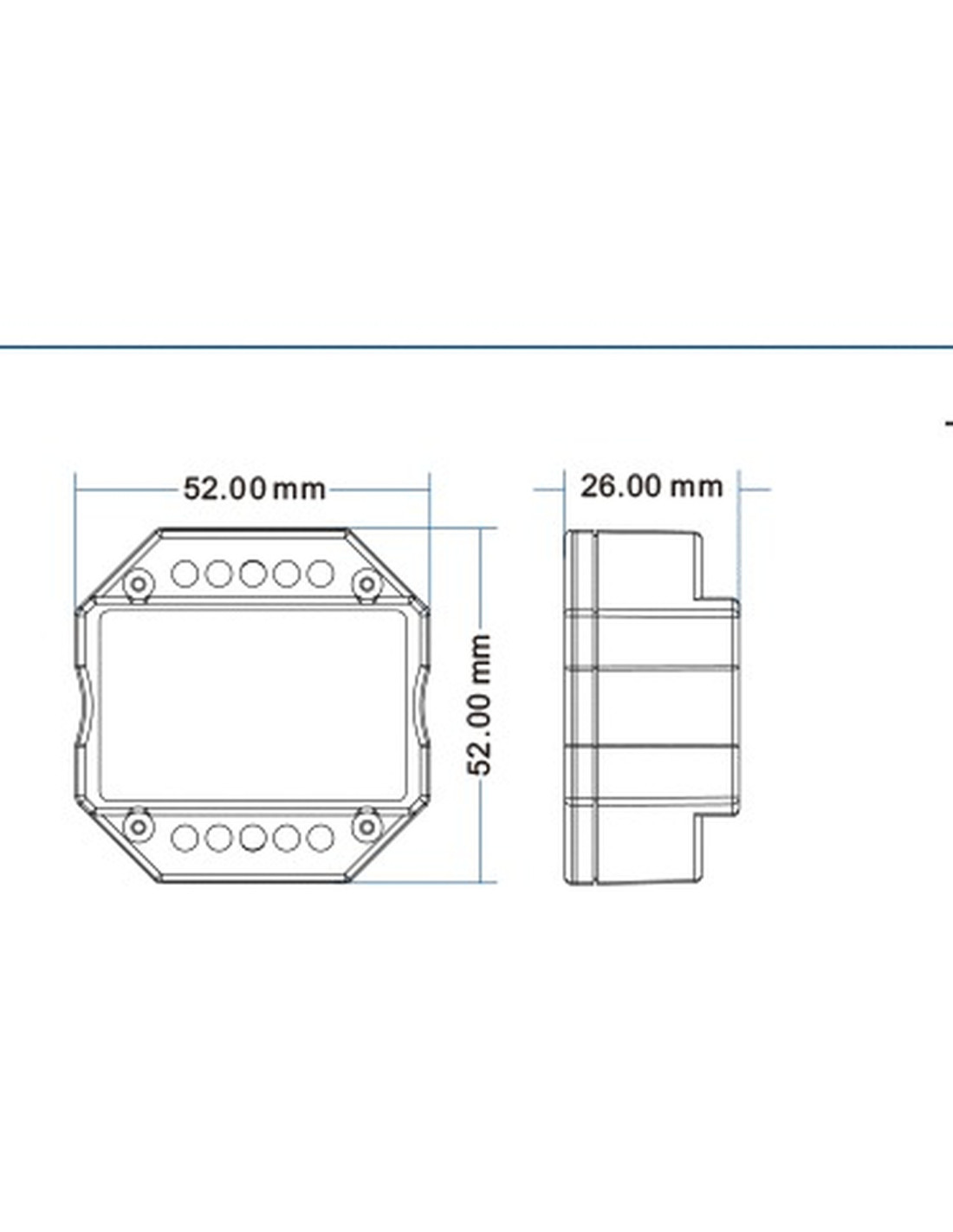

- Over-heat / over-load, auto recover. IP20 indoor. Ta −20 °C to +55 °C. About 52 × 52 × 26 mm
Leading or trailing edge — set the DIP before power
Most modern LED lamps and Hi-Line triac drivers want trailing edge (reverse-phase). Set the switch, then apply power. Min brightness 5–30 % (hold Min set 10 s, tap 1–6 times). Fade 0.5 s from the factory; three Match taps after a double power-cycle flips it to 3 s.
What to put with it — Related products tab
- HL-WG-Z — Tuya ZigBee gateway. Buy this if you want the app or voice and you do not already have a Tuya hub.
- HL-S1-B(WT) — same dimmer on WiFi if you do not want ZigBee.
- HL-TS-K(WZ) — glass rotary wall plate, ZigBee, same mains job if you want a visible knob.
- HL-R11 / HL-R6 / HL-R6-1 — 2.4 GHz single-colour remotes. Not RGB remotes.
- HL-S1-SX — surge suppressor for a large LED lamp or driver stack.
The user manual PDF is on the Attachments tab. Wiring diagrams show the two legal loads: dimmable mains lamps, or a triac-dimmable driver then the low-voltage lamps.
Technical summary
- Functions: ZigBee 3.0 + 2.4 GHz RF + retractive push, 1 channel AC phase-cut
- App device name in Tuya: ZB3.0-DIM
- Dimming: 256 levels, 0–100 %, leading or trailing edge
- Size: 52 × 52 × 26 mm | about 61 g | UKCA, CE, RoHS
- Warranty: 5 years
Must be installed by a qualified electrician to BS 7671. Confirm load type, wattage and inrush before first power-up.
