Rotary Glass Panel ZigBee Dimmer – White
The HL-TS-K(WZ) is a premium smart wall dimmer featuring a sleek white glass panel and precision rotary knob. Designed for professional and residential installations, it offers reliable ZigBee control with excellent compatibility for modern smart lighting systems.
Key Features

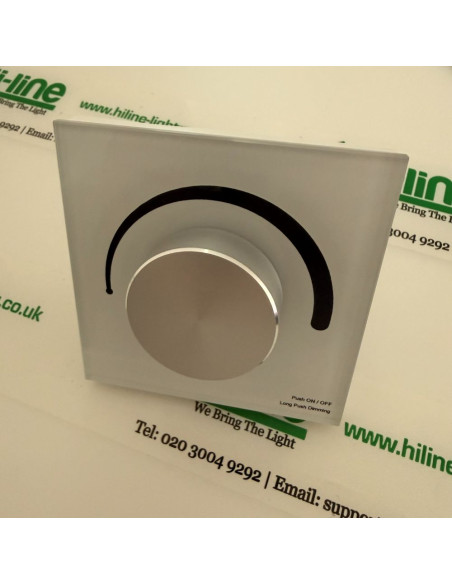

ZigBee 3.0 wireless technology for stable and responsive control. Tuya Smart / Smart Life App support for scenes, timers, schedules, music sync and delay functions. Philips Hue Bridge compatible. Voice control with Amazon Alexa, Google Assistant and more. Smooth 256-level 0-100% dimming with no flicker. Leading edge or Trailing edge dimming selectable via DIP switch. Rotary knob operation with push for on/off, rotate for brightness, and long press for fine adjustment. Over-heat and over-load protection with automatic recovery. Selectable 3-second fade on/off time.
Installation Note (Important)

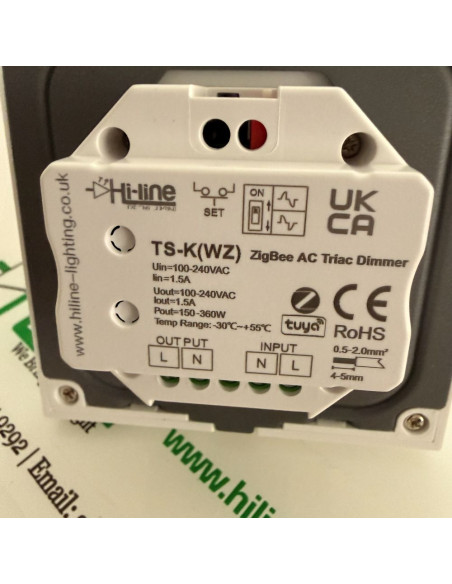

This smart dimmer requires a neutral wire (L, N, Load). It is a 2-Wire + Neutral device and is not compatible with traditional 1-Wire (Live only) dimmer setups. In most modern homes adding a neutral wire is straightforward. Please check your existing wiring before ordering to ensure a smooth installation.
Leading / Trailing Edge Explanation

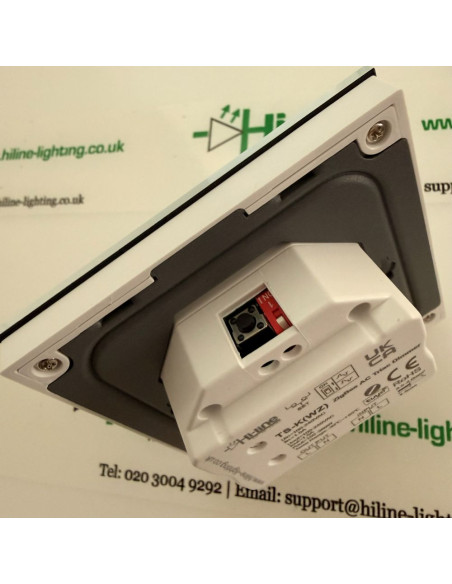

This dimmer supports both Leading Edge and Trailing Edge phase-cut dimming. You can easily switch between them using the small DIP switch on the back of the device (see datasheet for details). This ensures the best performance and minimal flickering with different types of lamps.
Which Version Should You Choose? ZigBee (WZ) vs WiFi (WT)
| Feature |
HL-TS-K(WZ) – ZigBee
(This Product) |
HL-TS-K(WT) – WiFi |
| Connection Type |
ZigBee 3.0 |
WiFi (2.4GHz) |
| Gateway Required |
Yes (Tuya ZigBee Gateway) |
No – direct WiFi |
| App Control |
Tuya Smart / Smart Life |
Tuya Smart / Smart Life |
| Voice Control |
Alexa, Google, Philips Hue |
Alexa, Google |
| Best For |
Larger homes, professional installs, mesh stability |
Simple setups, no extra hub |
| Philips Hue Compatible |
Yes |
No |
| Max Load (LED @ 220V) |
200W |
200W |
Looking for the WiFi version? Search for HL-TS-K(WT) in the top search bar or check the Related Products tab on this page.
Technical Specifications
Input/Output Voltage: AC 100-240V. Output Current: 1.5A. Output Power: 150-360W (load dependent). Dimming Range: 0-100% (256 levels). IP Rating: IP20 (indoor use). Operating Temperature: -30°C to +55°C. Dimensions: 112 × 112 × 60 mm. Certifications: CE, UKCA, RoHS.
Load Compatibility
Dimmable LED lamps / Triac LED drivers: up to 200W @ 220V. Incandescent & HV Halogen lamps: up to 400W @ 220V.
Model: HL-TS-K(WZ) | Finish: White Glass Panel (Black version also available)
Download Datasheet: Please go to the Attachments tab above to download the full technical datasheet and installation guide.
Tip: Check the Related Products tab for compatible ZigBee gateways and other smart lighting controllers.
Perfect for new builds, refurbishments and high-end smart home projects.
