Red Circular 360° LED Neon Flex 24V 11 w/m IP65/67 18mm (Sold Per Metre)
Red Circular 360° LED neon flex
144 LEDs/m – 11 w/m
3 year warranty
Red Circular 360° LED Neon Flex 24V 10 w/m IP65/67 18mm (Sold Per Metre)

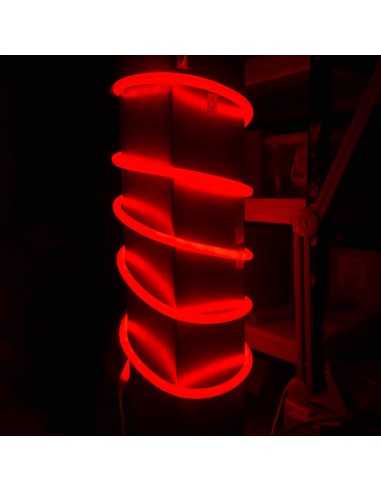

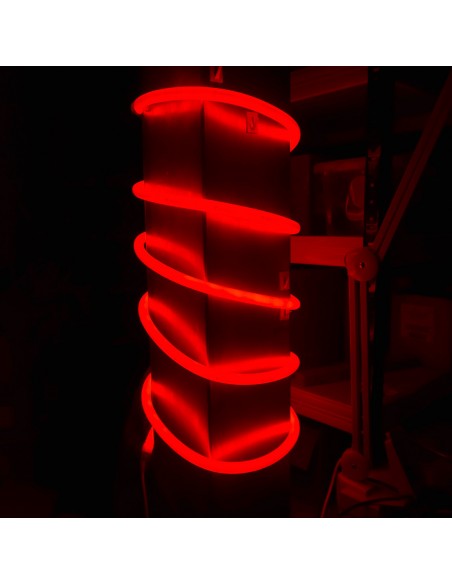

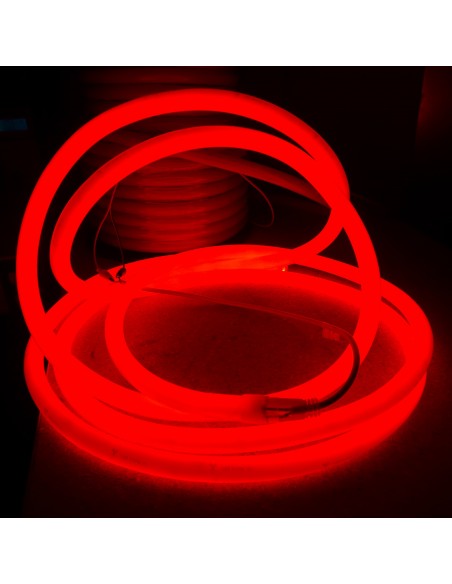

LED Neon flex powered by Red colour SMD2835 LED chips
11 w/m – 24V DC – 144 LEDs/m – splash-proof IP65/67 – 2 wire
Wavelength 625nm, light output 106 lm/m

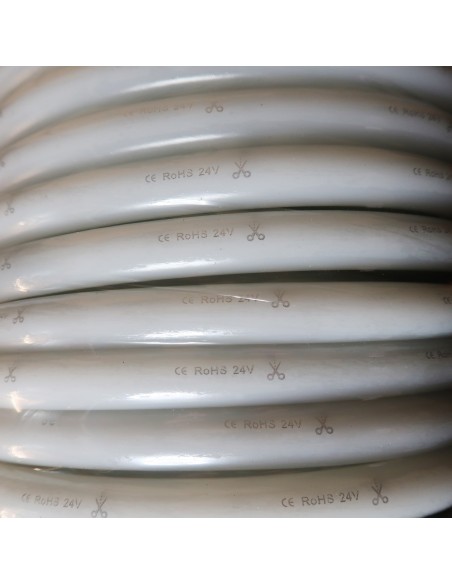

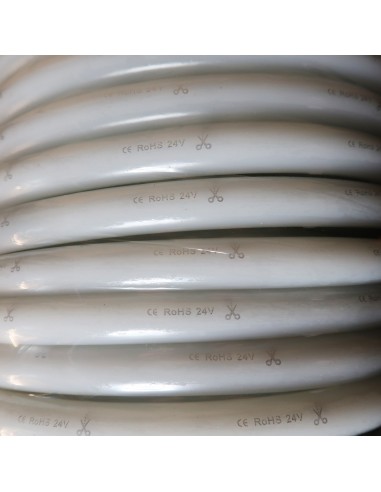

LED Neon flex can be cut at every 8.33cm, maximum series running length is 15 meters

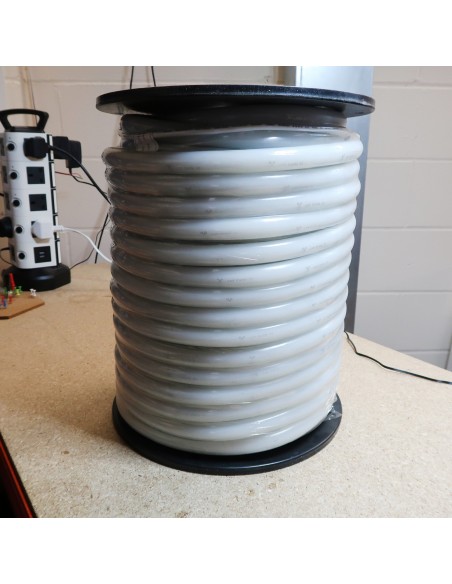

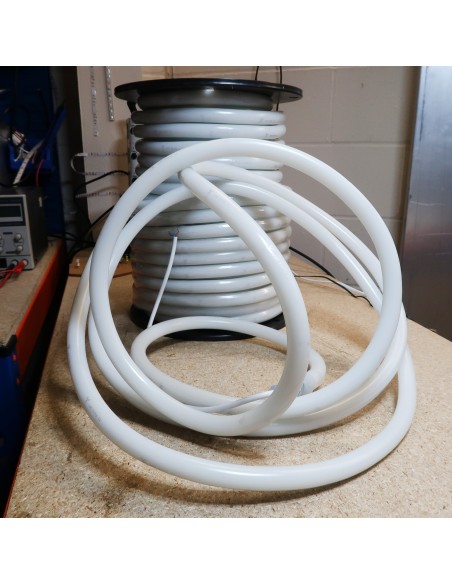

Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

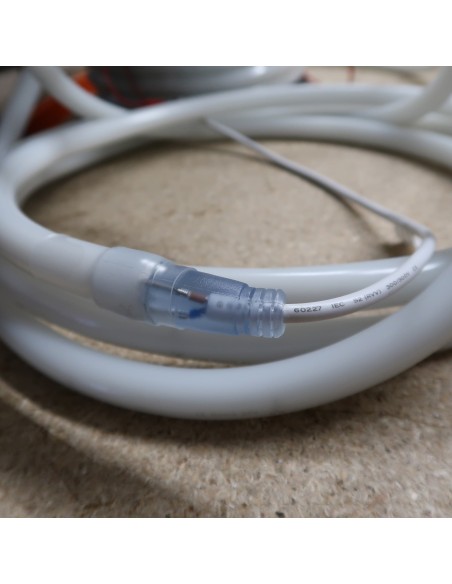

Also, if connectors are required, these need to be purchased separately. You will only receive power tail end when you purchase a 50m roll.
If purchasing a 50 metre roll, please avoid testing the entire length you will risk burning out the fcp and LED chips.
3 year warranty
The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.
Please do NOT connect more than 15 meters of LED flex in series. A LED flex of more than 15 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.
All Hi-Line LED neon flex are PWM dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.
LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.
The stated price is for 1m Circular 360° LED Flex in Red powered by 144 x SMD2835 LEDs – IP65/IP67, 24V DC. (no accessories included)
Selection of the LED driver (LED switch mode power supply) depending on the maximum LED Neon Flex length
To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.
Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.
For further assistance, please visit out support page or contact us.
- 24V DC
- Leistung (W)
- 11 w/m
- Lichtstrom (in Lumen pro Meter)
- 106 lm/m
- LEDs pro Meter
- Schutzklasse (IP)
- IP65 / IP68
- Every 8.33 cm
- Minimum Bending Diameter (Horizontal)
- LED Neon Flex Type
- LED Neon Flex Beam Angle
- 3 Years
