Red Circular 360° LED Neon Flex | 24V | 11 w/m | IP65/67 | 18mm (Sold Per Metre)

Key Features:

  • Colour: Red
  • Circular 360° LED neon flex
  • LEDs per meter: 144
  • Power: 11 Watts per Metre
  • Diameter: 18mm
  • Warranty: 3 Year Warranty
HL-R-24V-IP65-360NF
34 Items In stock
Next working day delivery
£16.20
19.44
with VAT)

(£16.20 meter)

VAT excluded



Red Circular 360° LED Neon Flex 24V 11 w/m IP65/67 18mm (Sold Per Metre)


LED Neon flex powered by Red colour SMD2835 LED chips

11 w/m – 24V DC – 144 LEDs/m – splash-proof IP65/67 – 2 wire

Wavelength 625nm, light output 106 lm/m

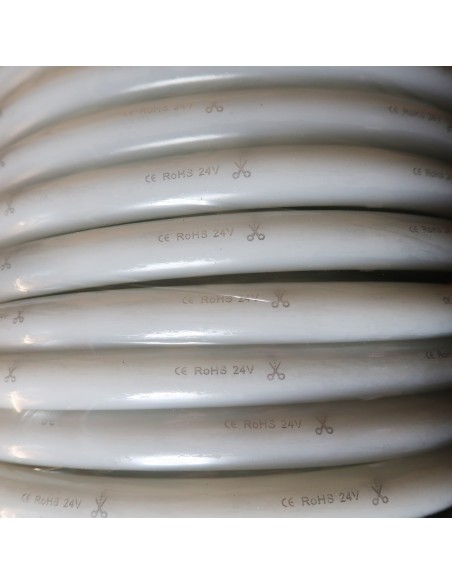

LED Neon flex can be cut at every 8.33cm, maximum series running length is 15 meters

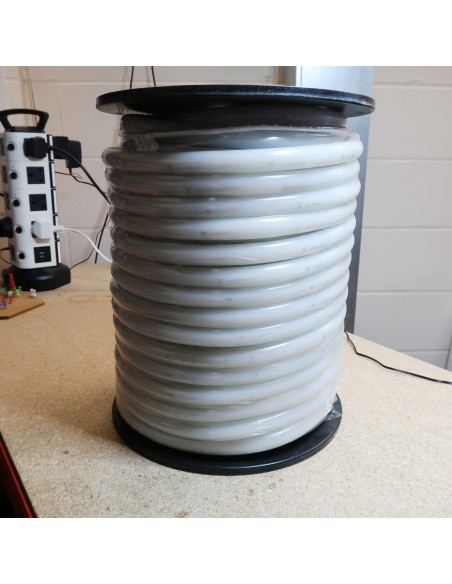

Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

Returns are not accepted, due to specialised lengths being cut, unless it's a complete 50m reel). Faulty returns will be accepted.

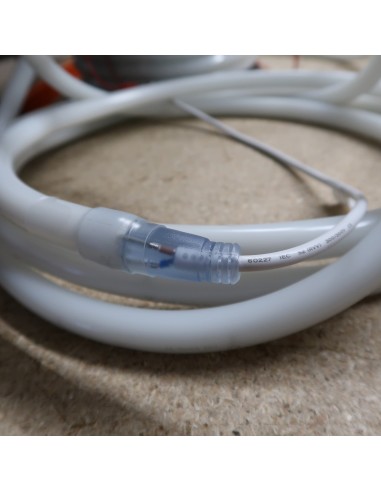

Also, if connectors are required, these need to be purchased separately. You will only receive power tail end when you purchase a 50m roll.

If purchasing a 50 metre roll, please avoid testing the entire length you will risk burning out the fcp and LED chips.

3 year warranty


The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.

Please do NOT connect more than 15 meters of LED flex in series. A LED flex of more than 15 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.



All Hi-Line LED neon flex are PWM dimmable.
Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.

LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.


The stated price is for 1m Circular 360° LED Flex in Red powered by 144 x SMD2835 LEDs – IP65/IP67, 24V DC. (no accessories included)


Selection of the LED driver (LED switch mode power supply) depending on the maximum LED Neon Flex length

To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.

Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.

For further assistance, please visit out support page or contact us.

Brand
Hi-Line
Brightness
106 lm/m
Colour
Red
Cutting length
Every 8.33 cm
LEDs per meter
144
LED Chip
SMD 2835
LED Neon Flex Beam Angle
360°
LED Neon Flex Type
Circular (dia:18mm)
Minimum Bend Diameter (Horizontal)
80mm
Power
11 Watts per Metre
IP Rating
IP65 / IP67
Voltage
24V DC
Voltage Type
Constant Voltage
Warranty
3 Years
Wavelength
625nm
Neon Flex Length (m)
Sold per metre
No reviews
