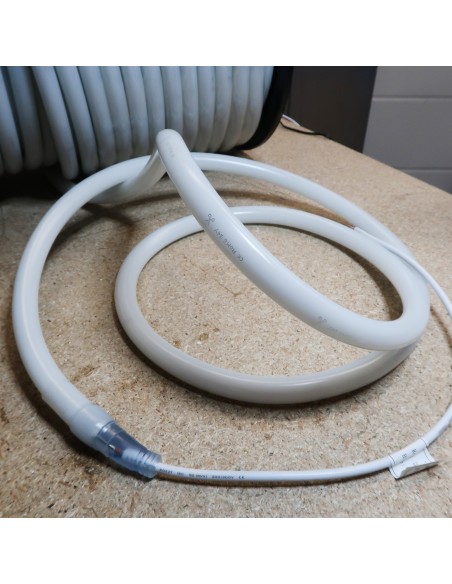

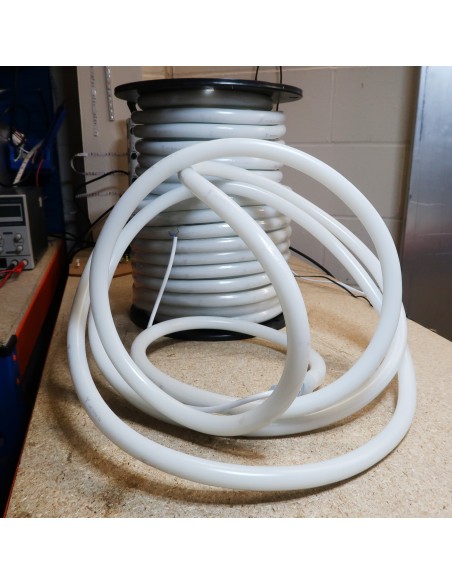

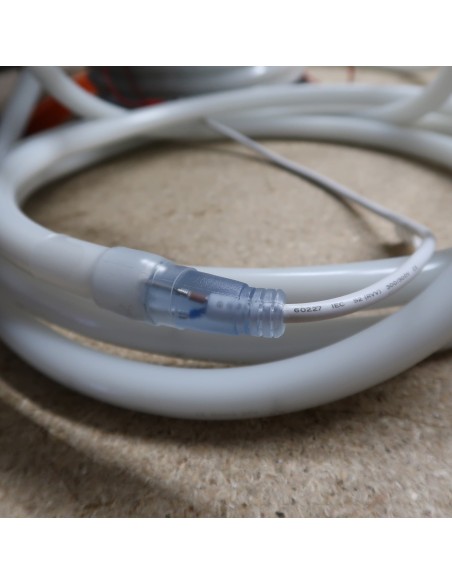

Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)
Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)
Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)
Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)
Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)
Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)
Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)
Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/68 18mm (Sold Per Metre)

Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/67 18mm (Sold Per Metre)

Blue Circular 360° LED neon flex

144 LEDs/m – 10 w/m

Diameter: 18mm

3 year warranty

HL-CW-24V-IP65-360NF
70 Artikel Auf Lager
Versand am Gleichen Tag
14,00 £

(14,00 £ meter)



Blue Circular 360° LED Neon Flex 24V 10 w/m IP65/67 18mm (Sold Per Metre)


LED Neon flex powered by blue colour SMD2835 LED chips

10 w/m – 24V DC – 144 LEDs/m – splash-proof IP65/67 – 2 wire

Wavelength 456nm, light output 45 lm/m

LED Neon flex can be cut at every 8.33cm, maximum series running length is 15 meters

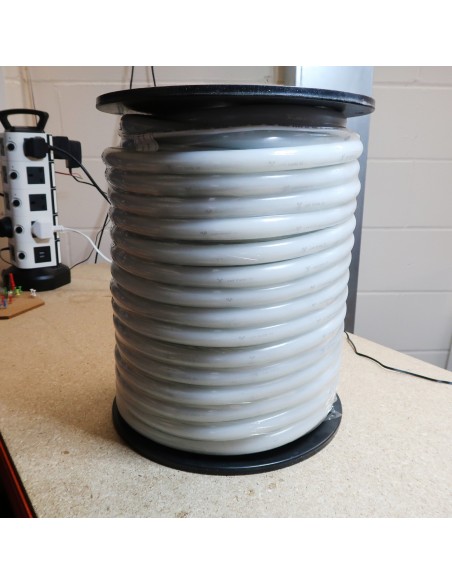

Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.

Also, if connectors are required, these need to be purchased separately. You will only receive power tail end when you purchase a 50m roll.

If purchasing a 50 metre roll, please avoid testing the entire length you will risk burning out the fcp and LED chips.

3 year warranty

______________________________



The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.

Please do NOT connect more than 15 meters of LED flex in series. A LED flex of more than 15 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.

_____________________________


All Hi-Line LED neon flex are PWM dimmable.
Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.

LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.

______________________________

The stated price is for 1m Circular 360° LED Flex in Blue powered by 144 x SMD2835 LEDs – IP65/IP67, 24V DC. (no accessories included)

______________________________



Selection of the LED driver (LED switch mode power supply) depending on the maximum LED Neon Flex length

To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.

Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.

For further assistance, please visit out support page or contact us.

Betriebsspannung
24V DC
Leuchtfarbe
Kaltweiß
Leistung (W)
10 w/m
Lichtstrom (in Lumen pro Meter)
300 lm/w
LEDs pro Meter
144
Schutzklasse (IP)
IP65 / IP68
Abtrennung
Every 8.33 cm
Minimum Bending Diameter (Horizontal)
80mm
LED Neon Flex Type
Circular
Spannungsart
Konstantspannung
LED Neon Flex Beam Angle
360°
Warranty
3 Years
Hersteller
Hi-Line
LED-Chip
SMD2835
