HL-CW-24V-IP65-360NF
New product
Cool White Circular 360° LED neon flex tube
144 LEDs/m – 10 w/m
Diameter: 18mm
3 year warranty
70 Item Items
Same Day Dispatch
Warning: Last items in stock!
Availability date: 28/08/18

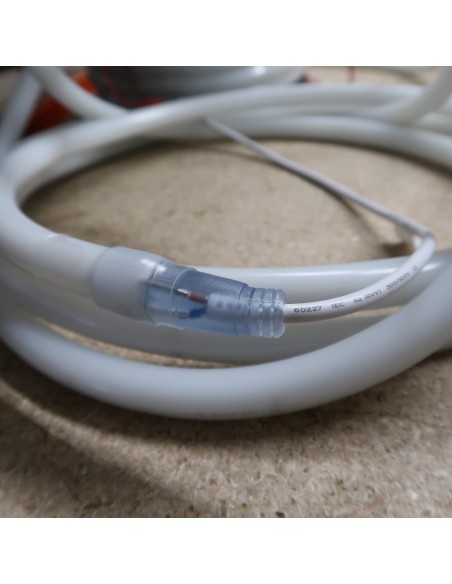

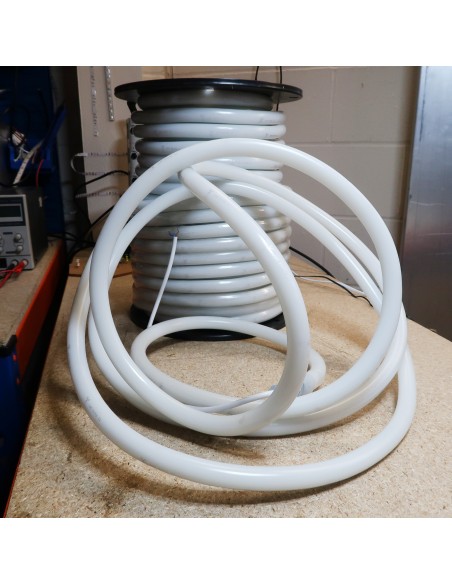

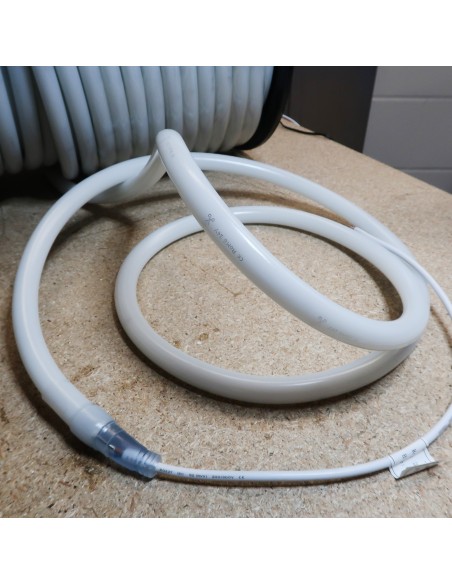

Cool White Circular 360° LED Neon Flex 24V 10 w/m IP65/67 18mm (Sold Per Metre)
Cool White Circular 360° LED neon flex tube
144 LEDs/m – 10 w/m
Diameter: 18mm
3 year warranty
Recipient :
* Required fields
or Cancel
LED Chip | SMD 2835 |
Voltage | 24V DC |
Colour | Cool White |
Power | 10 w/m |
Brightness | 300 lm/m |
Number of LEDs per meter | 144 |
Rating | IP65 / IP67 |
Cutting length | Every 8.33 cm |
Minimum Bend Diameter (Horizontal) | 80mm |
LED Neon Flex Type | Circular (dia:18mm) |
Voltage Type | Constant Voltage |
LED Neon Flex Beam Angle | 360° |
Warranty | 3 Years |
Brand | Hi-Line |
Cool White Circular 360° LED Neon Flex tube 24V 10 w/m IP65/67 18mm (Sold Per Metre)
LED Neon flex tube powered by cool white 6500K colour SMD2835 LED chips
10 w/m – 24V DC – 144 LEDs/m – splash-proof IP65 – 2 wire
Light output 300 lm/m
LED Neon flex can be cut at every 8.33cm, maximum series running length is 15 meters

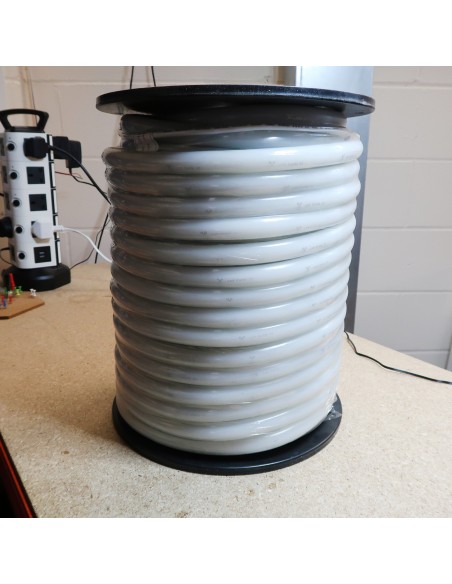

Please Note: Minimum order is for 1 Metre length. If you order more than a 1 Metre length of Neon Flex you will receive a continuous run as it is taken from a 50m roll.
Returns are not accepted, due to specialised lengths being cut, unless it's a complete 50m reel). Faulty returns will be accepted.
Also, if connectors are required, these need to be purchased separately. You will only receive power tail end when you purchase a 50m roll.
If purchasing a 50 metre roll, please avoid testing the entire length you will risk burning out the fcp and LED chips.
3 year warranty
______________________________
The high quality of Hi-Line LED Neon flex products ensures low decay, which increases the LED's lifespan and assures that the level of the brightness is kept constant throughout the LED's estimated life.
Please do NOT connect more than 15 meters of LED flex in series. A LED flex of more than 15 meters in length will overloaded, due to the increased amount of current passing through, resulting in the damage of the internal FCB and failure of the product.
_____________________________
All Hi-Line LED neon flex are PWM dimmable. Please select a suitable PWM LED dimmer/controller to ensure the proper dimming of the product.
LED neon flex is fully compatible with Lutron, Fibaro, Rako or ANY conventional constant voltage LED controller available on the market. We do also offer a wide range of single colour LED controllers including wireless, DMX512, ZigBee, DALI and and 0/1-10V to choose from.
______________________________
The stated price is for 1m Circular 360° LED Flex in cool white powered by 144 x SMD2835 LEDs – IP65/IP67, 24V DC. (no accessories included)
______________________________
To consider best power supply performance, we suggest using 20% higher capacity (Wattage) of what the rated power consumption of neon flex will be.
Note: for driving single colour LED neon flex, you just need the flex, power connector and LED driver. If dimming is required you will have to combine the LED-Driver with a single colour LED dimming controller. In such a case, the LED driver is not required to be dimmable. Brightness control (dimming) and colour adjustment is still possible through the controller.
For further assistance, please visit out support page or contact us.
