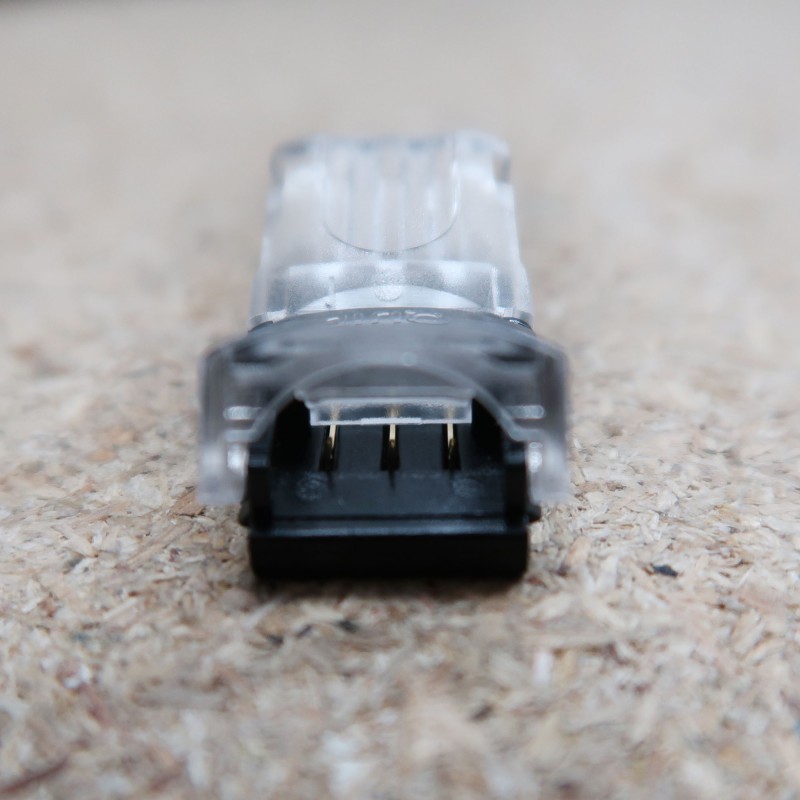

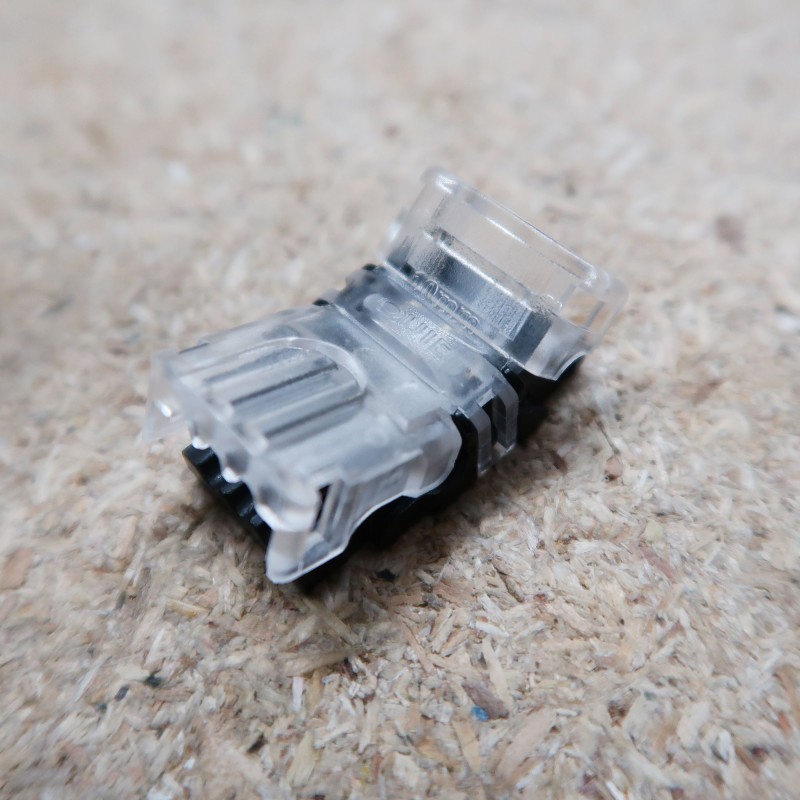

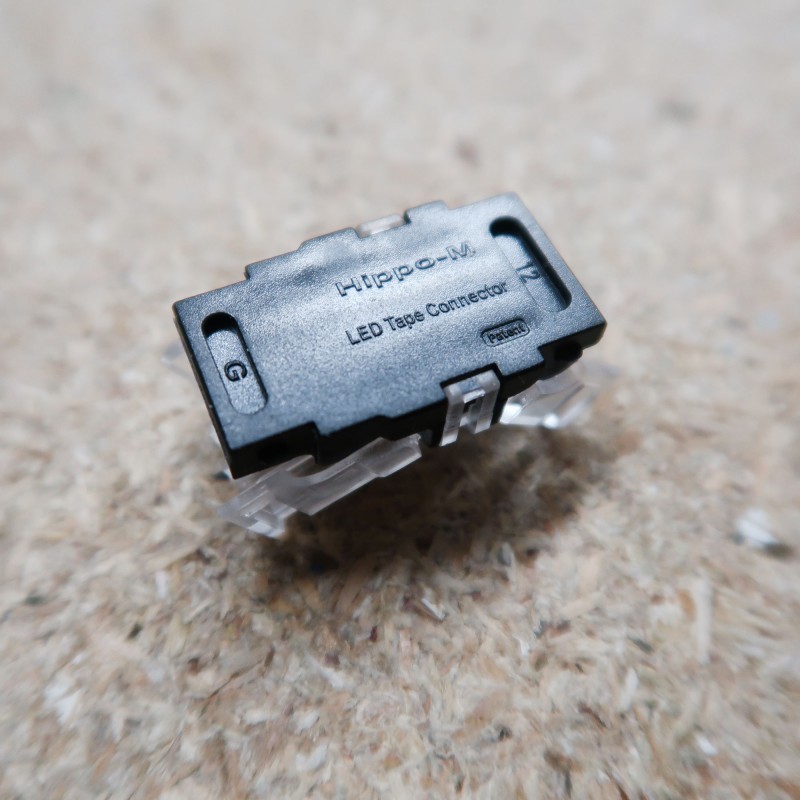

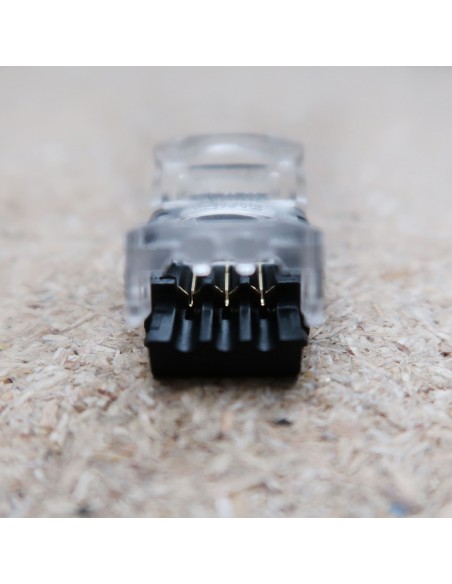

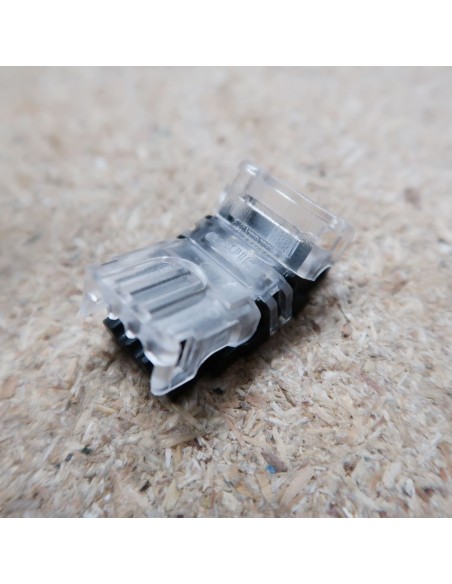

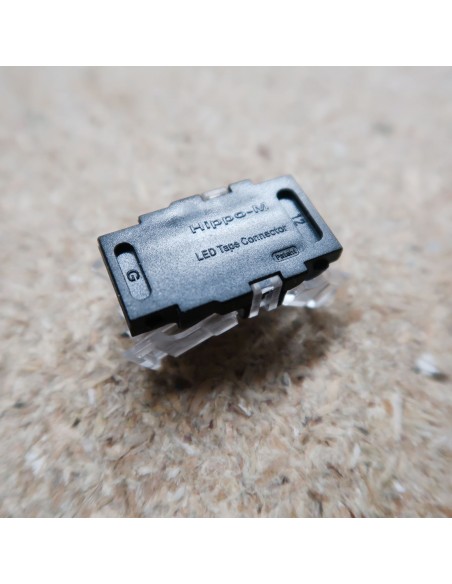

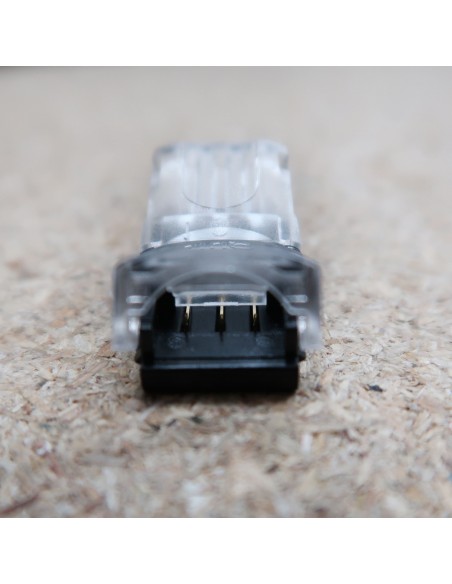

3-poliger Stromanschluss für 10-mm-IP65-LED-Band
3 pin strip to wire/power connector for IP54/65 LED tape
Supports high current LED strips
For 10mm IP54/65 - 3 pin LED strips
A strip to power / wire connector designed for 10mm wide IP54/65 - 3 pin LED strips
Cut and power up IP54/65 waterproof LED strip without removing surface coating gel in seconds
This is a very high quality strip to wire connector suitable only for IP54 or IP65 3 pin LED strip lights (wiring not included).
You can attach any wire length according to your project requirements.
Compatible with tunable white tape or pixel strips (digital tape individually addressable) 10mm wide / ip54-65 with pin pitch 3.9mm
This connector is made of flame retardant material and supports high current LED strips!
The IP54/65 connectors are suitable for use with the gel coated (PU) 10mm IP54/65 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP67 or IP68).
Take care: Although simple to use, IP54/65 connectors should still be carefully applied but some experience with handing such connectors maybe needed.
Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!
Size: L16mm X W18mm X H8mm
Colour: Transparent with white base
Number of Pin: 3
Pin Pitch: 3.9mm
Workable Wire Gauge: 22 ~20 AWG
Workable Wire Cross Sectional Area: 0.34~0.5 mm²
Suitable for Hi-Line's IP65 10mm 3 pin LED strips
Workable Wire OD: Max 2.1 mm
Min.LED Strip Thickness: >0.2mm
Connection hardware: High precision brass(Cu)
Voltage range: 3-24V
Maximum current: 5A
Normal working temperature: ≦60°C
Working Temperature: -20°~+40°C
Rated Standard: IEC/EN 60664-1
Shell material: Polycarbonate
Flame Retardant: UL94v-0
Pin material: Phosphor Copper (Cu)
