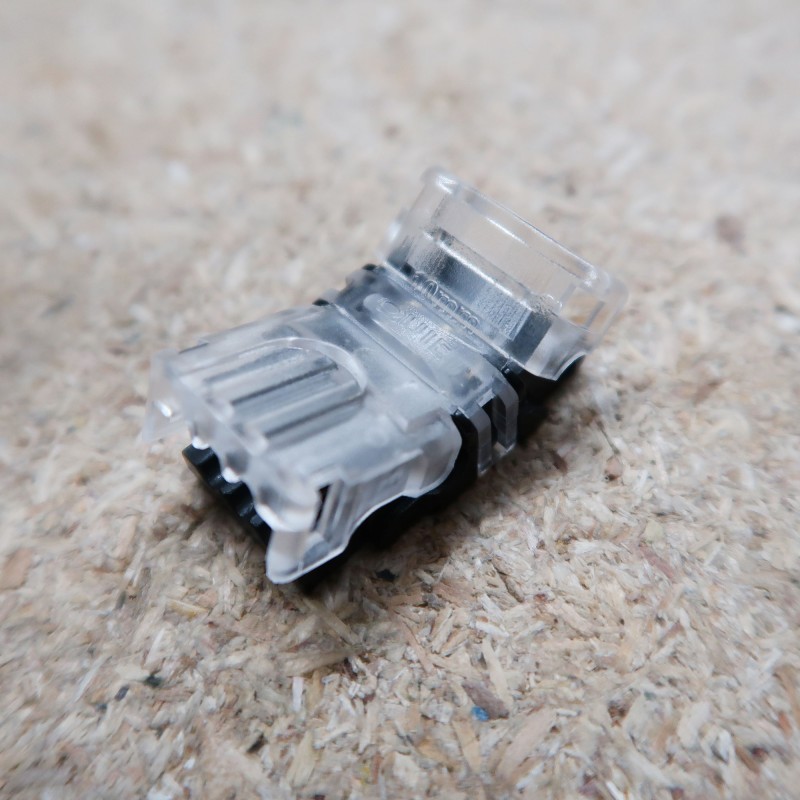

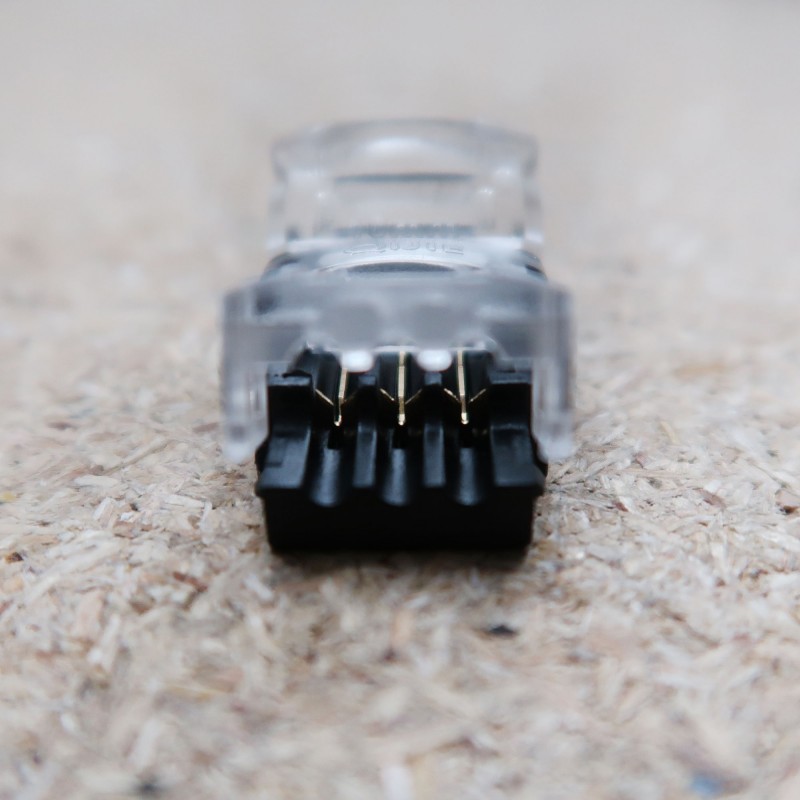

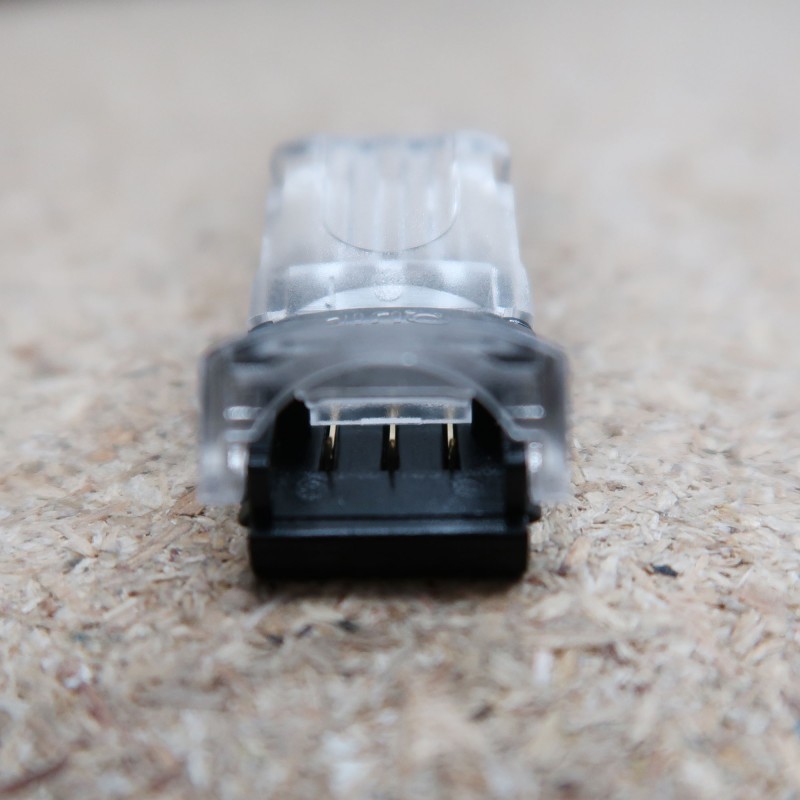

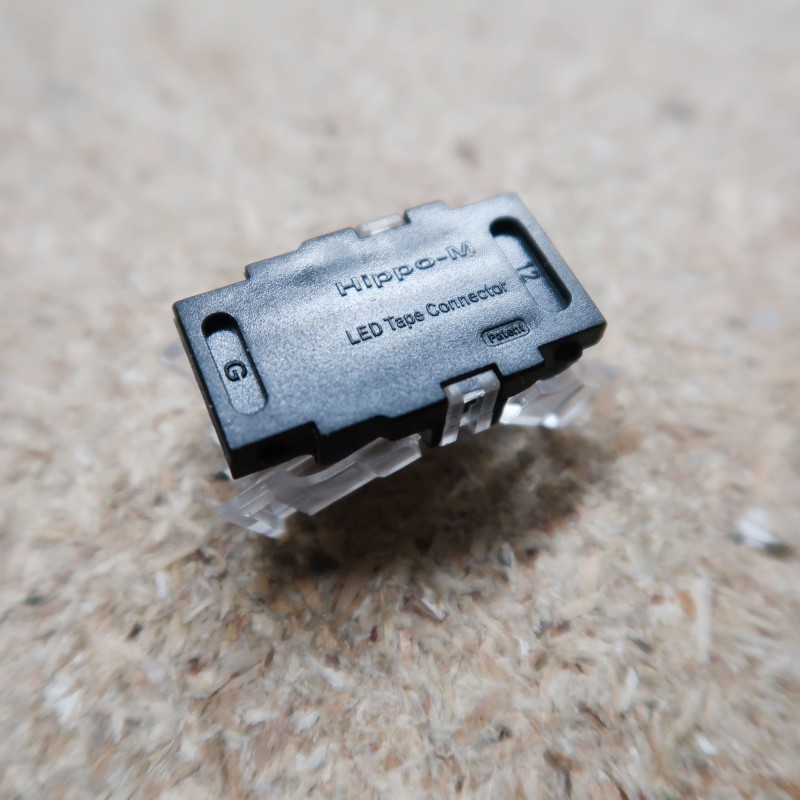

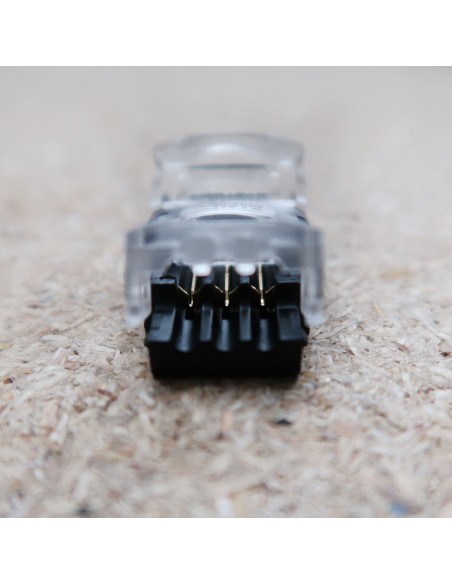

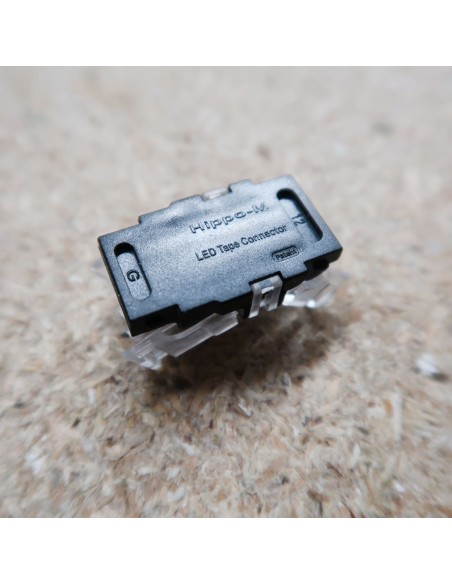

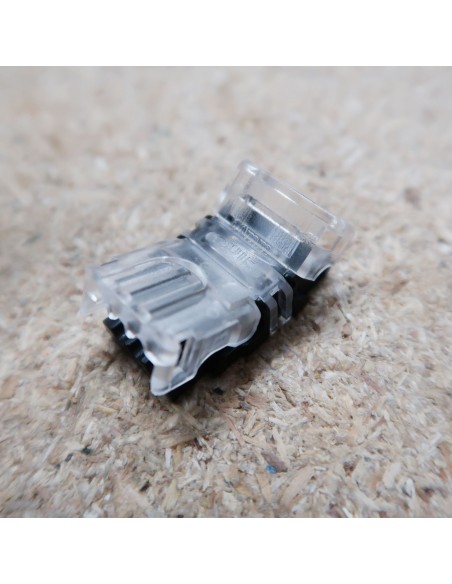

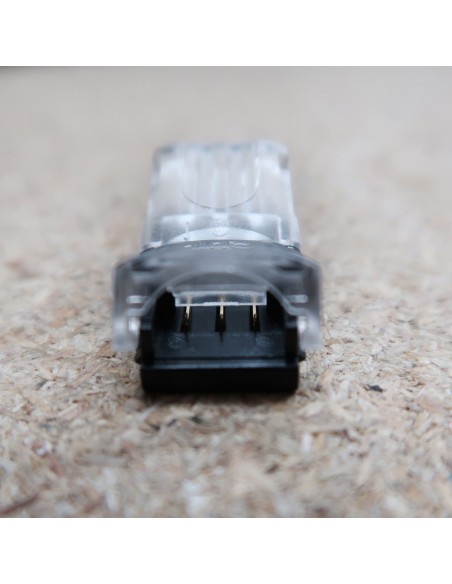

3 pin IP54/65 strip to wire/power connector for 10mm LED tape

HL-SC-3PB10-IP65

New product

3 pin strip to wire/power connector for IP54/65 LED tape

Supports high current LED strips

For 10mm IP54/65 - 3 pin LED strips

More details

210 Items

Same Day Dispatch

£ 1,80

Add to wishlist

Data sheet

Voltage 3-24V DC
Rating IP65 (Splashproof)
Width of strip 10mm
Width of PCB 10mm
Connector type strip to power connector
Connector width For 10mm LED strips
Number of terminals 3 pin (for tunable white or pixel strips)
Brand Hi-Line

More info

A strip to power / wire connector designed for 10mm wide IP54/65 - 3 pin LED strips

Cut and power up IP54/65 waterproof LED strip without removing surface coating gel in seconds

This is a very high quality strip to wire connector suitable only for IP54 or IP65 3 pin LED strip lights (wiring not included).
You can attach any wire length according to your project requirements.

Compatible with tunable white tape or pixel strips (digital tape individually addressable) 10mm wide / ip54-65 with pin pitch 3.9mm

This connector is made of flame retardant material and supports high current LED strips!

The IP54/65 connectors are suitable for use with the gel coated (PU) 10mm IP54/65 LED strips (please note that this connector is not compatible with the IP00/20, nano PU LED strips, IP67 or IP68).

Take care: Although simple to use, IP54/65 connectors should still be carefully applied but some experience with handing such connectors maybe needed.

___________________________

Note: Please DO NOT close caps of the connector before strip to be in place, as it is not possible to re-use!

______________________________



Technical Data

Size: L16mm X W18mm X H8mm

Colour: Transparent with white base

Number of Pin: 3

Pin Pitch: 3.9mm

Workable Wire Gauge: 22 ~20 AWG

Workable Wire Cross Sectional Area: 0.34~0.5 mm²

Suitable for Hi-Line's IP65 10mm 3 pin LED strips

Workable Wire OD: Max 2.1 mm

Min.LED Strip Thickness: >0.2mm

Connection hardware: High precision brass(Cu)

Voltage range: 3-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin material: Phosphor Copper (Cu)

Package: 1pcs
