Green Micro LED module for mini sign | 24V | 0.24W | IP67 | String of 40
- Colour: Green
- Micro sign LED module
- For mini signs 2-6cm depth
- Module Power Consumption: 0.24w
- Voltage: 24V DC
- IP Rating: Waterproof IP67
Green colour Micro sign LED single LED module 24V - 0.24W - IP67 (1 x string of 40)
Perfect for mini signs 2 to 6cm depth or any other lighting application that waterproof micro LEDs are needed.
Micro Sign LEDs can be employed in the creation of illuminated signage and lettering, available in white, red, and amber, one two or 3 LEDs per module (check separate listings for other versions).
Fully sealed mini LEDs are weather resistant with IP67 rating, making them suitable for interior and exterior applications. LED chain for highlighting lines and edges and for backlighting complex contours, letters and symbols in signage applications.

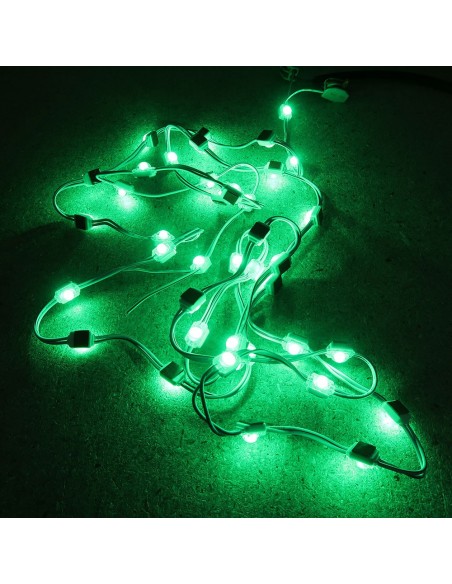

Each module is powered by one high output 2835 LED in green colour
24V - 0.24W - 100 lumens per watt
Ultrasonic soldering technology

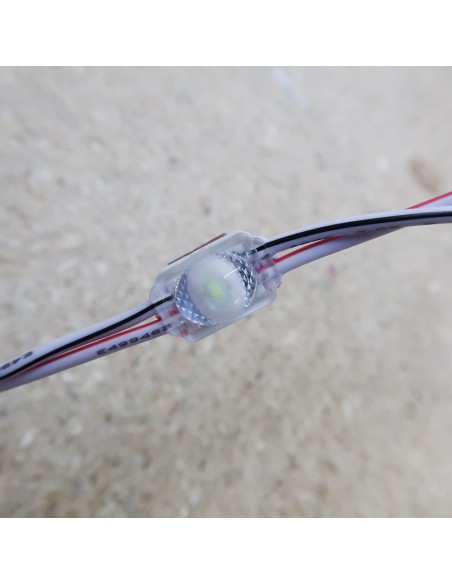

Elliptical 180*140°optic lens for uniform illumination

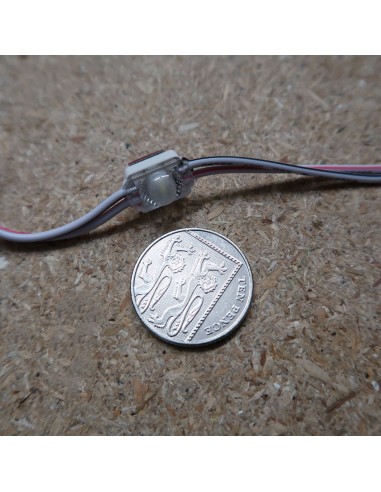

Module dimension W/L/H: 14x9x9mm

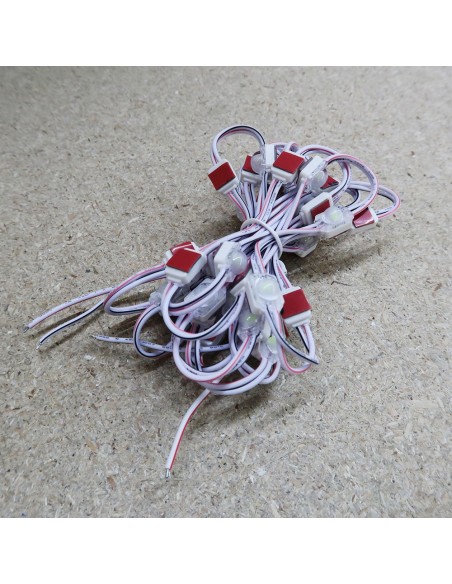

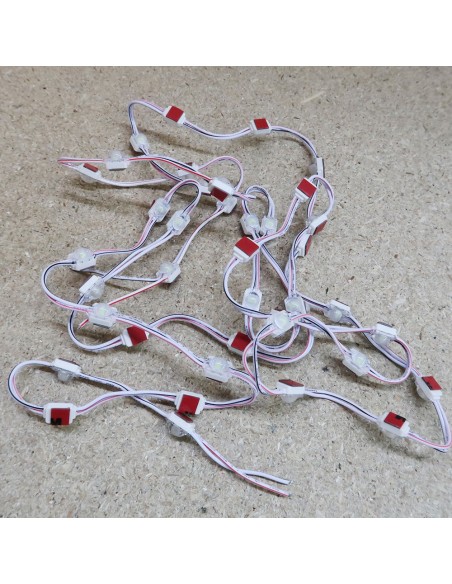

40 pcs per string - 2450mm total length.
Maximum series connection is 40 modules, for the LED driver it is suggested using 20% additional wattage than the power consumption of connected modules; it is not recommended to have the power supply run at 100% of its capacity for any LED application. The power wire cross sectional area (between power supply and first module) should be calculated accordingly to avoid voltage drop.
Please download datasheet from the attachments tab for more details.

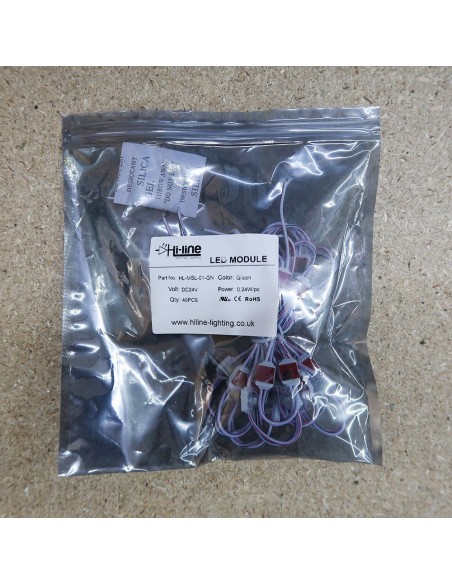

Price includes 40 modules (1 x string of 40)
Nominal life-time up to 50,000 h (L70 at ta 60 °C)
5 Years Warranty
- Best for lightbox/letter Depth
- 2-6 cm
- CIE Colour Space
- 3 SDCM
- LED Chip
- SMD 2835
- LED Module Beam Angle
- Elliptical 180*140° optic lens
- LED Module Controllability
- Constant Voltage driver
- Max. No. of Modules in series
- 40 modules
- Module Power Consumption
- 0.24 Watt
- IP Rating
- IP67 (Waterproof)
- 24V DC
- Voltage Type
- Constant Voltage
- 5 Years
