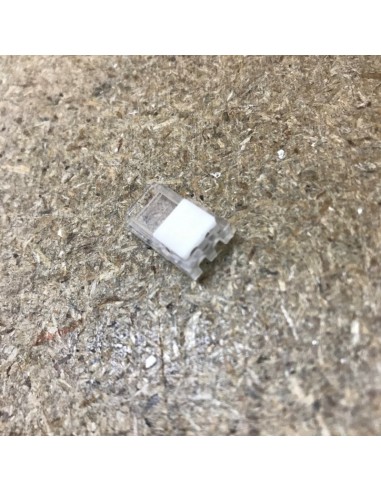

LED Profile strip to wire connector for 10mm IP00/20 LED tape single colour

HL-SC-LPB10-IP00

New product

Narrow mini 2 pin LED strip to wire connector

Supports high current LED strips

For 10mm IP00/IP20 single colour LED strips

Slim LED strip connector works inside aluminium profiles

More details

470 Items

Same Day Dispatch

£ 1,90

Add to wishlist

Data sheet

Voltage 3-24V DC
Rating IP00 (Non-waterproof)
Connector type strip to power connector
Connector width For 10mm LED strips
Number of terminals 2 pin (for single colour strips)
Brand Hi-Line

More info

Micro LED strip to wire (power) connector designed for 10mm wide IP00/IP20 non-waterproof single colour LED strip - Slim LED strip connector that can fit inside most aluminium LED profiles

Assemble wires by yourself as needed, flexible to different project, DIY customised length of wiring!

With this revolutionary LED strip to power connector you can customize required length of the cable, gauge, insulation colour and wire core type (stranded or solid) and use wires of your preference per project requirements.

This is a very high quality strip to wire connector suitable only for IP00/IP20 single colour 10mm wide LED strips.

Compatible with 30-120 LEDs/m LED strips (8mm single colour). This connector is made of flame retardant material.

Supports high current LED strips!

Please note that this connector is not compatible with the gel coated (PU) IP54/65/67 or IP68 LED strips.

­­­______________________________

Note: Please DO NOT close caps of the connector before strip to be in place !

______________________________



Technical Data

Size: L15.4mm X W11.5mm X H4.3mm

Colour: Transparent with white base

Number of Pin: 2

Pin Pitch: 5mm

LED Strip Width: 10mm

LED Strip Thickness: 0.2mm~0.35mm

Workable Wire Cross Sectional Area: 0.5 mm²

Workable Wire Gauge: 20 AWG

Workable Wire OD: Max 2.1 mm

Connection hardware: High precision brass(Cu)

Voltage range: 3-24V

Maximum current: 5A

Normal working temperature: ≦60°C

Working Temperature: -20°~+40°C

Rated Standard: IEC/EN 60664-1

Shell material: Polycarbonate

Flame Retardant: UL94v-0

Pin Material: Phosphor Copper (Cu)
