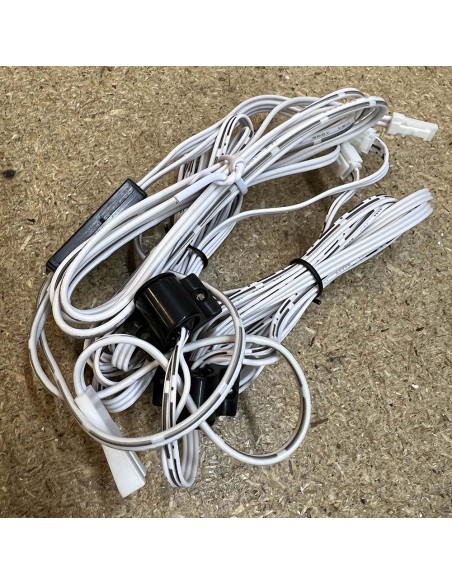

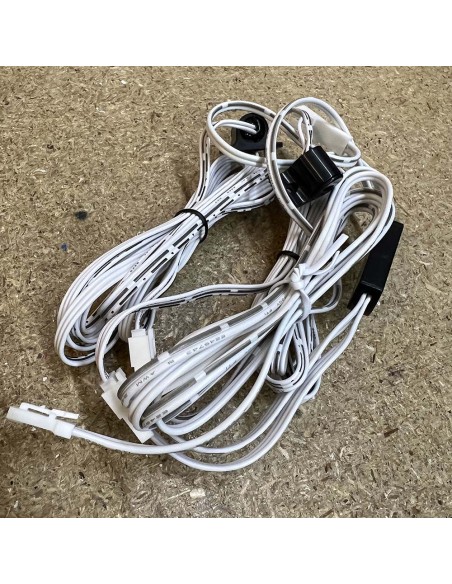

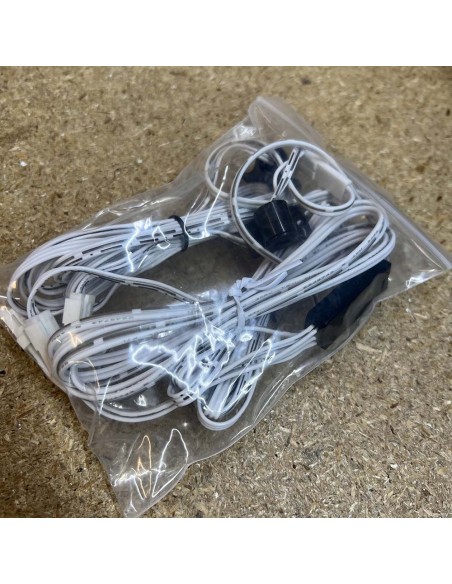

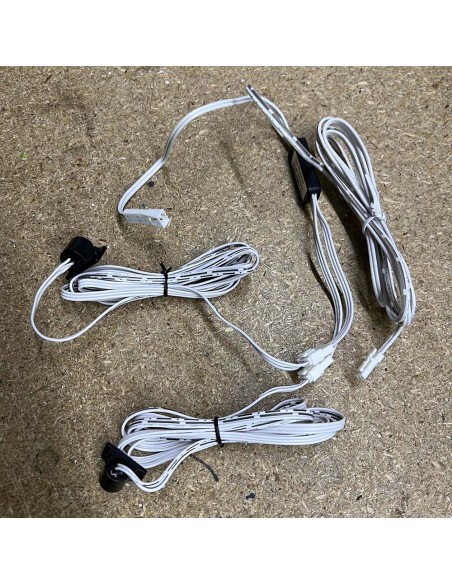

Double Door IR Sensor for LED Drivers – Hands-Free LED Control
This double door IR sensor allows automatic control of LED strips when opening and closing cabinet doors. Ideal for double-door wardrobes, cabinets, and walk-in dressing rooms, it offers a convenient, energy-efficient solution with a sleek, modern design.
This sensor supports 12V or 24V operation, with a maximum output of 60W at 12V and 100W at 24V. It is compatible with any 24V non-dimmable LED driver. While designed for plug-and-play use with cabinet LED drivers, it can also be used with standard non-dimmable LED drivers. The total LED load must not exceed the sensor’s maximum power rating.
How to Connect the Sensor
1. Connecting to a Cabinet LED Driver:
The sensor input plug connects directly to one of the cabinet LED driver's multiple output ports.
2. Connecting to a Standard Non-Dimmable LED Driver:
The sensor input plug must be cut, and the wires must be connected manually to the output terminals of the LED driver. Alternatively, instead of cutting, you can use a plug adapter such as the HL-CB1M 1m Plug & Wire Set for a quick and clean connection.
How to Connect the Sensor to the LED Strip
The sensor output has a pre-installed plug, but LED strips do not connect directly to it. To complete the connection:
Use a plug adapter such as the HL-CB1M 1m Plug & Wire Set to avoid cutting wires.
Alternatively, cut the plug and connect the wires manually.
Here’s a YouTube Shorts link demonstrating how the dual-door sensor operates in real time:
https://youtube.com/shorts/rRbyUBoqBDs
Installation Notes
This sensor offers a plug-and-play installation with cabinet LED drivers and a manual or plug-adapter option for standard LED drivers. It comes with a 2m wire, allowing flexibility in installation. The built-in detection system instantly adjusts brightness based on door movement, turning off specific outputs when doors are closed for energy-efficient operation.
To find all compatible cabinet LED drivers and accessories, visit the Related Products tab on this product page. If using a standard non-dimmable LED driver, ensure proper wiring by either cutting the plug or using the HL-CB1M plug adapter for a quick connection. Always ensure the total LED load does not exceed the sensor’s rated capacity.
Colour Finish Notice:
Please note the sensor finish is not guaranteed and may be supplied in silver or black, depending on the latest production batch. If the colour is important for your project, please email us to confirm before ordering.
