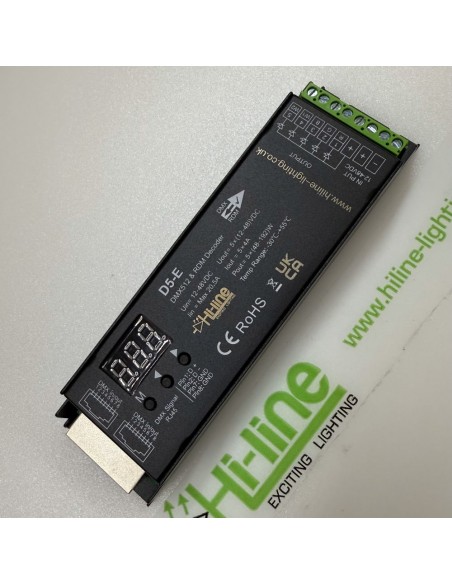

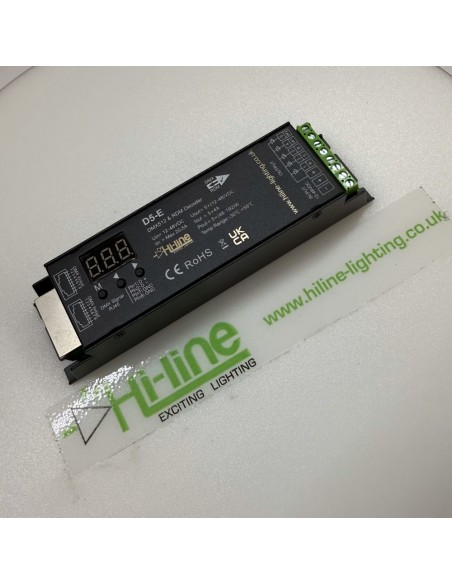

This 5-channel DMX512 and RDM decoder is designed for constant voltage LED installations. The D5-E version includes RJ45 DMX input and output ports, making it ideal for professional setups using standardised Ethernet-style DMX connections. It supports both 8-bit and 16-bit dimming resolution, adjustable PWM frequency up to 32kHz, and selectable linear or logarithmic dimming curves. The digital display allows quick address setting and full system parameter configuration.
We also stock the same decoder version with screw terminal connections (Reference: HL-D5-P). Please click the Related Products tab to find it easily.
Key Features
Ideal for TV studios and professional filming environments, with high-frequency PWM dimming to ensure flicker-free performance on camera.
5-channel output, 4A max per channel
Total output current: 20A max
Supports DMX512 and RDM protocols
8-bit and 16-bit grey level selectable
PWM frequency adjustable from 250Hz to 32kHz
Linear or logarithmic dimming curve options

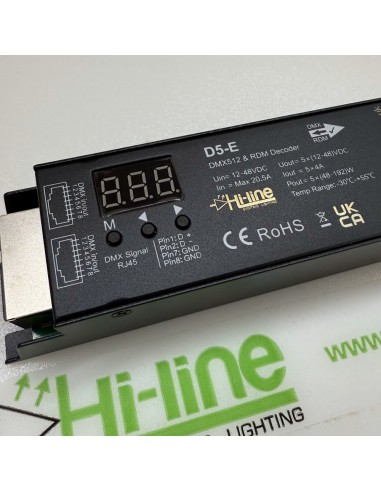

Digital display for easy address and system setting
Manual and RDM-based address assignment

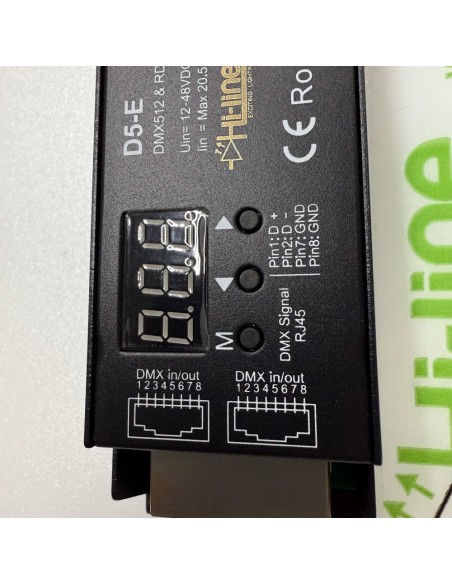

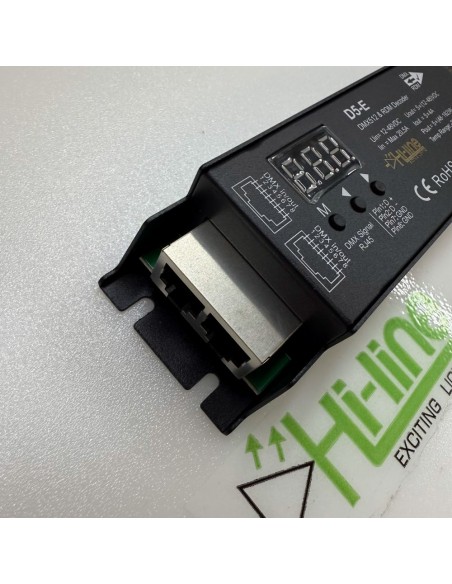

RJ45 input/output for DMX signal
Short circuit, overload, and overheat protection
Technical Specifications
Input Voltage: DC 12V to 48V
Output Type: Constant voltage
Output Voltage: 5 × (12–48)VDC
Output Current: 5 × 4A
Total Output Power: 5 × (48–192)W
Max Input Current: 20.5A
Dimming Resolution: 8-bit or 16-bit
PWM Frequency: Selectable up to 32kHz
Dimming Curve: Linear or logarithmic

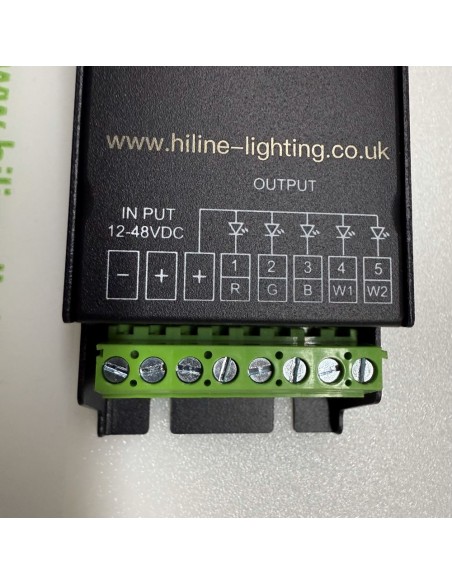

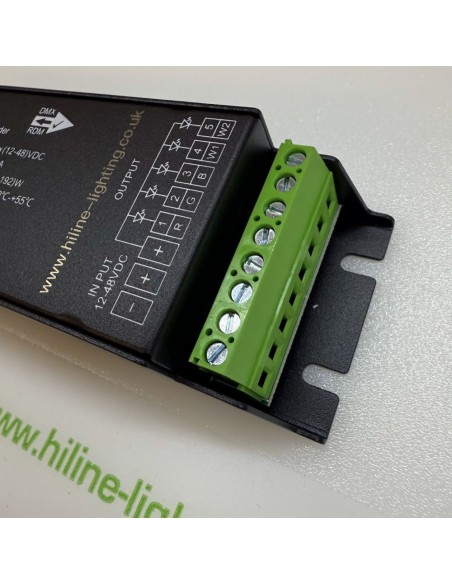

Connections: Screw terminals for power and output, RJ45 for DMX
Operating Temperature: -30°C to +55°C
Case Temperature (Max): +75°C
IP Rating: IP20
Dimensions: 178 × 50 × 38mm
Weight: 0.295kg
Certifications: UKCA, CE, RoHS
Warranty: 3 years standard, extendable to 5 years
