RGB LED Module 12V 3 LED IP65 – Signage & Lightbox Backlighting (Pack of 20)

RGB LED Module 12V 3 LED IP65 – Signage & Lightbox Backlighting

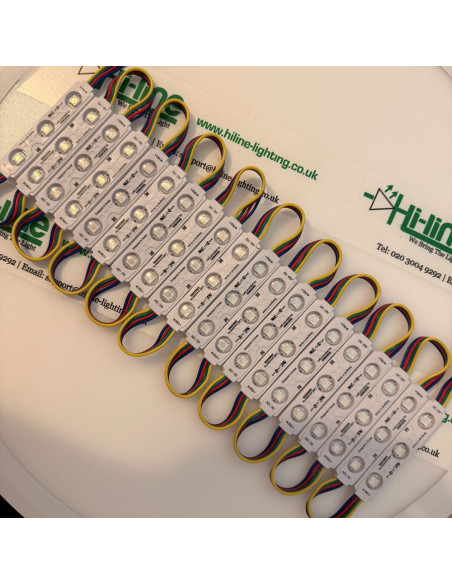

Supplied as a pack of 20 modules, suitable for small to medium installations or for scaling larger projects as required.

Part of the Hi-Line Value Series, this 12V RGB LED module is designed for signage, lightboxes and general backlighting applications where a cost-effective and flexible lighting solution is required.

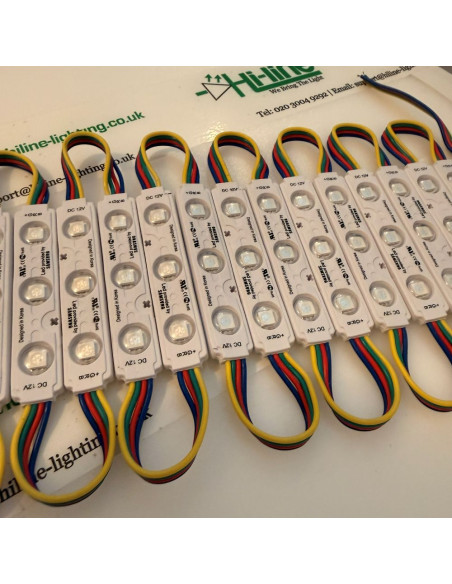

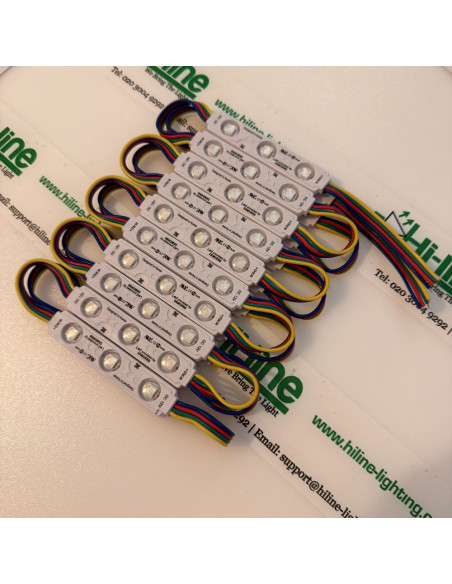

Each module integrates three SMD5050 RGB LEDs, delivering a wide beam angle for smooth and even light distribution. The compact format and pre-wired design allow for quick installation, making it suitable for a wide range of applications where LED strip may not be practical.

The flexible spacing between modules allows installers to adapt layouts easily, particularly in channel letters, shallow lightboxes and irregular shapes. This makes the product especially useful for sign makers, shopfitters and general lighting contractors.

This product is part of the Hi-Line Value Series, offering a practical balance between cost and performance. Each batch is selected and approved by Hi-Line Lighting to ensure consistent electrical operation and stable colour output, providing a more reliable solution compared to unverified import products.

Suitable for indoor use and protected outdoor environments, these modules provide dependable performance for everyday commercial and decorative lighting tasks.

Applications

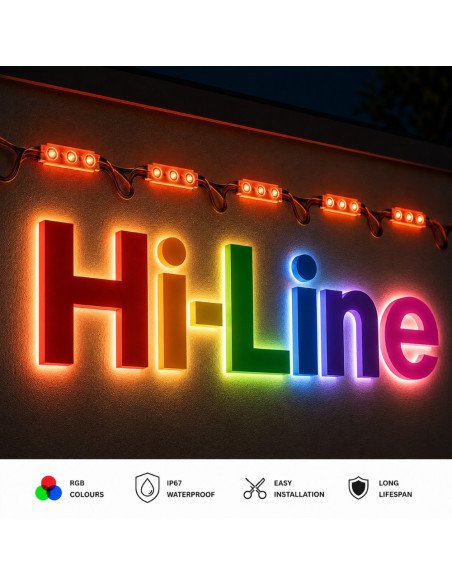

Signage lighting including shop fronts, fascia panels and channel letters
Backlighting for lightboxes, acrylic panels and opal diffusers
Retail displays and exhibition stands requiring simple RGB colour change
Coving and concealed lighting where flexible module spacing is preferred
Bar, club and hospitality feature lighting for basic RGB effects
Accent lighting in joinery, shelving and recessed areas

Technical Specifications

Voltage: 12V DC
Power Consumption: 1.5W per module
Pack Quantity: 20 modules
LED Type: SMD5050 RGB
LED Quantity: 3 LEDs per module
Current per Module: 0.125A
Total load per pack (20 modules): 30W (2.5A at 12V)
Beam Angle: 160–180°
IP Rating: IP65 (indoor and protected outdoor use)

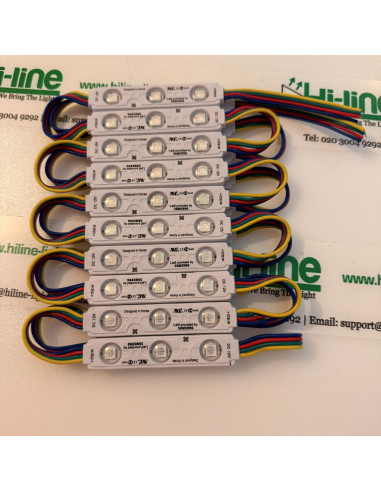

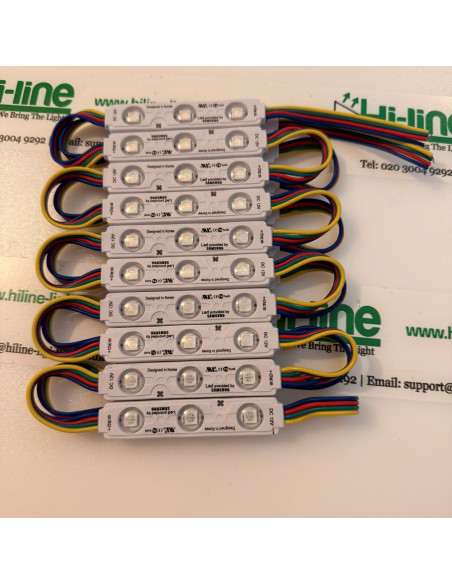

Dimensions: 75 × 15 × 5 mm
Operating Temperature: -40°C to +50°C (nominal)

Installation Notes

Each pack contains 20 modules. For larger installations, multiple packs can be combined with appropriate power distribution.
Designed for constant voltage RGB systems (4-wire: V+, R, G, B)
Recommended power injection every 20–30 modules to minimise voltage drop
Parallel wiring is advised for larger installations
Compatible with standard RGB LED controllers

Important Information

This product is intended for signage and general lighting applications where cost-effective RGB illumination is required. It is not suitable for colour-critical or architectural lighting installations.

Advisory

Basic installation guidance is provided for reference only. Final wiring method, power distribution and installation must be carried out by a qualified installer in accordance with relevant regulations.
