12mm 5-Pin COB RGBW LED Strip L Shape Corner Connector IP00

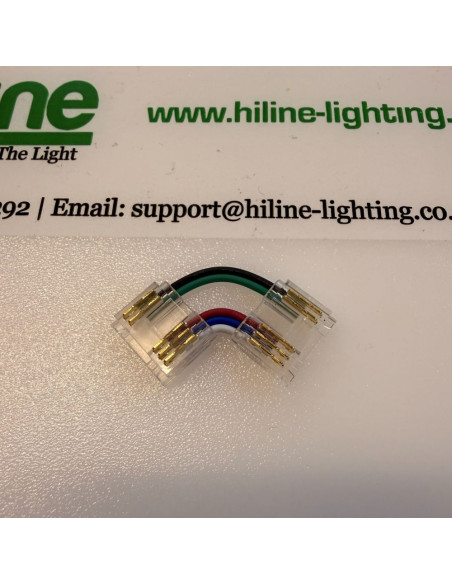

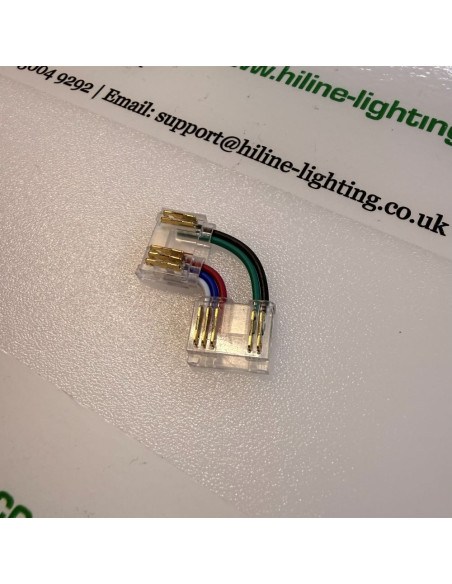

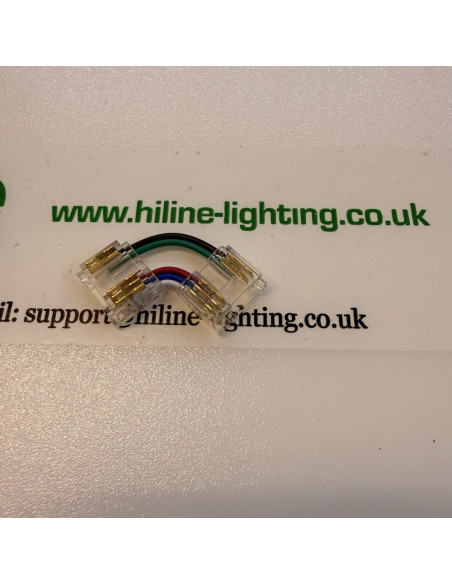

Introducing the 12mm 5-Pin COB RGBW LED Strip L Shape Corner Connector. This purpose-designed connector provides a clean, professional 90-degree corner solution specifically for Hi-Line 12mm COB RGBW LED strips.

Featuring a precision 5-pin layout matched to common anode RGBW wiring, it enables fast, tool-free installation without soldering. Perfect for cove lighting, architectural features, display cabinets, signage and any project requiring smooth corner transitions.

Important Current & Power Rating

This connector is rated for a maximum total load of 3.5A through the connector. Because COB RGBW strips use a common anode configuration, the single common positive (+) pin carries the combined current from all four colour channels (Red, Green, Blue and White).

This means the total power handling capacity is limited to 3.5A × 24V = 84 watts. For our standard 15W/m COB RGBW LED strip, the connector can safely support up to approximately 5 metres of strip connected through it. Always calculate your exact strip wattage and allow sensible headroom in the overall system design.

COB Strip Installation Note

COB LED strips require careful and accurate insertion. Always test the connector on a spare cut end first. Ensure the copper contact pads are fully seated and correctly aligned with the terminals. Incorrect depth or misalignment can cause short circuits between colour channels or poor contact. Proper technique is essential for reliable, flicker-free results.

Key Features

Specifically engineered for 12mm COB RGBW LED strips with 5-pin / 4-channel common anode configuration. Tool-free, solderless L-shape 90° corner connection with transparent low-profile housing for minimal visual impact. Gold-plated contacts deliver excellent conductivity and long-term reliability. Supports both left and right corner turns – always verify polarity alignment when positioning strip sections. Ideal for cove, architectural, retail and feature lighting projects. IP00 rated for indoor dry locations only.

Technical Specifications

Connector Type: L-Shape Corner (90°)
Compatible Strips: 12mm COB RGBW LED Strip (common anode, 5-core)
Pin Configuration: 5 pins
Max Total Current: 3.5A
Max Power @ 24V: 84W
Voltage Range: 3–24V DC
Dimensions: L 11.9mm × W 12mm / 13.7mm × H 5.0mm
Housing: Transparent high-temperature polycarbonate
Contacts: Gold-plated copper alloy
IP Rating: IP00 (Non-waterproof)
Installation: Tool-free insertion / clamp
Working Temperature: -10°C to +45°C

Tip: This connector works beautifully with our existing 12mm COB RGBW strips and the 5-pin RGBW COB strip-to-strip connectors. Always click the Related Products tab to find matching accessories and complementary items for your installation.
