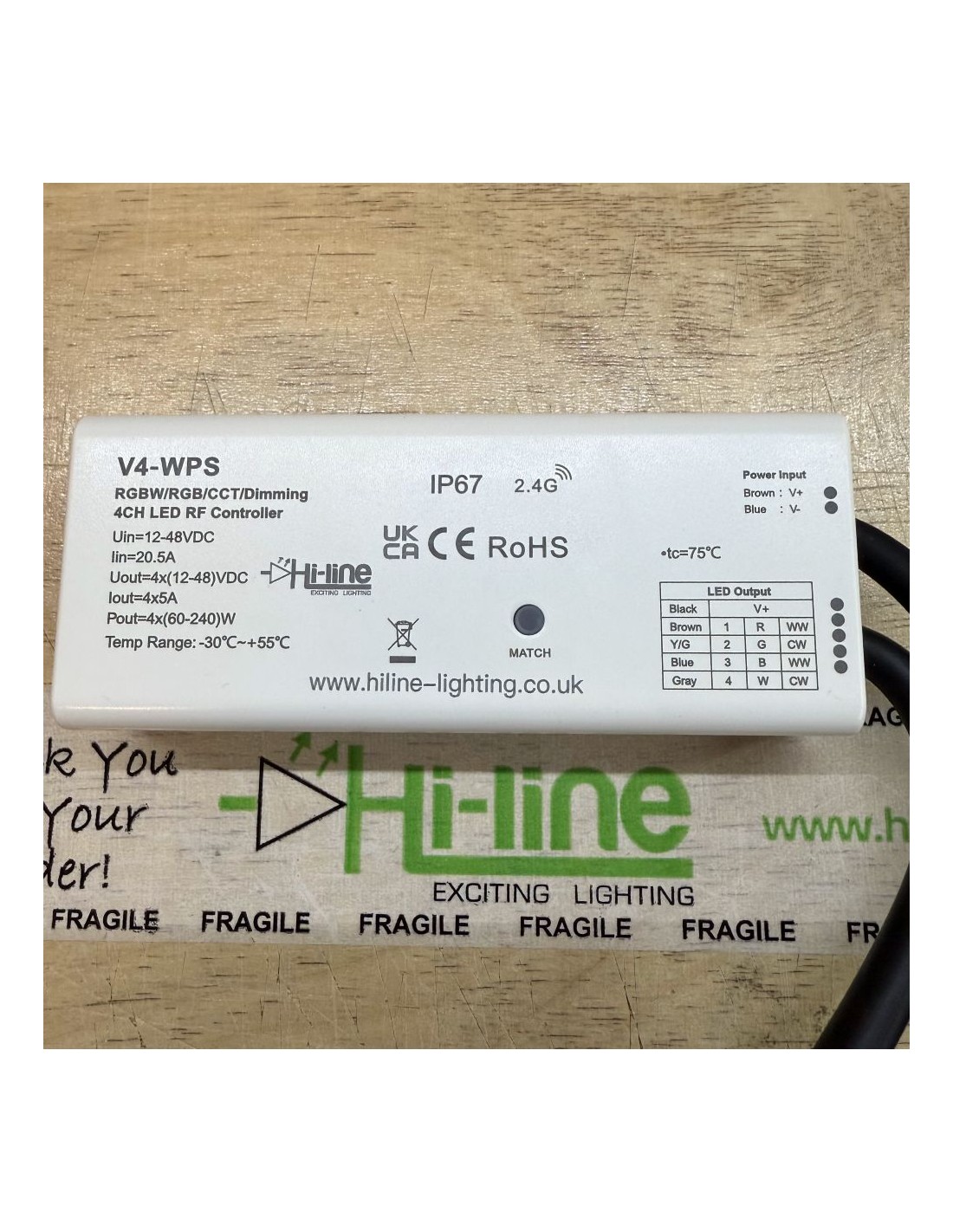

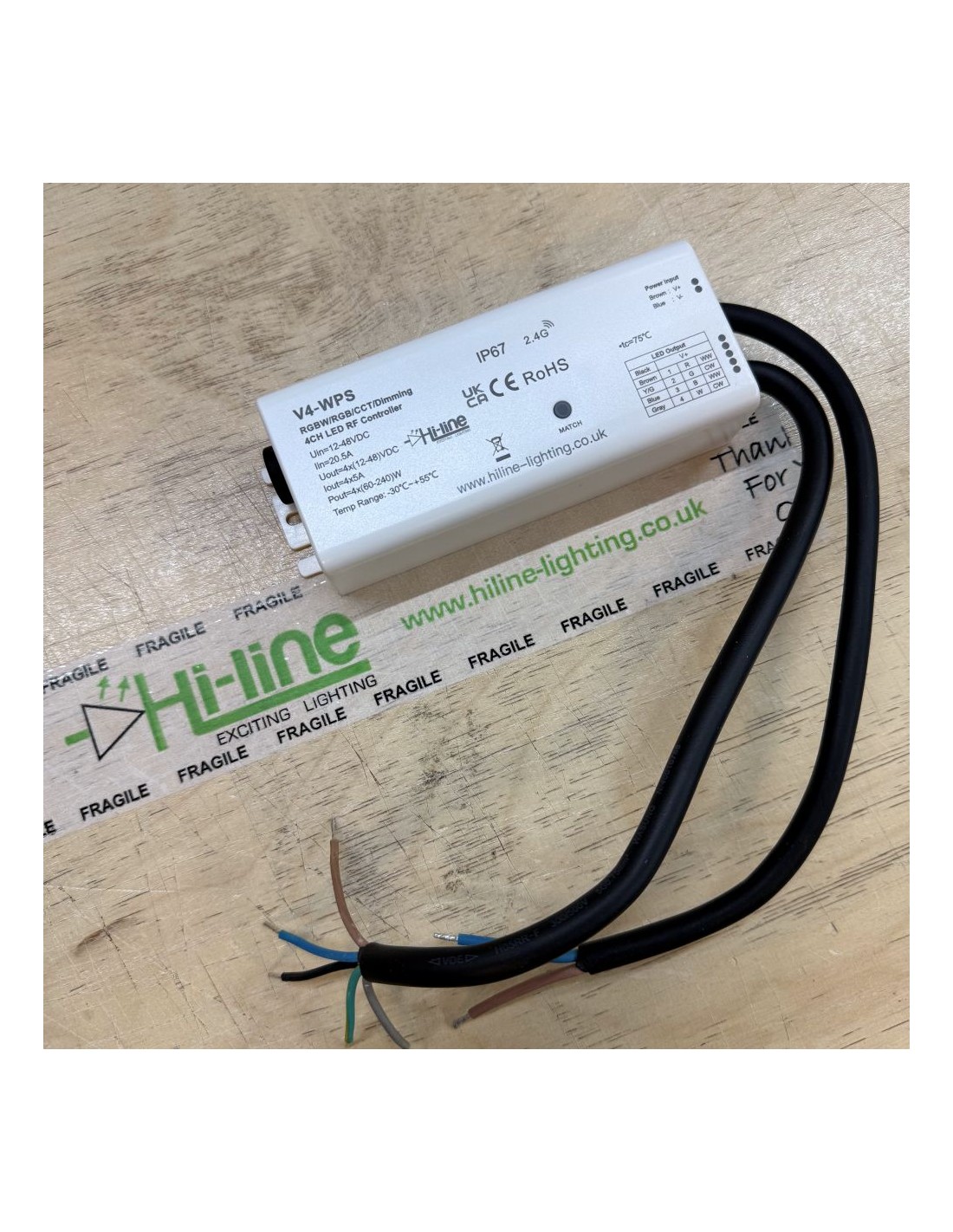

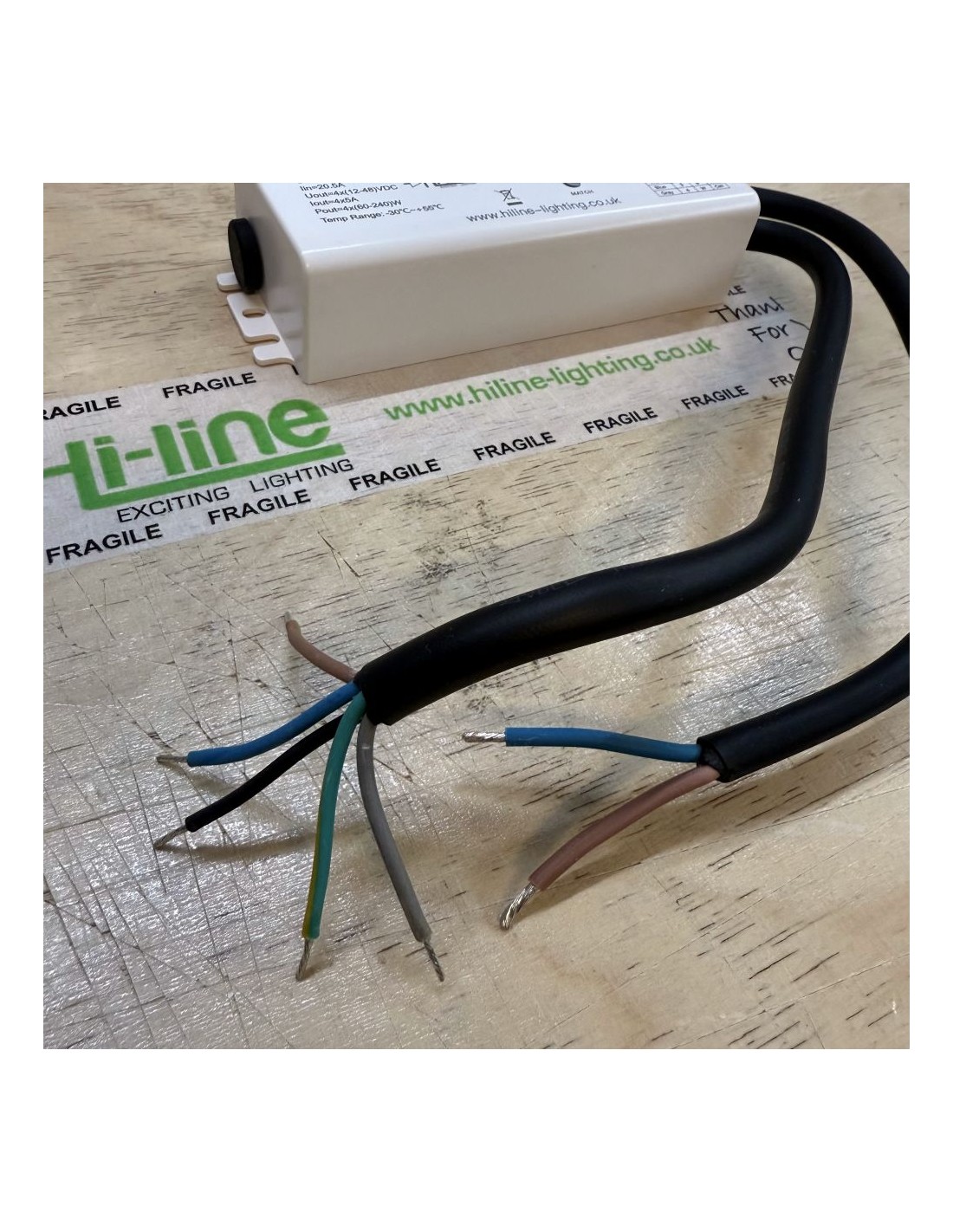

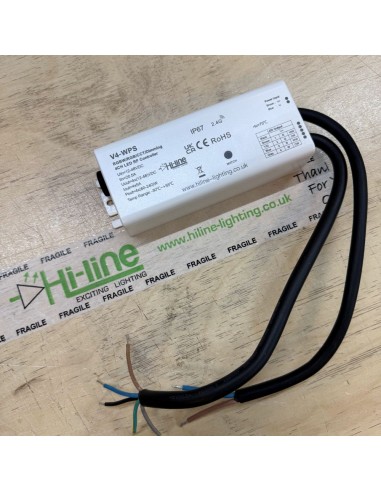

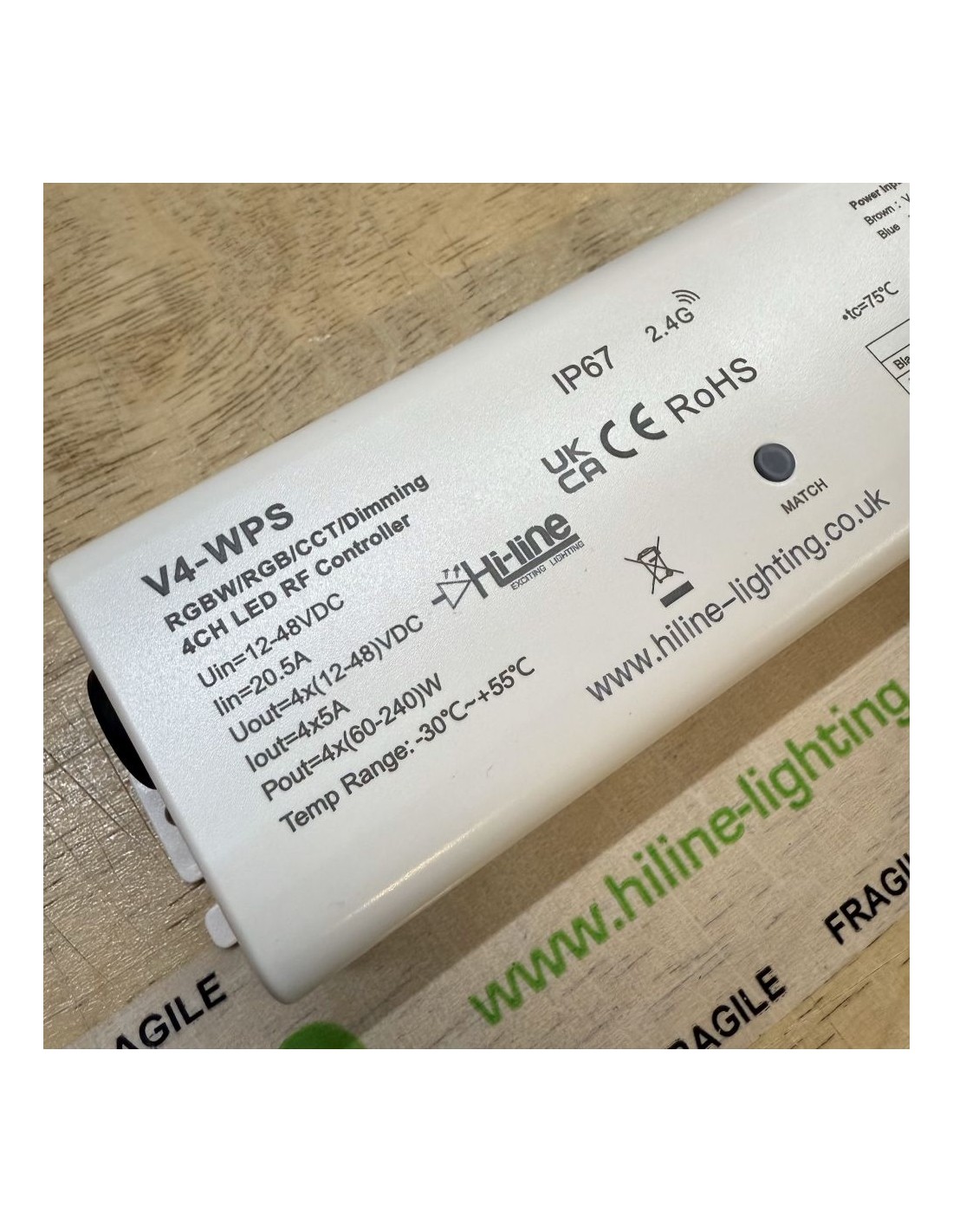

The V4-WPS is a professional-grade wireless controller designed to power and control LED strip lights in homes, gardens, commercial spaces, and signage. It lets you dim or change colours of LED strips using a remote or RF wall-mounted controller, and is fully waterproof for safe use outdoors.
This product is only the controller. A compatible remote control or wireless wall panel is required to operate the LED strips. To find matching accessories, click the "Related Products" tab above (or just below on mobile).
The controller supports all standard 12–48V constant voltage LED strips — including RGB, RGBW, dual white (CCT / tunable white), and single colour. You must pair the controller with the correct type of remote or wall panel that matches the type of LED strip you are installing.
For example:
Use an RGBW remote or wall panel if connecting RGBW LED strips
Use a CCT (dual white) remote or wall panel for tunable white LED strips
Use a single-colour dimming remote or panel for basic white LED strips
The controller must also be configured for the correct mode using the internal setup process. A built-in memory ensures the controller stores its settings for each installation.
This unit supports up to 10 remote controls, allows fade-in/out adjustment, and synchronises with other V4-WPS controllers via wireless auto-transmission (up to 30 metres range). It offers 0–100% flicker-free dimming with 4096 grey levels and 10 dynamic RGB/RGBW lighting effects.
Looking for Related Products or Accessories? Click the "Related Products" tab above (or just below on mobile) to find compatible remotes, wall panels, or wiring accessories. You can also download the full PDF installation manual from the "Attachments" tab. Detailed specifications can be found in the "Product Specification" tab.
Note for installers: Ensure your LED driver wattage exceeds total LED strip load by at least 20%, as this controller requires a stable constant voltage power source for reliable performance.
Technical Specifications
Input Voltage: 12–48V DC (Constant Voltage only)
Input Current: Max 20.5A
Output Voltage: 4 × (12–48)V DC
Output Current: 4 Channels × 5A (Total 20A max)
Output Power: 4 × (60–240)W (Depending on voltage used)
Dimming Type: PWM (4096-level, flicker-free)
Dimming Range: 0–100%
Dimming Curve: Logarithmic (Gamma = 1.6 for RGB/DIM; 1.0 for CCT)
PWM Frequency: 1000Hz
Control Signal: RF 2.4GHz (Single/Multi-zone Remote Compatible)
Control Distance: Up to 30m (barrier-free)
Remote Matching: Supports up to 10 paired remotes
Dynamic Modes (RGB/RGBW): 10 pre-set effects including jump, smooth, and colour transitions
Fade Functions: Adjustable fade-in/out behaviour
Protection Rating: IP67 – Waterproof
Ambient Temperature: -30°C to +55°C
Max Case Temperature (tc): +75°C
Certifications: UKCA, CE, RED (ETSI EN 300 328 V2.2.2), EN 61347-1:2015 + A1:2021, EN 61347-2-13:2014 + A1:2017
Housing Dimensions: L165 × W98 × H72 mm
Weight: 0.492kg
Warranty: 3 Years (extendable to 5 years upon request)
